NCERT Solutions for Class 7 Maths Chapter 5 Parallel and Intersecting Lines (PDF) – 2027

NCERT Solutions for Class 7 Maths Chapter 5 Parallel and Intersecting Lines – step-by-step answers to every exercise and in-text question of the chapter, as per the latest NCERT syllabus for 2027. Read them online or download the free question-answer PDF.

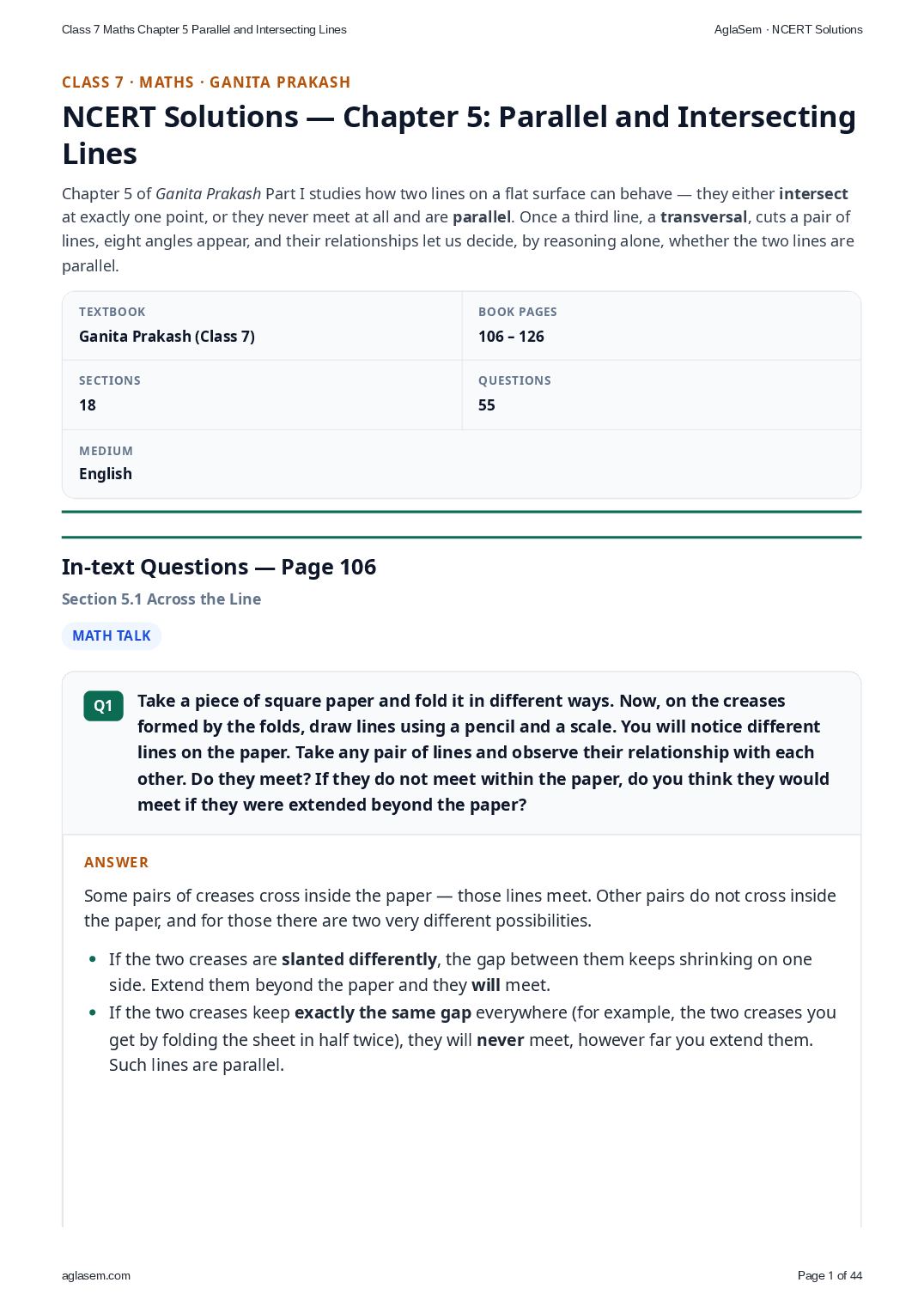

Chapter 5 of Ganita Prakash Part I studies how two lines on a flat surface can behave — they either intersect at exactly one point, or they never meet at all and are parallel. Once a third line, a transversal, cuts a pair of lines, eight angles appear, and their relationships let us decide, by reasoning alone, whether the two lines are parallel.

NCERT Solutions for Class 7 Maths Chapter 5 Parallel and Intersecting Lines PDF

All the answers are on this page below. The PDF also explains every answer – why it is right and how to check it – so download it for revision.

PDFChapterDownload
Solutions PDF (English medium)Parallel and Intersecting LinesView PDF
Solutions PDF (Hindi medium)समांतर और प्रतिच्छेदी रेखाएँView PDF

NCERT Solutions for Class 7 Maths Chapter 5 Parallel and Intersecting Lines – Questions and Answers

All 57 questions of the chapter (textbook pages 106 – 126) are answered below, in the order of the book – in-text questions, activities and the end-of-chapter exercises. Each answer is written the way you would write it in the exam.

In-text Questions — Page 106Section 5.1 Across the Line

Math Talk
Q1Take a piece of square paper and fold it in different ways. Now, on the creases formed by the folds, draw lines using a pencil and a scale. You will notice different lines on the paper. Take any pair of lines and observe their relationship with each other. Do they meet? If they do not meet within the paper, do you think they would meet if they were extended beyond the paper?
Answer

Some pairs of lines meet (intersect) inside the paper. For a pair that does not meet on the paper:

  • if the gap between the two lines gets smaller in one direction, they will meet when extended beyond the paper;
  • if the gap stays the same all along, they will never meet, however far they are extended. Such lines are parallel.

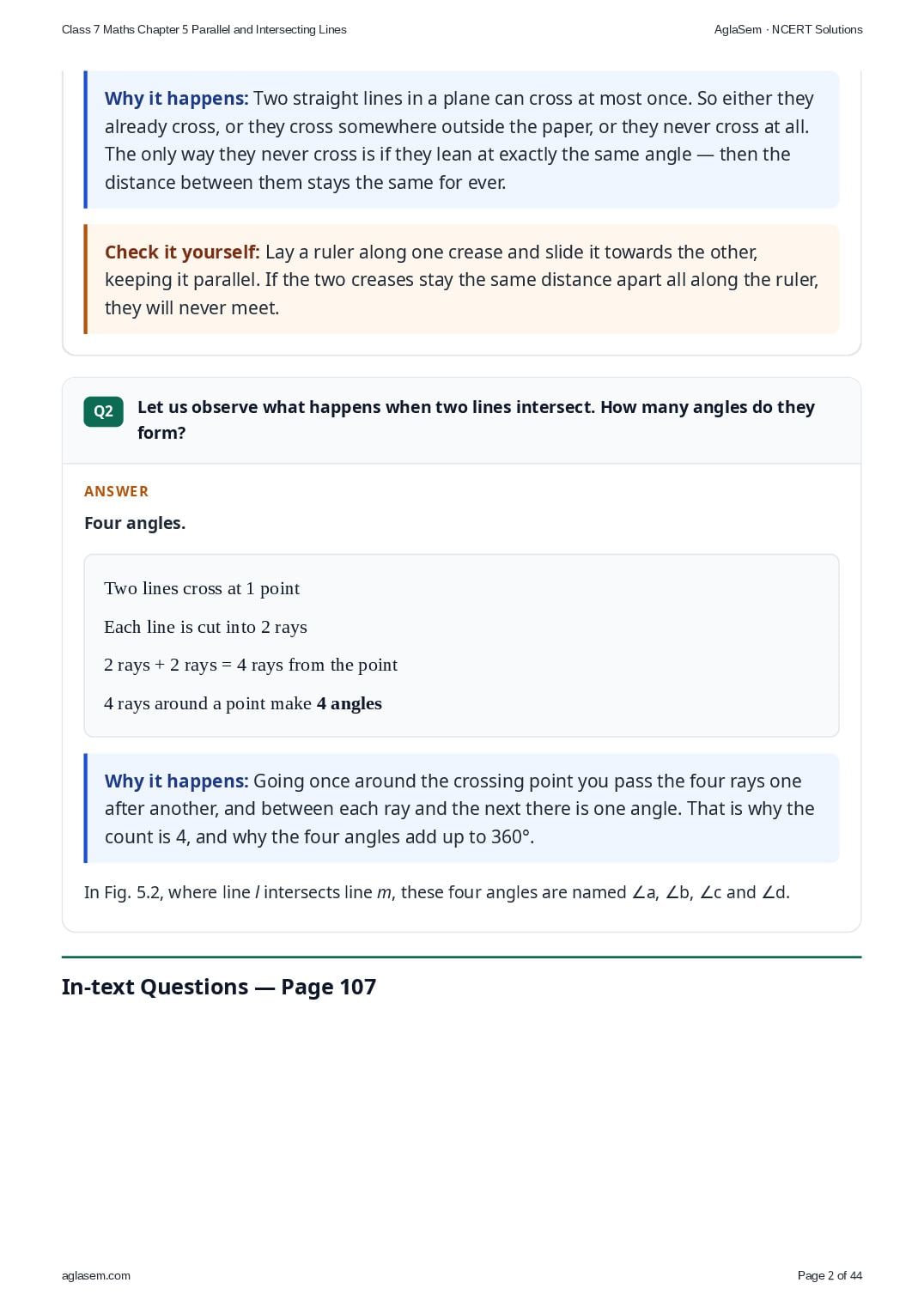

Q2Let us observe what happens when two lines intersect. How many angles do they form?
Answer

Four angles.

At the crossing point each line is split into 2 rays, so 4 rays start from that point and they make 4 angles. In Fig. 5.2 they are ∠a, ∠b, ∠c and ∠d.

In-text Questions — Page 107Section 5.1 Across the Line

Math TalkTry This

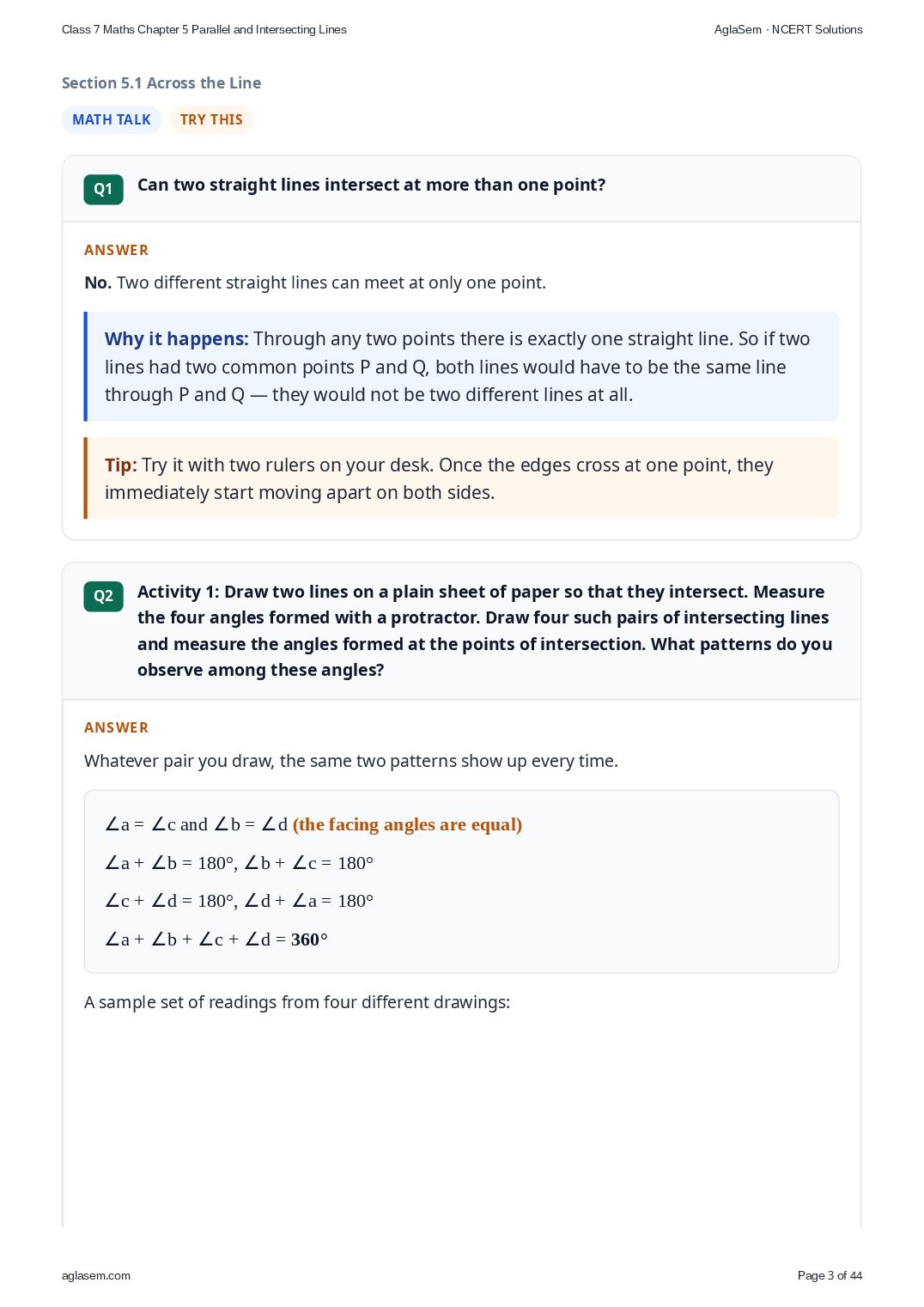

Q1Can two straight lines intersect at more than one point?
Answer

No. Two different straight lines can meet at only one point.

Q2Activity 1: Draw two lines on a plain sheet of paper so that they intersect. Measure the four angles formed with a protractor. Draw four such pairs of intersecting lines and measure the angles formed at the points of intersection. What patterns do you observe among these angles?
Answer

Vertically opposite (facing) angles are equal, and any two angles next to each other add up to 180°.

∠a = ∠c and ∠b = ∠d (the facing angles are equal)
∠a + ∠b = 180°, ∠b + ∠c = 180°
∠c + ∠d = 180°, ∠d + ∠a = 180°
∠a + ∠b + ∠c + ∠d = 360°

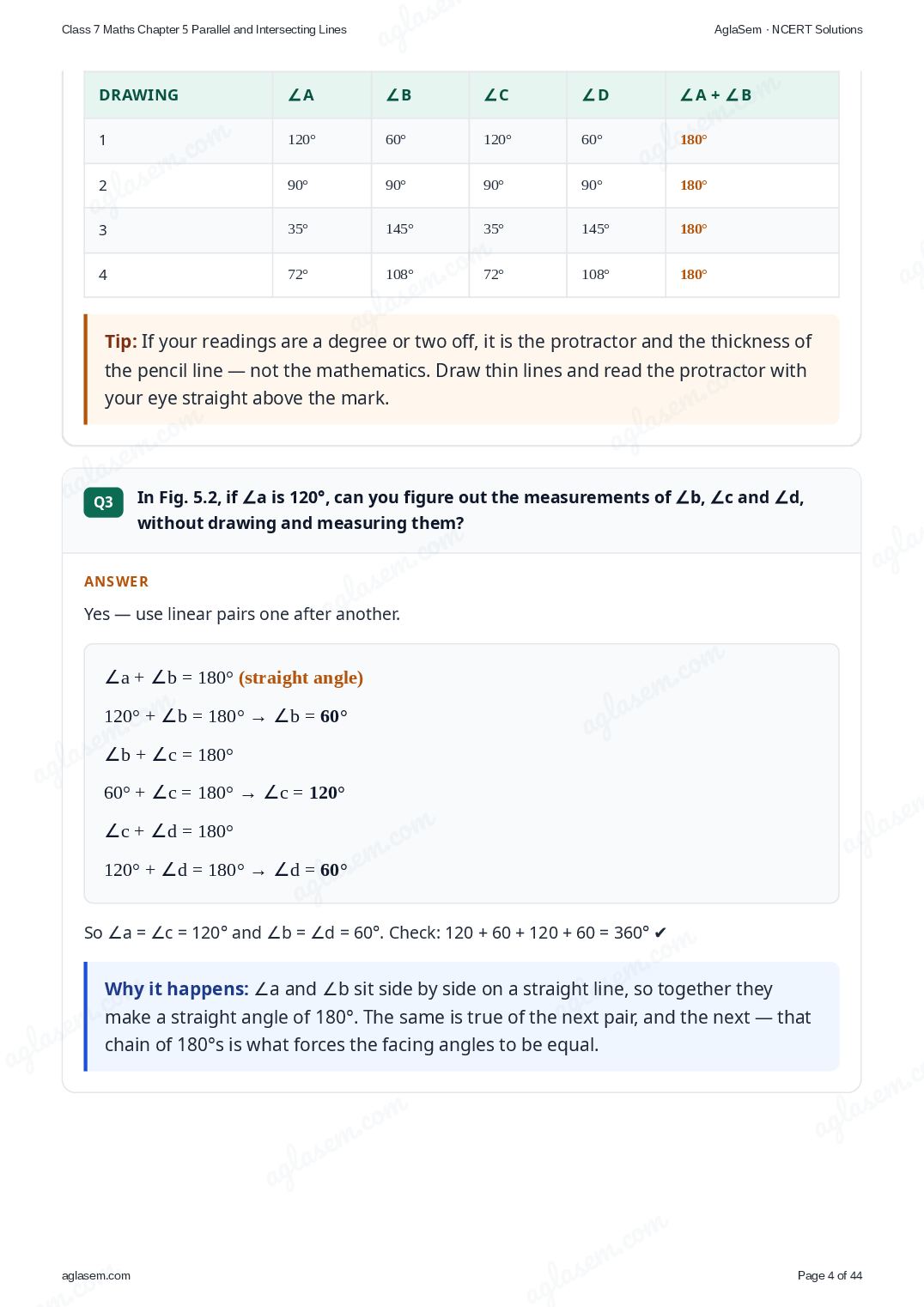

Q3In Fig. 5.2, if ∠a is 120°, can you figure out the measurements of ∠b, ∠c and ∠d, without drawing and measuring them?
mlabcd
Fig. 5.2, page 107 — line l crossing line m, forming the four angles ∠a, ∠b, ∠c and ∠d.
Answer

Yes — use linear pairs one after another.

∠a + ∠b = 180° (straight angle)
120° + ∠b = 180° → ∠b = 60°
∠b + ∠c = 180°
60° + ∠c = 180° → ∠c = 120°
∠c + ∠d = 180°
120° + ∠d = 180° → ∠d = 60°

So ∠a = ∠c = 120° and ∠b = ∠d = 60°. Check: 120 + 60 + 120 + 60 = 360° ✔

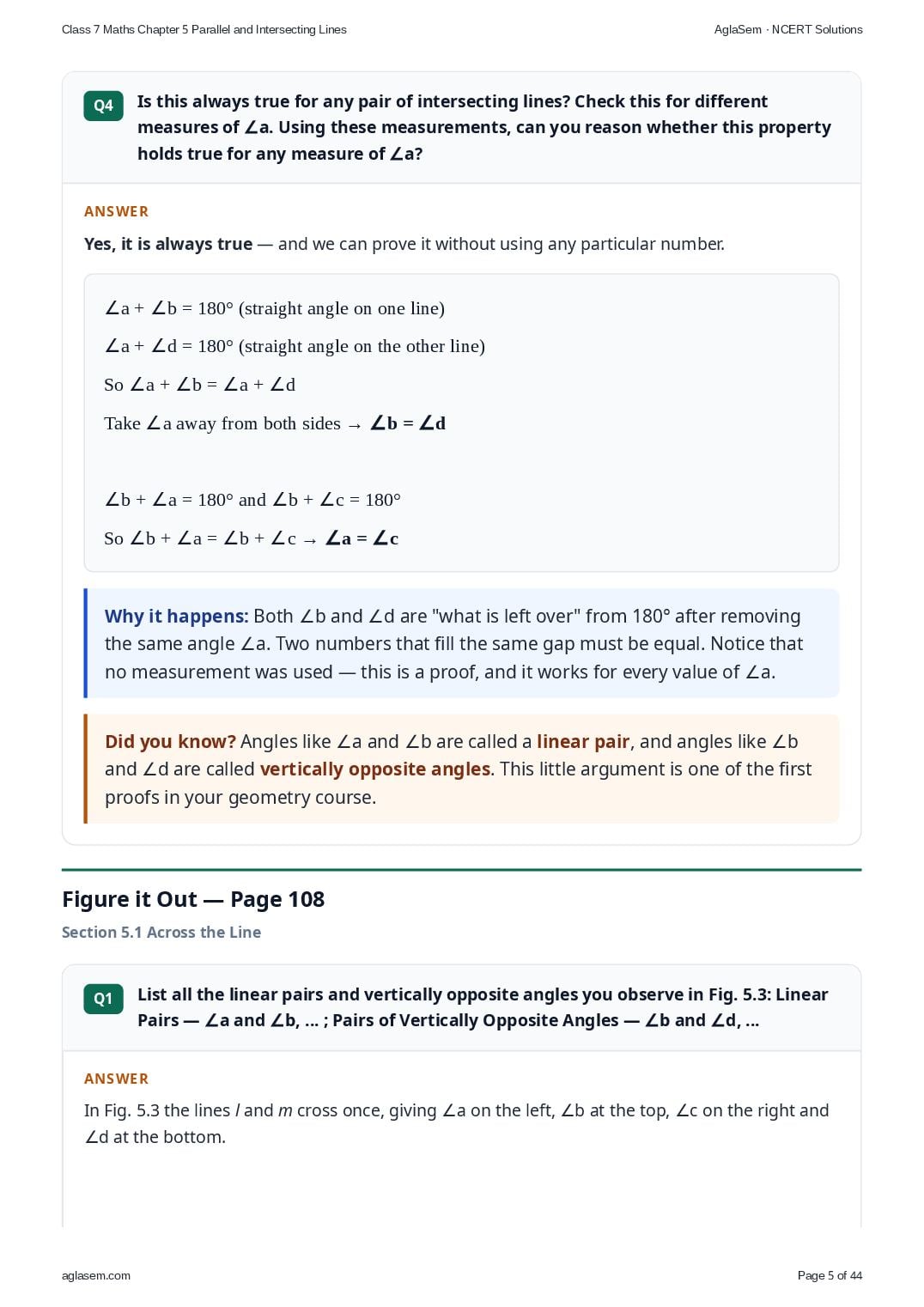

Q4Is this always true for any pair of intersecting lines? Check this for different measures of ∠a. Using these measurements, can you reason whether this property holds true for any measure of ∠a?
mlabcd
Fig. 5.2, page 107 — line l crossing line m, forming the four angles ∠a, ∠b, ∠c and ∠d. The book has just found that here ∠a = ∠c and ∠b = ∠d.
Answer

Yes, it is always true — and we can prove it without using any particular number.

∠a + ∠b = 180° (straight angle on one line)
∠a + ∠d = 180° (straight angle on the other line)
So ∠a + ∠b = ∠a + ∠d
Take ∠a away from both sides → ∠b = ∠d

∠b + ∠a = 180° and ∠b + ∠c = 180°
So ∠b + ∠a = ∠b + ∠c → ∠a = ∠c

Figure it Out — Page 108Section 5.1 Across the Line

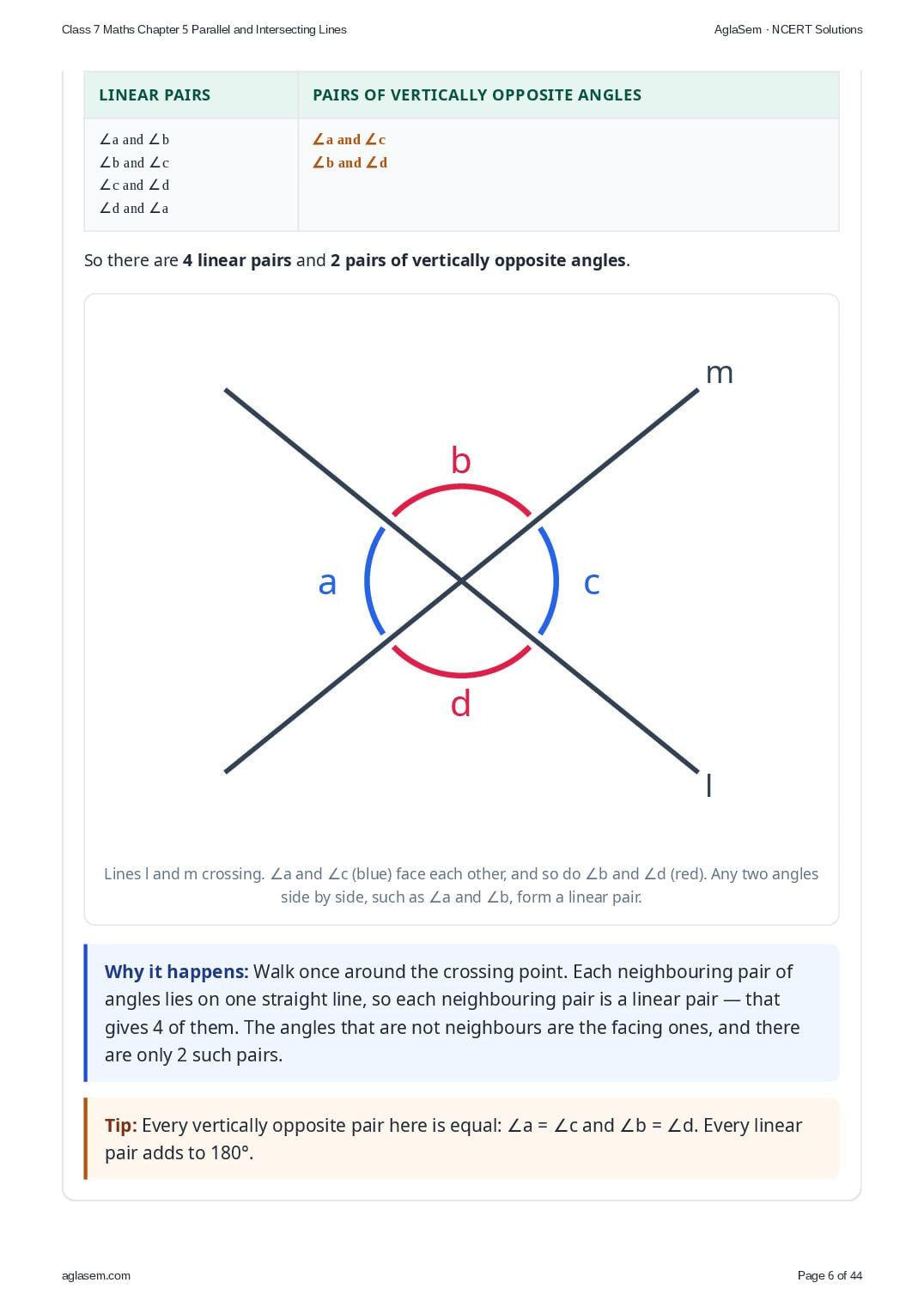

Q1List all the linear pairs and vertically opposite angles you observe in Fig. 5.3: Linear Pairs — ∠a and ∠b, … ; Pairs of Vertically Opposite Angles — ∠b and ∠d, …
abcdlm
Fig. 5.3, page 108 — lines l and m intersecting, with ∠a, ∠b, ∠c and ∠d around the crossing.
Answer

In Fig. 5.3 the lines l and m cross once, giving ∠a on the left, ∠b at the top, ∠c on the right and ∠d at the bottom.

Linear PairsPairs of Vertically Opposite Angles
∠a and ∠b
∠b and ∠c
∠c and ∠d
∠d and ∠a
∠a and ∠c
∠b and ∠d

So there are 4 linear pairs and 2 pairs of vertically opposite angles.

In-text Question — Page 108Section 5.1 — Measurements and Geometry

Math Talk
Q1Measurements and Geometry: You might have noticed that when you measure linear pairs, sometimes they may not add up to 180°. Or, when you measure vertically opposite angles they may be unequal sometimes. What are the reasons for this?
Answer

There are two main reasons:

  1. Measurement errors — the protractor is not used properly (centre not exactly on the vertex, or the wrong scale read).
  2. Thickness of the lines — an ideal line in geometry has no thickness, but every line we draw has some, so the arms and the vertex are not exact.

The facts themselves come from reasoning, so they are always exactly true; careful measurements come very close to them.

In-text Questions — Page 108Section 5.2 Perpendicular Lines

Math Talk

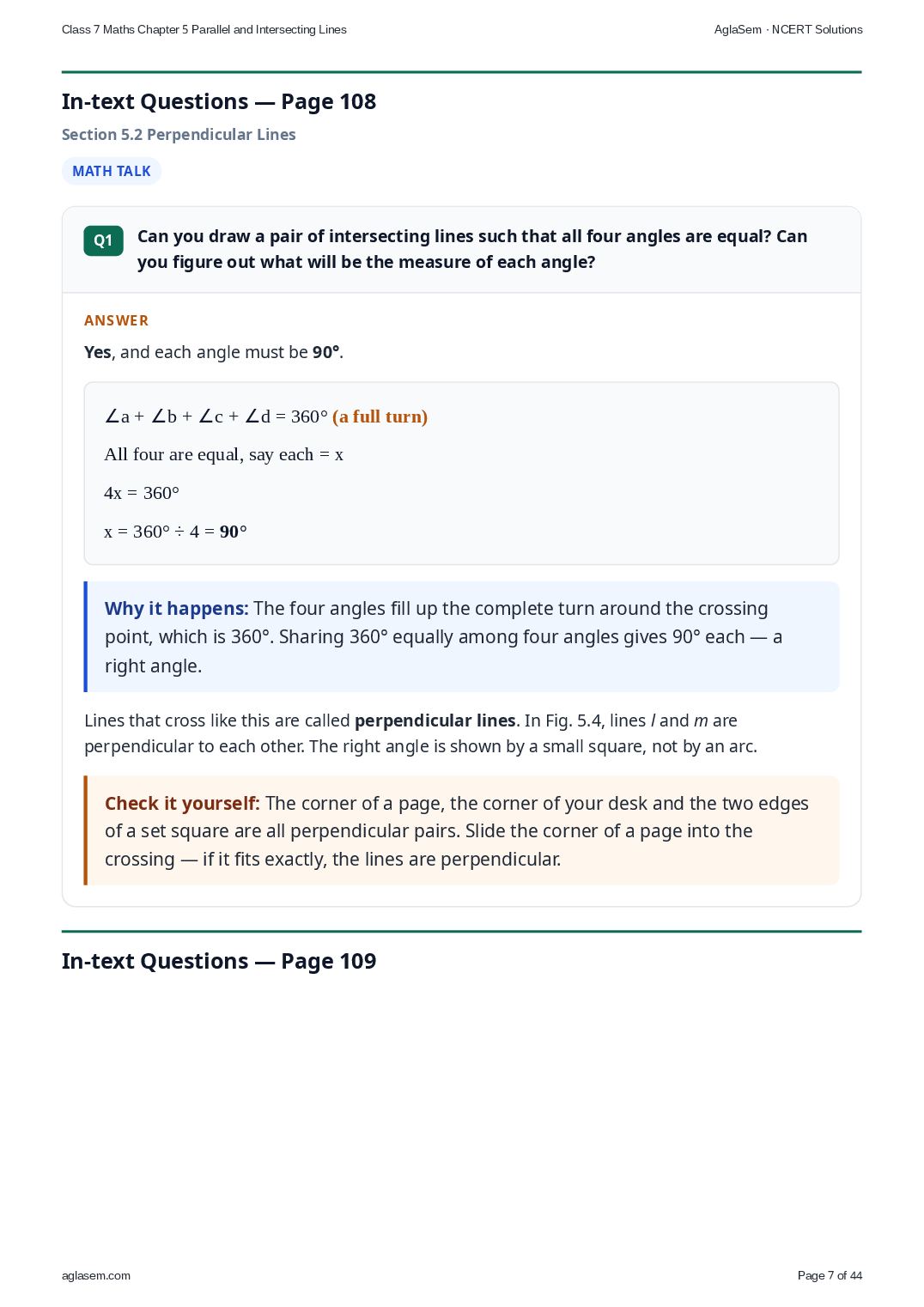

Q1Can you draw a pair of intersecting lines such that all four angles are equal? Can you figure out what will be the measure of each angle?
Answer

Yes, and each angle must be 90°.

∠a + ∠b + ∠c + ∠d = 360° (a full turn)
All four are equal, say each = x
4x = 360°
x = 360° ÷ 4 = 90°

Lines that intersect like this are called perpendicular lines.

In-text Questions — Pages 109–110Section 5.3 Between Lines

Math Talk

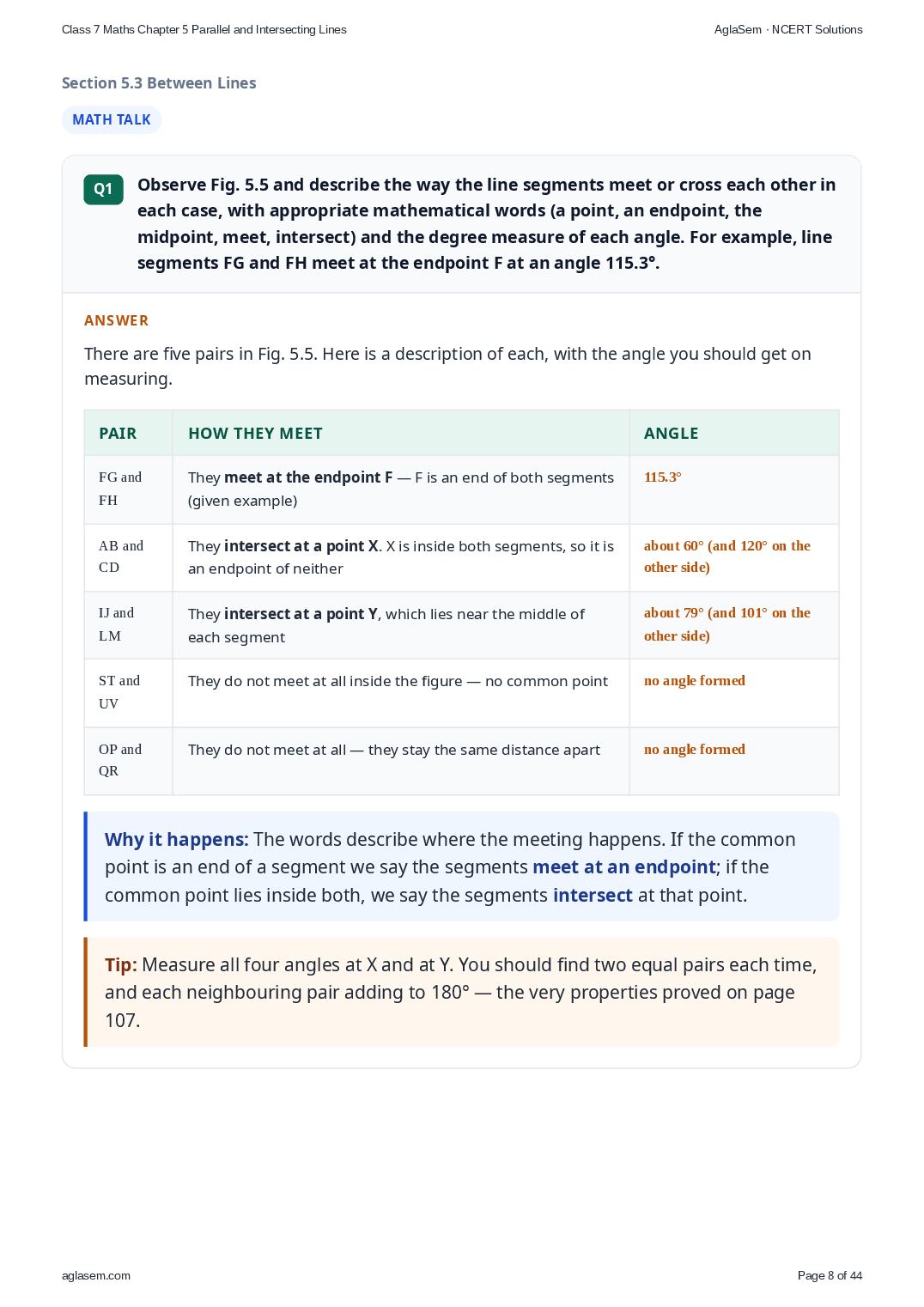

Q1Observe Fig. 5.5 and describe the way the line segments meet or cross each other in each case, with appropriate mathematical words (a point, an endpoint, the midpoint, meet, intersect) and the degree measure of each angle. For example, line segments FG and FH meet at the endpoint F at an angle 115.3°.
STVUCBDXRPOQAHFGMLIJ115.3°
Fig. 5.5, page 109 — the pairs of line segments ST and UV, AB and CD, OP and QR, FG and FH, and IJ and LM.
Answer
  • FG and FH meet at the endpoint F at an angle of 115.3° (the given example).
  • AB and CD intersect at the point X, which is not an endpoint of either segment. They make angles of about 60° and 120°.
  • IJ and LM intersect at the point Y, near the middle of both. They make angles of about 79° and 101°.
  • ST and UV do not meet in the figure, so no angle is formed.
  • OP and QR do not meet; they stay the same distance apart, so no angle is formed.

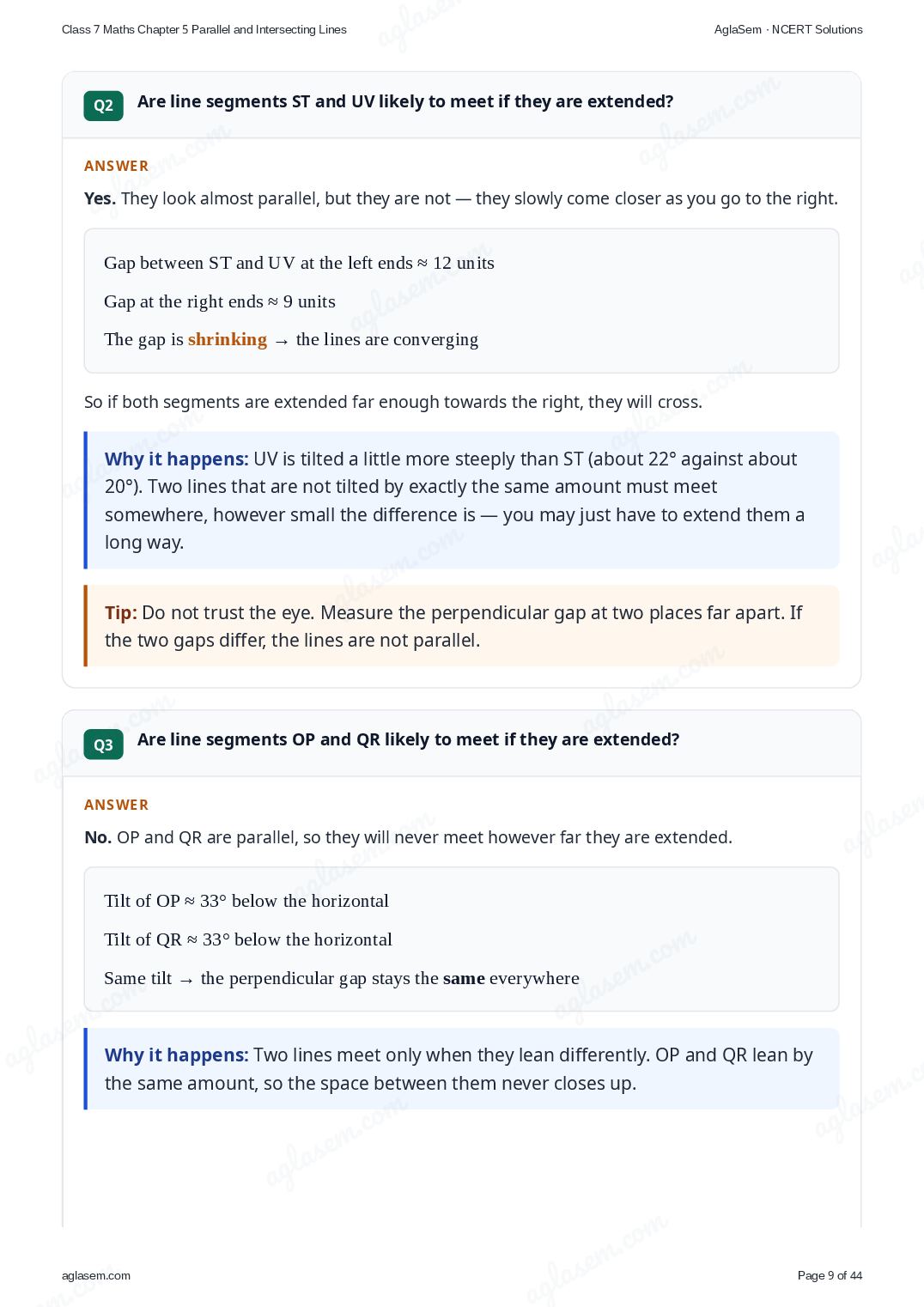

Q2Are line segments ST and UV likely to meet if they are extended?
Answer

Yes. They look almost parallel, but they are not — they slowly come closer as you go to the right.

So if both segments are extended far enough towards the right, they will cross.

Q3Are line segments OP and QR likely to meet if they are extended?
Answer

No. OP and QR are parallel, so they will never meet however far they are extended.

Q4Here are some examples of lines we notice around us. What is common to the lines in the pictures above?
[Pictures on page 110: the keys of a piano, a park bench made of straight slats, and a railway track seen from above with its sleepers.]
Answer

In each picture the lines run side by side and stay the same distance apart, so they do not seem likely to intersect each other, however far they are extended. Such lines are called parallel lines.

In-text Questions — Page 110Section 5.3 Between Lines

Math Talk

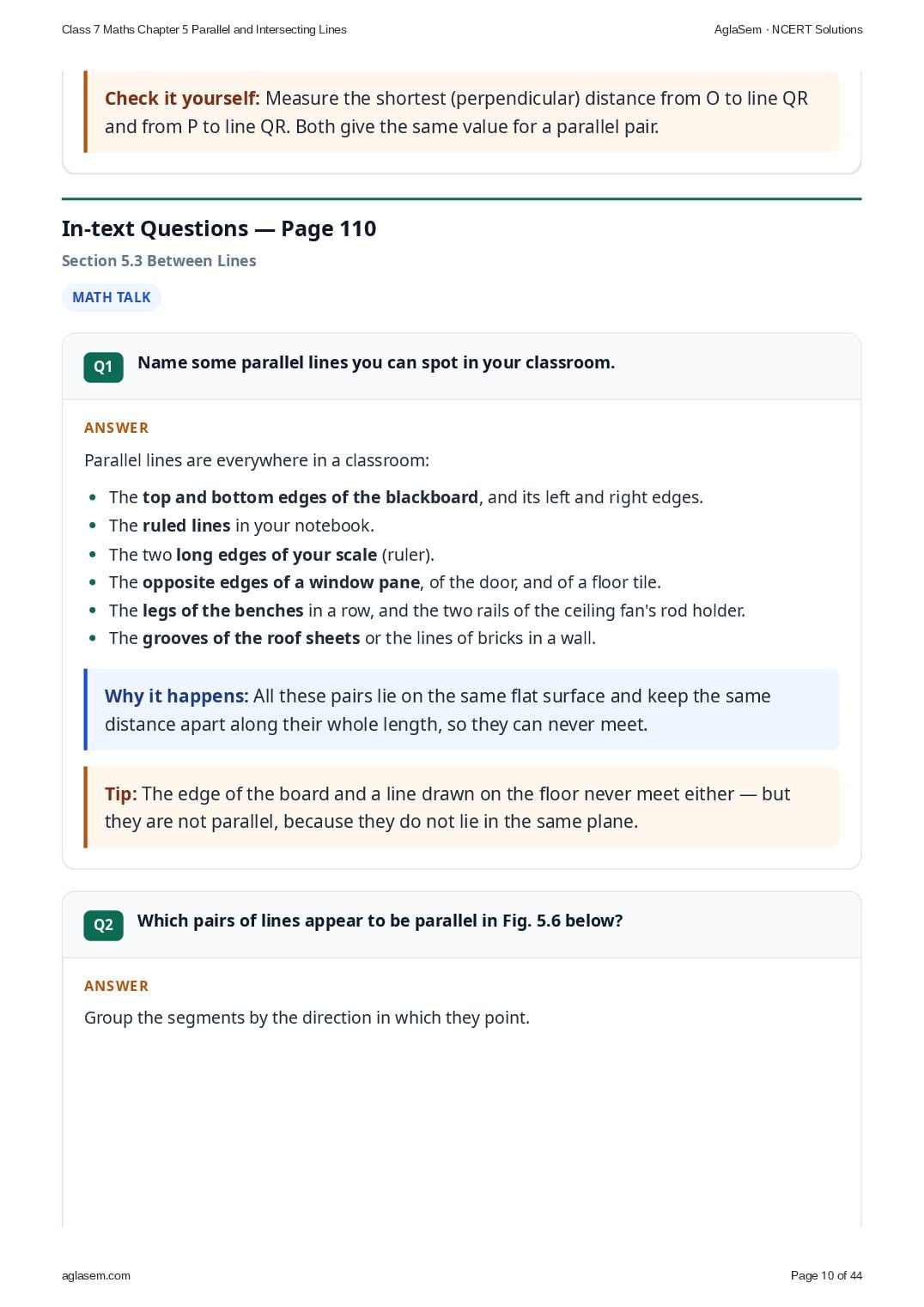

Q1Name some parallel lines you can spot in your classroom.
Answer

Parallel lines are everywhere in a classroom:

  • The top and bottom edges of the blackboard, and its left and right edges.
  • The ruled lines in your notebook.
  • The two long edges of your scale (ruler).
  • The opposite edges of a window pane, of the door, and of a floor tile.
  • The legs of the benches in a row, and the two rails of the ceiling fan’s rod holder.
  • The grooves of the roof sheets or the lines of bricks in a wall.

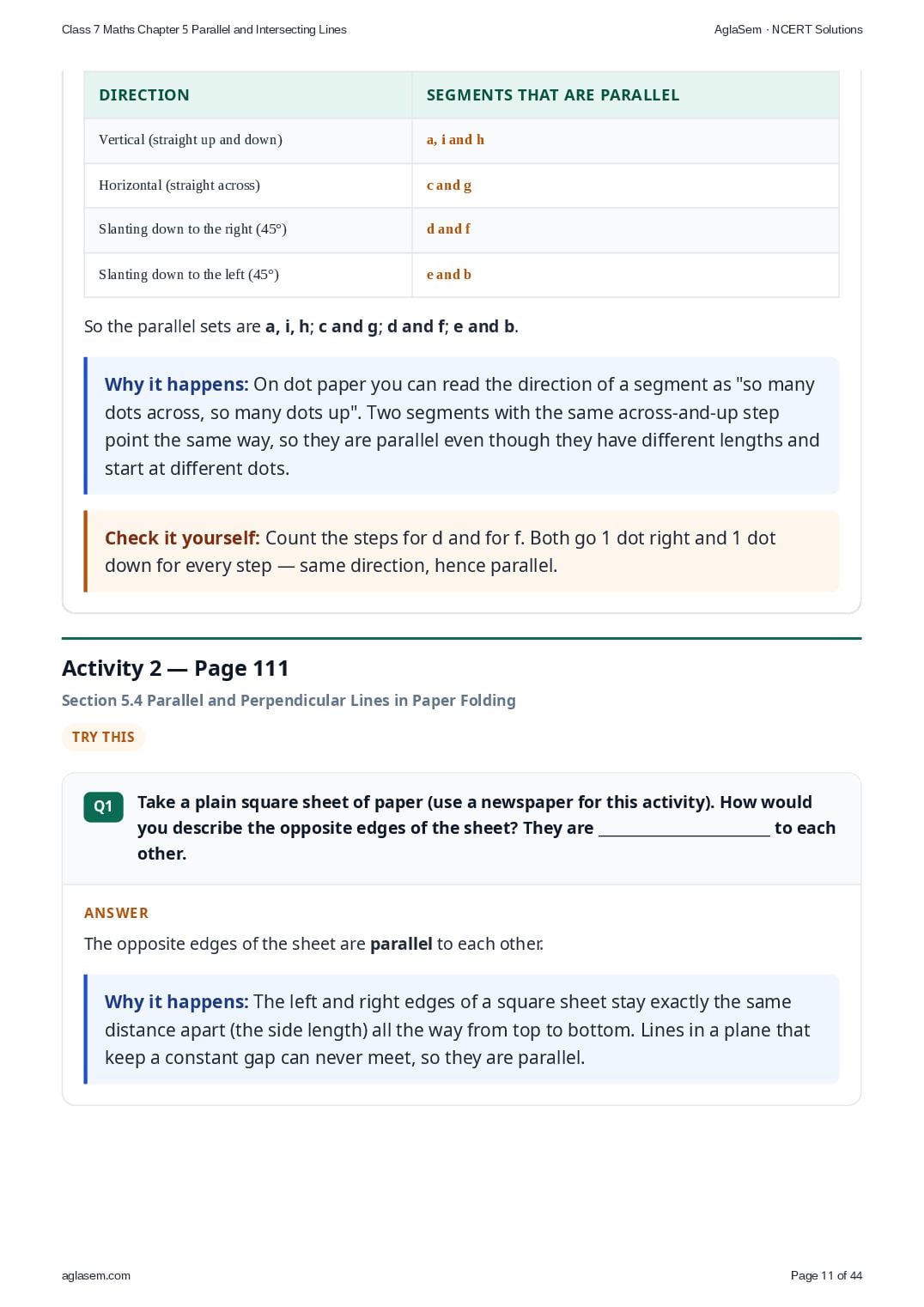

Q2Which pairs of lines appear to be parallel in Fig. 5.6 below?
acdegfhib
Fig. 5.6, page 110 — nine line segments a to i drawn on dot paper.
Answer

So the parallel sets are a, i, h; c and g; d and f; e and b.

DirectionSegments that are parallel
Vertical (straight up and down)a, i and h
Horizontal (straight across)c and g
Slanting down to the right (45°)d and f
Slanting down to the left (45°)e and b

Activity 2 — Page 111Section 5.4 Parallel and Perpendicular Lines in Paper Folding

Try This
Q1Take a plain square sheet of paper (use a newspaper for this activity). How would you describe the opposite edges of the sheet? They are _________________________ to each other.
Answer

The opposite edges of the sheet are parallel to each other.

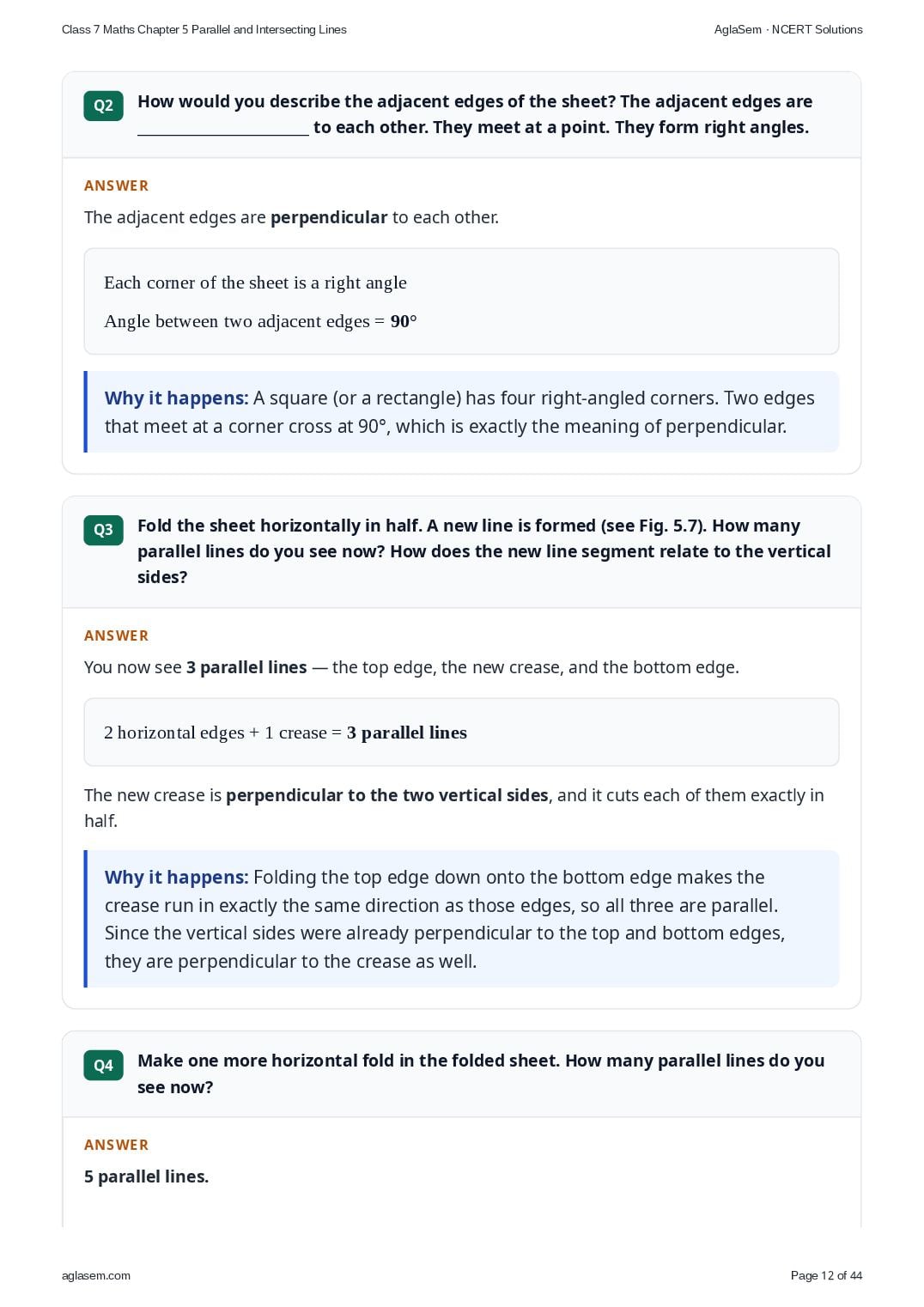

Q2How would you describe the adjacent edges of the sheet? The adjacent edges are _________________________ to each other. They meet at a point. They form right angles.
Answer

The adjacent edges are perpendicular to each other.

Each corner of the sheet is a right angle
Angle between two adjacent edges = 90°
Q3Fold the sheet horizontally in half. A new line is formed (see Fig. 5.7). How many parallel lines do you see now? How does the new line segment relate to the vertical sides?
Fig. 5.7, page 111 — folding a square sheet horizontally in half, then again, then once more, and finally a vertical fold.
Answer

You now see 3 parallel lines — the top edge, the new crease, and the bottom edge.

2 horizontal edges + 1 crease = 3 parallel lines

The new crease is perpendicular to the two vertical sides, and it cuts each of them exactly in half.

Q4Make one more horizontal fold in the folded sheet. How many parallel lines do you see now?
Answer

5 parallel lines.

Folding the already-folded sheet in half makes 3 creases in all
3 creases + 2 horizontal edges = 5 parallel lines

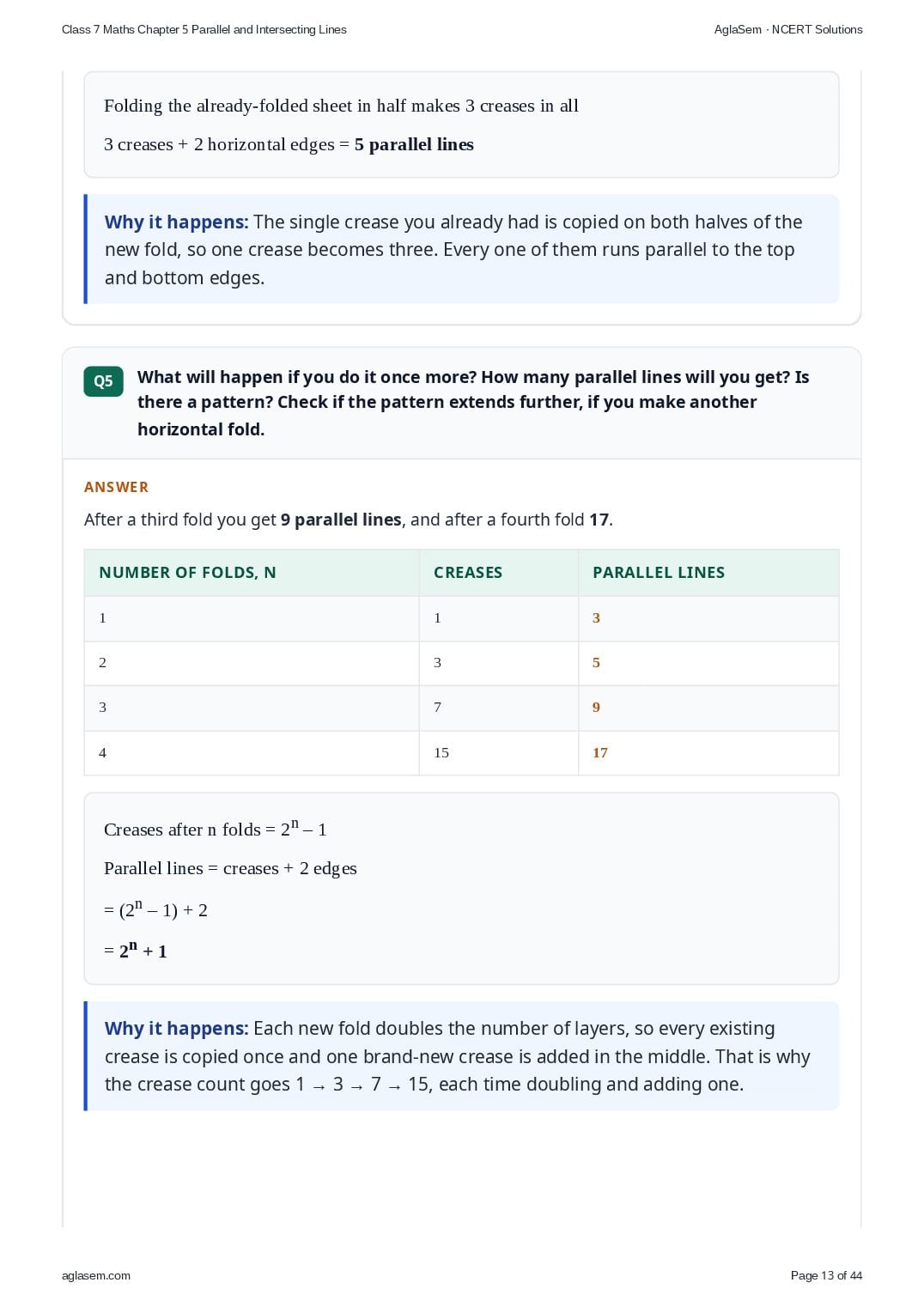

Q5What will happen if you do it once more? How many parallel lines will you get? Is there a pattern? Check if the pattern extends further, if you make another horizontal fold.
Answer

After a third fold you get 9 parallel lines, and after a fourth fold 17.

Number of folds, nCreasesParallel lines
113
235
379
41517

Pattern: each new fold doubles the creases and adds one more (1, 3, 7, 15, …). The parallel lines are always the creases + 2 edges (3, 5, 9, 17, …). Yes, the pattern continues: a fifth fold gives 31 creases and 33 parallel lines.

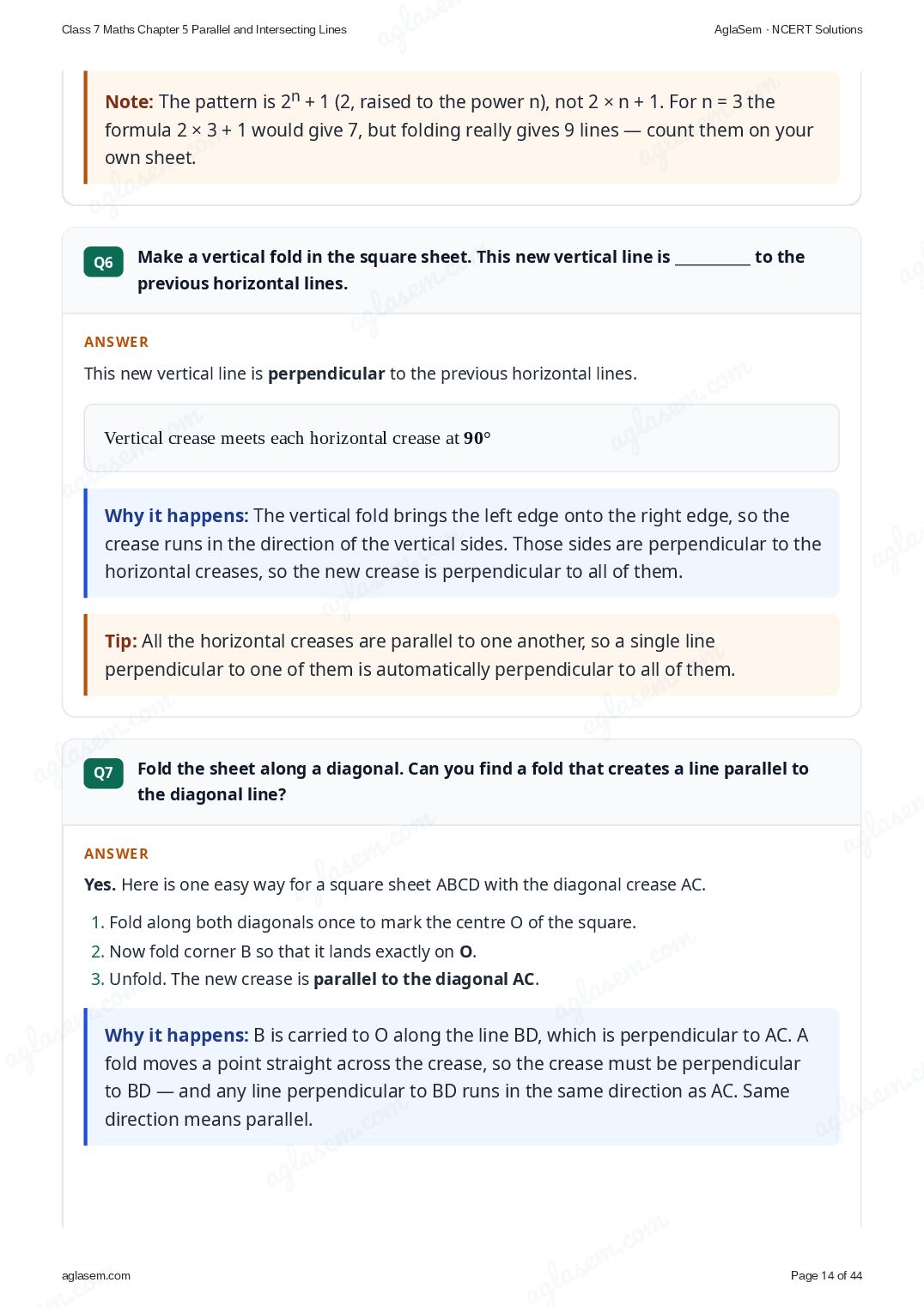

Q6Make a vertical fold in the square sheet. This new vertical line is ___________ to the previous horizontal lines.
Answer

This new vertical line is perpendicular to the previous horizontal lines.

Vertical crease meets each horizontal crease at 90°
Q7Fold the sheet along a diagonal. Can you find a fold that creates a line parallel to the diagonal line?
Answer

Yes. Here is one easy way for a square sheet ABCD with the diagonal crease AC.

  1. Fold along both diagonals once to mark the centre O of the square.
  2. Now fold corner B so that it lands exactly on O.
  3. Unfold. The new crease is parallel to the diagonal AC.

In-text Questions — Page 112Section 5.4 Paper Folding, and Notations

Try This

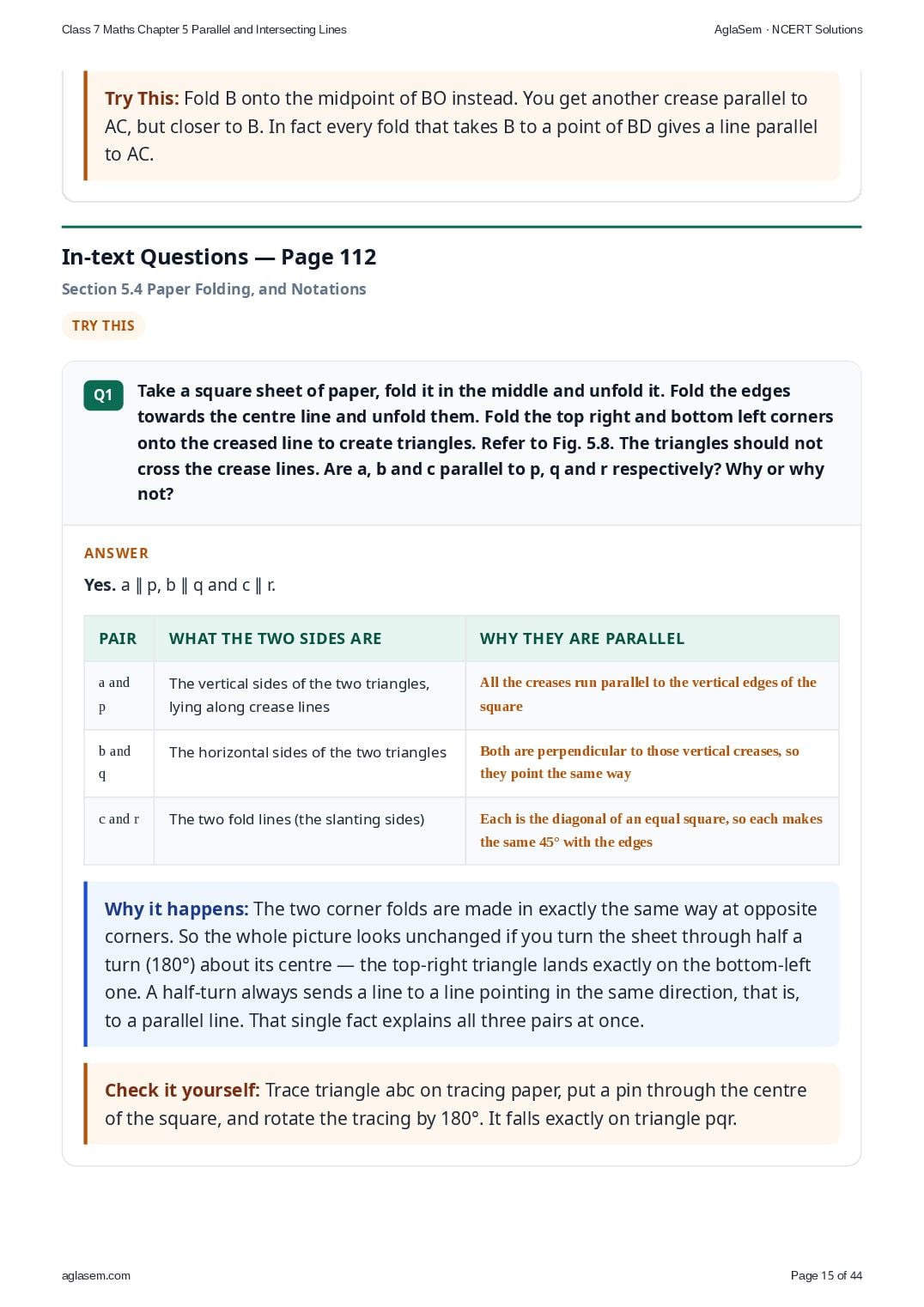

Q1Take a square sheet of paper, fold it in the middle and unfold it. Fold the edges towards the centre line and unfold them. Fold the top right and bottom left corners onto the creased line to create triangles. Refer to Fig. 5.8. The triangles should not cross the crease lines. Are a, b and c parallel to p, q and r respectively? Why or why not?
acbqrpabcqrp
Fig. 5.8, page 112 — the square sheet creased into quarters, with the top right and bottom left corners folded into the triangles a, b, c and p, q, r.
Answer

Yes. a ∥ p, b ∥ q and c ∥ r, because the two corners are folded in exactly the same way.

  • a and p lie along the vertical crease lines, and all these creases are parallel to the vertical edges of the square.
  • b and q are both horizontal (perpendicular to the vertical creases), so they are parallel.
  • c and r are the two fold lines, made in the same way, so they have the same slant (45° with the edges in the first picture).

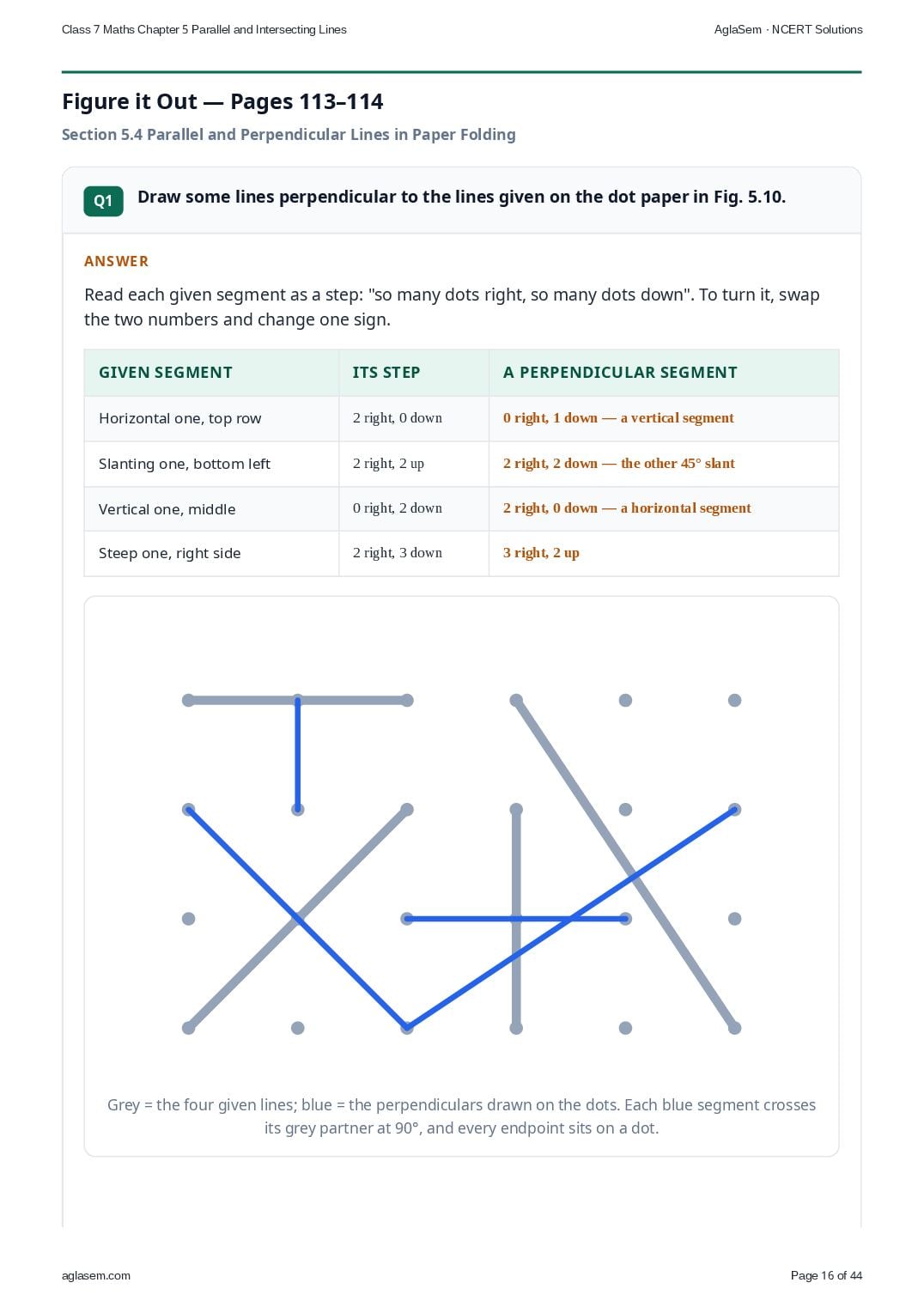

Figure it Out — Pages 113–114Section 5.4 Parallel and Perpendicular Lines in Paper Folding

Q1Draw some lines perpendicular to the lines given on the dot paper in Fig. 5.10.
Fig. 5.10, page 113 — four line segments drawn on dot paper.
Answer

One perpendicular for each given line is shown in blue. For each one, count the dots so that the new segment crosses the given one at a right angle.

Given segmentIts stepA perpendicular segment
Horizontal one, top row2 right, 0 down0 right, 1 down — a vertical segment
Slanting one, bottom left2 right, 2 up2 right, 2 down — the other 45° slant
Vertical one, middle0 right, 2 down2 right, 0 down — a horizontal segment
Steep one, right side2 right, 3 down3 right, 2 up
Grey = the four given lines; blue = the perpendiculars drawn on the dots. Each blue segment crosses its grey partner at 90°, and every endpoint sits on a dot.

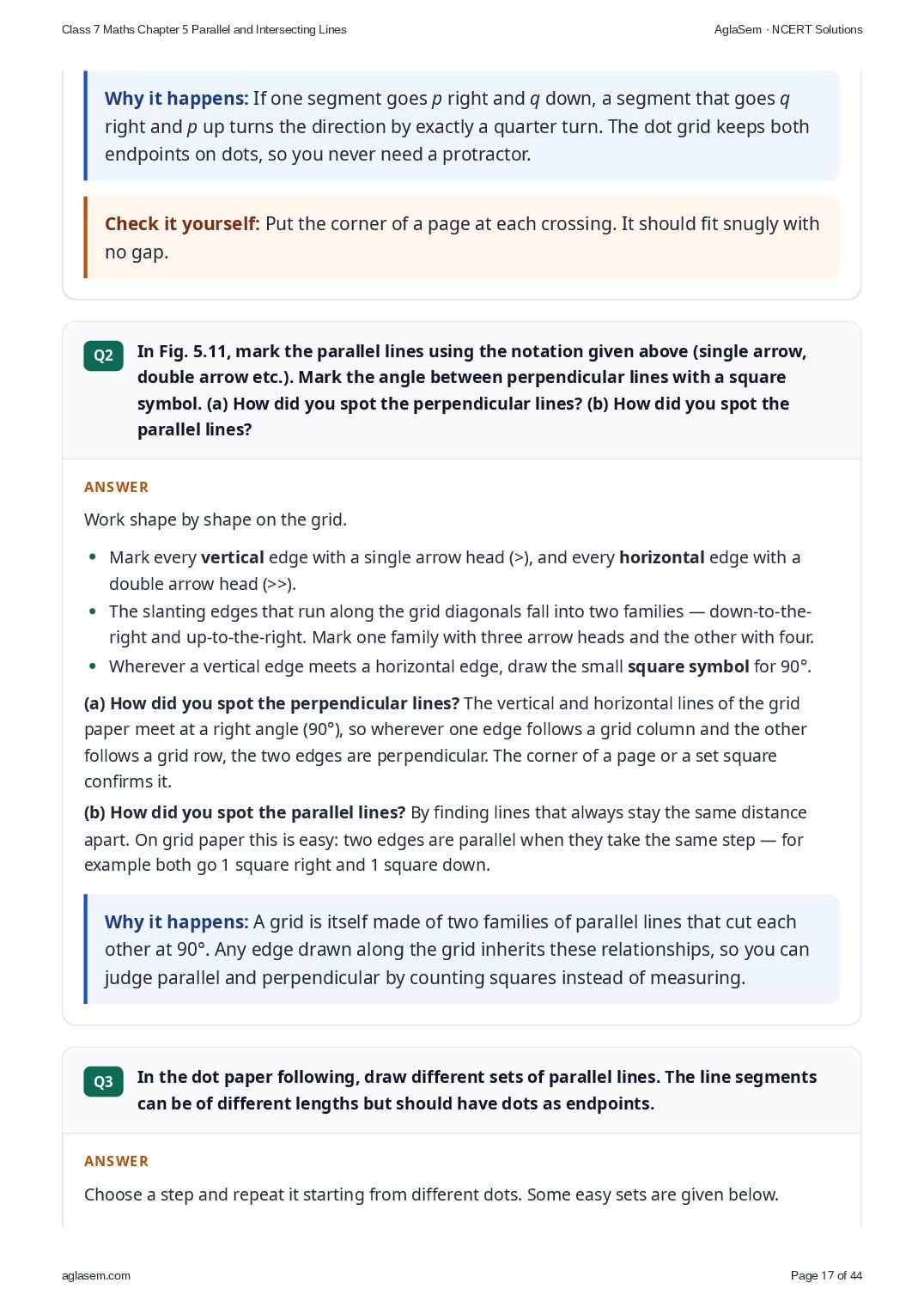

Q2In Fig. 5.11, mark the parallel lines using the notation given above (single arrow, double arrow etc.). Mark the angle between perpendicular lines with a square symbol. (a) How did you spot the perpendicular lines? (b) How did you spot the parallel lines?
Fig. 5.11, page 113 — five shapes drawn on squared paper.
Answer
Fig. 5.11 marked: > vertical, >> horizontal, >>> and >>>> the two slanting sets; green squares = right angles. The edge going 3 squares right and 2 up has no parallel partner, so it has no arrow.

(a) A vertical edge and a horizontal edge along the grid lines meet at a right angle, because the grid lines are perpendicular.

(b) Edges going the same way on the grid (same number of squares across and up or down) stay the same distance apart, so they are parallel.

Q3In the dot paper following, draw different sets of parallel lines. The line segments can be of different lengths but should have dots as endpoints.
Answer

Choose a step (so many dots across and so many up or down) and repeat it from different dots. Three sample sets:

Blue set: horizontal segments. Red set: 1 dot right and 1 down for every step. Green set: 2 dots right and 1 up for every step. In each set the segments have different lengths but the same direction, so they are parallel.
Q4Using your sense of how parallel lines look, try to draw lines parallel to the line segments on this dot paper. (a) Did you find it challenging to draw some of them? (b) Which ones? (c) How did you do it?
a b c d e f g h
Fig. 5.12, page 114 — eight line segments a to h on dot paper.
Answer
a b c d e f g h h′ b′ e′ d′ g′ a′ c′ f′
Blue a′ to h′: a parallel to each given segment (grey).

(a) Yes, some of them were challenging.

(b) e, f, g and h — they are not horizontal, vertical or at 45°. (a, b, c and d run along the 45° diagonals of the dots, so they were easy.)

(c) By counting the step of each segment (for example, g goes 5 dots right and 2 dots up) and repeating the same step from another dot.

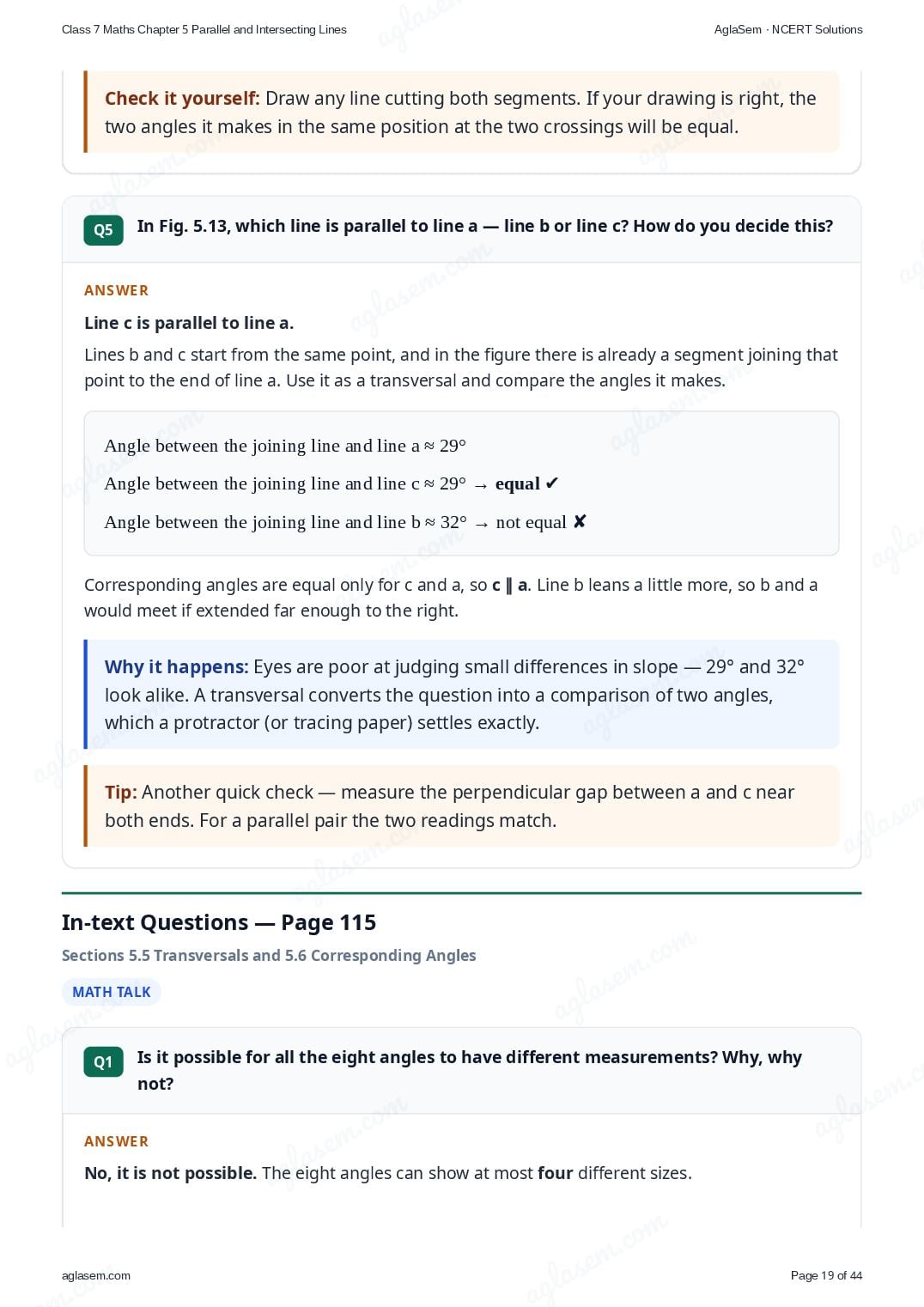

Q5In Fig. 5.13, which line is parallel to line a — line b or line c? How do you decide this?
acb
Fig. 5.13, page 114 — line a, and lines b and c drawn from one common point.
Answer

Line c is parallel to line a.

Lines a and c have the same slant, so the gap between them stays the same. Line b is flatter, so the gap between a and b keeps changing and they would meet if extended far enough. To decide, measure the gap between the lines at two places far apart (equal gaps mean parallel), or compare the slants with a protractor.

In-text Questions — Page 115Sections 5.5 Transversals and 5.6 Corresponding Angles

Math Talk

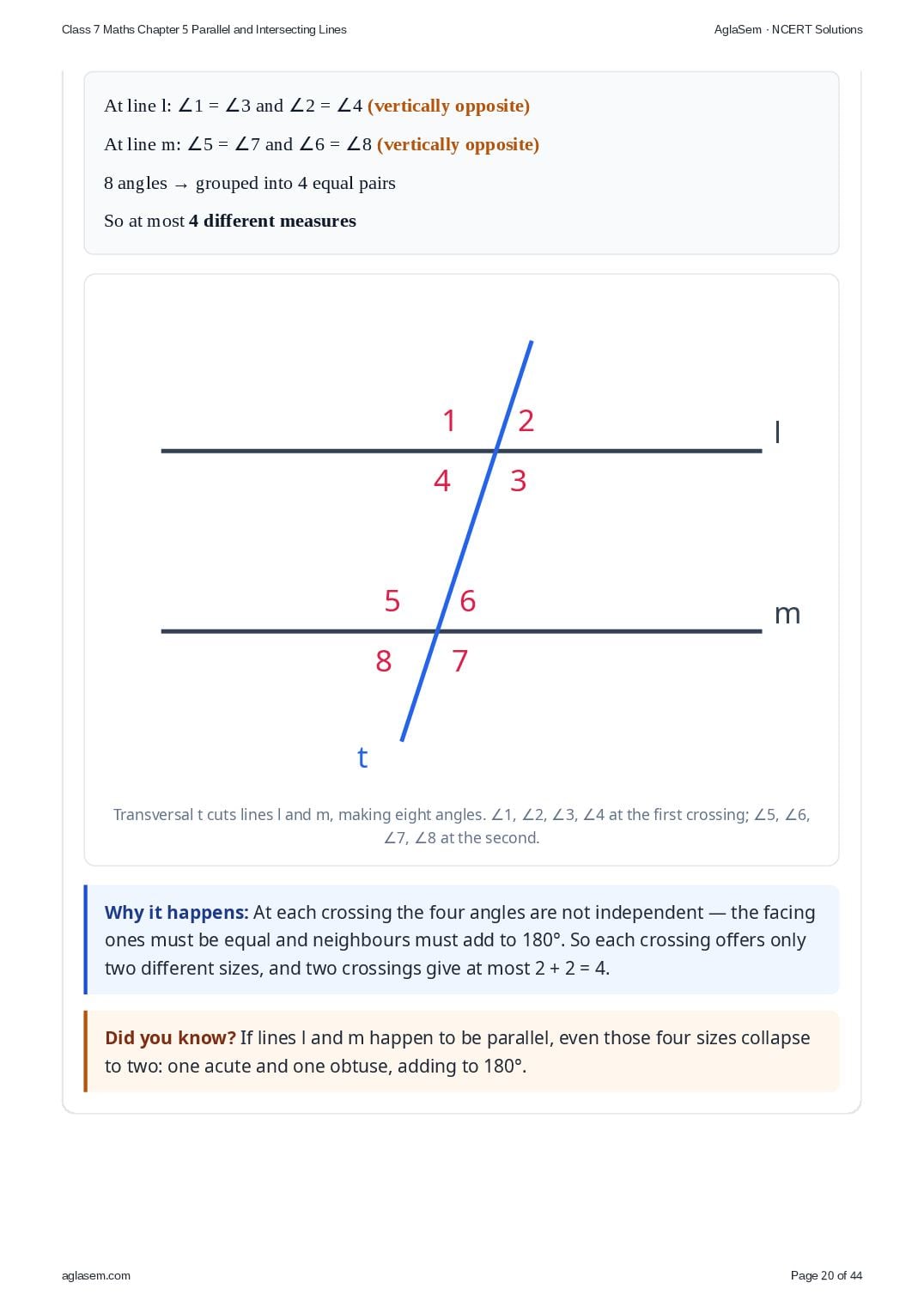

Q1Is it possible for all the eight angles to have different measurements? Why, why not?
Answer

No, it is not possible. The eight angles can show at most four different sizes.

At line l: ∠1 = ∠3 and ∠2 = ∠4 (vertically opposite)
At line m: ∠5 = ∠7 and ∠6 = ∠8 (vertically opposite)
8 angles → grouped into 4 equal pairs
So at most 4 different measures

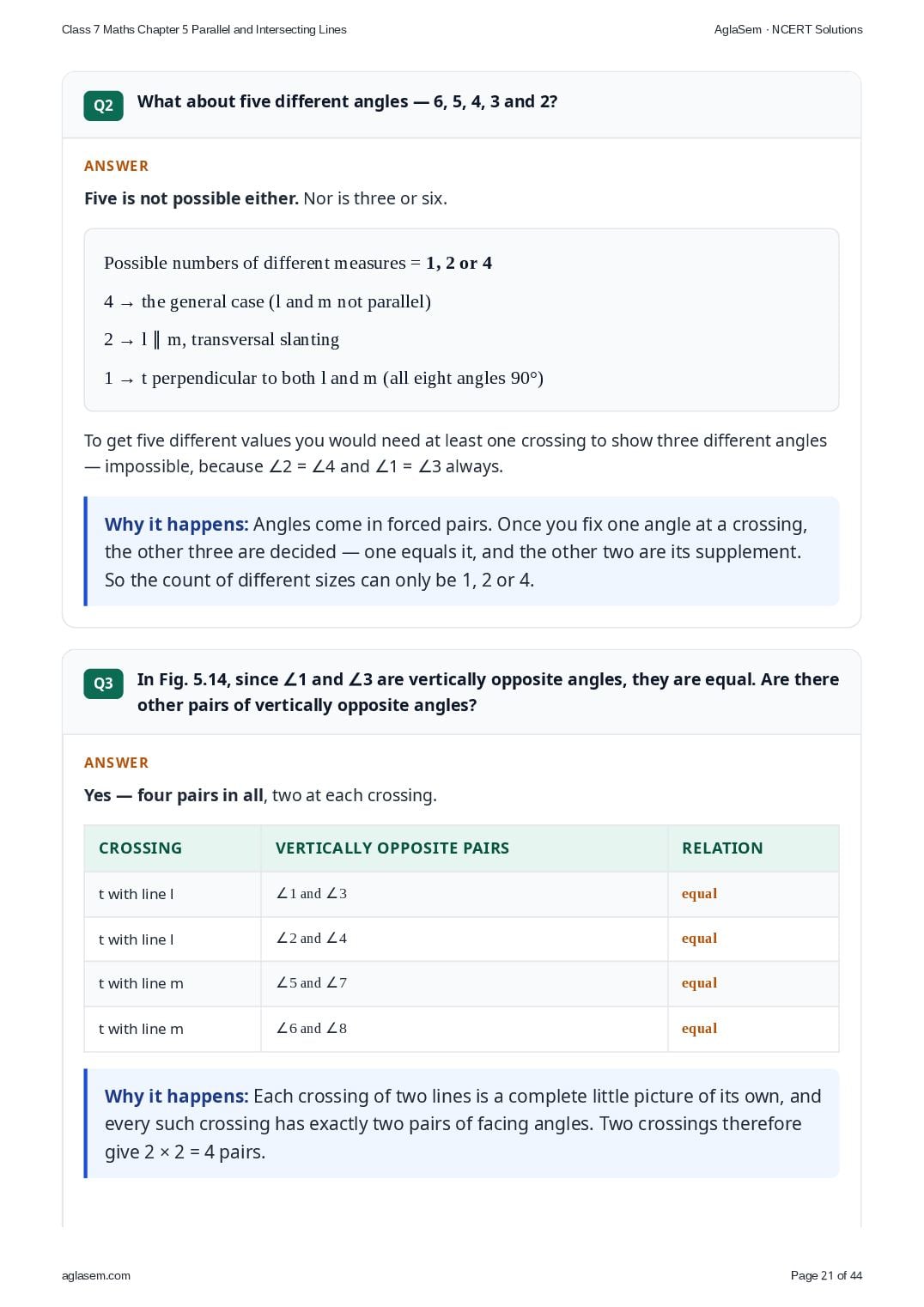

Q2What about five different angles — 6, 5, 4, 3 and 2?
Answer

6 or 5 different measures: not possible. 4, 3 or 2 different measures: possible.

At each crossing only 2 sizes can appear (an angle and 180° minus it)
Two crossings → at most 2 + 2 = 4 sizes, so 6 or 5 is impossible
4 → t is not perpendicular to l or m, and the two crossings give different sizes
3 → t is perpendicular to one line only (90° there, two other sizes at the other line)
2 → for example, l ∥ m (t not perpendicular): the same two sizes repeat
Q3In Fig. 5.14, since ∠1 and ∠3 are vertically opposite angles, they are equal. Are there other pairs of vertically opposite angles?
lmt12435687
Fig. 5.14, page 115 — transversal t crossing lines l and m, forming the eight angles ∠1 to ∠8.
Answer

Yes — four pairs in all, two at each crossing.

CrossingVertically opposite pairsRelation
t with line l∠1 and ∠3equal
t with line l∠2 and ∠4equal
t with line m∠5 and ∠7equal
t with line m∠6 and ∠8equal

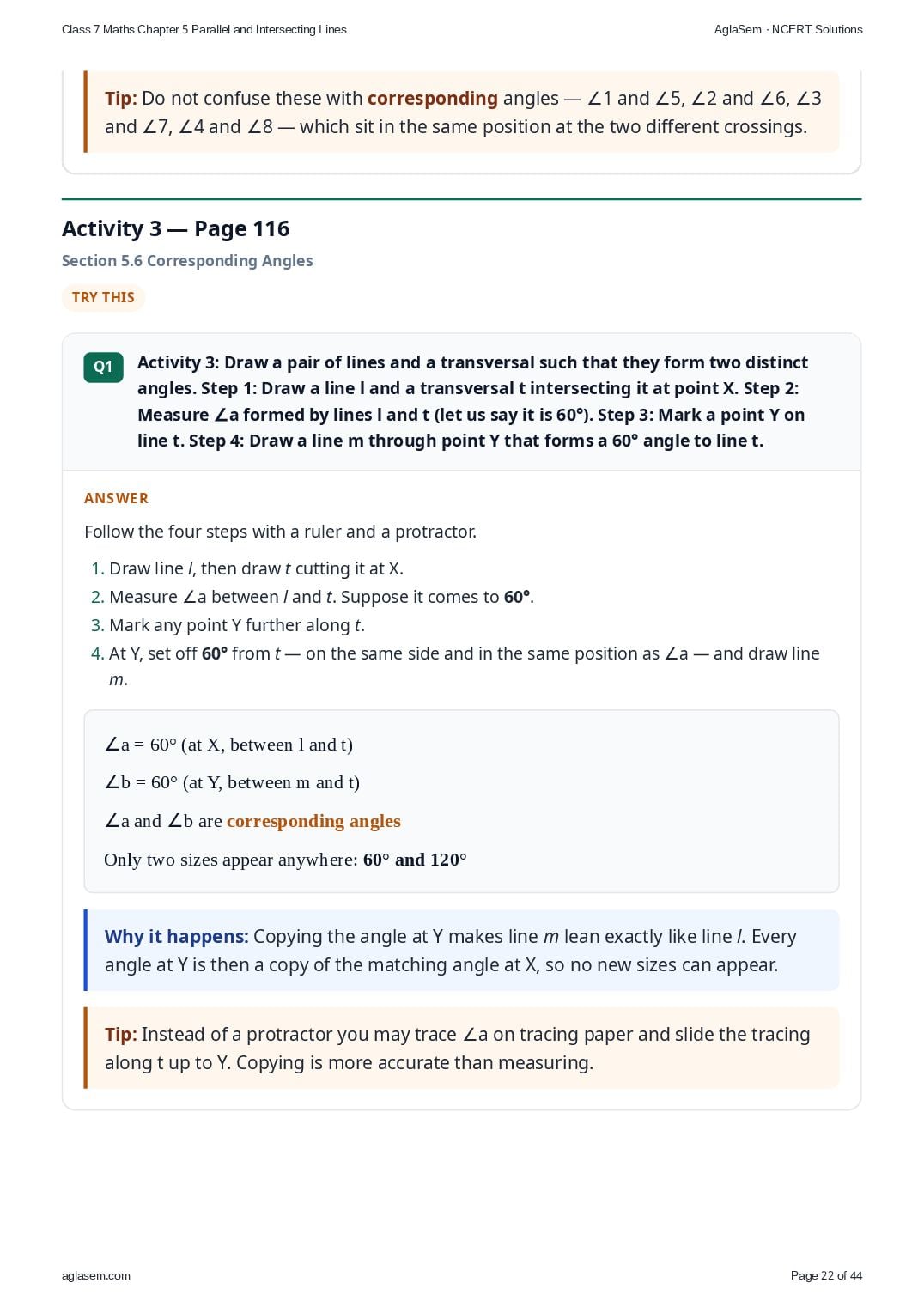

Activity 3 — Page 116Section 5.6 Corresponding Angles

Try This
Q1Activity 3: Draw a pair of lines and a transversal such that they form two distinct angles. Step 1: Draw a line l and a transversal t intersecting it at point X. Step 2: Measure ∠a formed by lines l and t (let us say it is 60°). Step 3: Mark a point Y on line t. Step 4: Draw a line m through point Y that forms a 60° angle to line t.
Answer
  1. Draw line l, then draw t cutting it at X.
  2. Measure ∠a between l and t. Suppose it comes to 60°.
  3. Mark any point Y further along t.
  4. At Y, set off 60° from t — on the same side and in the same position as ∠a — and draw line m.
XY a = 60°b = 60° lm t
The finished drawing (like Fig. 5.18): ∠a at X and ∠b at Y are both 60°, in the same position.

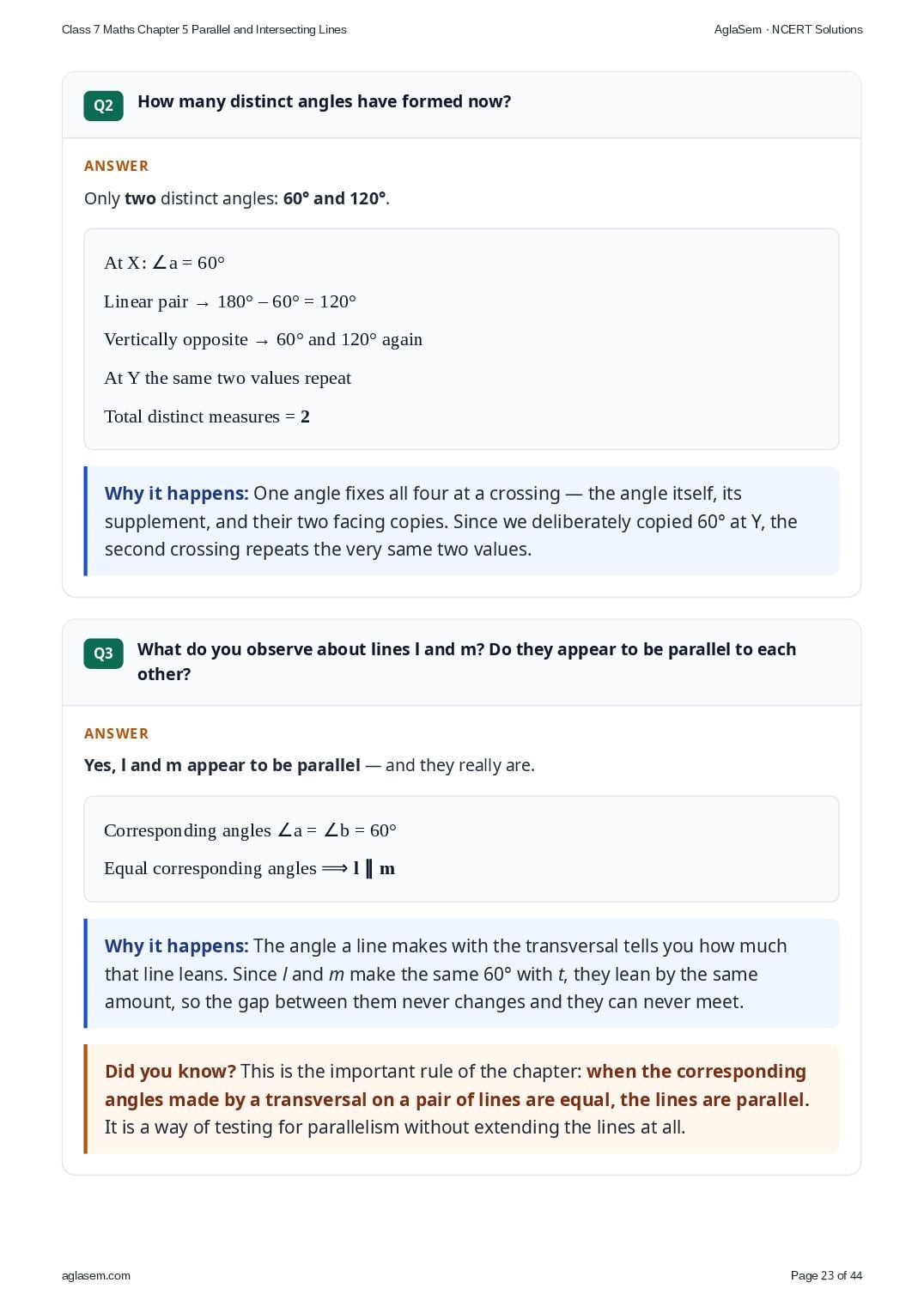

Q2How many distinct angles have formed now?
Answer

Two distinct angles: 60° and 120°.

At X: ∠a = 60°
Its linear pair = 180° – 60° = 120°
The vertically opposite angles are again 60° and 120°

When line m is drawn at Y making 60° with t (Steps 3 and 4), the same two measures, 60° and 120°, appear again, so there are still only two.

Q3What do you observe about lines l and m? Do they appear to be parallel to each other?
Answer

Yes, l and m appear to be parallel — and they really are.

Corresponding angles ∠a = ∠b = 60°
Equal corresponding angles ⟹ l ∥ m

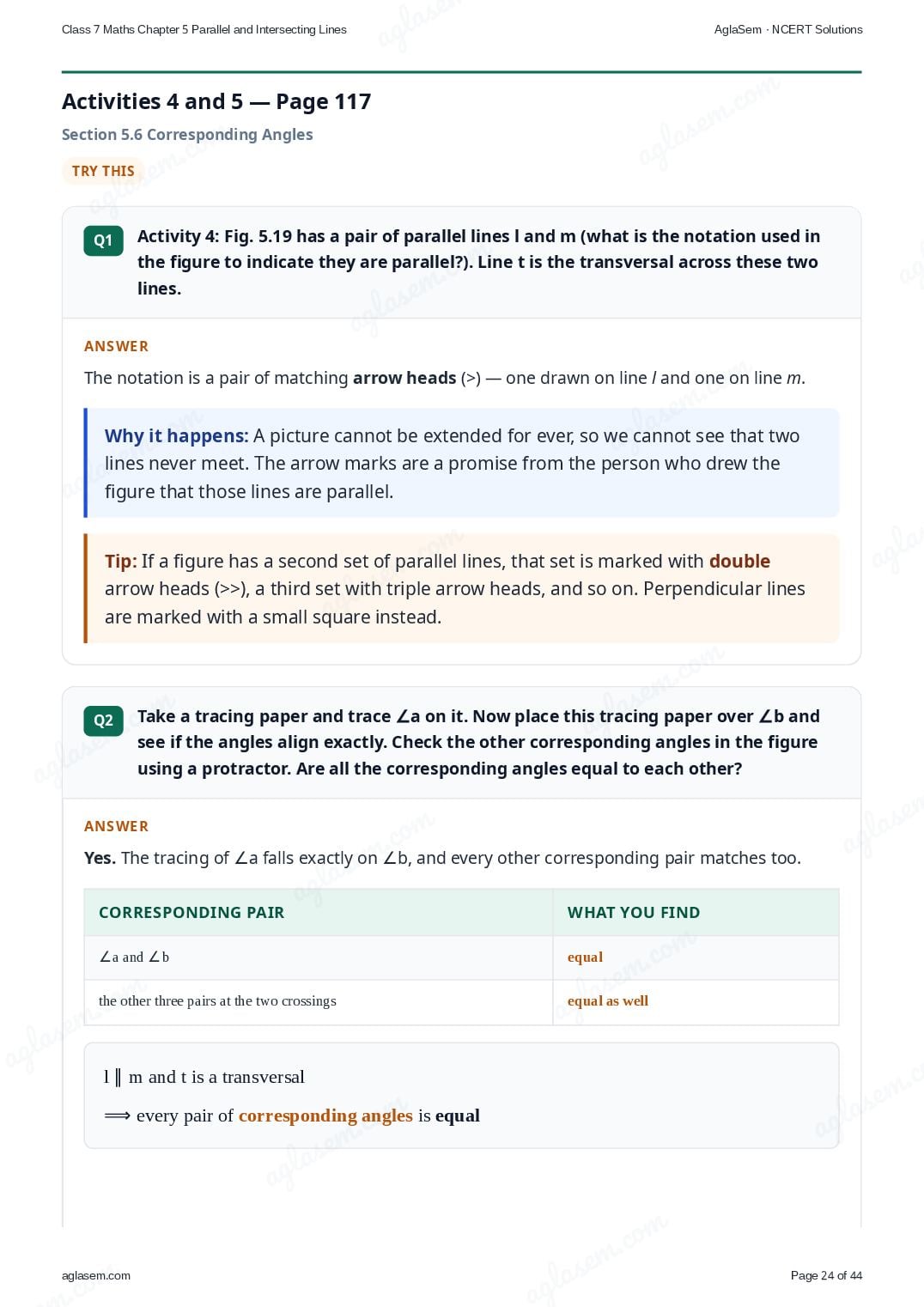

Activities 4 and 5 — Page 117Section 5.6 Corresponding Angles

Try This
Q1Activity 4: Fig. 5.19 has a pair of parallel lines l and m (what is the notation used in the figure to indicate they are parallel?). Line t is the transversal across these two lines.
lmtab
Fig. 5.19, page 117 — parallel lines l and m (marked with matching arrow heads) cut by transversal t; ∠a and ∠b are corresponding angles.
Answer

The notation is a pair of matching arrow heads (>) — one drawn on line l and one on line m.

Q2Take a tracing paper and trace ∠a on it. Now place this tracing paper over ∠b and see if the angles align exactly. Check the other corresponding angles in the figure using a protractor. Are all the corresponding angles equal to each other?
lmtab
Fig. 5.19, page 117 — parallel lines l and m (marked with matching arrow heads) cut by transversal t; ∠a and ∠b are corresponding angles.
Answer

Yes. The tracing of ∠a falls exactly on ∠b, and every other corresponding pair matches too.

l ∥ m and t is a transversal
⟹ every pair of corresponding angles is equal

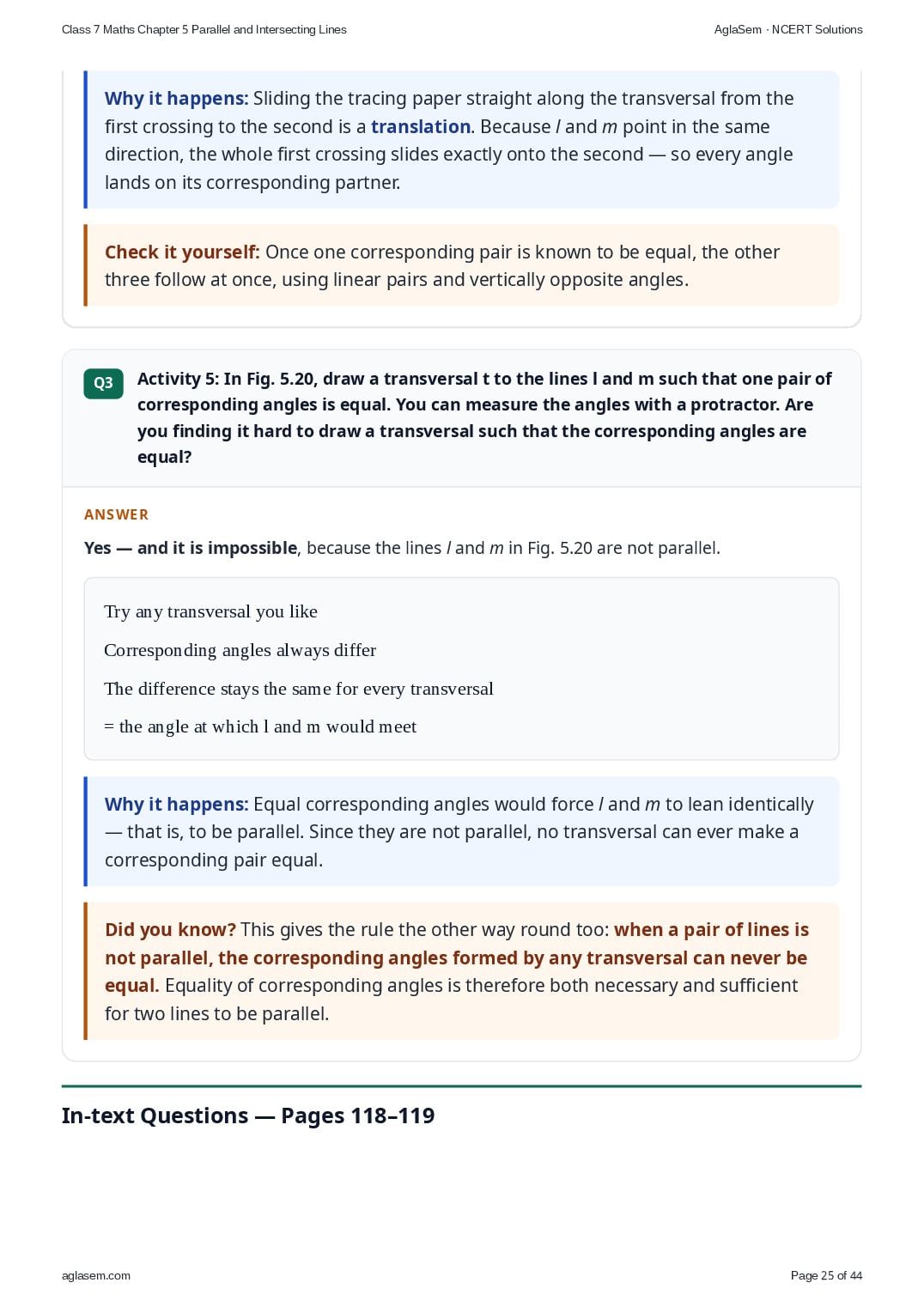

Q3Activity 5: In Fig. 5.20, draw a transversal t to the lines l and m such that one pair of corresponding angles is equal. You can measure the angles with a protractor. Are you finding it hard to draw a transversal such that the corresponding angles are equal?
lm
Fig. 5.20, page 117 — lines l and m, drawn without any transversal.
Answer

Yes, it is hard — in fact impossible, because the lines l and m in Fig. 5.20 are not parallel. When two lines are not parallel, the corresponding angles made by any transversal are never equal.

In-text Questions — Pages 118–119Section 5.7 Drawing Parallel Lines

Math Talk

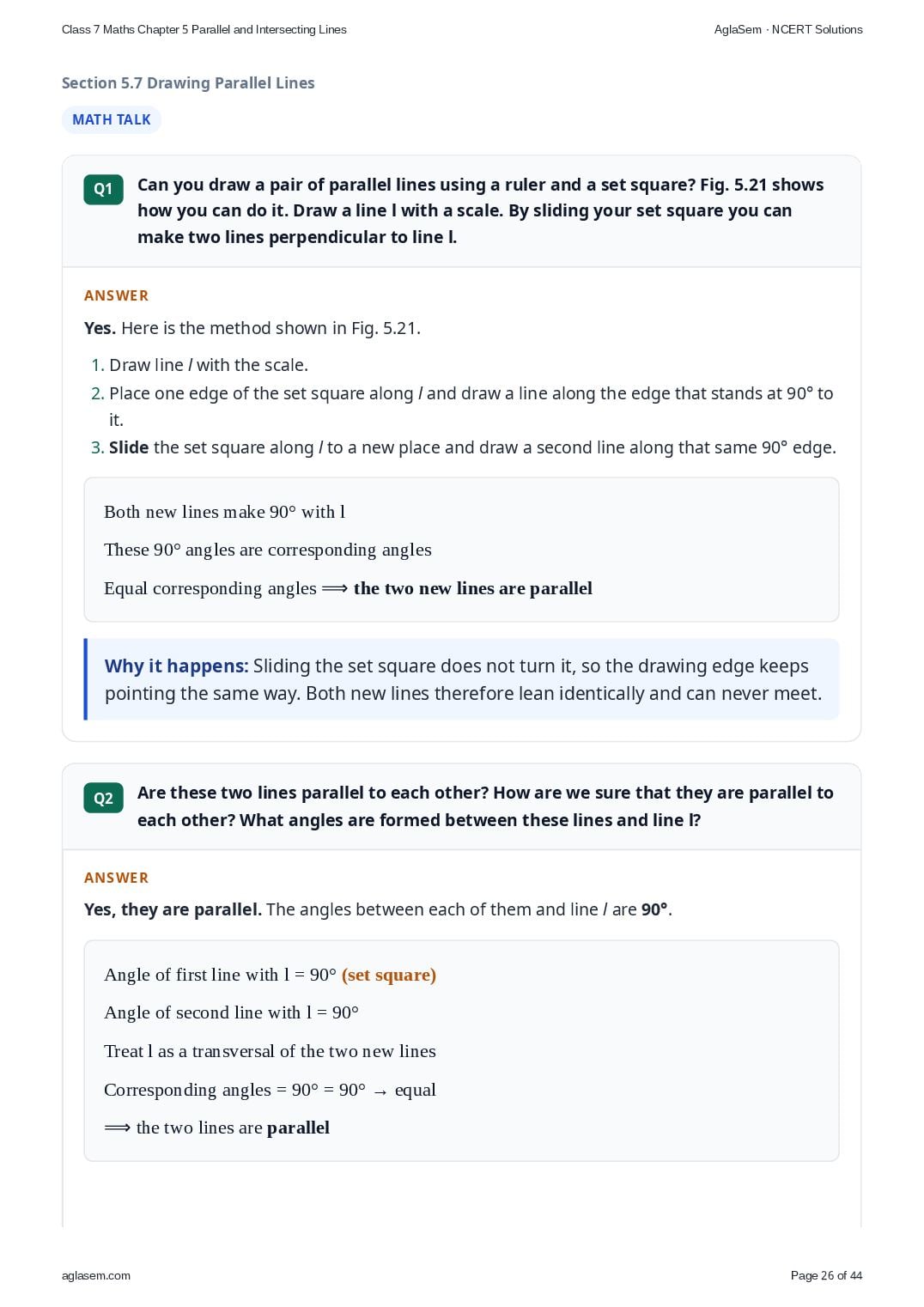

Q1Can you draw a pair of parallel lines using a ruler and a set square? Fig. 5.21 shows how you can do it. Draw a line l with a scale. By sliding your set square you can make two lines perpendicular to line l.
l
Fig. 5.21, page 118 — a ruler laid along line l, and a set square slid along it to draw two lines perpendicular to l.
Answer

Yes. Here is the method shown in Fig. 5.21.

  1. Draw line l with the scale.
  2. Place one edge of the set square along l and draw a line along the edge that stands at 90° to it.
  3. Slide the set square along l to a new place and draw a second line along that same 90° edge.

Both new lines make 90° with l, so they are parallel to each other.

Q2Are these two lines parallel to each other? How are we sure that they are parallel to each other? What angles are formed between these lines and line l?
Answer

Yes, they are parallel. The angles between each of them and line l are 90°.

Angle of first line with l = 90° (set square)
Angle of second line with l = 90°
Treat l as a transversal of the two new lines
Corresponding angles = 90° = 90° → equal
⟹ the two lines are parallel

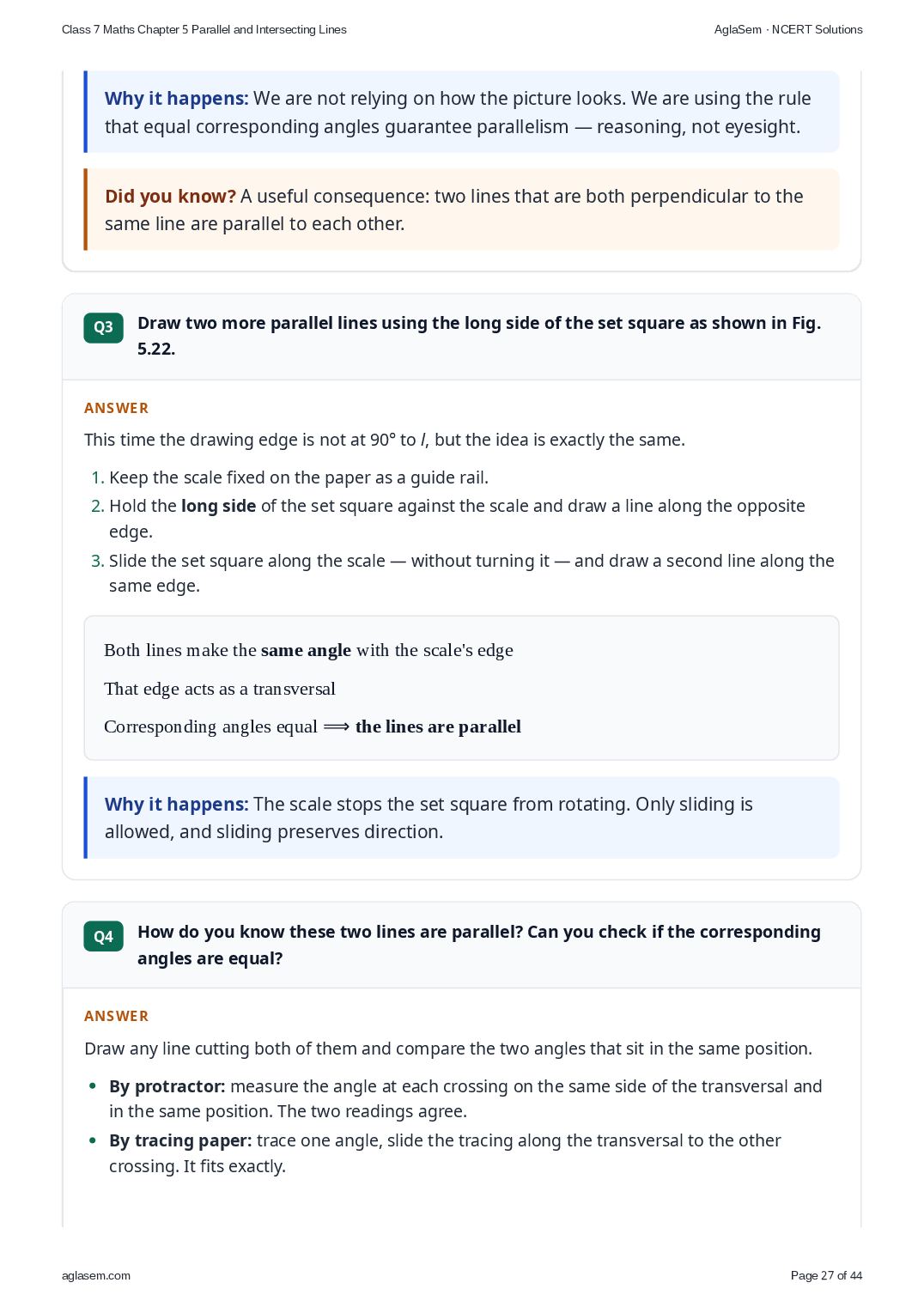

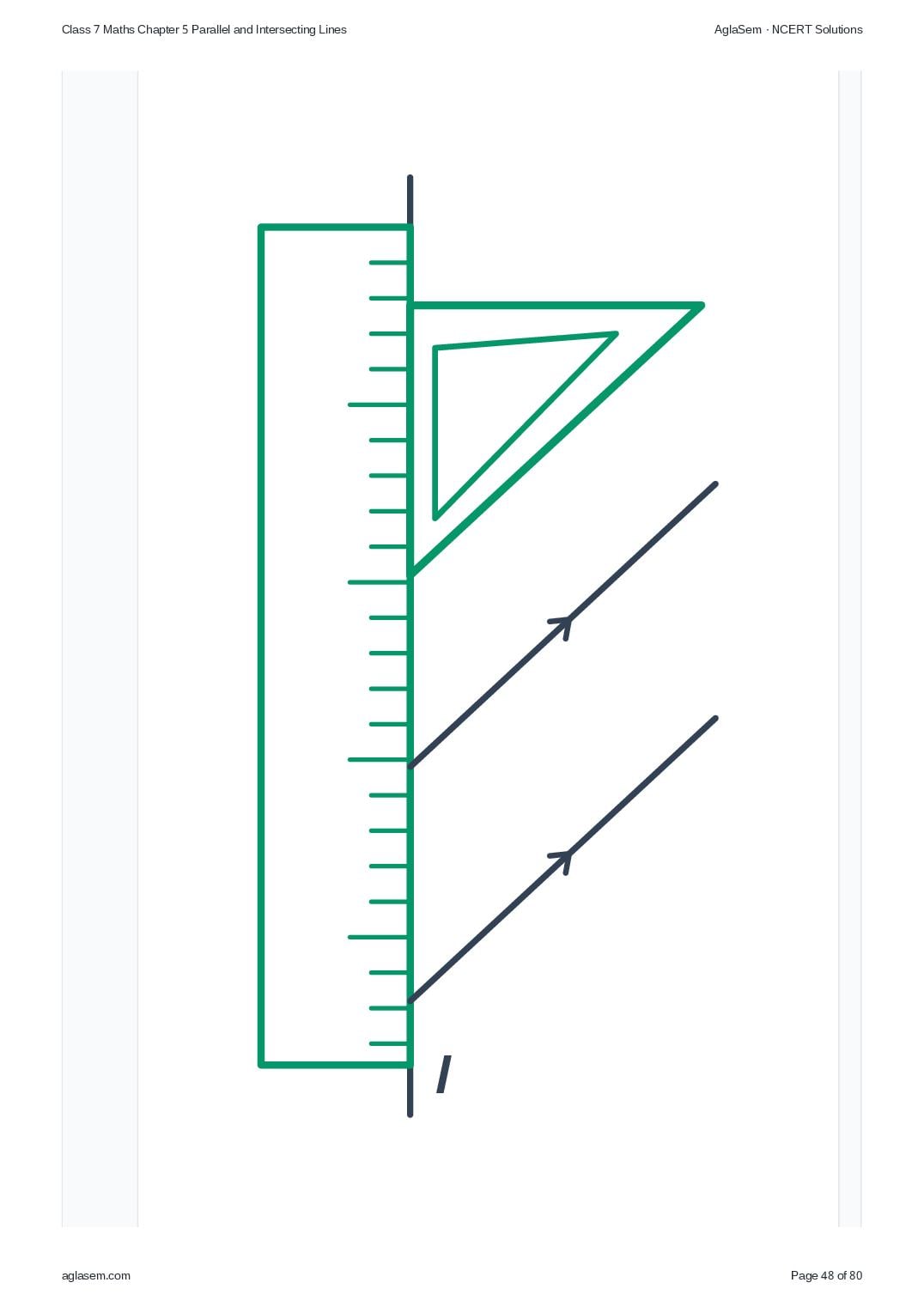

Q3Draw two more parallel lines using the long side of the set square as shown in Fig. 5.22.
l
Fig. 5.22, page 118 — the long side of the set square slid along the ruler to draw two more parallel lines.
Answer
  1. Keep the scale fixed on the paper as a guide rail.
  2. Hold the long side of the set square against the scale and draw a line along the opposite edge.
  3. Slide the set square along the scale — without turning it — and draw a second line along the same edge.

Both lines make the same angle with the scale’s edge (corresponding angles), so they are parallel.

Q4How do you know these two lines are parallel? Can you check if the corresponding angles are equal?
Answer

Draw any line cutting both of them and compare the two angles that sit in the same position.

  • By protractor: measure the angle at each crossing on the same side of the transversal and in the same position. The two readings agree.
  • By tracing paper: trace one angle, slide the tracing along the transversal to the other crossing. It fits exactly.

The two corresponding angles are equal, so the lines are parallel.

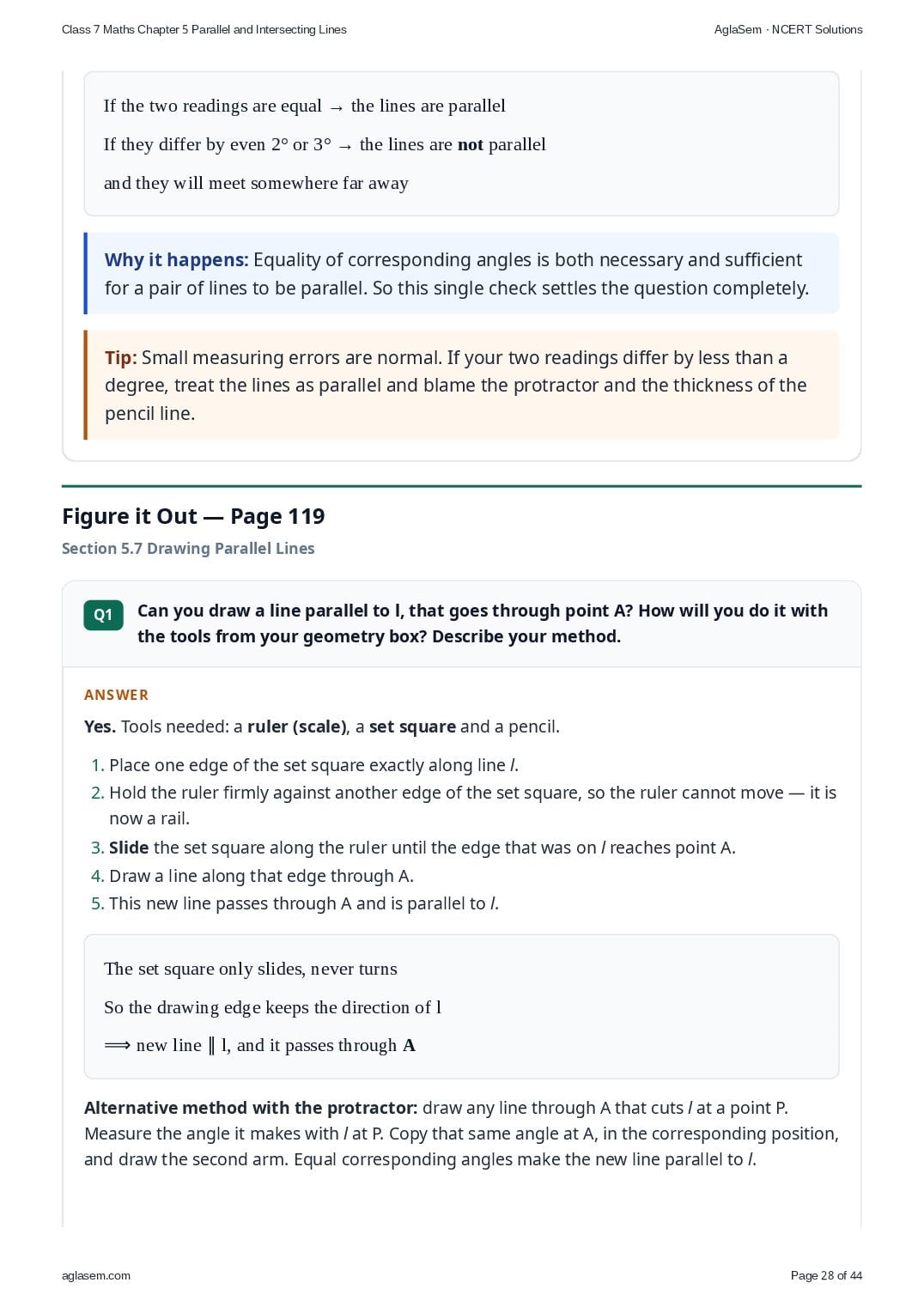

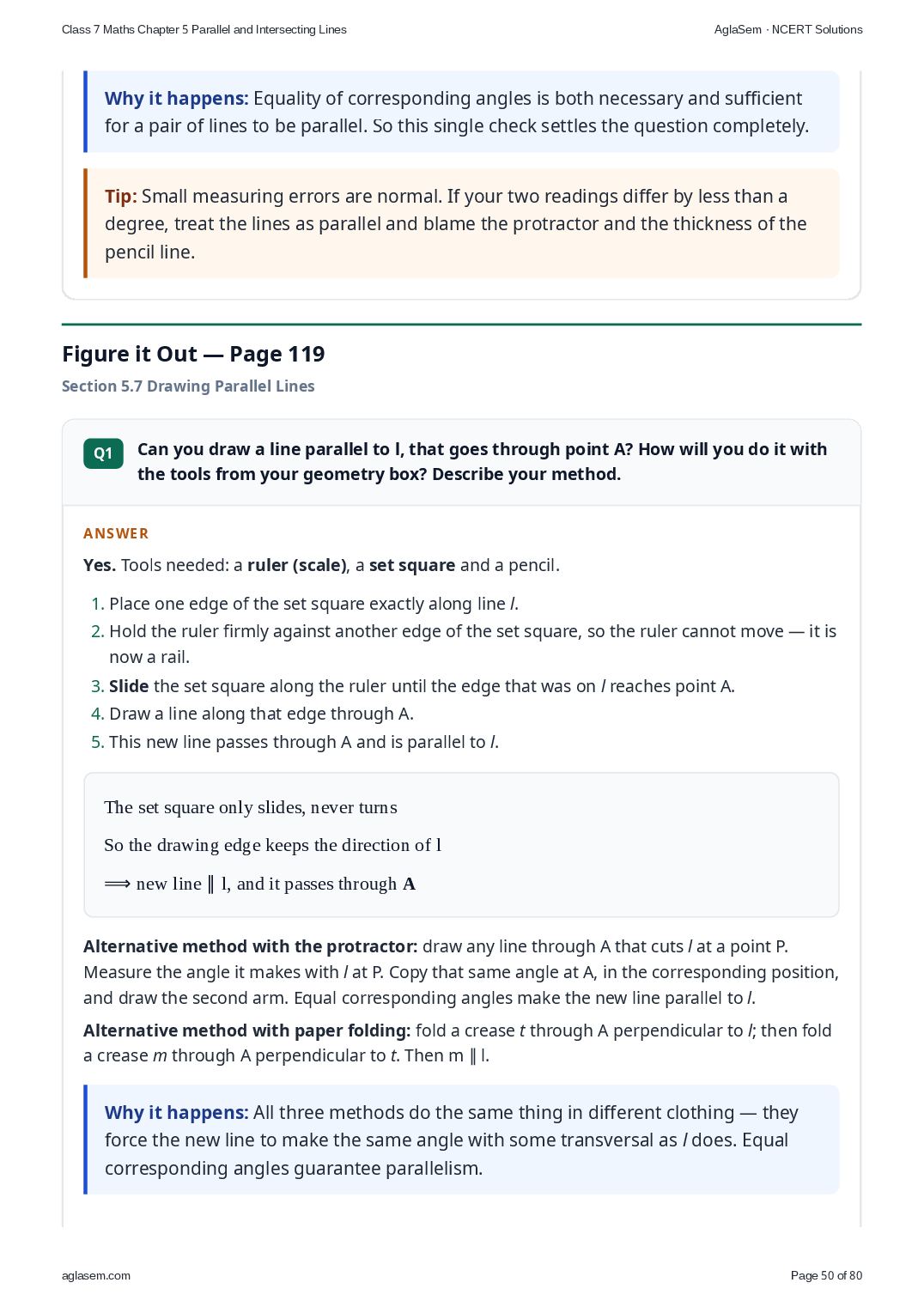

Figure it Out — Page 119Section 5.7 Drawing Parallel Lines

Q1Can you draw a line parallel to l, that goes through point A? How will you do it with the tools from your geometry box? Describe your method.
Al
Fig. 5.23, page 119 — line l and a point A not on it.
Answer

Yes. Tools needed: a ruler (scale), a set square and a pencil.

  1. Place one edge of the set square exactly along line l.
  2. Hold the ruler firmly against another edge of the set square, so the ruler cannot move — it is now a rail.
  3. Slide the set square along the ruler until the edge that was on l reaches point A.
  4. Draw a line along that edge through A.
  5. This new line passes through A and is parallel to l.

In-text Questions — Page 120Section 5.8 Alternate Angles

Math TalkTry This

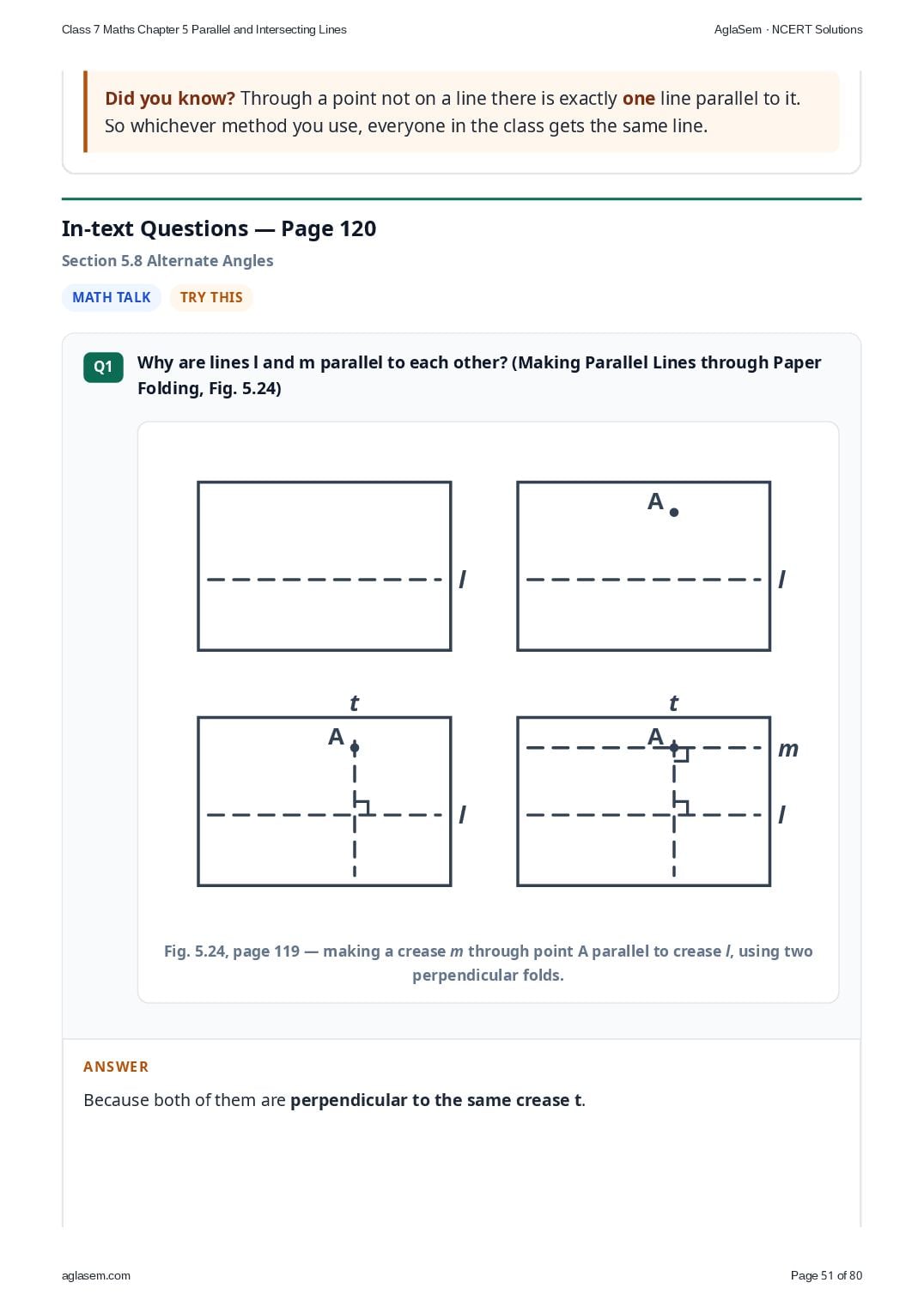

Q1Why are lines l and m parallel to each other? (Making Parallel Lines through Paper Folding, Fig. 5.24)
llAlAtlAtm
Fig. 5.24, page 119 — making a crease m through point A parallel to crease l, using two perpendicular folds.
Answer

Because both of them are perpendicular to the same crease t.

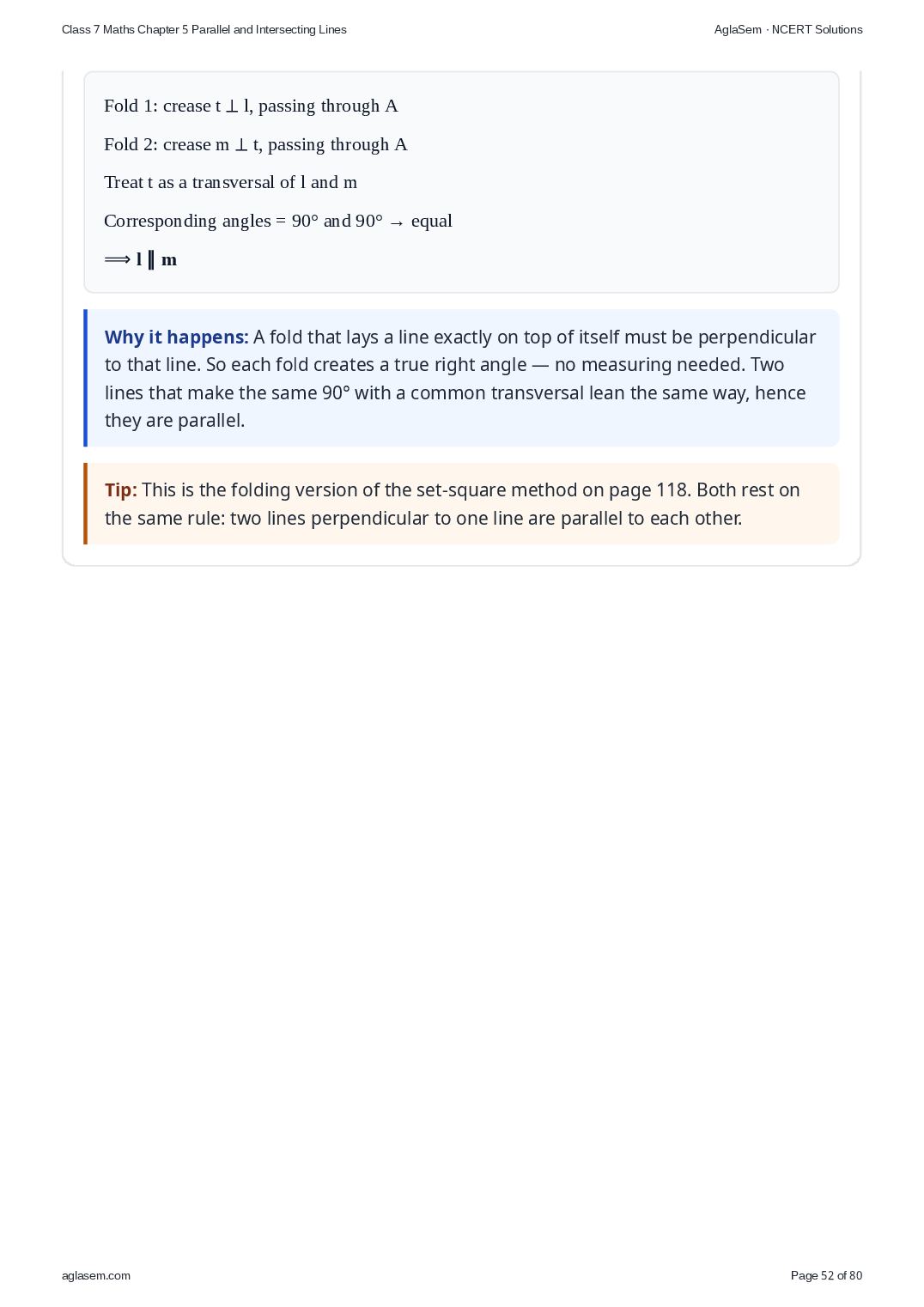

Fold 1: crease t ⟂ l, passing through A
Fold 2: crease m ⟂ t, passing through A
Treat t as a transversal of l and m
Corresponding angles = 90° and 90° → equal
⟹ l ∥ m

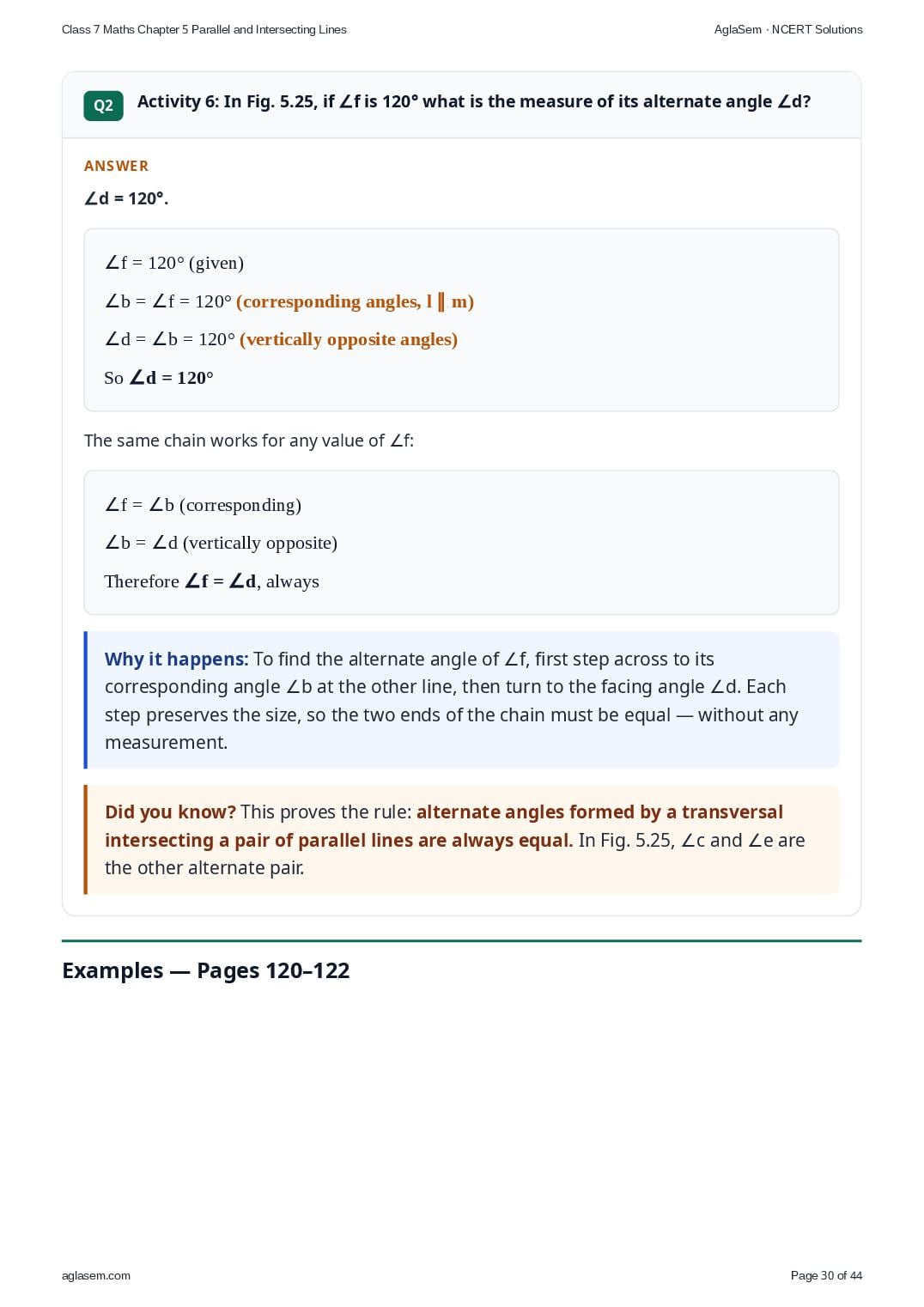

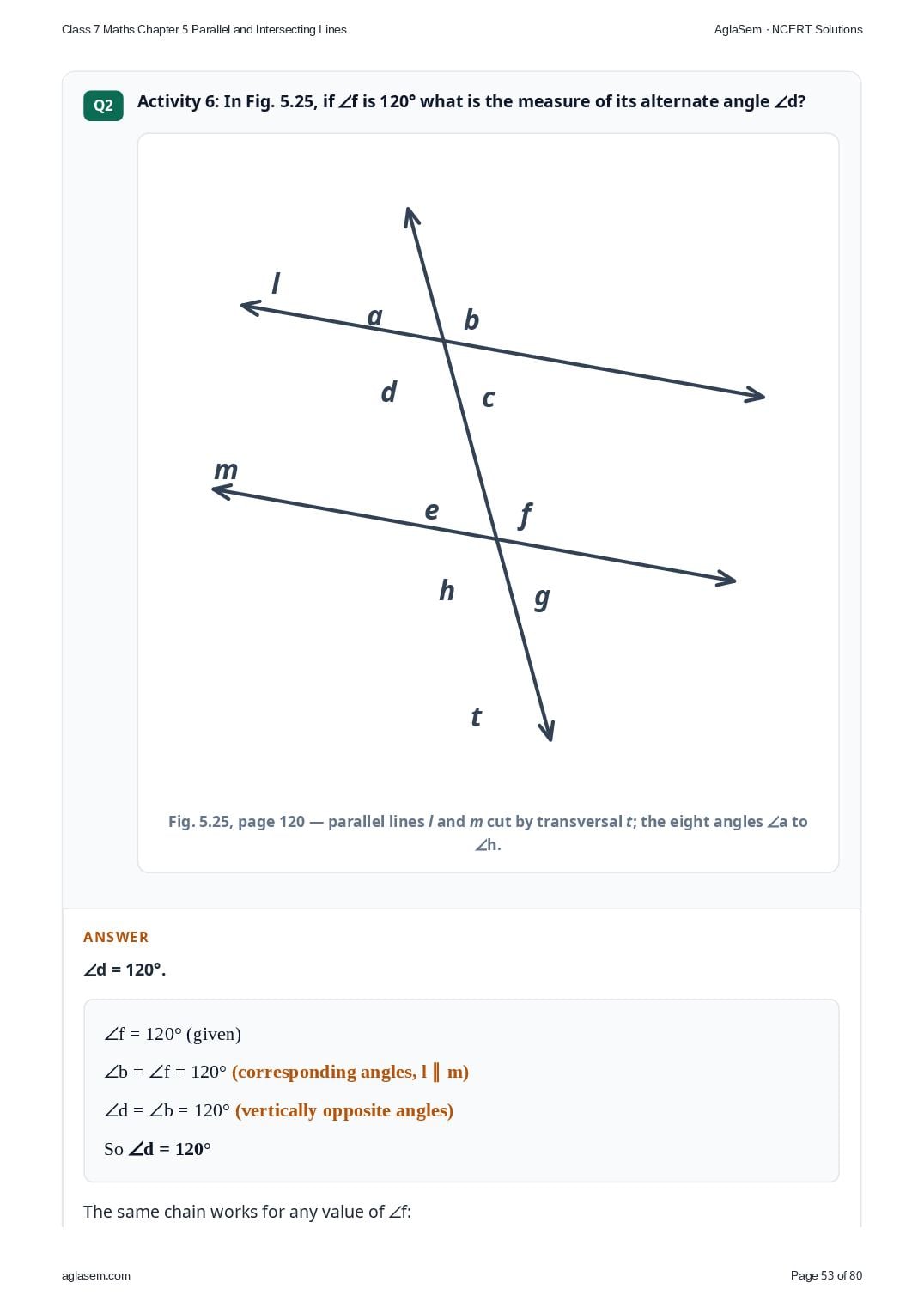

Q2Activity 6: In Fig. 5.25, if ∠f is 120° what is the measure of its alternate angle ∠d?
lmtabdcefhg
Fig. 5.25, page 120 — parallel lines l and m cut by transversal t; the eight angles ∠a to ∠h.
Answer

∠d = 120°.

∠f = 120° (given)
∠b = ∠f = 120° (corresponding angles, l ∥ m)
∠d = ∠b = 120° (vertically opposite angles)
So ∠d = 120°

Examples — Pages 120–122Section 5.8 Alternate Angles

Math Talk

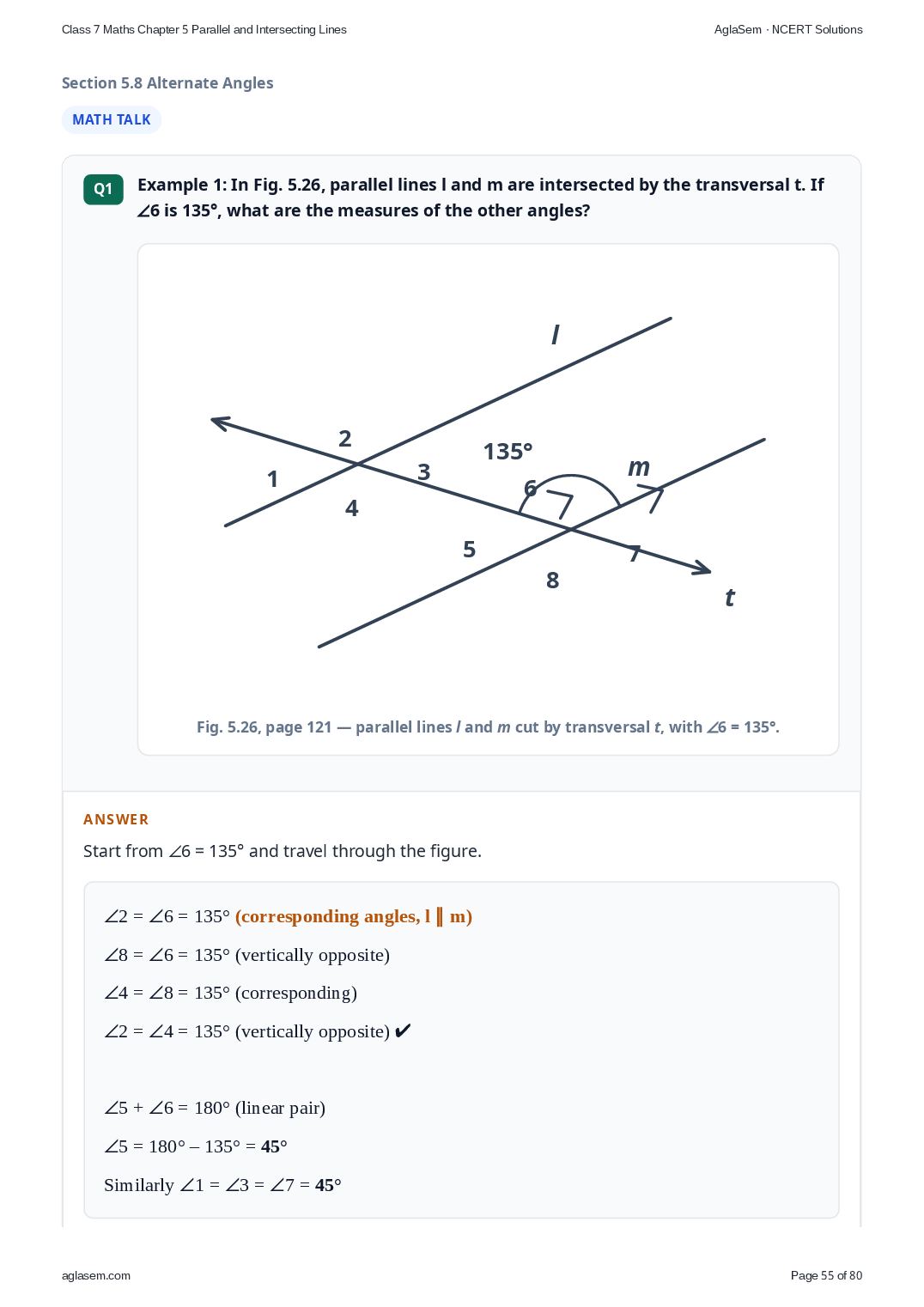

Q1Example 1: In Fig. 5.26, parallel lines l and m are intersected by the transversal t. If ∠6 is 135°, what are the measures of the other angles?
6135°5782341lmt
Fig. 5.26, page 121 — parallel lines l and m cut by transversal t, with ∠6 = 135°.
Answer
∠2 = ∠6 = 135° (corresponding angles, l ∥ m)
∠8 = ∠6 = 135° (vertically opposite)
∠4 = ∠8 = 135° (corresponding)
∠2 = ∠4 = 135° (vertically opposite) ✔

∠5 + ∠6 = 180° (linear pair)
∠5 = 180° – 135° = 45°
Similarly ∠1 = ∠3 = ∠7 = 45°
AngleMeasure
∠2, ∠4, ∠6, ∠8135°
∠1, ∠3, ∠5, ∠745°

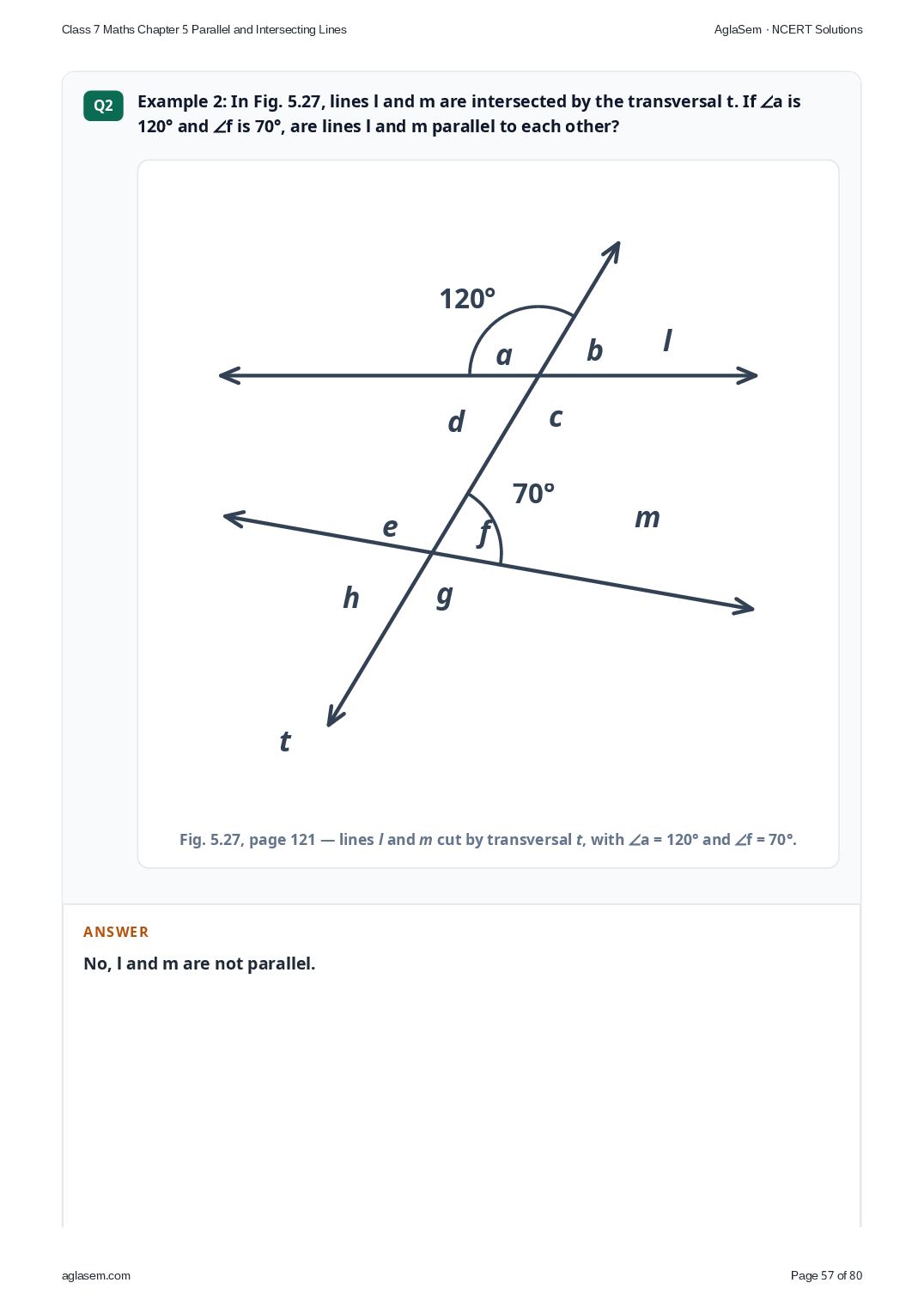

Q2Example 2: In Fig. 5.27, lines l and m are intersected by the transversal t. If ∠a is 120° and ∠f is 70°, are lines l and m parallel to each other?
120°70°abdcefhglmt
Fig. 5.27, page 121 — lines l and m cut by transversal t, with ∠a = 120° and ∠f = 70°.
Answer

No, l and m are not parallel.

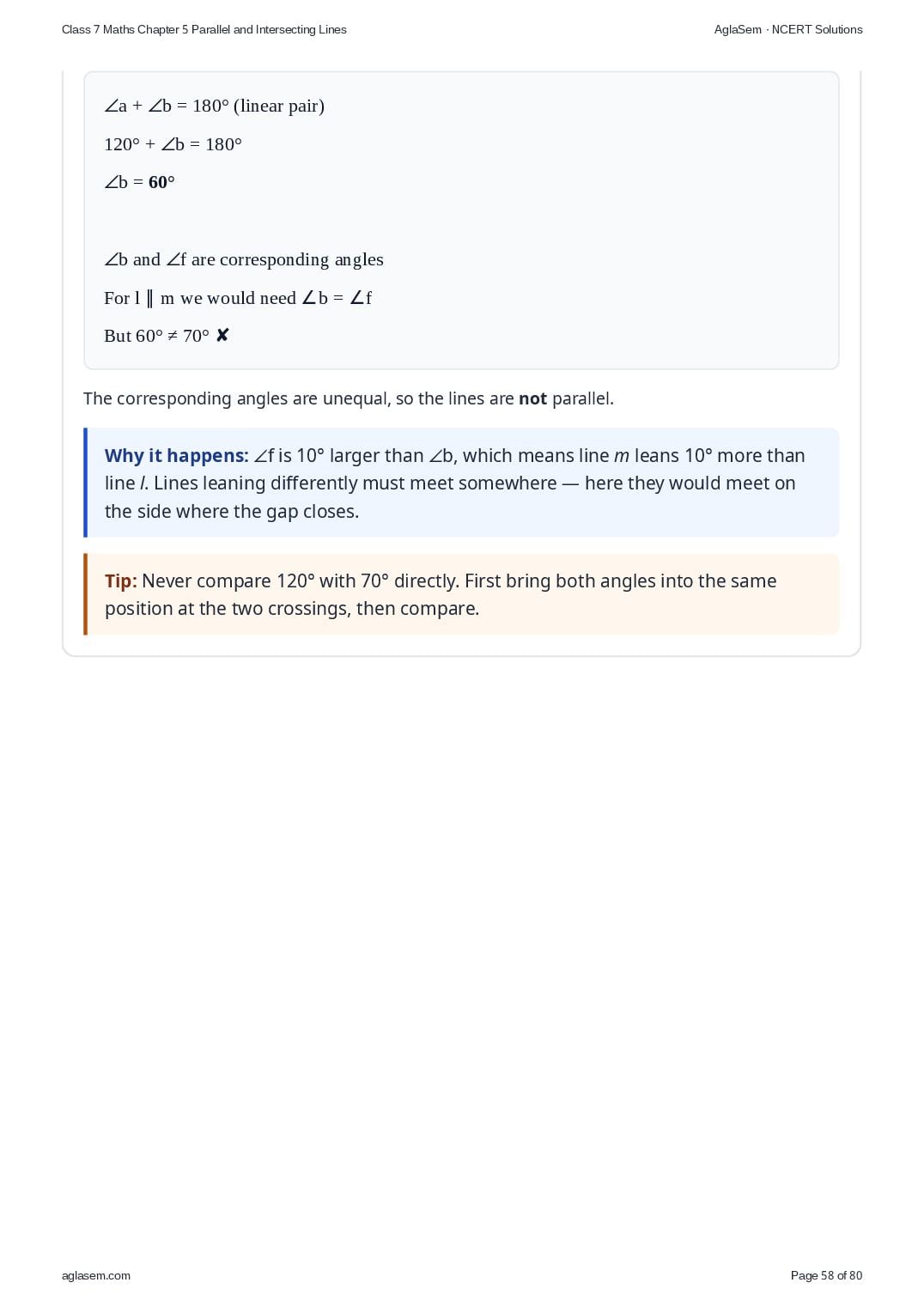

∠a + ∠b = 180° (linear pair)
120° + ∠b = 180°
∠b = 60°

∠b and ∠f are corresponding angles
For l ∥ m we would need ∠b = ∠f
But 60° ≠ 70° ✘

The corresponding angles are unequal, so the lines are not parallel.

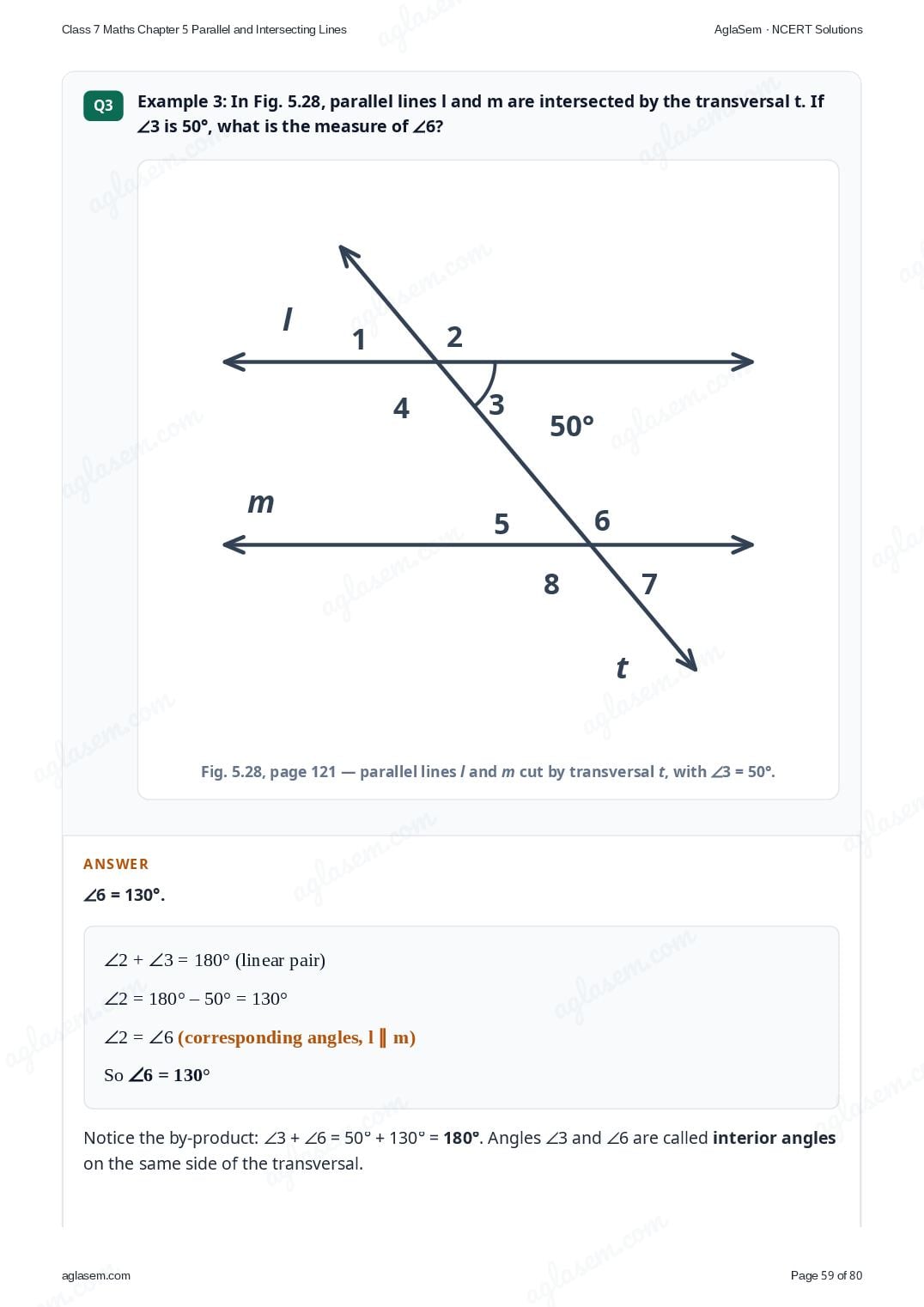

Q3Example 3: In Fig. 5.28, parallel lines l and m are intersected by the transversal t. If ∠3 is 50°, what is the measure of ∠6?
50°12435687lmt
Fig. 5.28, page 121 — parallel lines l and m cut by transversal t, with ∠3 = 50°.
Answer

∠6 = 130°.

∠2 + ∠3 = 180° (linear pair)
∠2 = 180° – 50° = 130°
∠2 = ∠6 (corresponding angles, l ∥ m)
So ∠6 = 130°

Notice the by-product: ∠3 + ∠6 = 50° + 130° = 180°. Angles ∠3 and ∠6 are called interior angles on the same side of the transversal.

Q4Is there a relation between ∠3 and ∠6? You could try to find the relationship by taking different values for ∠3 and see what ∠6 is. Once you find a relation, try to justify it or prove that this relation holds always.
12435687lmt
Fig. 5.28, page 121 — parallel lines l and m cut by transversal t, with the eight angles numbered 1 to 8 (∠3 marked).
Answer

Yes: ∠3 + ∠6 = 180° always. Interior angles on the same side of the transversal are supplementary.

∠3∠2 = 180° – ∠3∠6 = ∠2∠3 + ∠6
50°130°130°180°
70°110°110°180°
90°90°90°180°
115°65°65°180°

Proof (no measurement used):

∠2 + ∠3 = 180° (linear pair on line l)
∠2 = ∠6 (corresponding angles, l ∥ m)
Replace ∠2 by ∠6 in the first line:
∠6 + ∠3 = 180°

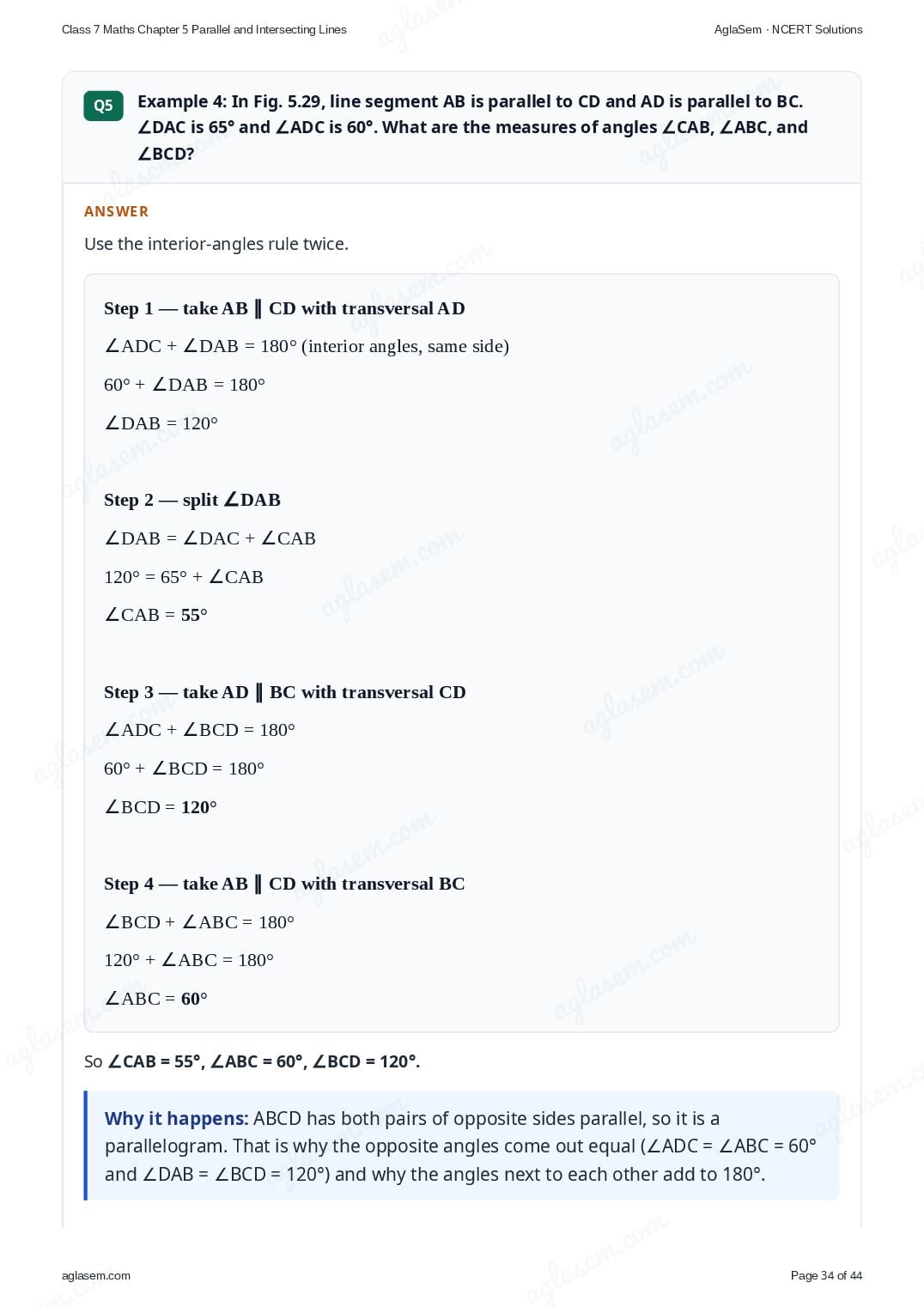

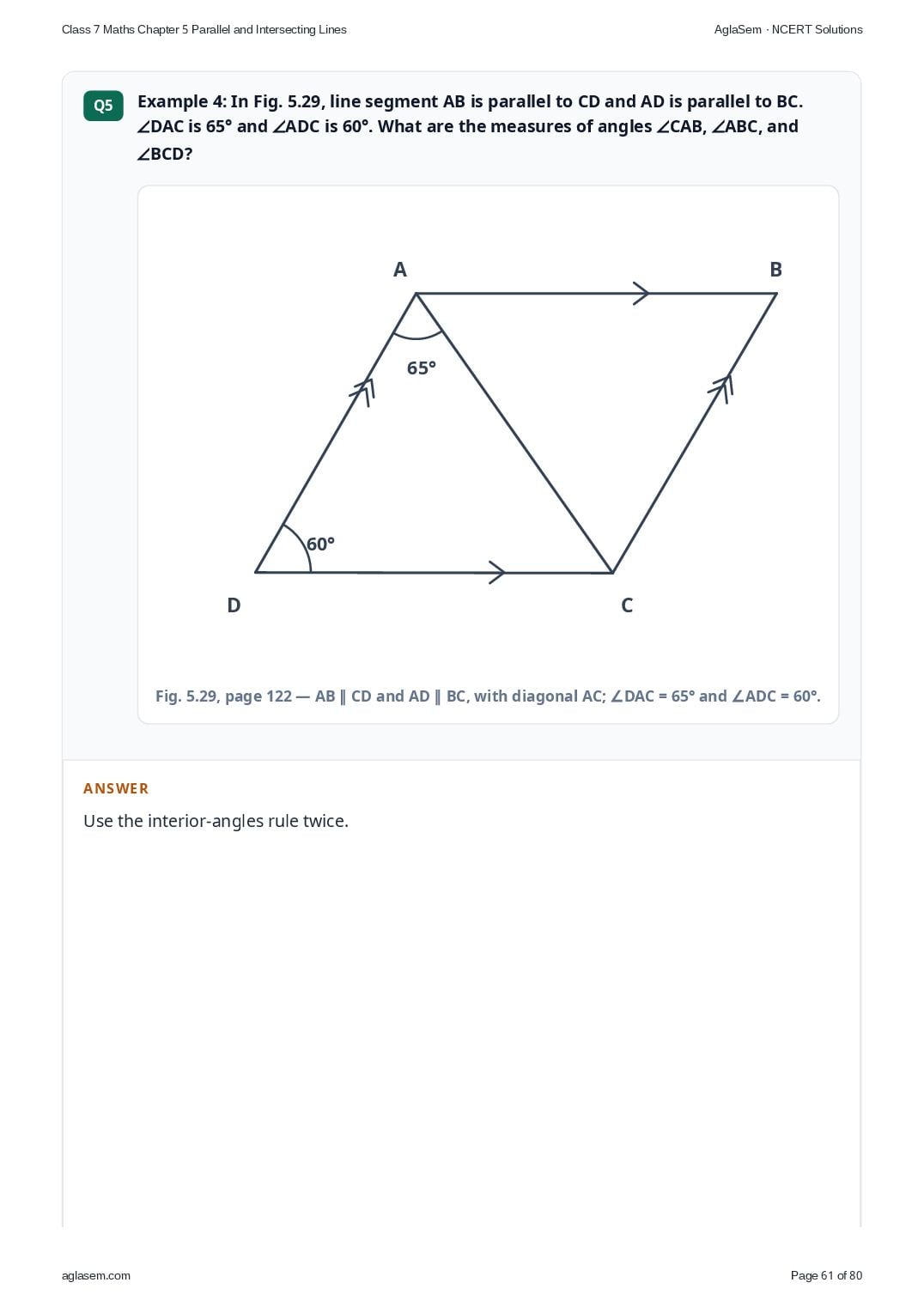

Q5Example 4: In Fig. 5.29, line segment AB is parallel to CD and AD is parallel to BC. ∠DAC is 65° and ∠ADC is 60°. What are the measures of angles ∠CAB, ∠ABC, and ∠BCD?
65°60°ABCD
Fig. 5.29, page 122 — AB ∥ CD and AD ∥ BC, with diagonal AC; ∠DAC = 65° and ∠ADC = 60°.
Answer

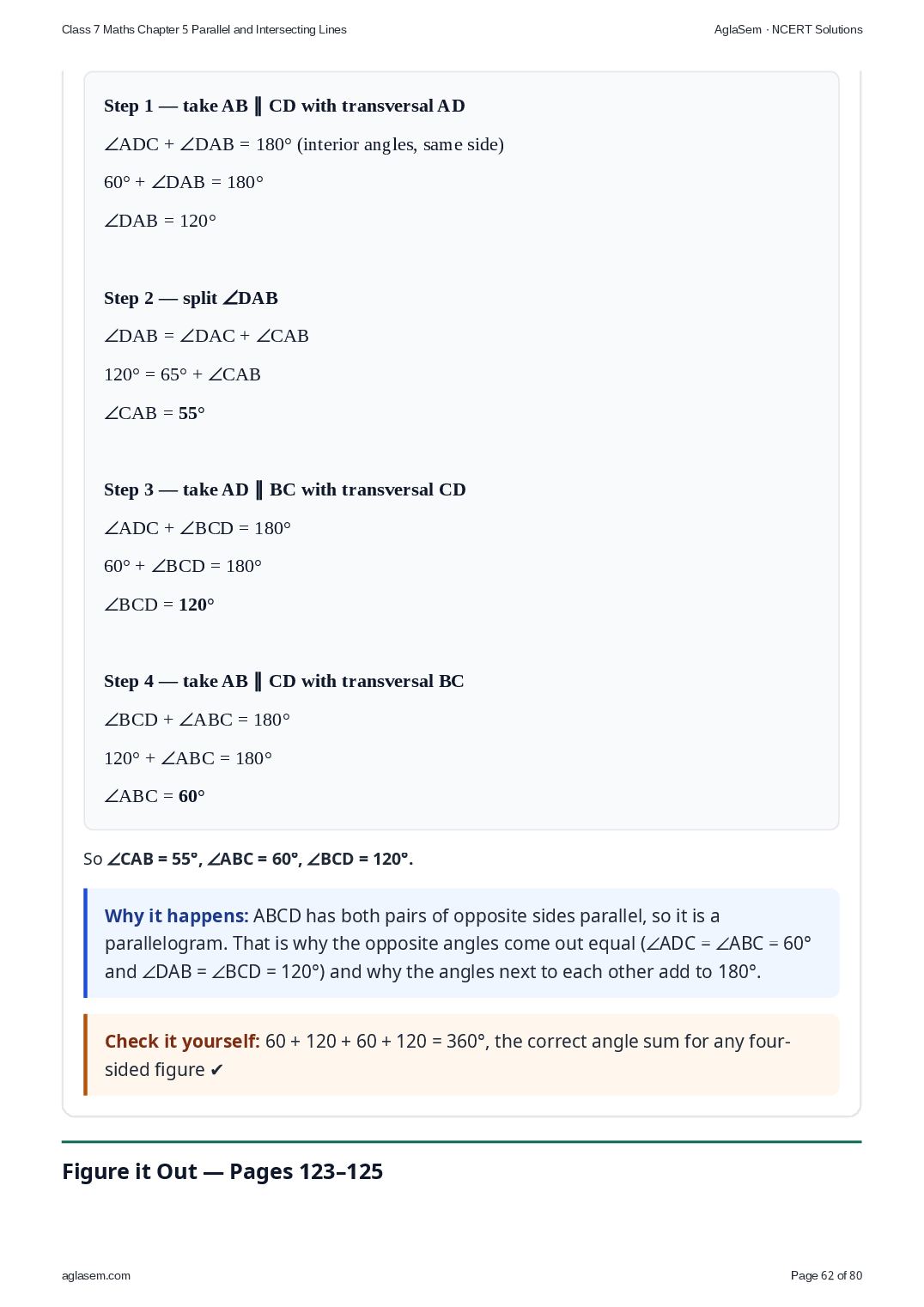

Step 1 — take AB ∥ CD with transversal AD
∠ADC + ∠DAB = 180° (interior angles, same side)
60° + ∠DAB = 180°
∠DAB = 120°

Step 2 — split ∠DAB
∠DAB = ∠DAC + ∠CAB
120° = 65° + ∠CAB
∠CAB = 55°

Step 3 — take AD ∥ BC with transversal CD
∠ADC + ∠BCD = 180°
60° + ∠BCD = 180°
∠BCD = 120°

Step 4 — take AB ∥ CD with transversal BC
∠BCD + ∠ABC = 180°
120° + ∠ABC = 180°
∠ABC = 60°

So ∠CAB = 55°, ∠ABC = 60°, ∠BCD = 120°.

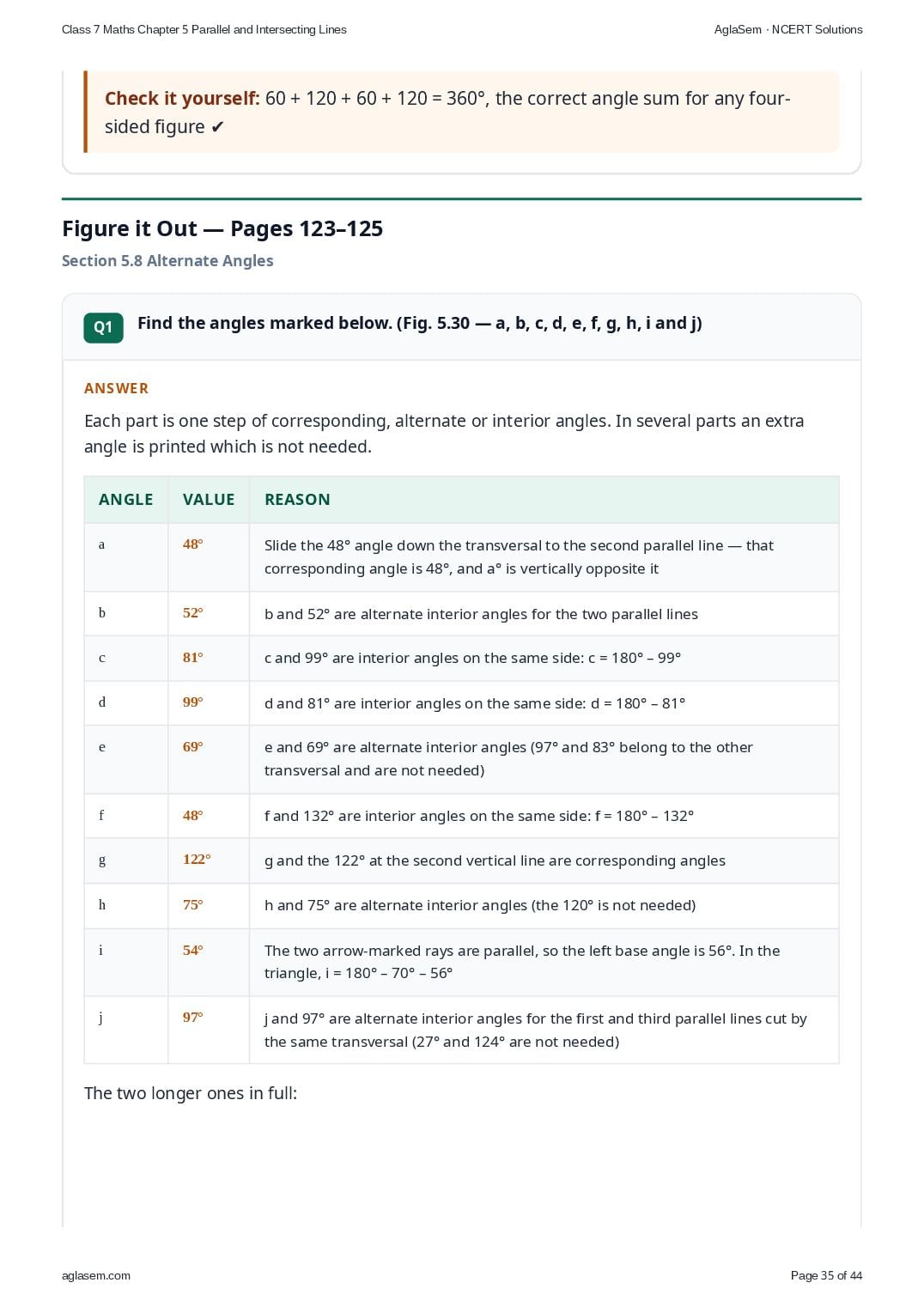

Figure it Out — Pages 123–125Section 5.8 Alternate Angles

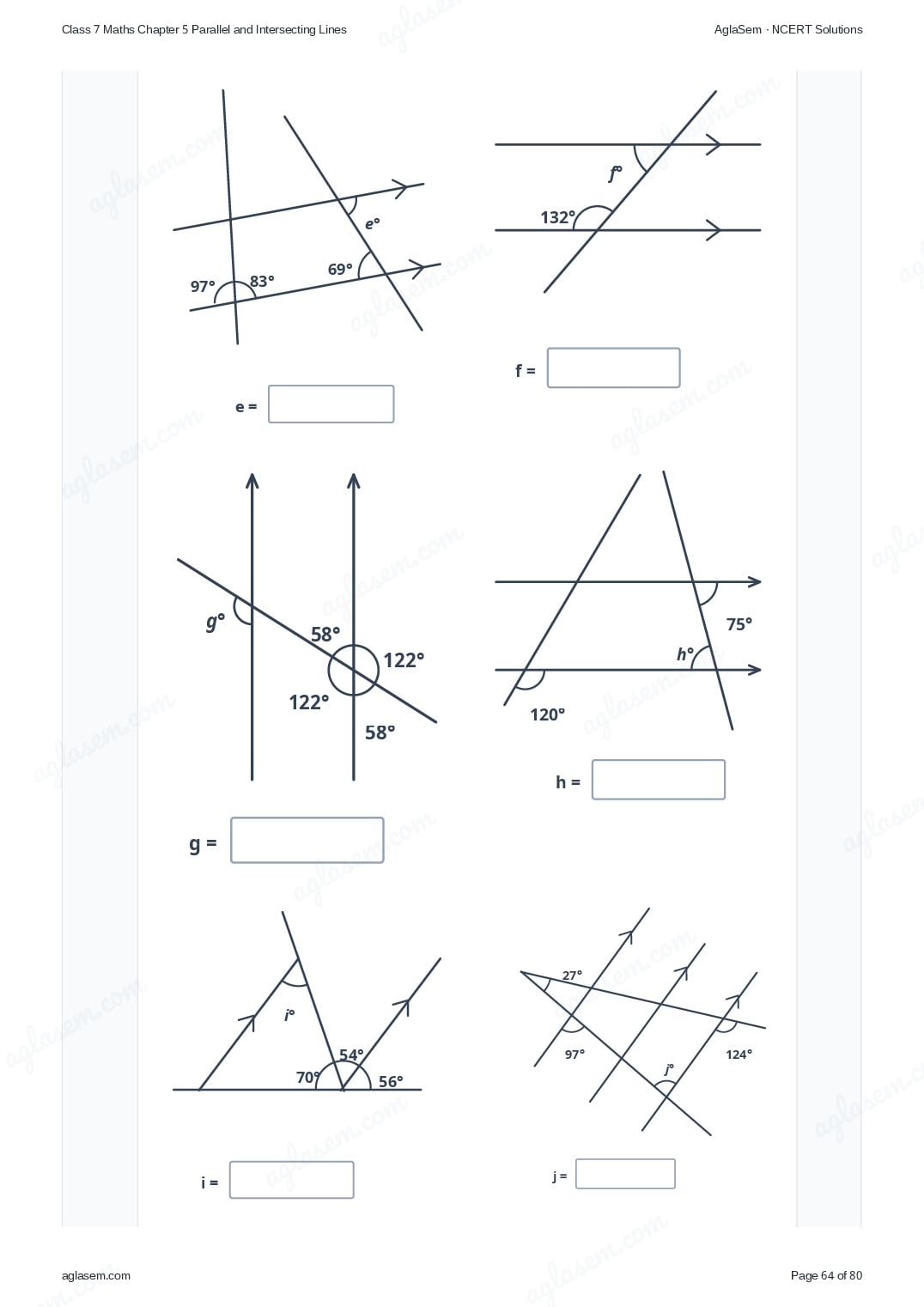

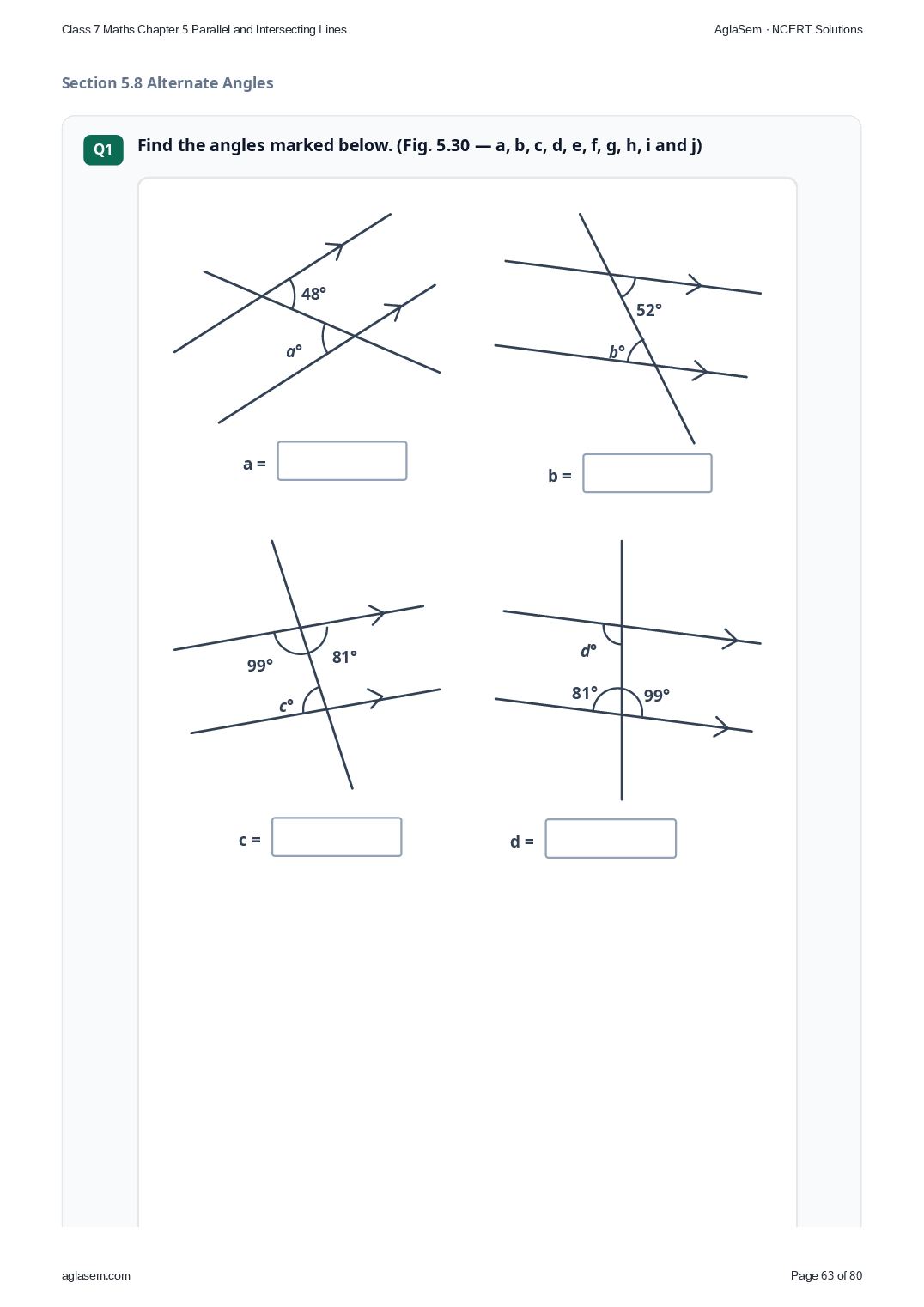

Q1Find the angles marked below. (Fig. 5.30 — a, b, c, d, e, f, g, h, i and j)
48°a°a =
52°b°b =
99°81°c°c =
d°81°99°d =
97°83°69°e°e =
f°132°f =
58°122°58°122°g°g =
75°120°h°h =
54°56°i°70°i =
27°97°124°j°j =
Fig. 5.30, page 123 — the ten figures (a) to (j) whose marked angles are to be found.

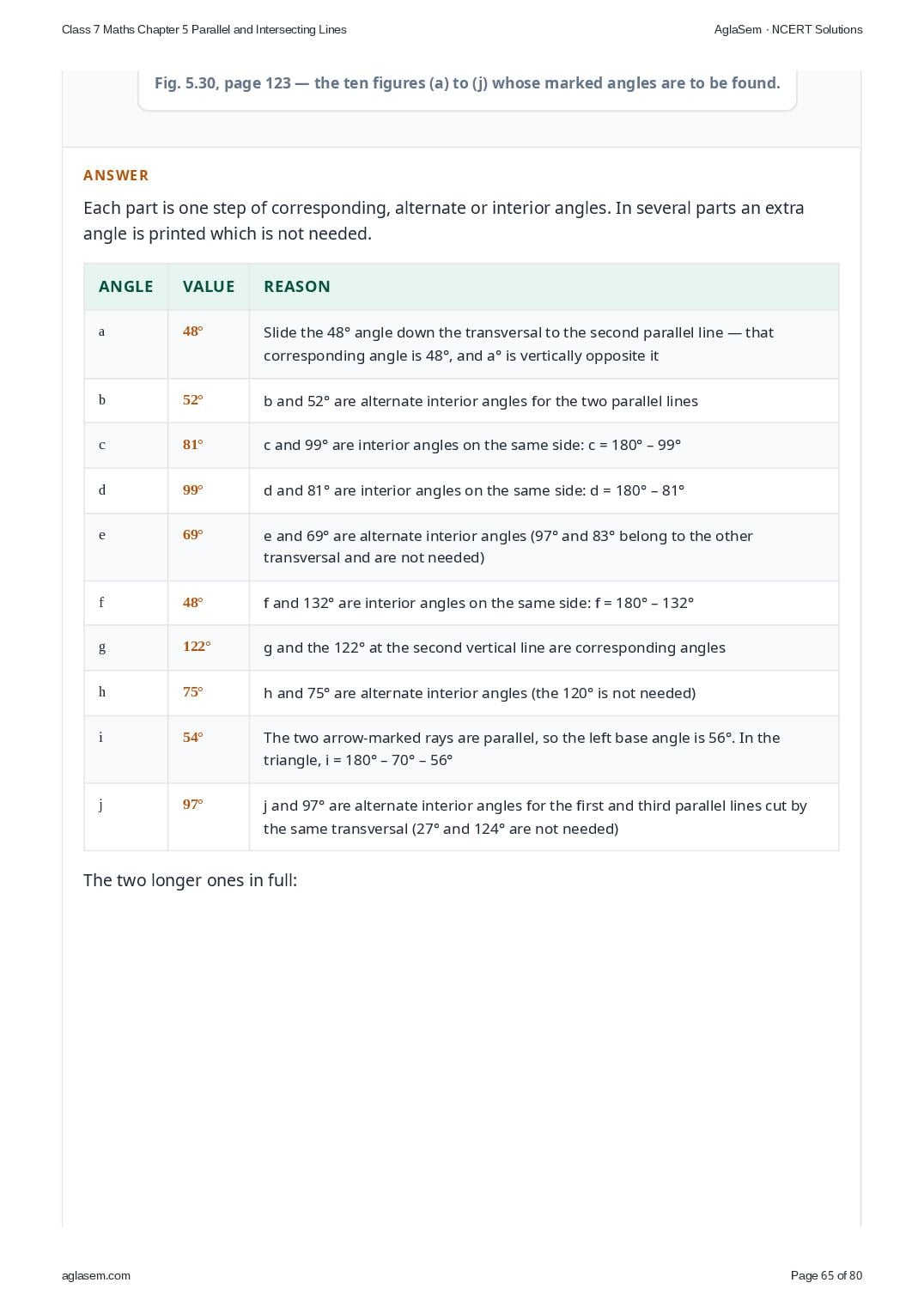

Answer

a = 48°, b = 52°, c = 81°, d = 99°, e = 69°, f = 48°, g = 122°, h = 75°, i = 54°, j = 97°

AngleValueReason
a48°a and 48° are alternate angles (between the parallel lines, on opposite sides of the transversal)
b52°b and 52° are alternate interior angles for the two parallel lines
c81°c and 99° are interior angles on the same side: c = 180° – 99°
d99°d and 81° are interior angles on the same side: d = 180° – 81°
e69°e and 69° are alternate interior angles (97° and 83° belong to the other transversal and are not needed)
f48°f and 132° are interior angles on the same side: f = 180° – 132°
g122°g and the 122° at the second vertical line are corresponding angles
h75°h and 75° are alternate interior angles (the 120° is not needed)
i54°i and 54° are alternate angles (the middle line cuts the two arrow-marked parallel lines)
j97°j and 97° are alternate interior angles for the first and third parallel lines cut by the same transversal (27° and 124° are not needed)

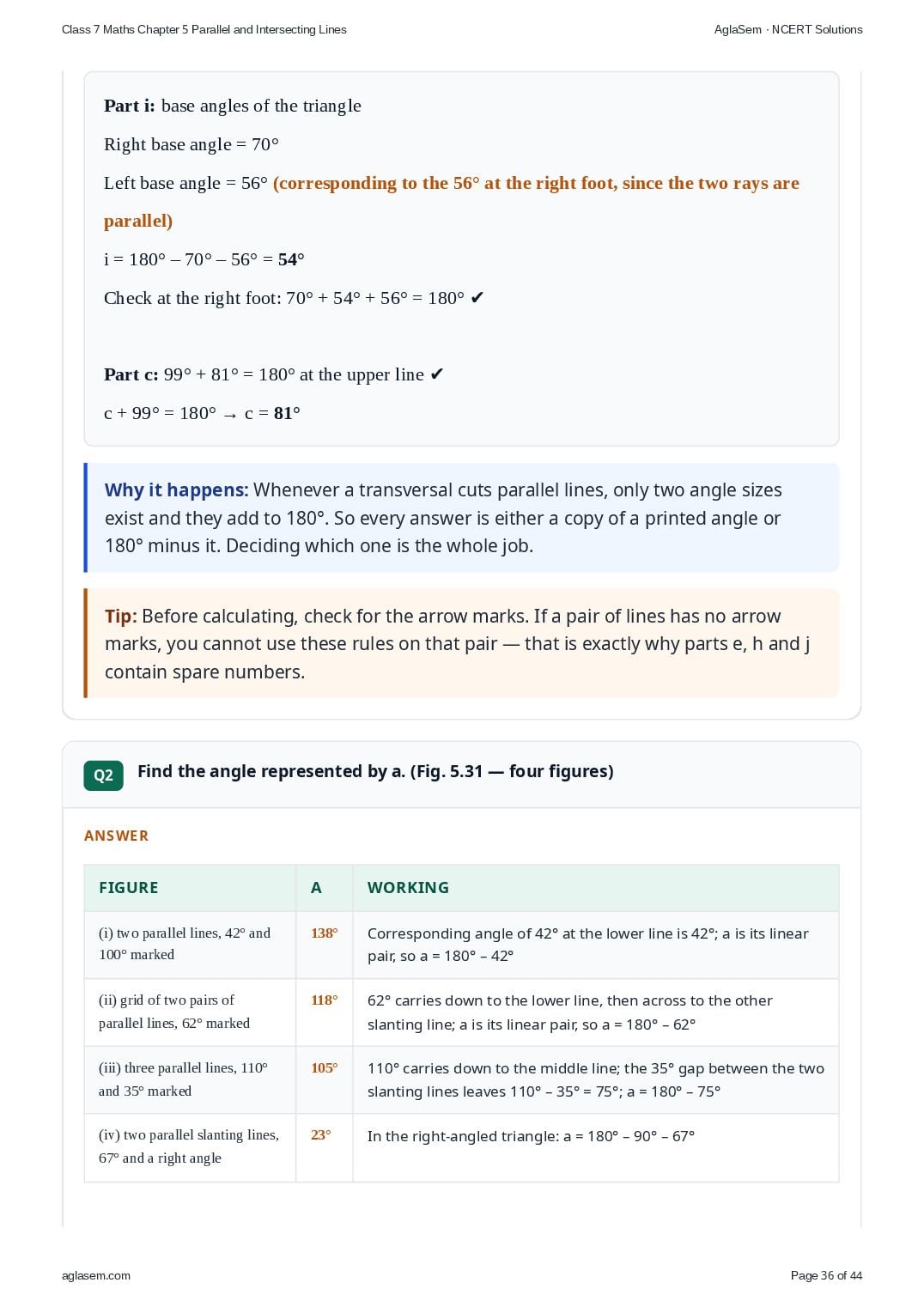

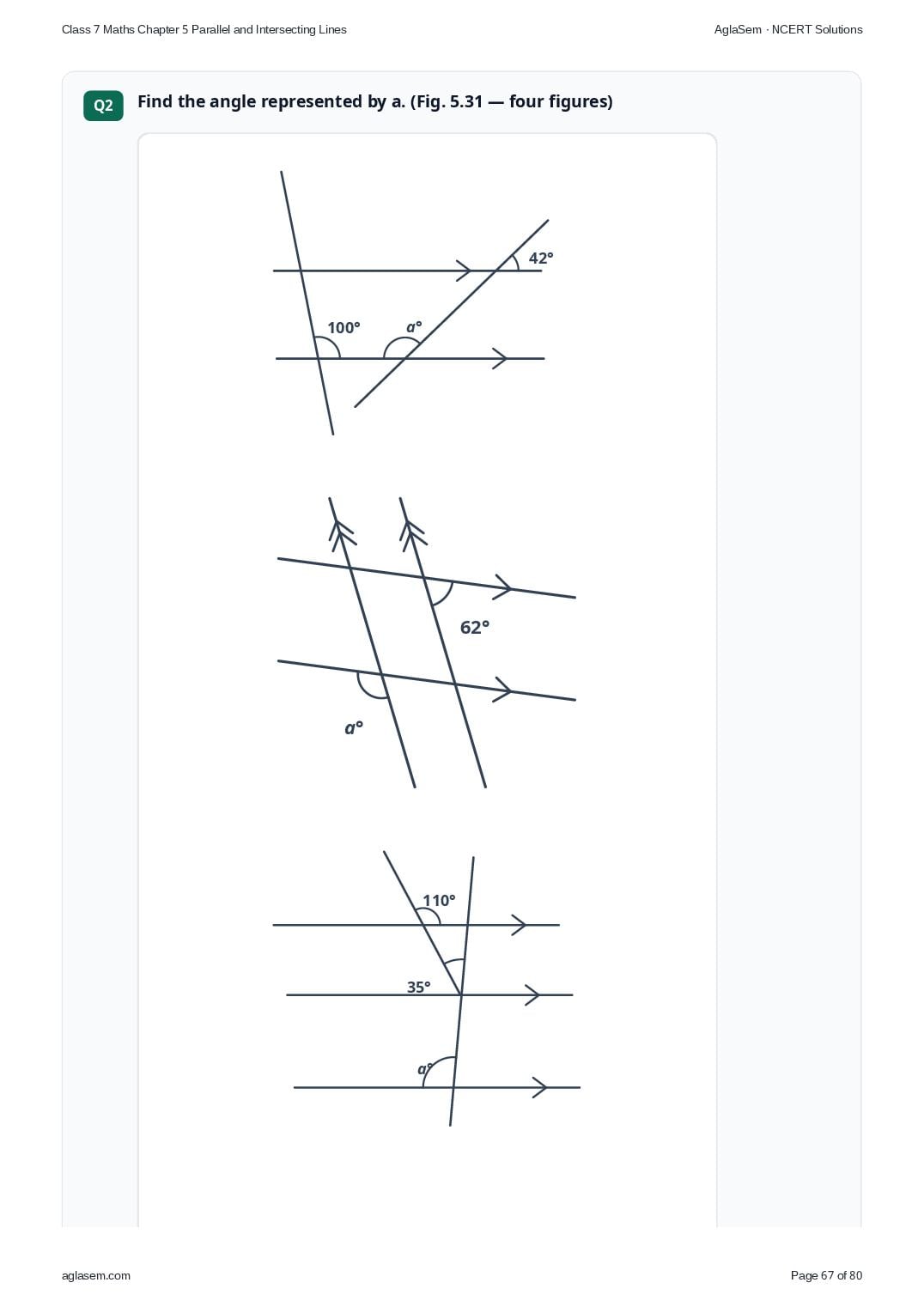

Q2Find the angle represented by a. (Fig. 5.31 — four figures)
42°100°a°
62°a°
110°35°a°
67°a°
Fig. 5.31, page 124 — the four figures in which the angle a is to be found.
Answer
(i) 42° is copied at the lower line (corresponding angles); a is its linear pair.
a = 180° – 42° = 138°

(ii) 62° is copied at the lower-left crossing (corresponding angles); a is its linear pair.
a = 180° – 62° = 118°

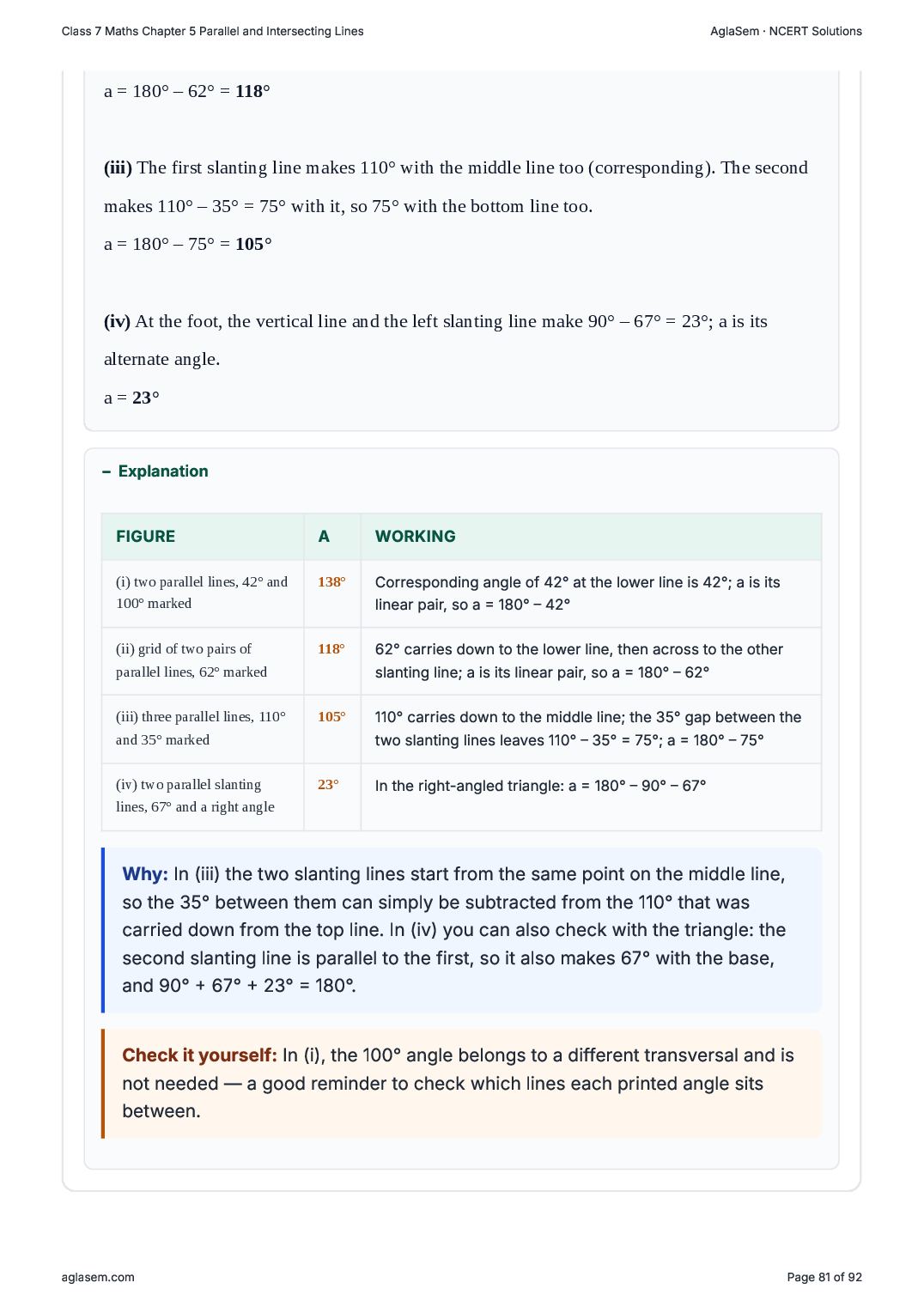

(iii) The first slanting line makes 110° with the middle line too (corresponding). The second makes 110° – 35° = 75° with it, so 75° with the bottom line too.
a = 180° – 75° = 105°

(iv) At the foot, the vertical line and the left slanting line make 90° – 67° = 23°; a is its alternate angle.
a = 23°

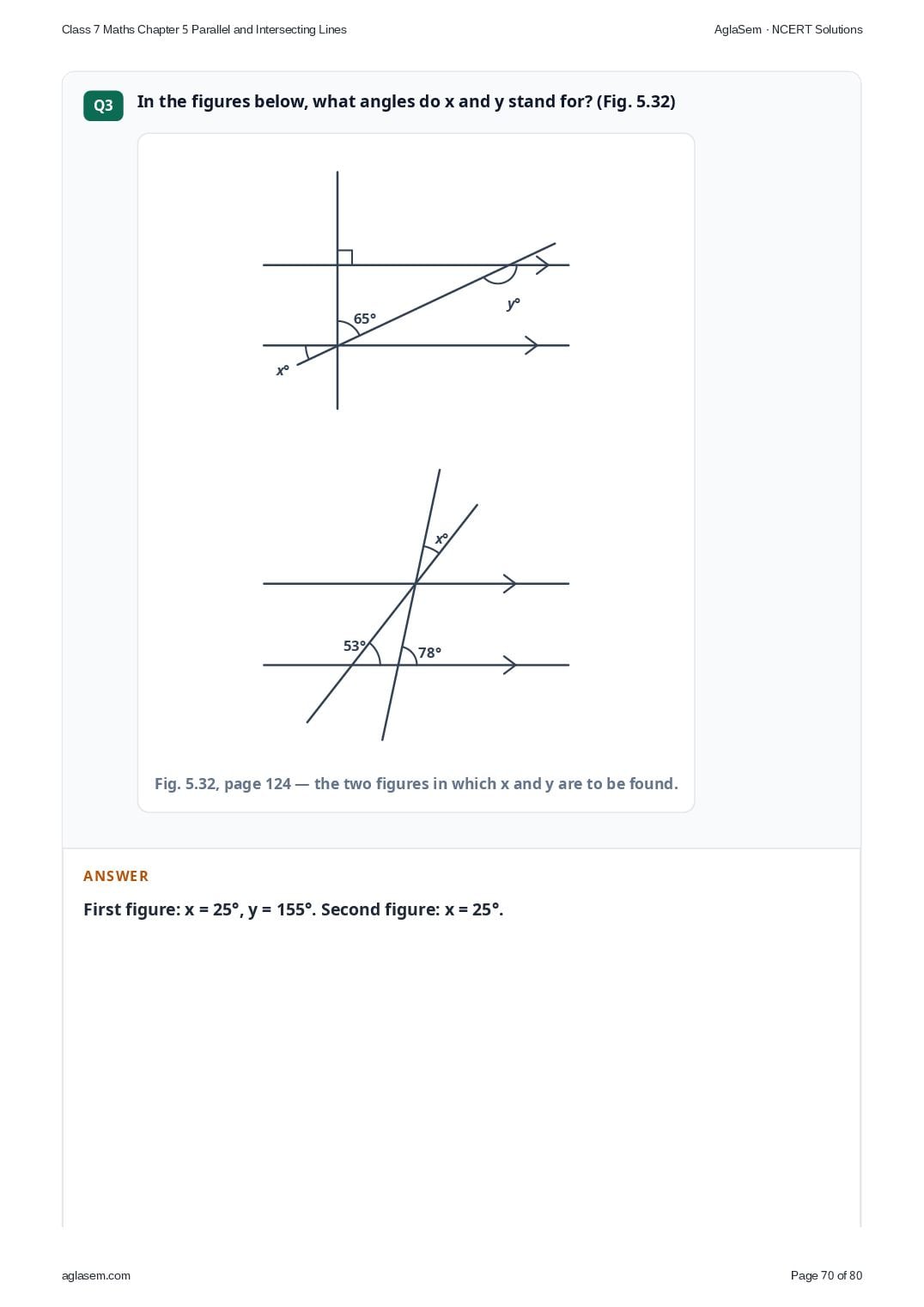

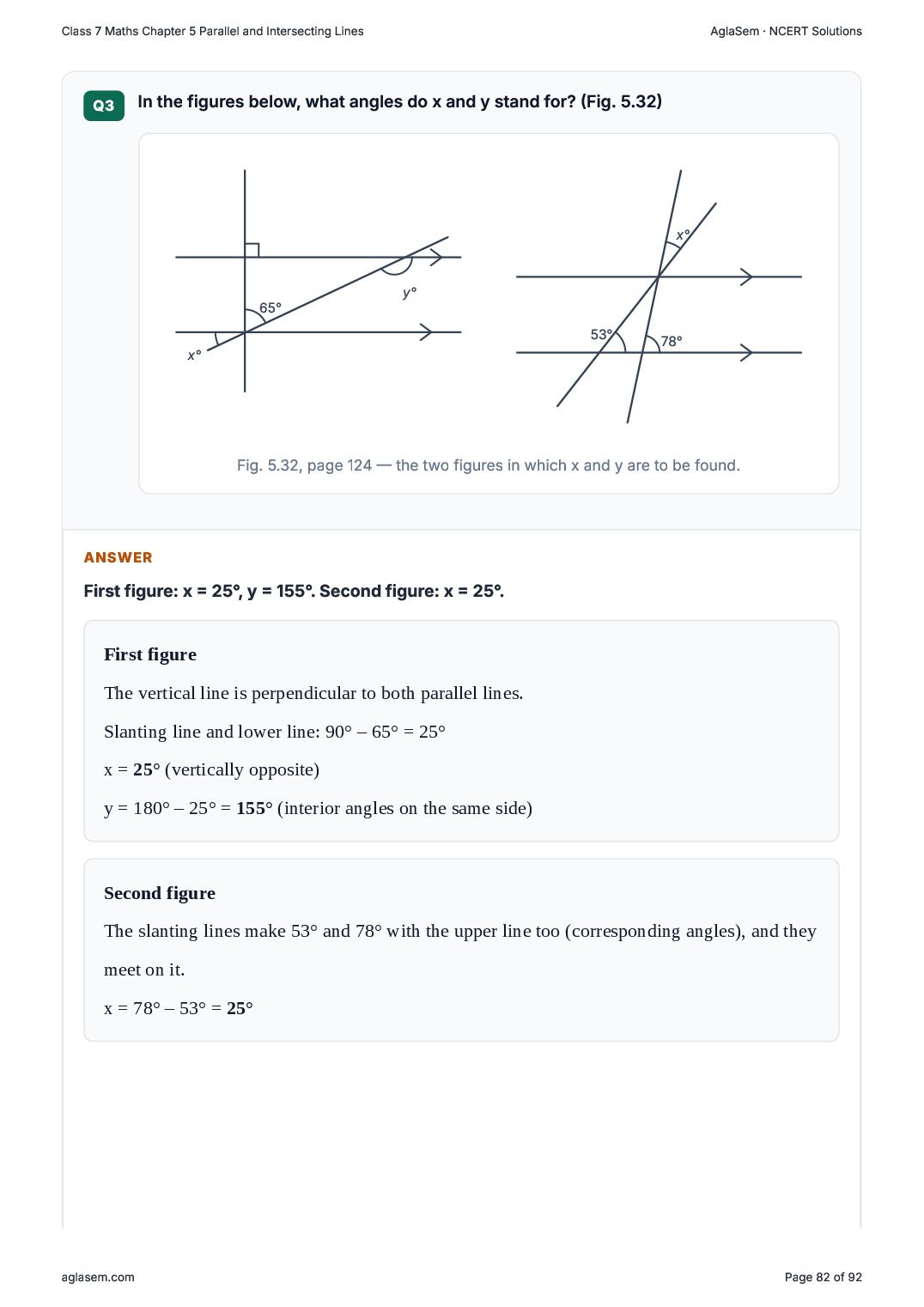

Q3In the figures below, what angles do x and y stand for? (Fig. 5.32)
65°x°y°
78°53°x°
Fig. 5.32, page 124 — the two figures in which x and y are to be found.
Answer

First figure: x = 25°, y = 155°. Second figure: x = 25°.

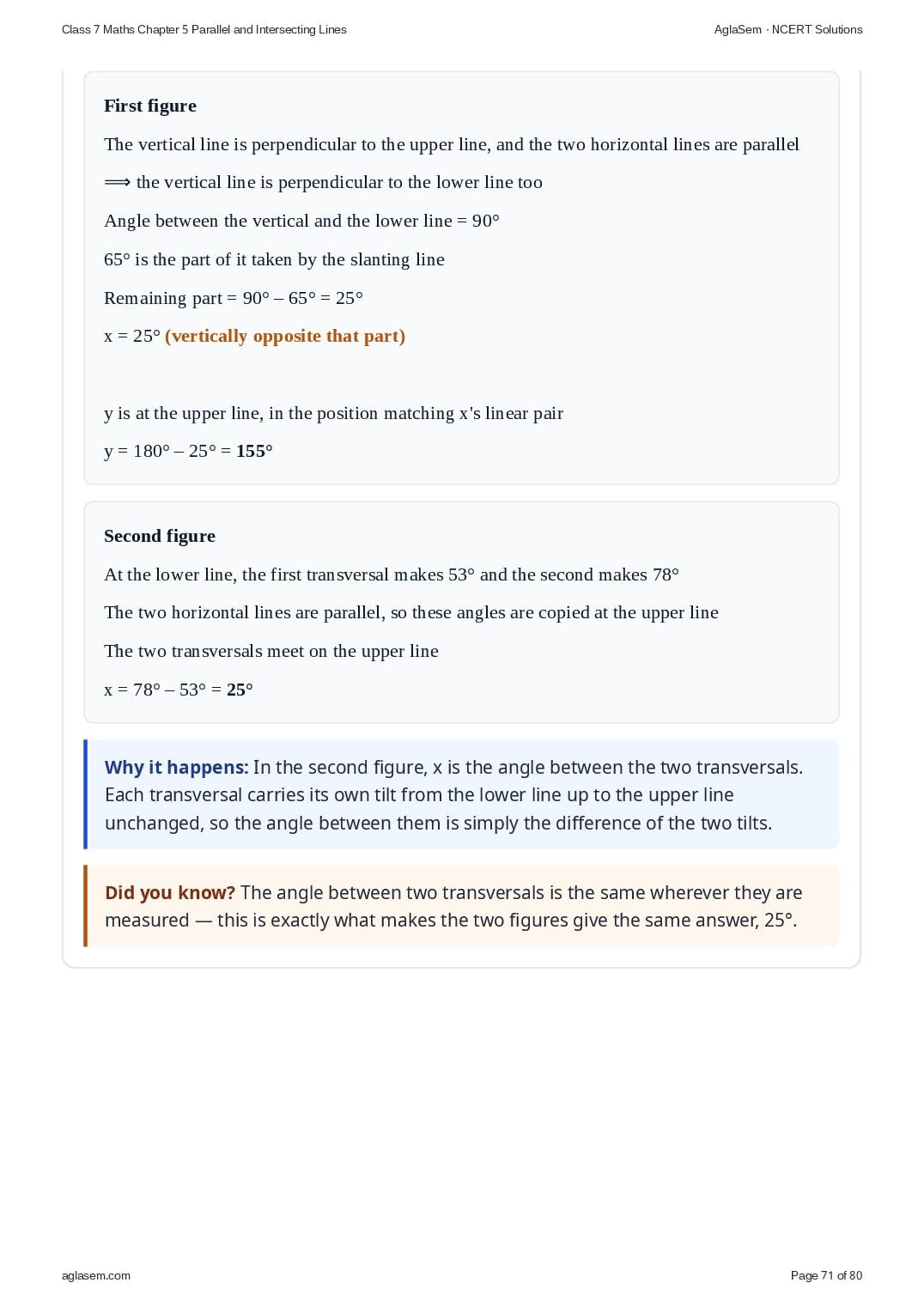

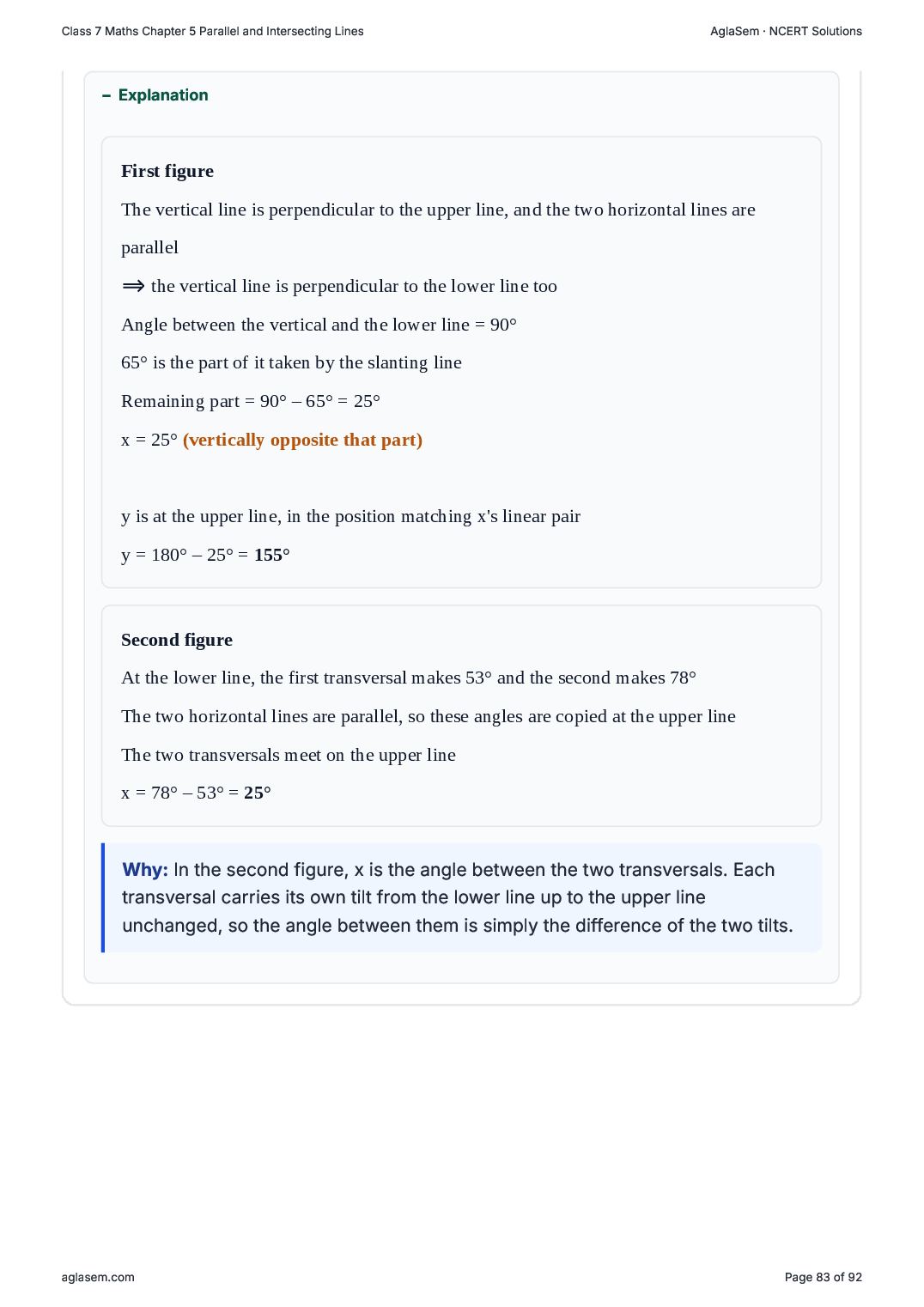

First figure
The vertical line is perpendicular to both parallel lines.
Slanting line and lower line: 90° – 65° = 25°
x = 25° (vertically opposite)
y = 180° – 25° = 155° (interior angles on the same side)

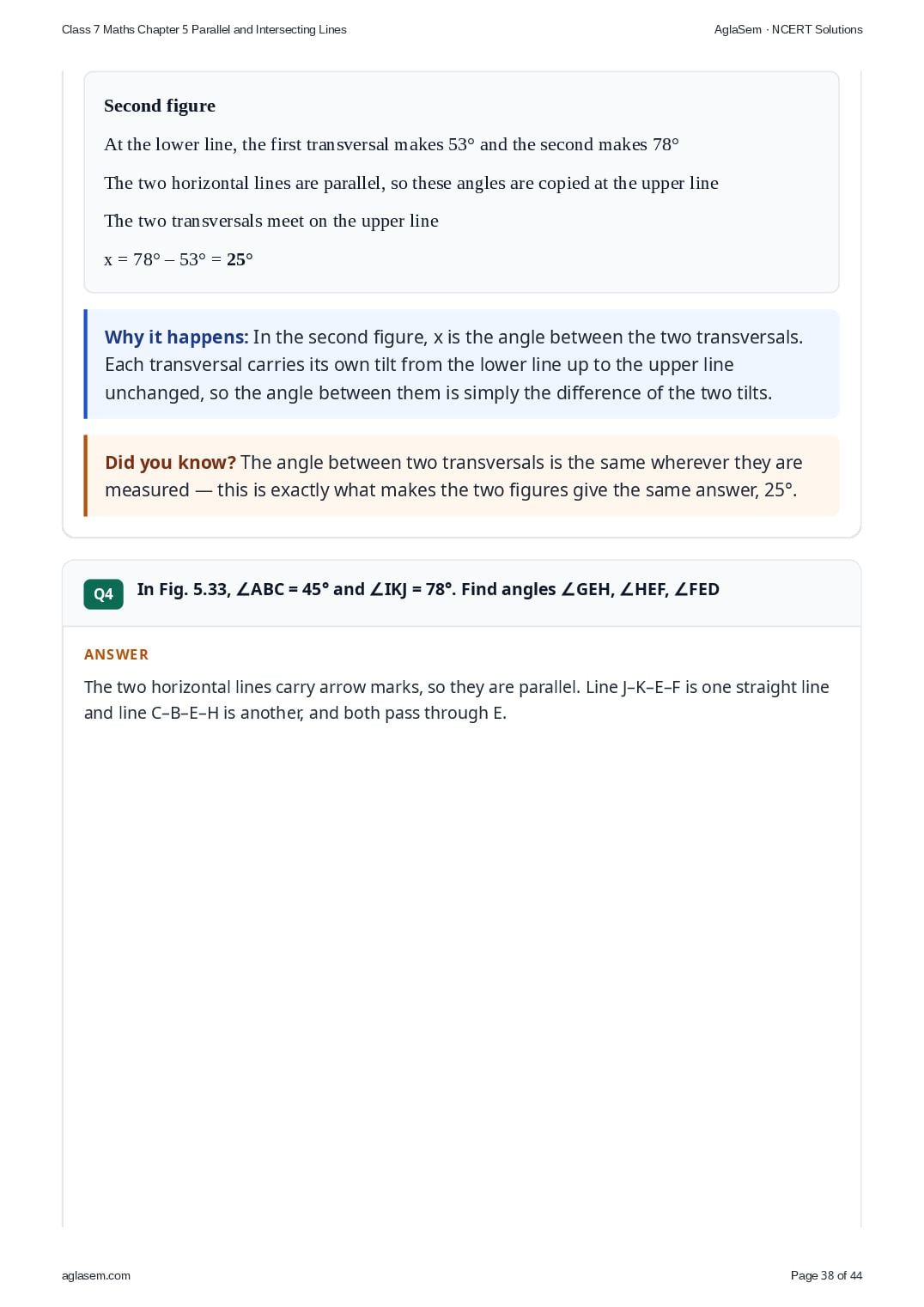

Second figure
The slanting lines make 53° and 78° with the upper line too (corresponding angles), and they meet on it.
x = 78° – 53° = 25°

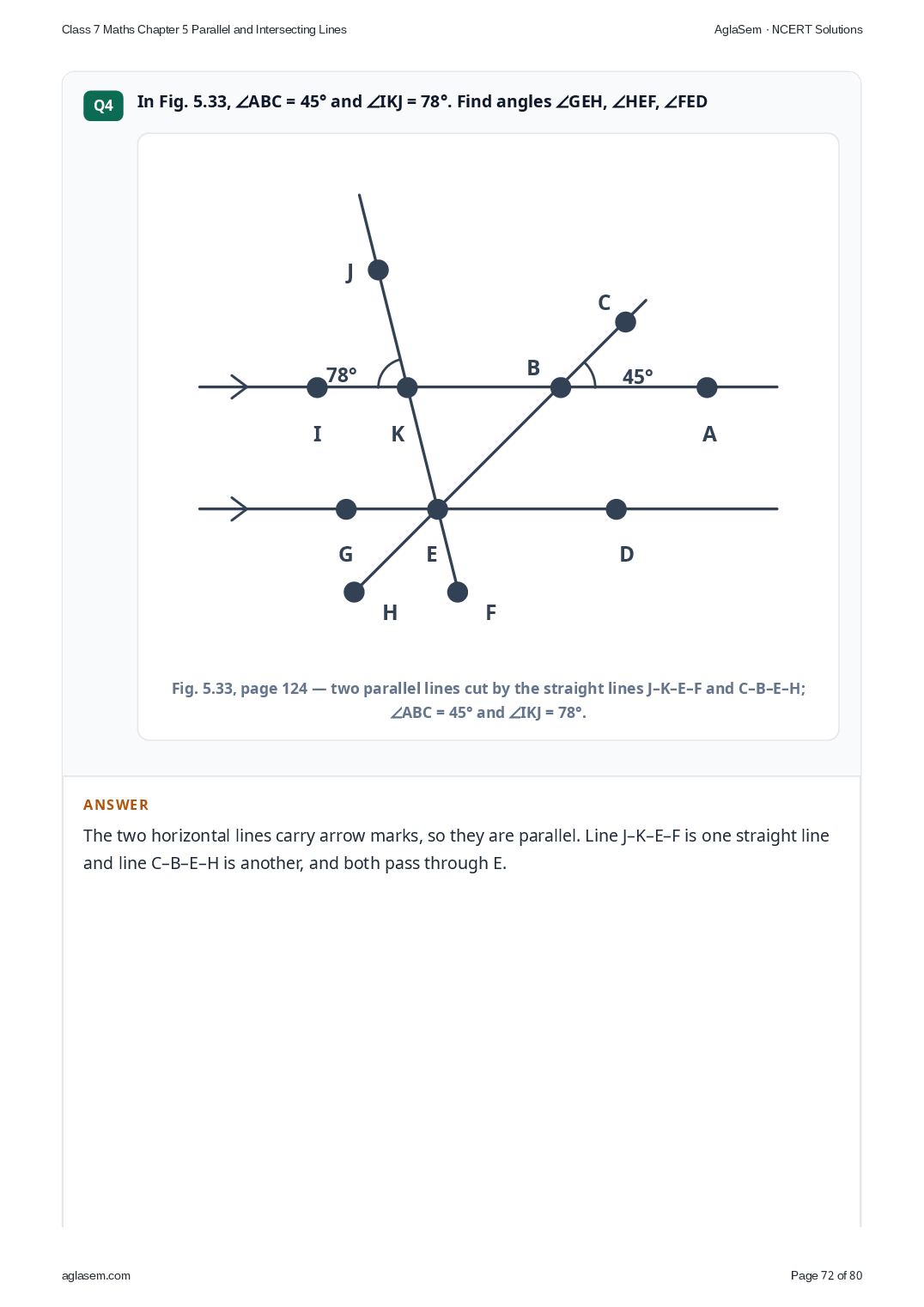

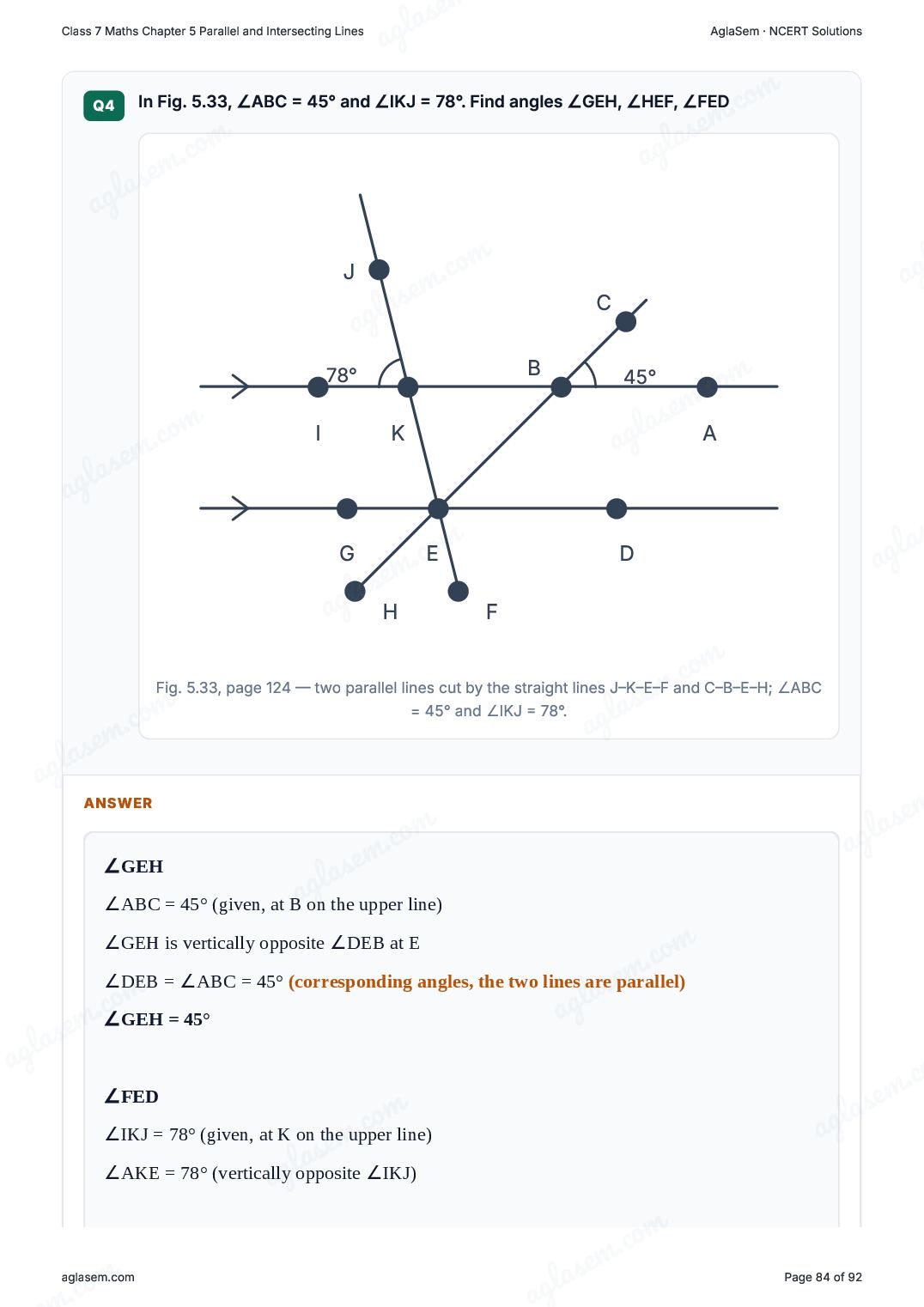

Q4In Fig. 5.33, ∠ABC = 45° and ∠IKJ = 78°. Find angles ∠GEH, ∠HEF, ∠FED
JIKBCAGEDHF78°45°
Fig. 5.33, page 124 — two parallel lines cut by the straight lines J–K–E–F and C–B–E–H; ∠ABC = 45° and ∠IKJ = 78°.
Answer

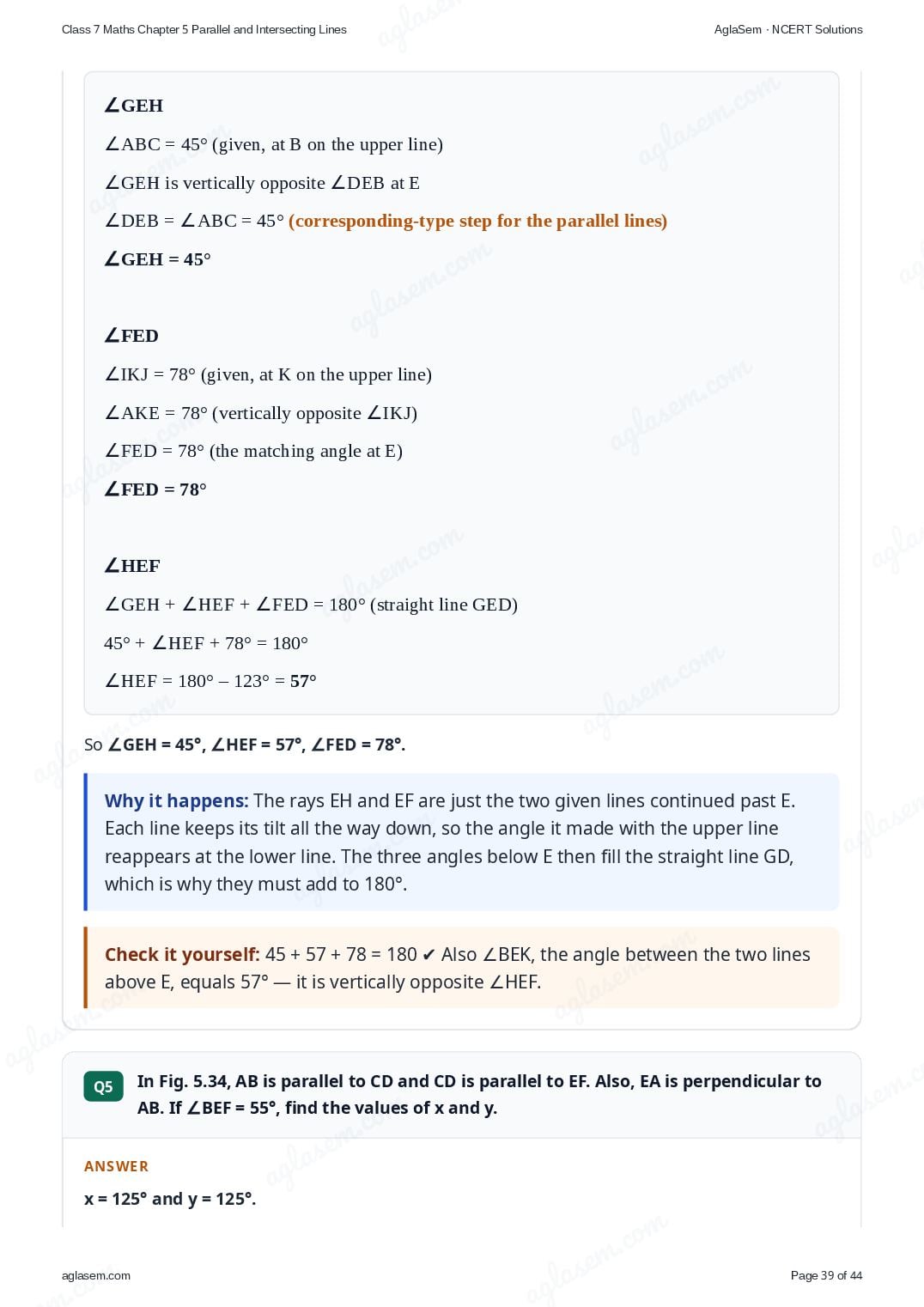

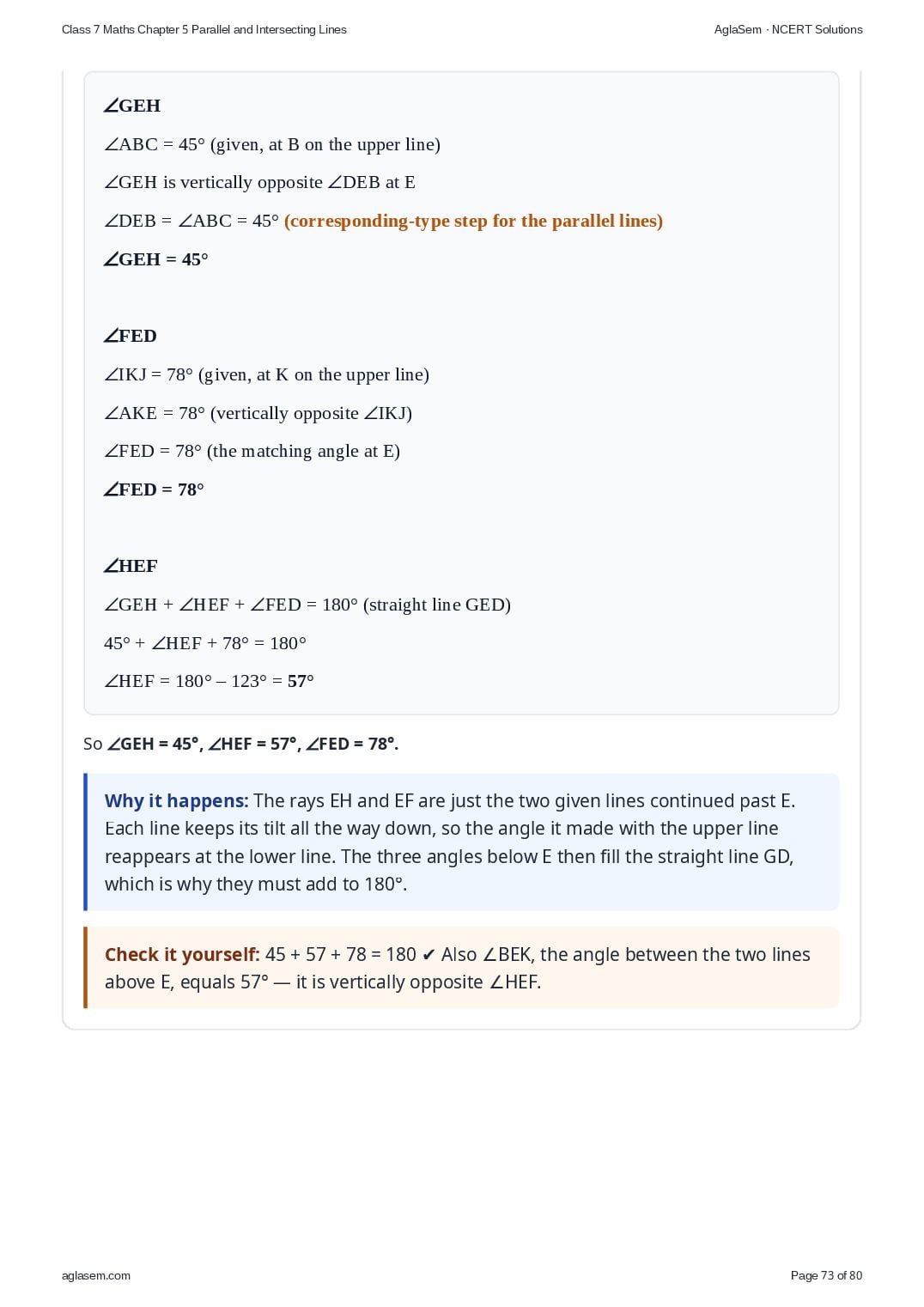

∠GEH
∠ABC = 45° (given, at B on the upper line)
∠GEH is vertically opposite ∠DEB at E
∠DEB = ∠ABC = 45° (corresponding angles, the two lines are parallel)
∠GEH = 45°

∠FED
∠IKJ = 78° (given, at K on the upper line)
∠AKE = 78° (vertically opposite ∠IKJ)
∠FED = ∠AKE = 78° (corresponding angles)
∠FED = 78°

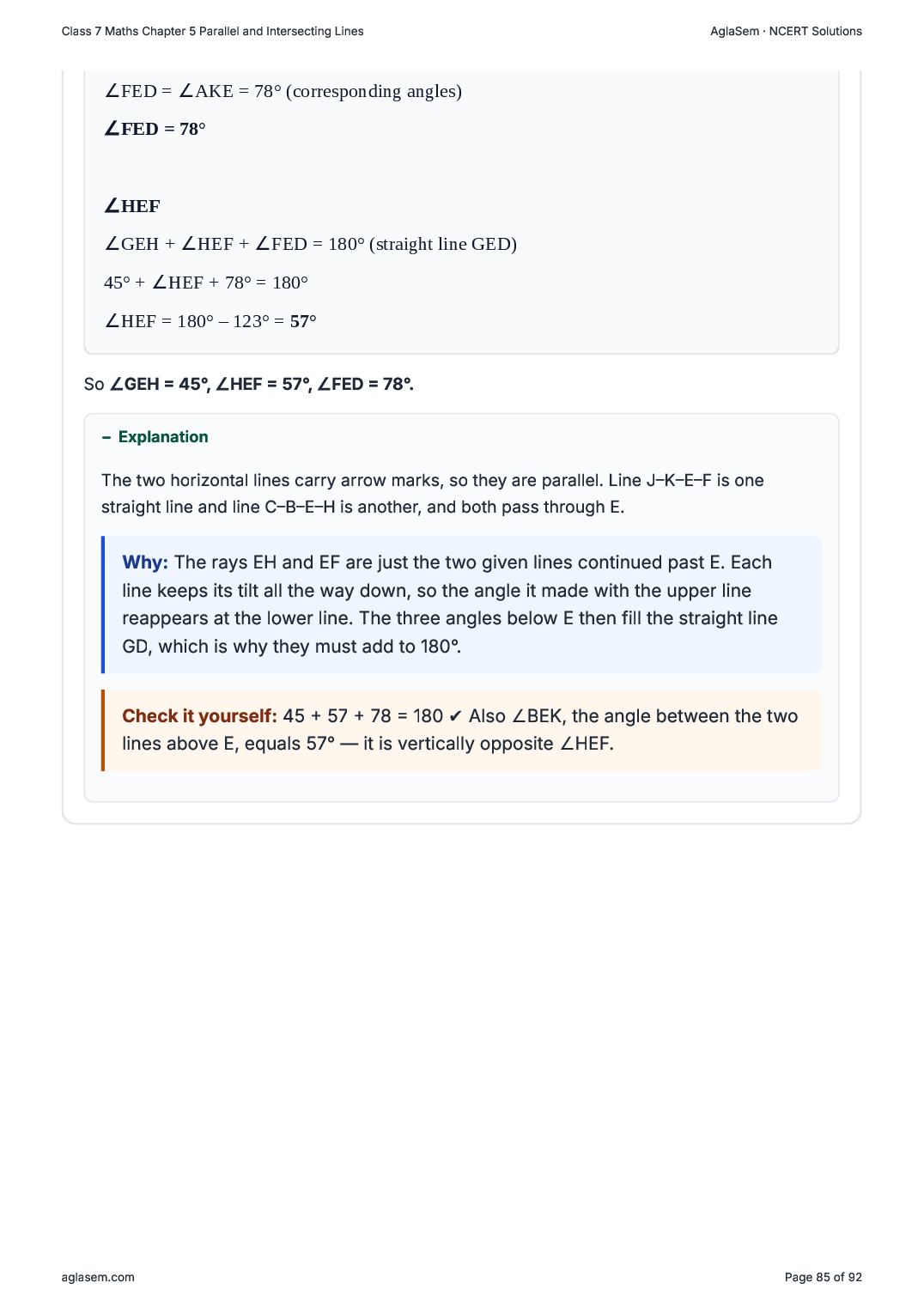

∠HEF
∠GEH + ∠HEF + ∠FED = 180° (straight line GED)
45° + ∠HEF + 78° = 180°
∠HEF = 180° – 123° = 57°

So ∠GEH = 45°, ∠HEF = 57°, ∠FED = 78°.

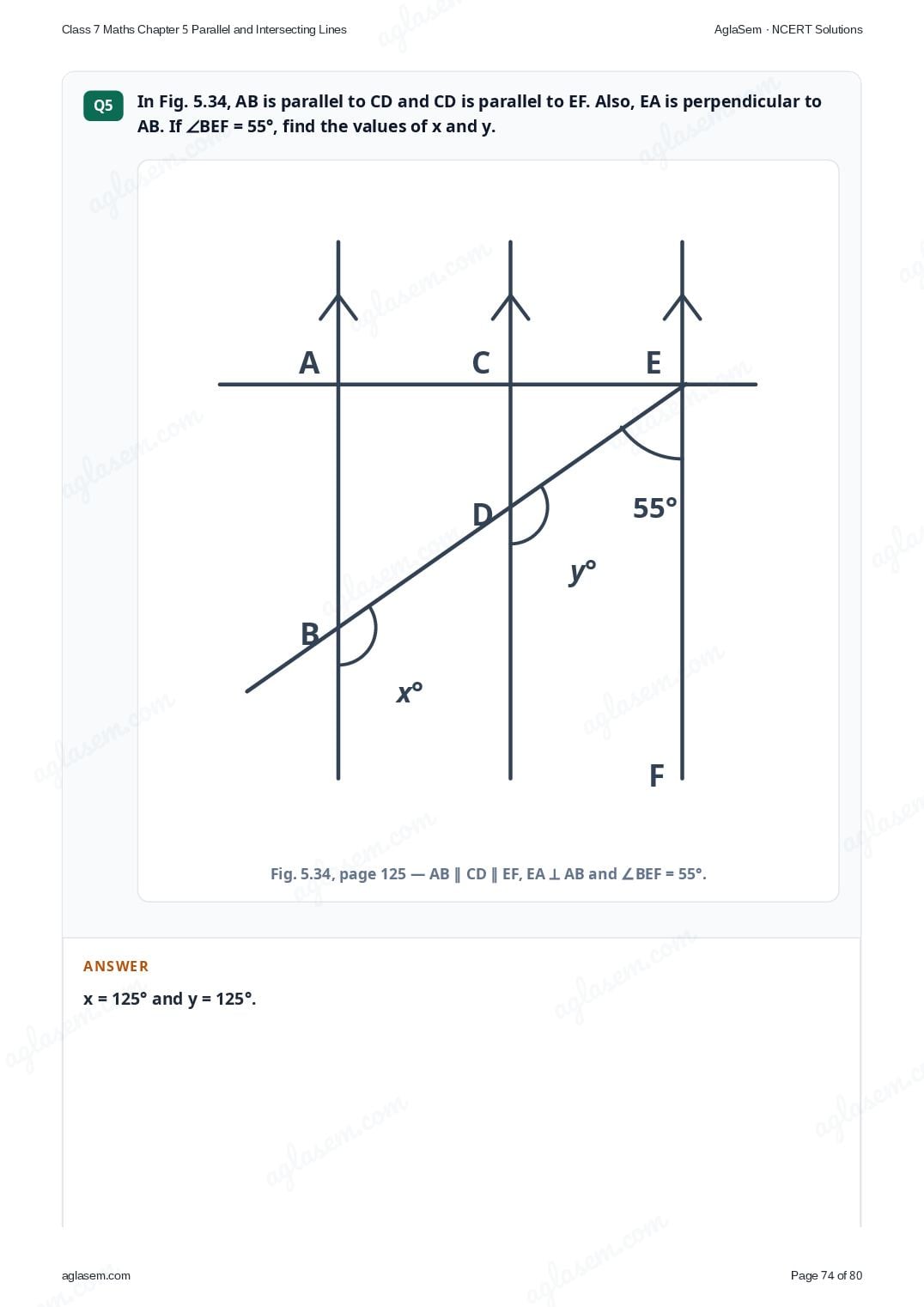

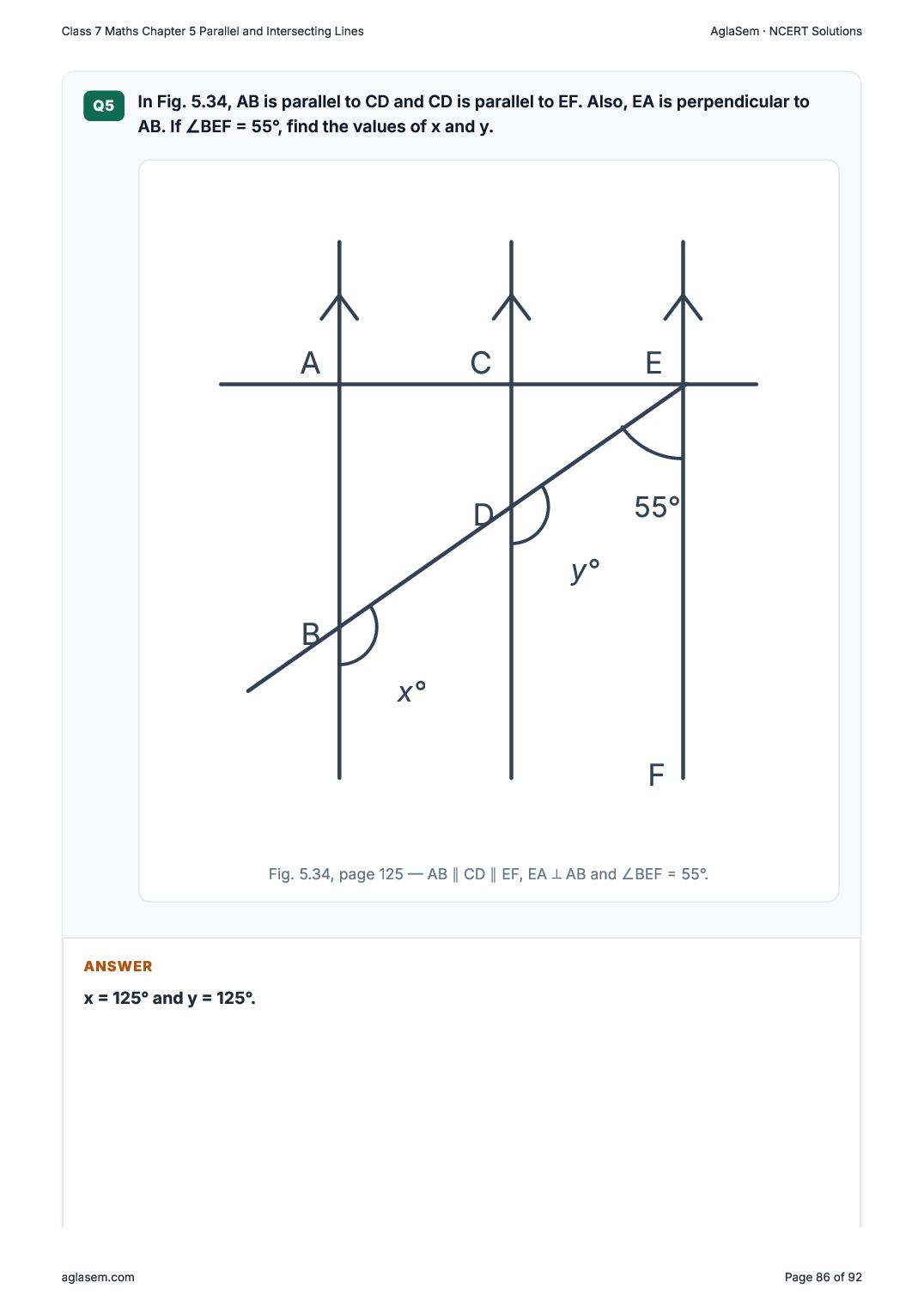

Q5In Fig. 5.34, AB is parallel to CD and CD is parallel to EF. Also, EA is perpendicular to AB. If ∠BEF = 55°, find the values of x and y.
ACEDBF55°y°x°
Fig. 5.34, page 125 — AB ∥ CD ∥ EF, EA ⟂ AB and ∠BEF = 55°.
Answer

x = 125° and y = 125°.

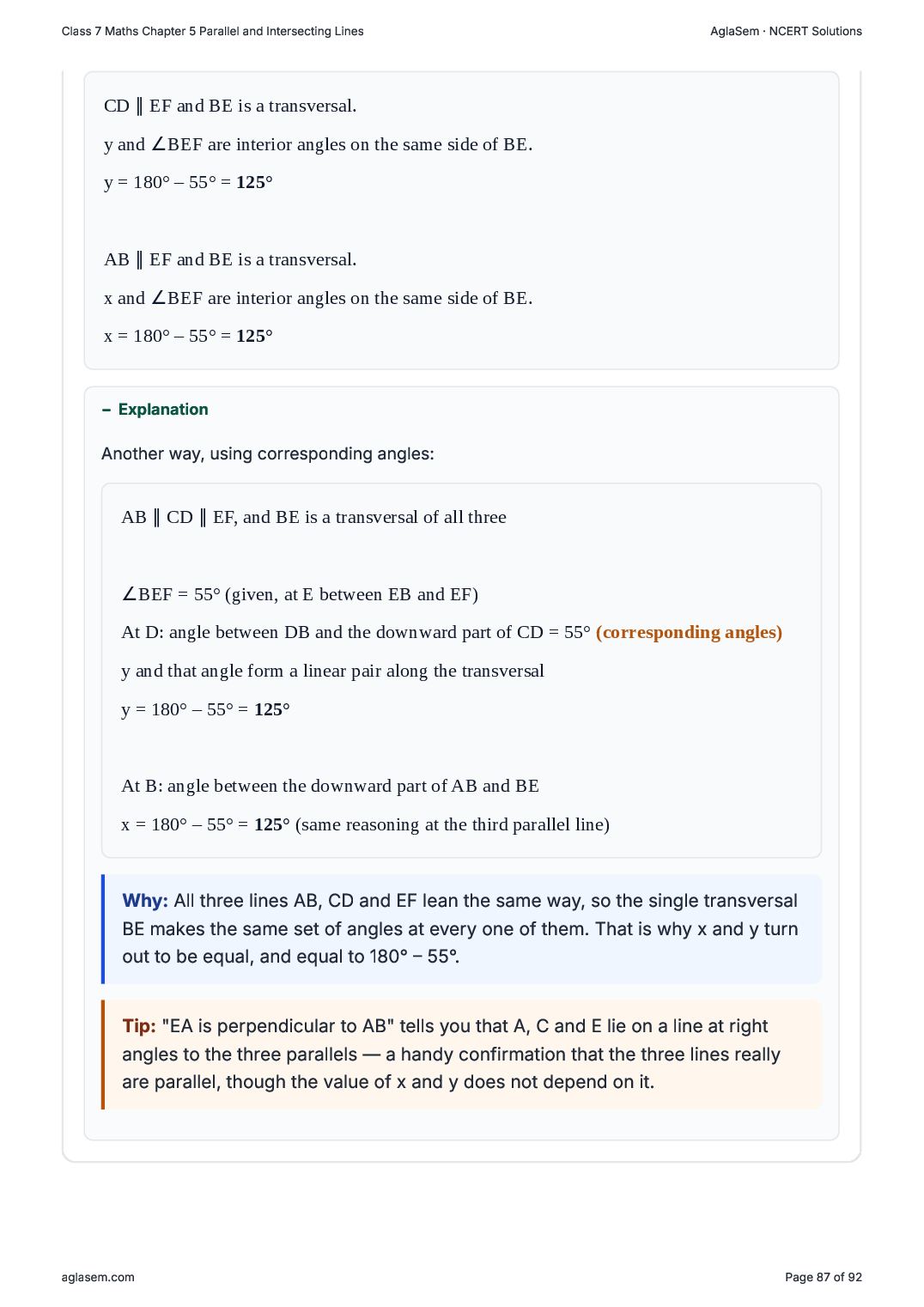

CD ∥ EF and BE is a transversal.
y and ∠BEF are interior angles on the same side of BE.
y = 180° – 55° = 125°

AB ∥ EF and BE is a transversal.
x and ∠BEF are interior angles on the same side of BE.
x = 180° – 55° = 125°

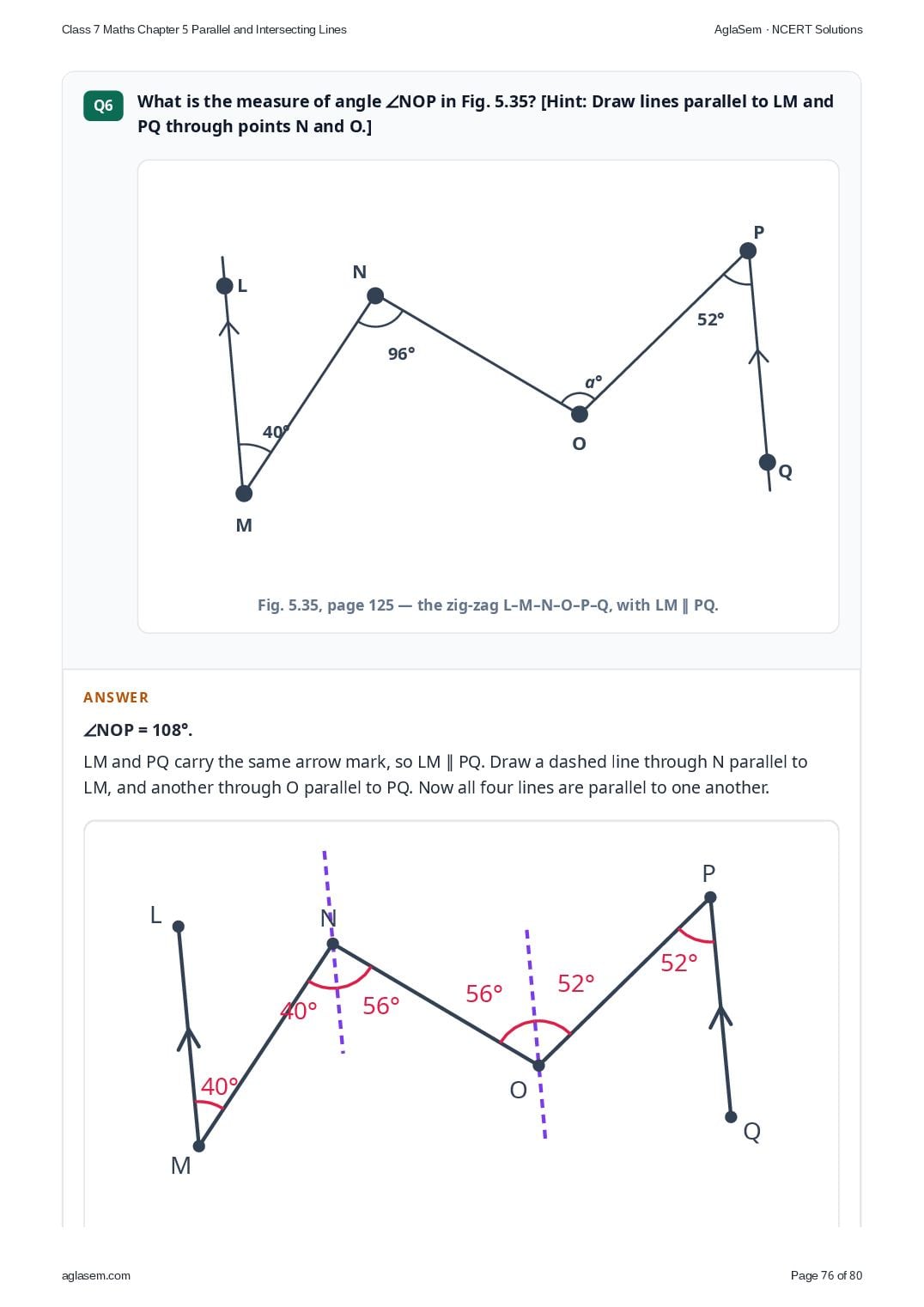

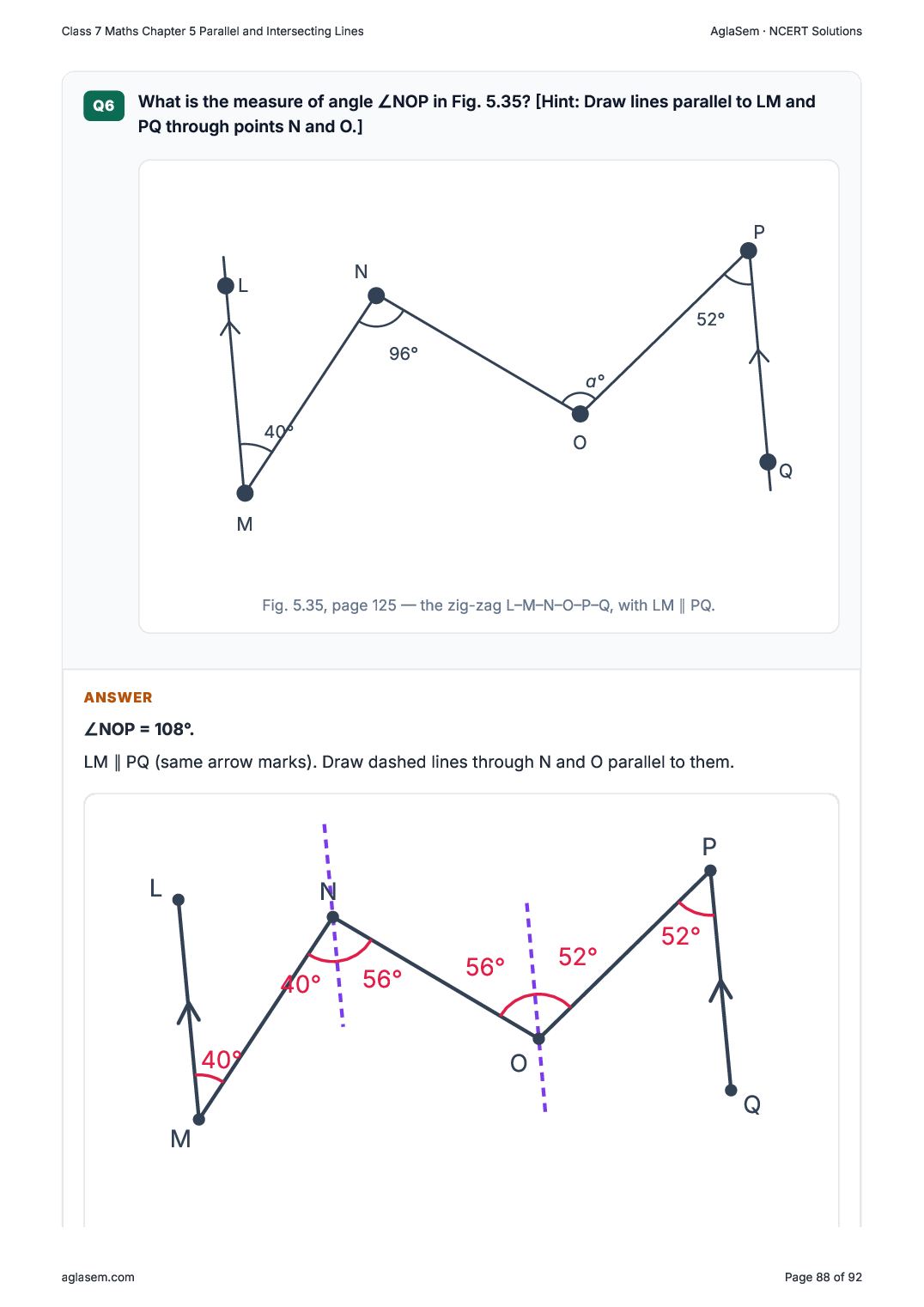

Q6What is the measure of angle ∠NOP in Fig. 5.35? [Hint: Draw lines parallel to LM and PQ through points N and O.]
40°96°a°52°LNMOQP
Fig. 5.35, page 125 — the zig-zag L–M–N–O–P–Q, with LM ∥ PQ.
Answer

∠NOP = 108°.

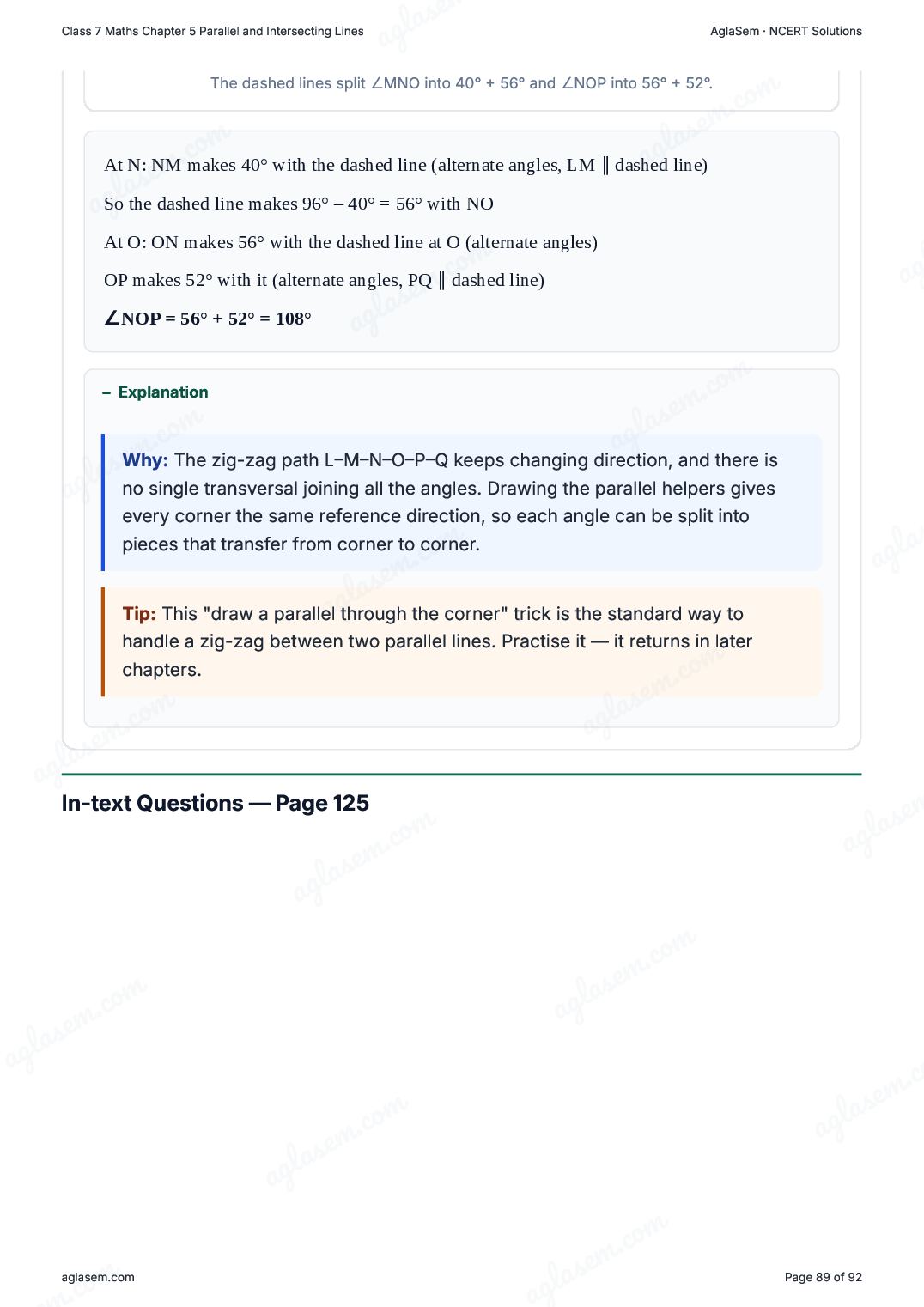

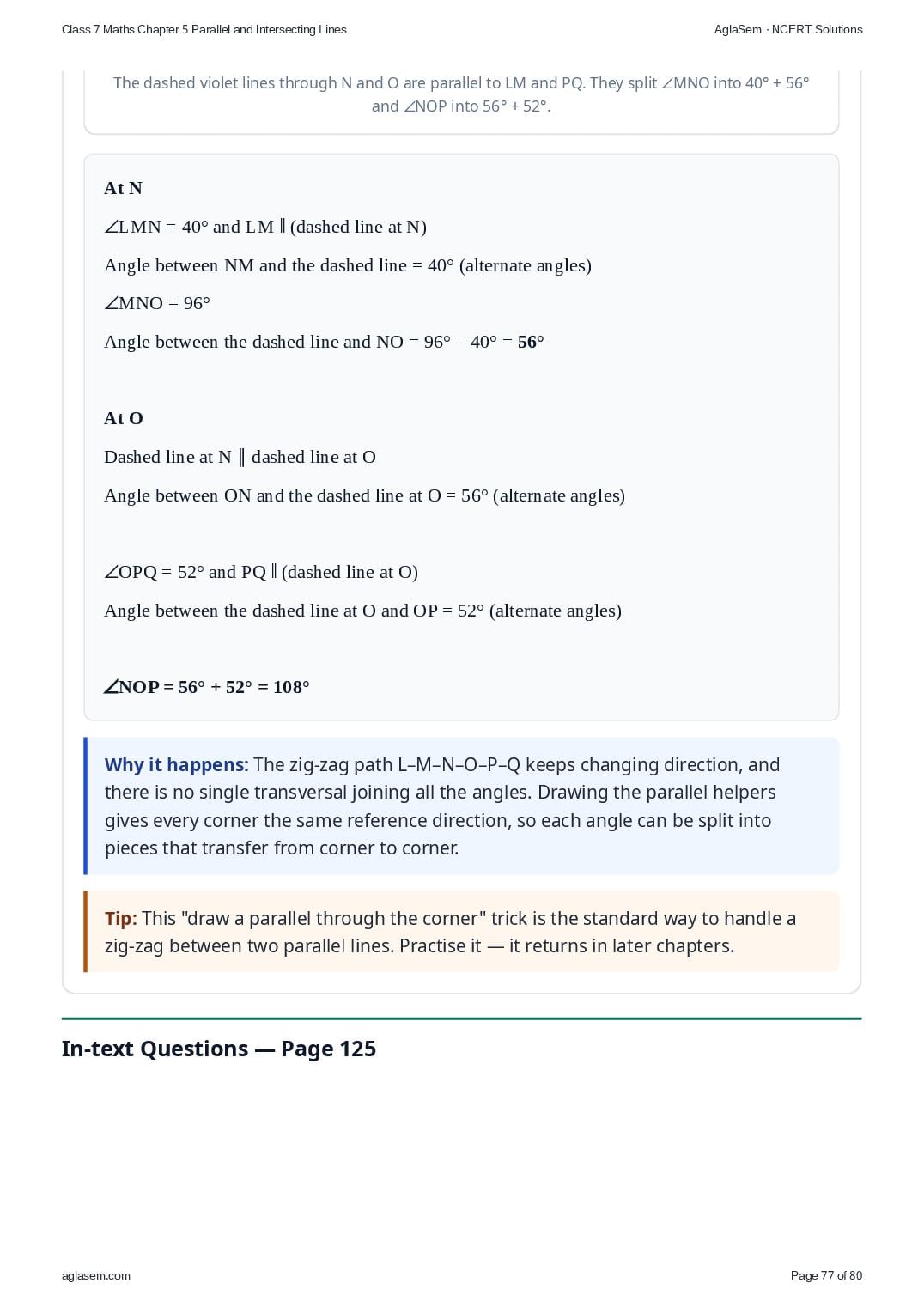

LM ∥ PQ (same arrow marks). Draw dashed lines through N and O parallel to them.

LMN OPQ 40°40°56° 56°52°52°
The dashed lines split ∠MNO into 40° + 56° and ∠NOP into 56° + 52°.
At N: NM makes 40° with the dashed line (alternate angles, LM ∥ dashed line)
So the dashed line makes 96° – 40° = 56° with NO
At O: ON makes 56° with the dashed line at O (alternate angles)
OP makes 52° with it (alternate angles, PQ ∥ dashed line)
∠NOP = 56° + 52° = 108°

In-text Questions — Page 125Section 5.9 Parallel Illusions

Math Talk
Q1There do not seem to be any parallel lines here. Or, are there?

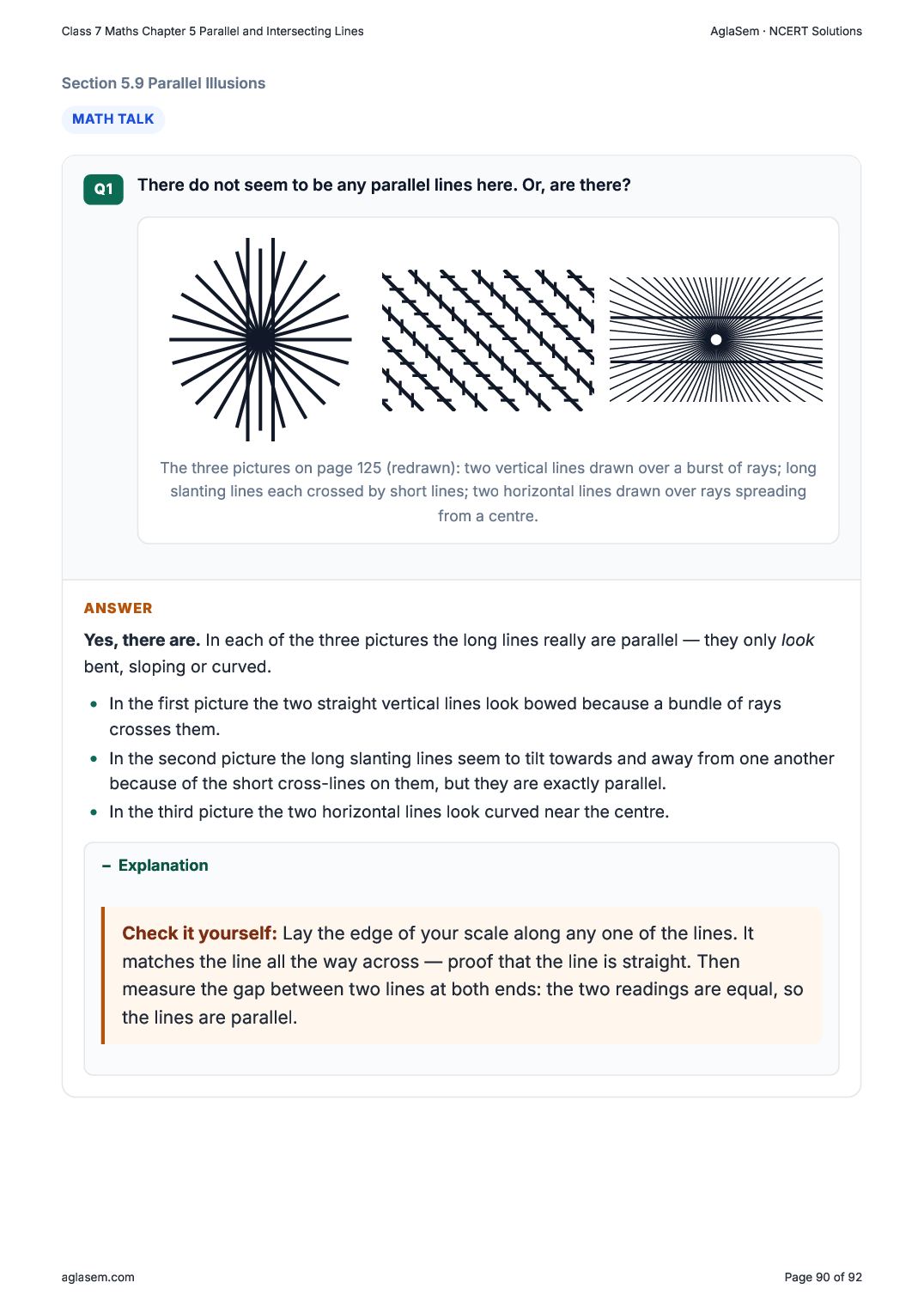

The three pictures on page 125 (redrawn): two vertical lines drawn over a burst of rays; long slanting lines each crossed by short lines; two horizontal lines drawn over rays spreading from a centre.
Answer

Yes, there are. In each of the three pictures the long lines really are parallel — they only look bent, sloping or curved.

  • In the first picture the two straight vertical lines look bowed because a bundle of rays crosses them.
  • In the second picture the long slanting lines seem to tilt towards and away from one another because of the short cross-lines on them, but they are exactly parallel.
  • In the third picture the two horizontal lines look curved near the centre.

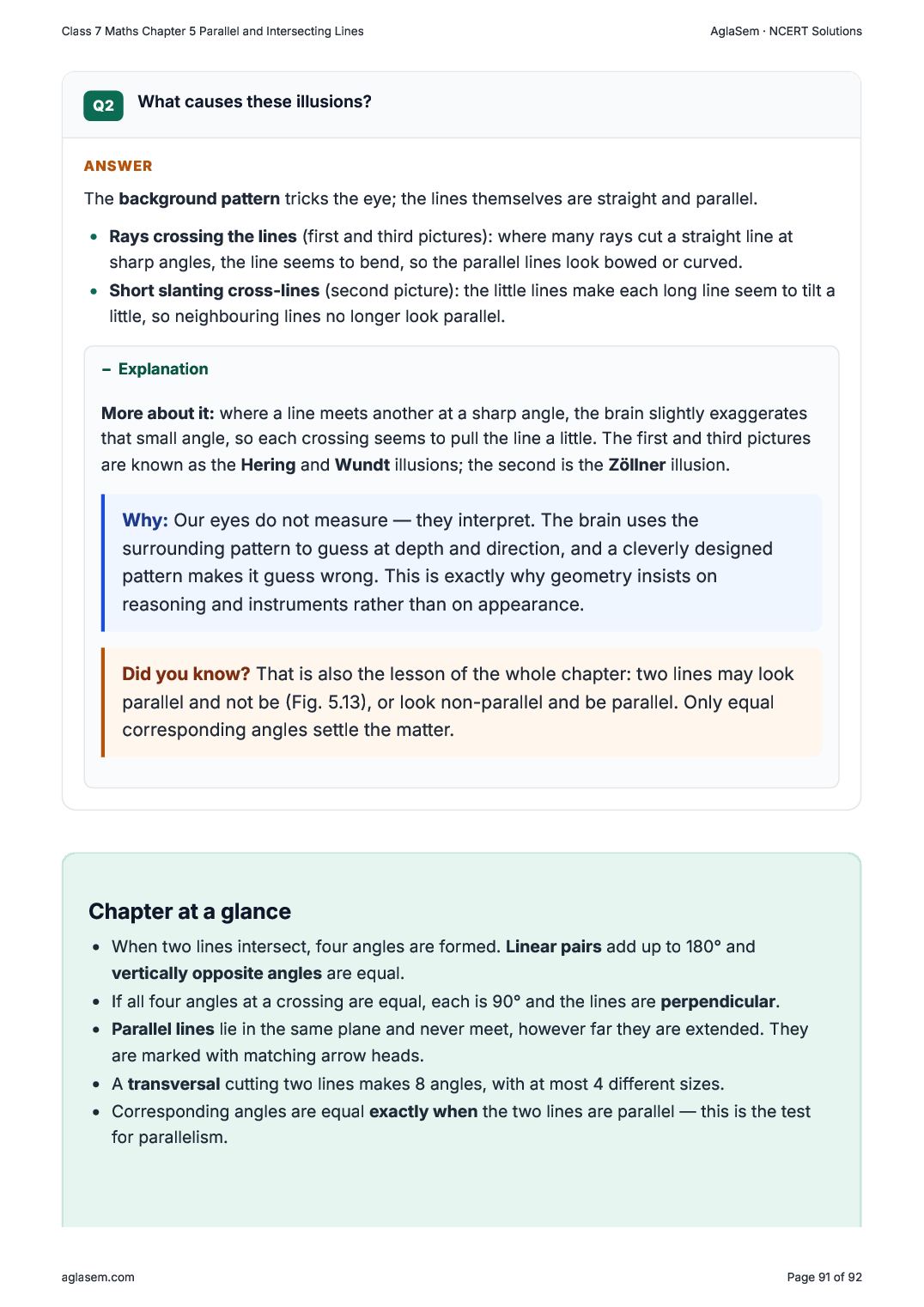

Q2What causes these illusions?
Answer

The background pattern tricks the eye; the lines themselves are straight and parallel.

  • Rays crossing the lines (first and third pictures): where many rays cut a straight line at sharp angles, the line seems to bend, so the parallel lines look bowed or curved.
  • Short slanting cross-lines (second picture): the little lines make each long line seem to tilt a little, so neighbouring lines no longer look parallel.

Chapter 5 of 8 – Maths

Also for This Chapter

NCERT Solutions Class 7 Maths Chapter 5 Parallel and Intersecting Lines – Overview

ClassClass 7
SubjectMaths
Chapter5 – Parallel and Intersecting Lines
Textbook pages106 – 126
Questions solved57
Session2027
FormatFull answers on this page + PDF

NCERT Solutions Class 7 Maths Chapter 5 – FAQs

Where can I download NCERT Solutions Class 7 Maths Chapter 5 Parallel and Intersecting Lines PDF?

Read every answer on this page, or download the free PDF from the table at the top.

Is this for the 2027 session?

Yes, it follows the latest NCERT Class 7 Maths book for 2027.

How many questions are solved in NCERT Class 7 Maths Chapter 5?

All 57 questions of the chapter (textbook pages 106 – 126) – the in-text questions, activities and the end-of-chapter exercises.

How should I use these solutions?

Read the chapter in the NCERT book first, attempt the questions yourself, then check your answers here.

Official website: ncert.nic.inNational Council of Educational Research and Training publishes date sheets, admit cards and results here
Visit

Ask a question

?

Loading comments…
