NCERT Exemplar Class 12 Chemistry Chapter 3 Electrochemistry

NCERT Class 12 Chemistry Chapter 3 is for Electrochemistry. The type of questions that will be asked from NCERT Class 12 Chemistry Chapter 3 are displayed in the below provided NCERT Exemplar Class 12 Chemistry Chapter 3. With the help of it, candidates can prepare well for the examination.

Also Check: NCERT Solutions for Class 12 Chemistry

Multiple Choice Questions (Type-I)

1. Which cell will measure standard electrode potential of copper electrode?
   (i) Pt (s) | H₂ (g,0.1 bar) | H⁺ (aq.,1 M) || Cu²⁺(aq.,1M) | Cu
   (ii) Pt(s) | H₂ (g, 1 bar) | H⁺ (aq.,1 M) || Cu²⁺ (aq.,2 M) | Cu
   (iii) Pt(s)| H₂ (g, 1 bar) | H⁺ (aq.,1 M) || Cu²⁺ (aq.,1 M) | Cu
   (iv) Pt(s) | H₂ (g, 1 bar) | H⁺ (aq.,0.1 M) || Cu²⁺ (aq.,1 M) | Cu
2. Electrode potential for Mg electrode varies according to the equation

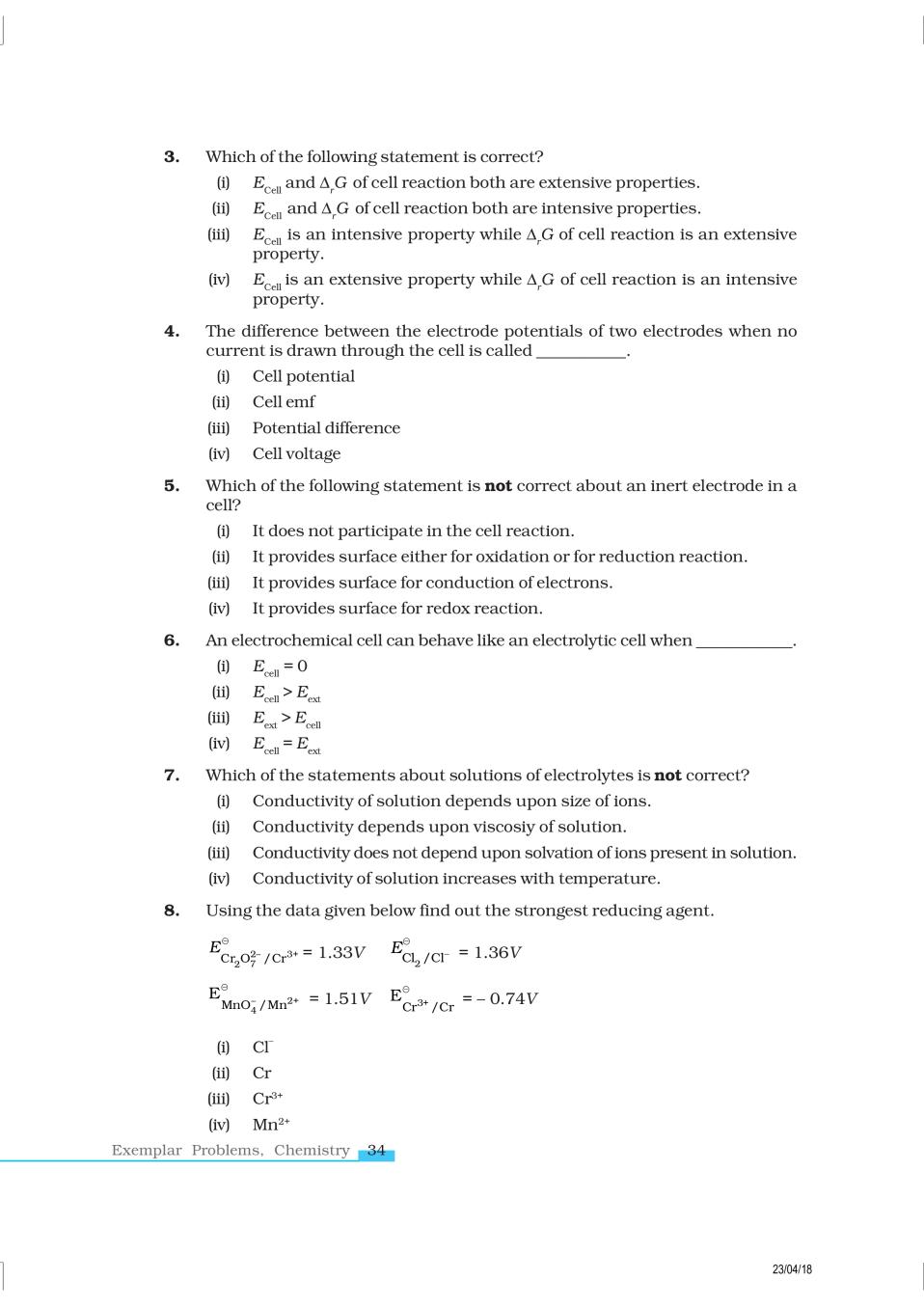

3. Which of the following statement is correct?
   (i) E_Cell and Δ_rG of cell reaction both are extensive properties.
   (ii) E_Cell and Δ_rG of cell reaction both are intensive properties.
   (iii) E_Cell is an intensive property while Δ_rG of cell reaction is an extensive property.
   (iv) E_Cell is an extensive property while Δ_rG of cell reaction is an intensive property.
4. The difference between the electrode potentials of two electrodes when no current is drawn through the cell is called ___________.
   (i) Cell potential
   (ii) Cell emf
   (iii) Potential difference
   (iv) Cell voltage
5. 5. Which of the following statement is not correct about an inert electrode in a cell?
   (i) It does not participate in the cell reaction.
   (ii) It provides surface either for oxidation or for reduction reaction.
   (iii) It provides surface for conduction of electrons.
   (iv) It provides surface for redox reaction.
6. An electrochemical cell can behave like an electrolytic cell when ____________.
   (i) E_cell = 0
   (ii) E_cell > Eext
   (iii) E_ext > E_cell
   (iv) E_cell = E_ext
7. Which of the statements about solutions of electrolytes is not correct?
   (i) Conductivity of solution depends upon size of ions.
   (ii) Conductivity depends upon viscosiy of solution.
   (iii) Conductivity does not depend upon solvation of ions present in solution.
   (iv) Conductivity of solution increases with temperature.
8. Using the data given below find out the strongest reducing agent.





   (i) Cl^–
   (ii) Cr
   (iii) Cr³⁺
   (iv) Mn²⁺

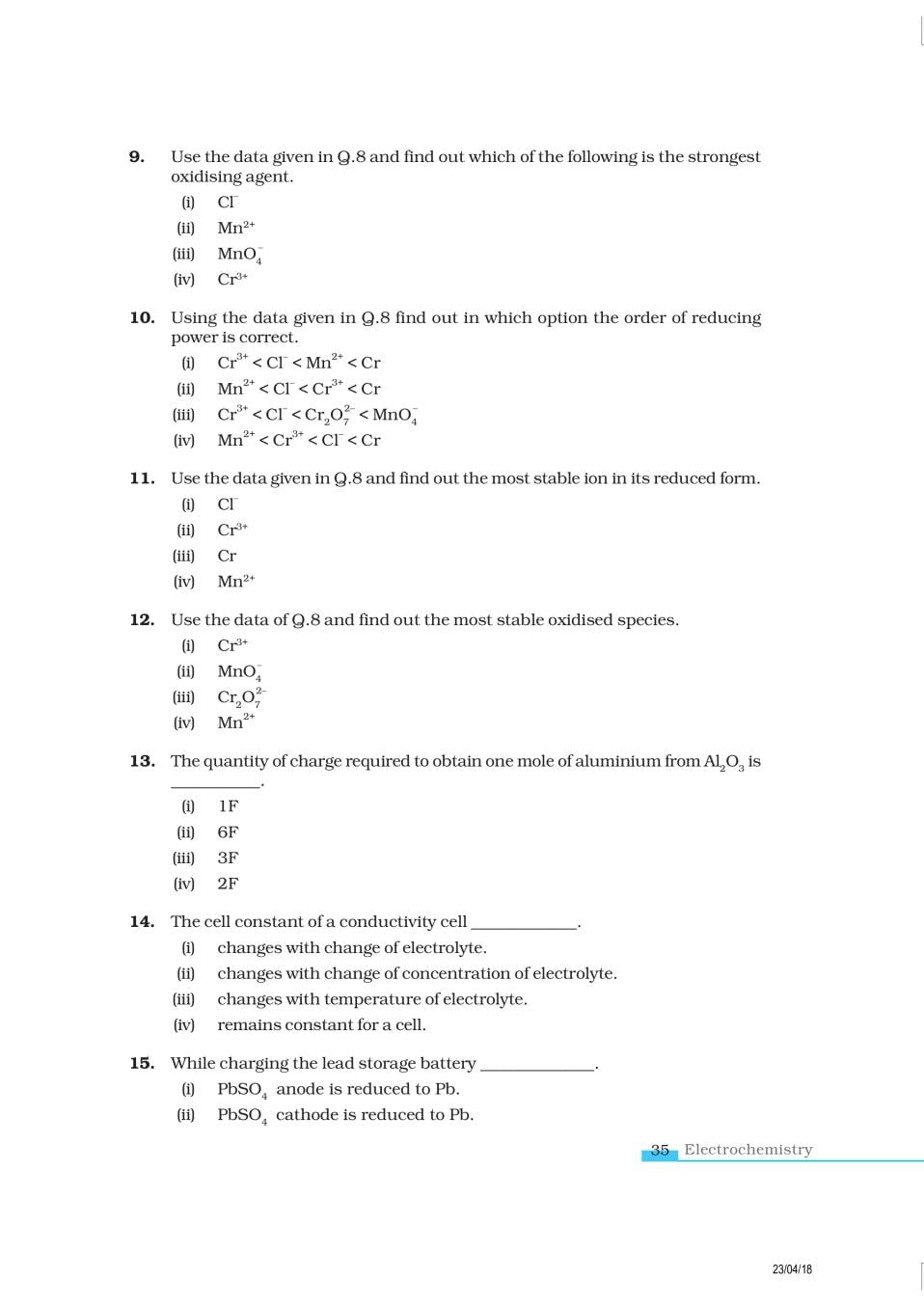

9. Use the data given in Q.8 and find out which of the following is the strongest oxidising agent.
   (i) Cl^–
   (ii) Mn²⁺
   (iii) MnO^–₄
   (iv) Cr³⁺
10. Using the data given in Q.8 find out in which option the order of reducing power is correct.
    (i) Cr³⁺ < Cl^– < Mn²⁺ < Cr
    (ii) Mn²⁺ < Cl^– < Cr³⁺ < Cr
    (iii) Cr³⁺ < Cl^– < Cr₂O₇^2- < MnO^–₄
    (iv) Mn2+ < Cr3+ < Cl– < Cr
11. Use the data given in Q.8 and find out the most stable ion in its reduced form.
    (i) Cl^–
    (ii) Cr³⁺
    (iii) Cr
    (iv) Mn²⁺
12. Use the data of Q.8 and find out the most stable oxidised species.
    (i) Cr³⁺
    (ii) MnO^–₄
    (iii) Cr₂O₇^2-
    (iv) Mn²⁺
13. The quantity of charge required to obtain one mole of aluminium from Al₂O₃ is ___________.
    (i) 1F
    (ii) 6F
    (iii) 3F
    (iv) 2F
14.  The cell constant of a conductivity cell _____________.
    (i) changes with change of electrolyte.
    (ii) changes with change of concentration of electrolyte.
    (iii) changes with temperature of electrolyte.
    (iv) remains constant for a cell.
15. While charging the lead storage battery ______________.
    (i) PbSO₄ anode is reduced to Pb.
    (ii) PbSO₄ cathode is reduced to Pb.
    (iii) PbSO₄ cathode is oxidised to Pb.
    (iv) PbSO₄ anode is oxidised to PbO2.

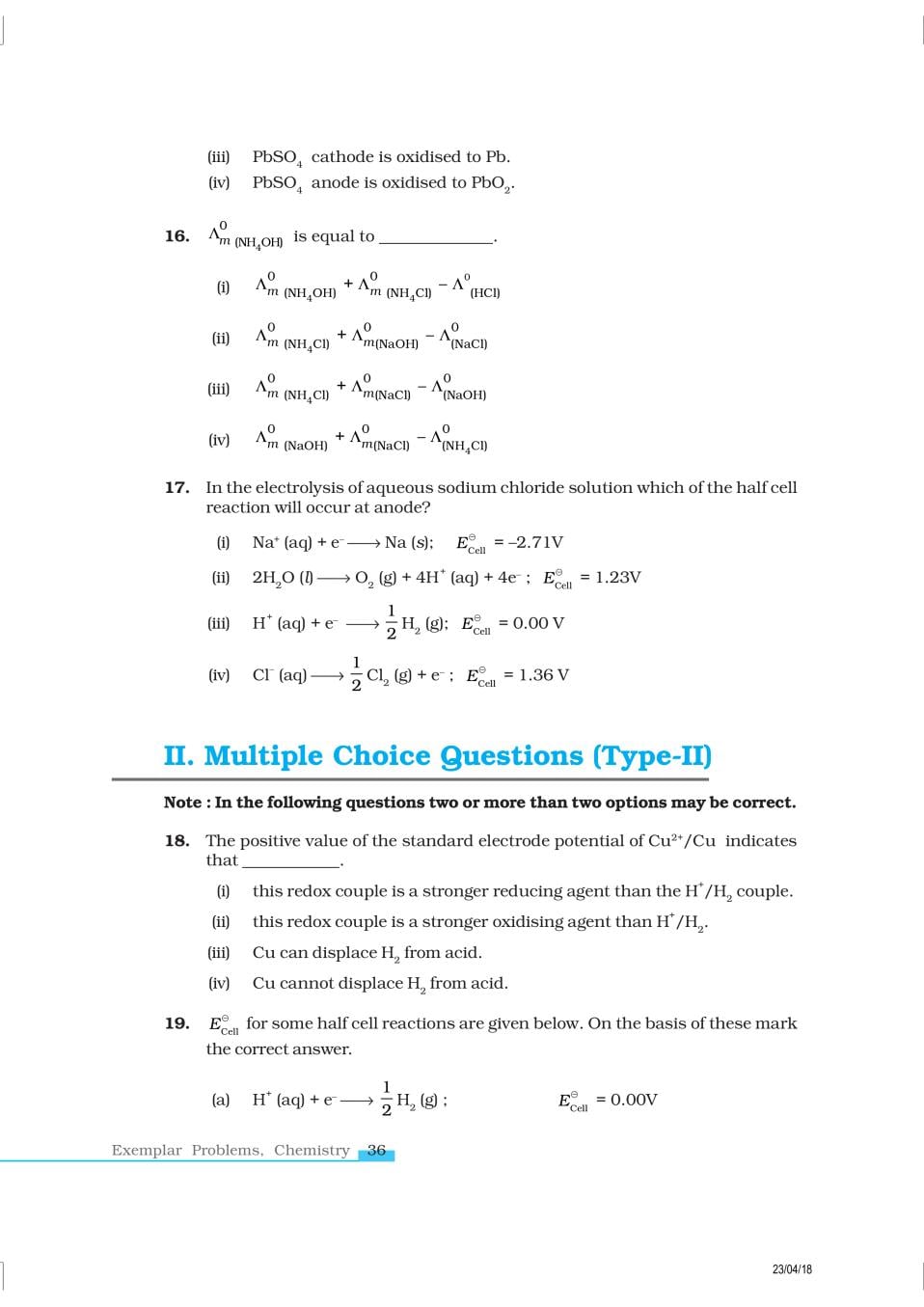

16.






17. In the electrolysis of aqueous sodium chloride solution which of the half cell reaction will occur at anode?



Multiple Choice Questions (Type-II)

Note : In the following questions two or more than two options may be correct.

1. The positive value of the standard electrode potential of Cu²⁺/Cu indicates that ____________.
   (i) this redox couple is a stronger reducing agent than the H⁺/H₂ couple.
   (ii) this redox couple is a stronger oxidising agent than H⁺/H₂.
   (iii) Cu can displace H₂ from acid.
   (iv) Cu cannot displace H2 from acid.

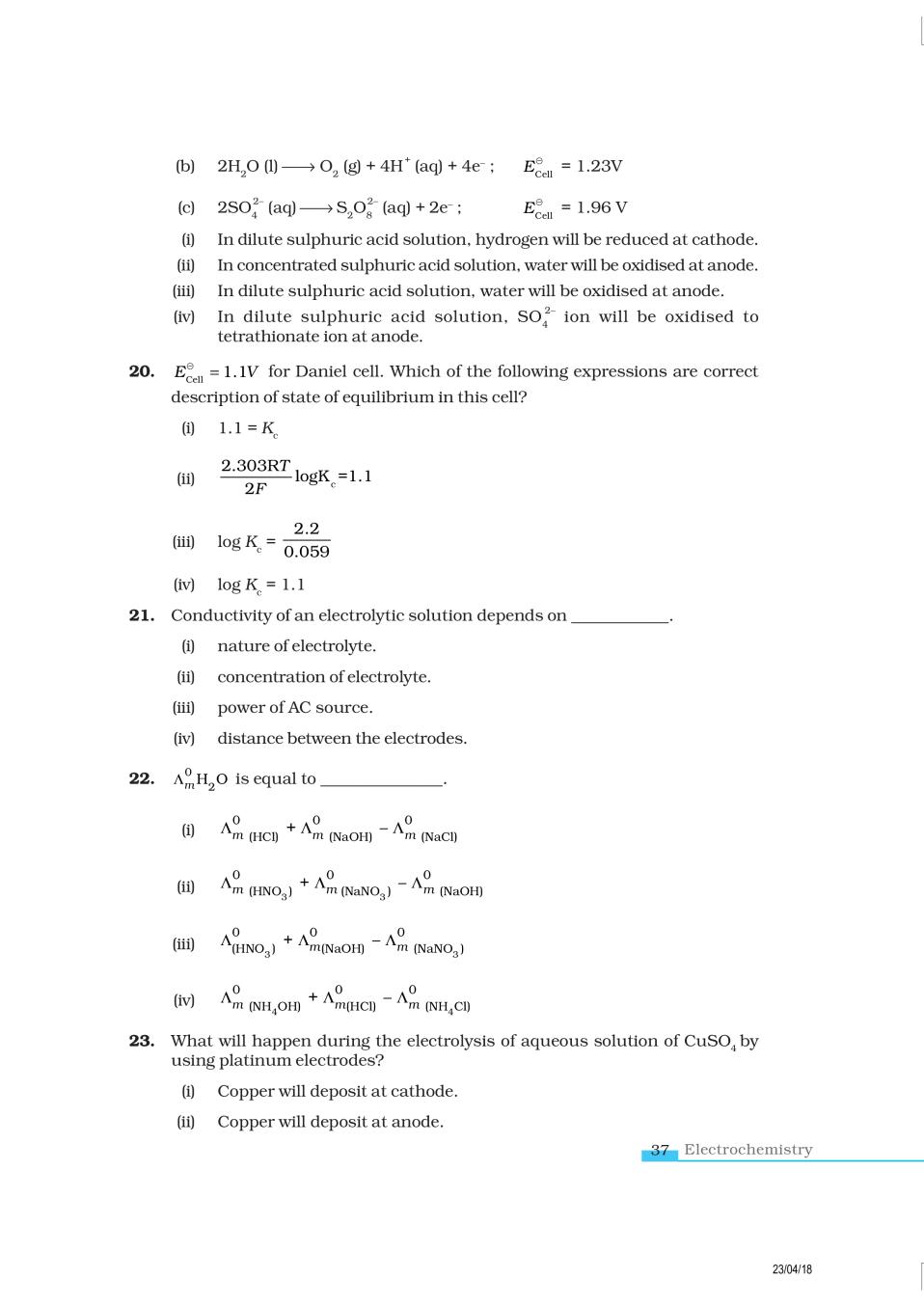

2.







   (i) In dilute sulphuric acid solution, hydrogen will be reduced at cathode.
   (ii) In concentrated sulphuric acid solution, water will be oxidised at anode.
   (iii) In dilute sulphuric acid solution, water will be oxidised at anode.
   (iv) In dilute sulphuric acid solution, SO₄^2- ion will be oxidised to tetrathionate ion at anode.

3.

   for Daniel cell. Which of the following expressions are correct description of state of equilibrium in this cell?




4. Conductivity of an electrolytic solution depends on ____________.
   (i) nature of electrolyte.
   (ii) concentration of electrolyte.
   (iii) power of AC source.
   (iv) distance between the electrodes.

5.






6. What will happen during the electrolysis of aqueous solution of CuSO₄ by using platinum electrodes?
   (i) Copper will deposit at cathode.
   (ii) Copper will deposit at anode.
   (iii) Oxygen will be released at anode.
   (iv) Copper will dissolve at anode.

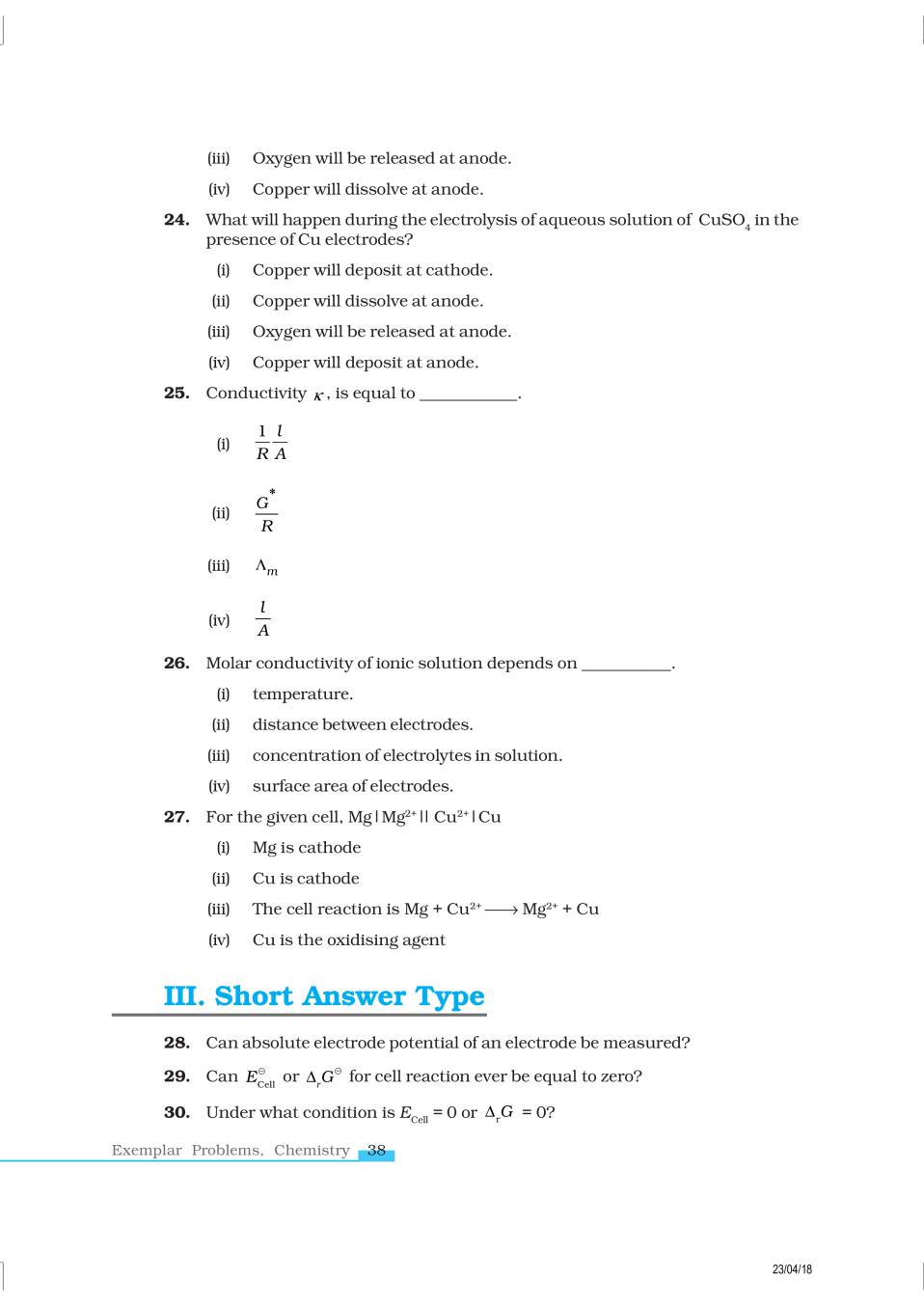

7. What will happen during the electrolysis of aqueous solution of CuSO₄ in the presence of Cu electrodes?
   (i) Copper will deposit at cathode.
   (ii) Copper will dissolve at anode.
   (iii) Oxygen will be released at anode.
   (iv) Copper will deposit at anode.
8. Conductivity κ , is equal to ____________.




9. Molar conductivity of ionic solution depends on ___________.
   (i) temperature.
   (ii) distance between electrodes.
   (iii) concentration of electrolytes in solution.
   (iv) surface area of electrodes.
10. For the given cell, Mg|Mg²⁺|| Cu²⁺|Cu
    (i) Mg is cathode
    (ii) Cu is cathode
    (iii) The cell reaction is Mg + Cu²⁺ → Mg²⁺ + Cu
    (iv) Cu is the oxidising agent

Short Answer Type Questions

1. Can absolute electrode potential of an electrode be measured?

2.

3. Under what condition is E_Cell = 0 or Δ_r G = 0?

4.

5. Aqueous copper sulphate solution and aqueous silver nitrate solution are electrolysed by 1 ampere current for 10 minutes in separate electrolytic cells. Will the mass of copper and silver deposited on the cathode be same or different? Explain your answer.
6. Depict the galvanic cell in which the cell reaction is Cu + 2Ag⁺ → 2Ag + Cu²⁺
7. Value of standard electrode potential for the oxidation of Cl^– ions is more positive than that of water, even then in the electrolysis of aqueous sodium chloride, why is Cl^– oxidised at anode instead of water?
8. What is electrode potential?

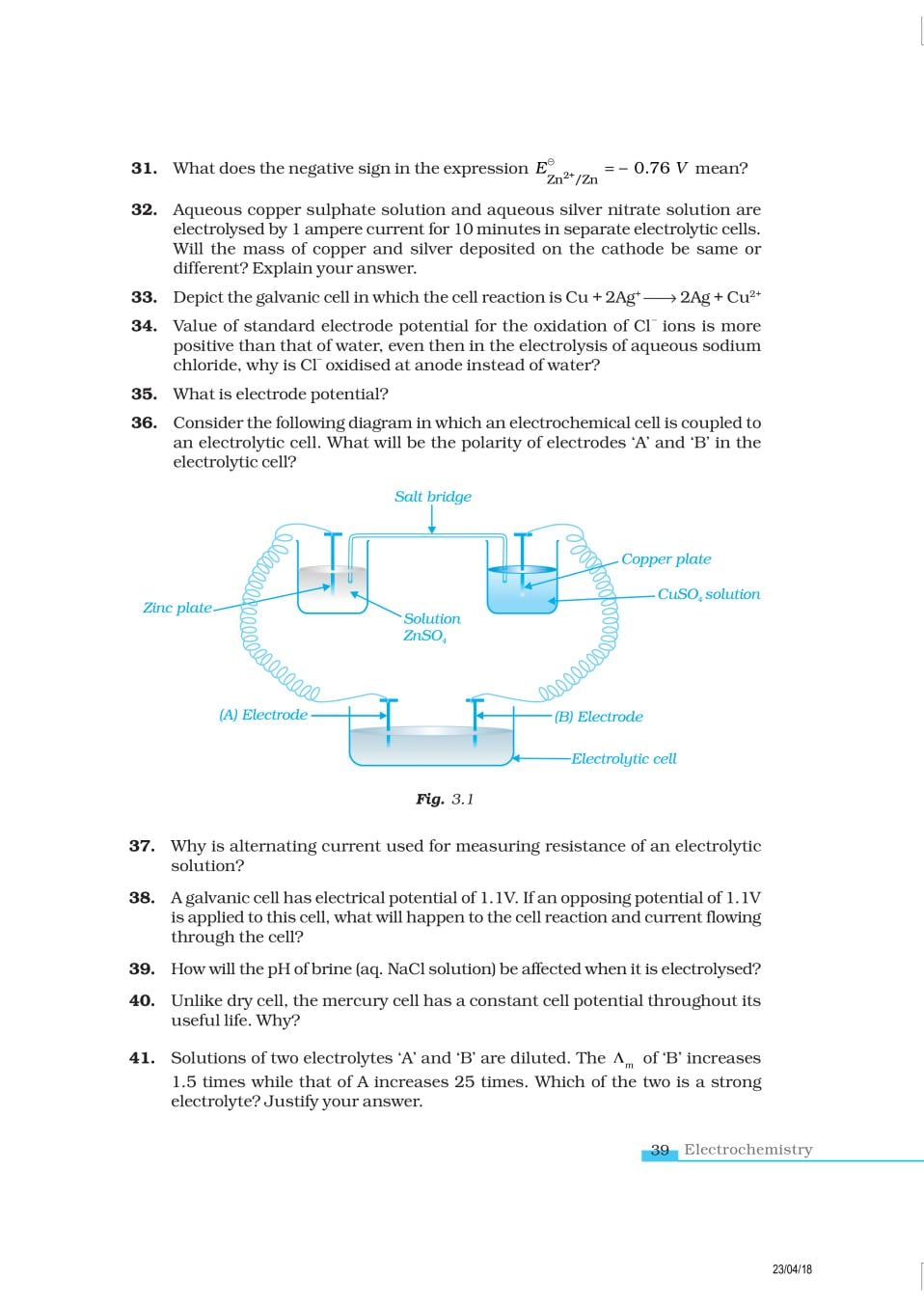

9. Consider the following diagram in which an electrochemical cell is coupled to an electrolytic cell. What will be the polarity of electrodes ‘A’ and ‘B’ in the electrolytic cell?




10. Why is alternating current used for measuring resistance of an electrolytic solution?
11. A galvanic cell has electrical potential of 1.1V. If an opposing potential of 1.1V is applied to this cell, what will happen to the cell reaction and current flowing through the cell?
12. How will the pH of brine (aq. NaCl solution) be affected when it is electrolysed?
13. Unlike dry cell, the mercury cell has a constant cell potential throughout its useful life. Why?
14. Solutions of two electrolytes ‘A’ and ‘B’ are diluted. The Λ_m of ‘B’ increases 1.5 times while that of A increases 25 times. Which of the two is a strong electrolyte? Justify your answer.
15. When acidulated water (dil.H₂SO₂ solution) is electrolysed, will the pH of thesolution be affected? Justify your answer.
16. In an aqueous solution how does specific conductivity of electrolytes change with addition of water?
17. Which reference electrode is used to measure the electrode potential of other electrodes?
18. Consider a cell given below Cu|Cu²⁺|| Cl²⁺|Cl₂,Pt
    Write the reactions that occur at anode and cathode
19. Write the Nernst equation for the cell reaction in the Daniel cell. How will the E_Cell be affected when concentration of Zn²⁺ ions is increased?
20. What advantage do the fuel cells have over primary and secondary batteries?
21. Write the cell reaction of a lead storage battery when it is discharged. How does the density of the electrolyte change when the battery is discharged?
22. Why on dilution the Λ_m of CH₃COOH increases drastically, while that of CH₃COONa increases gradually?

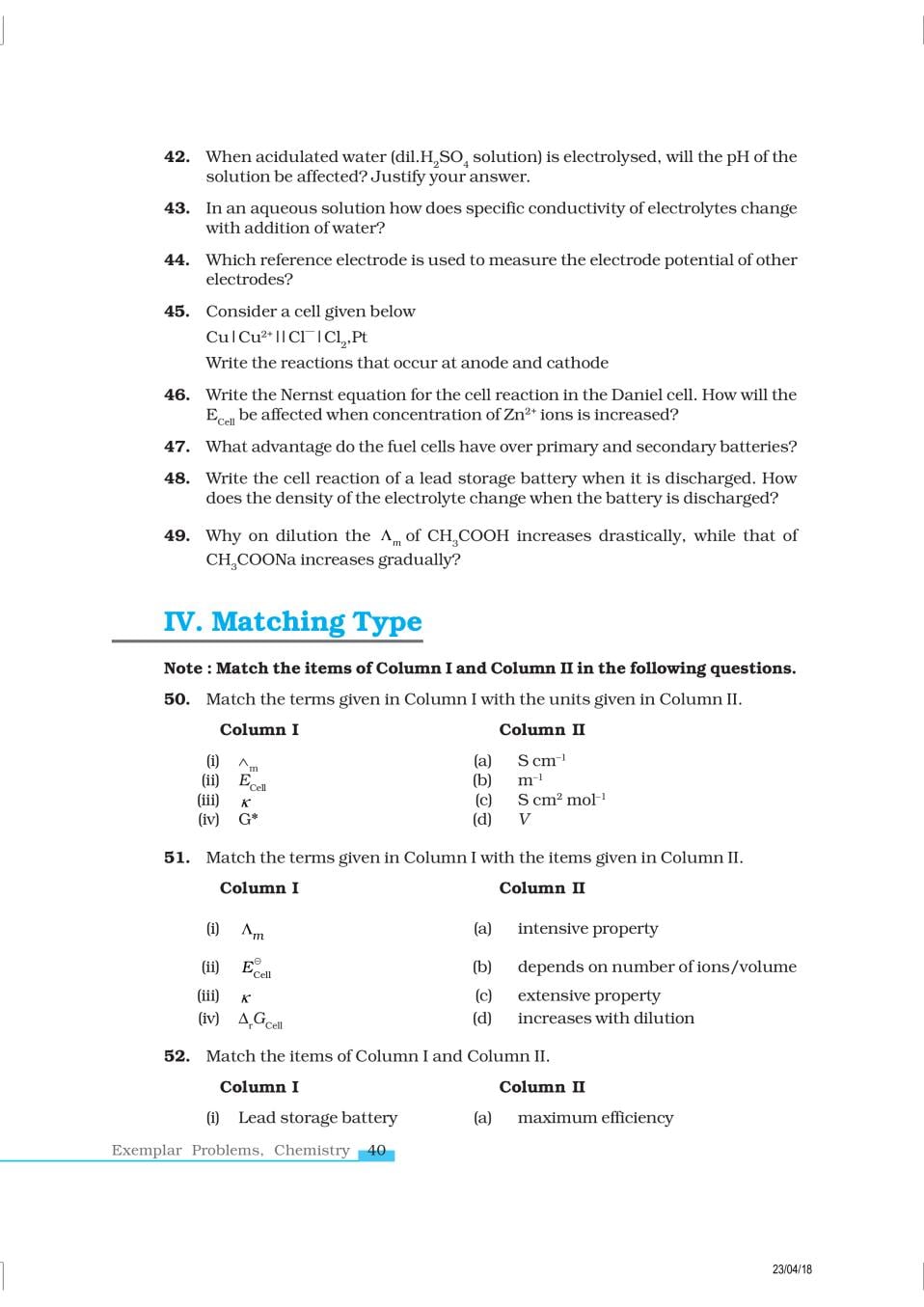

Matching Type Questions

Note : Match the items of Column I and Column II in the following questions.

1. Match the terms given in Column I with the units given in Column II.




2. Match the terms given in Column I with the items given in Column II.




3. Match the items of Column I and Column II.


   Column I	Column II
   (i) Lead storage battery	(a) maximum efficiency
   (ii) Mercury cell	(b) prevented by galvanisation
   iii) Fuel cell	(c) gives steady potential
   iv) Rusting	(d) Pb is anode, PbO2 is cathode

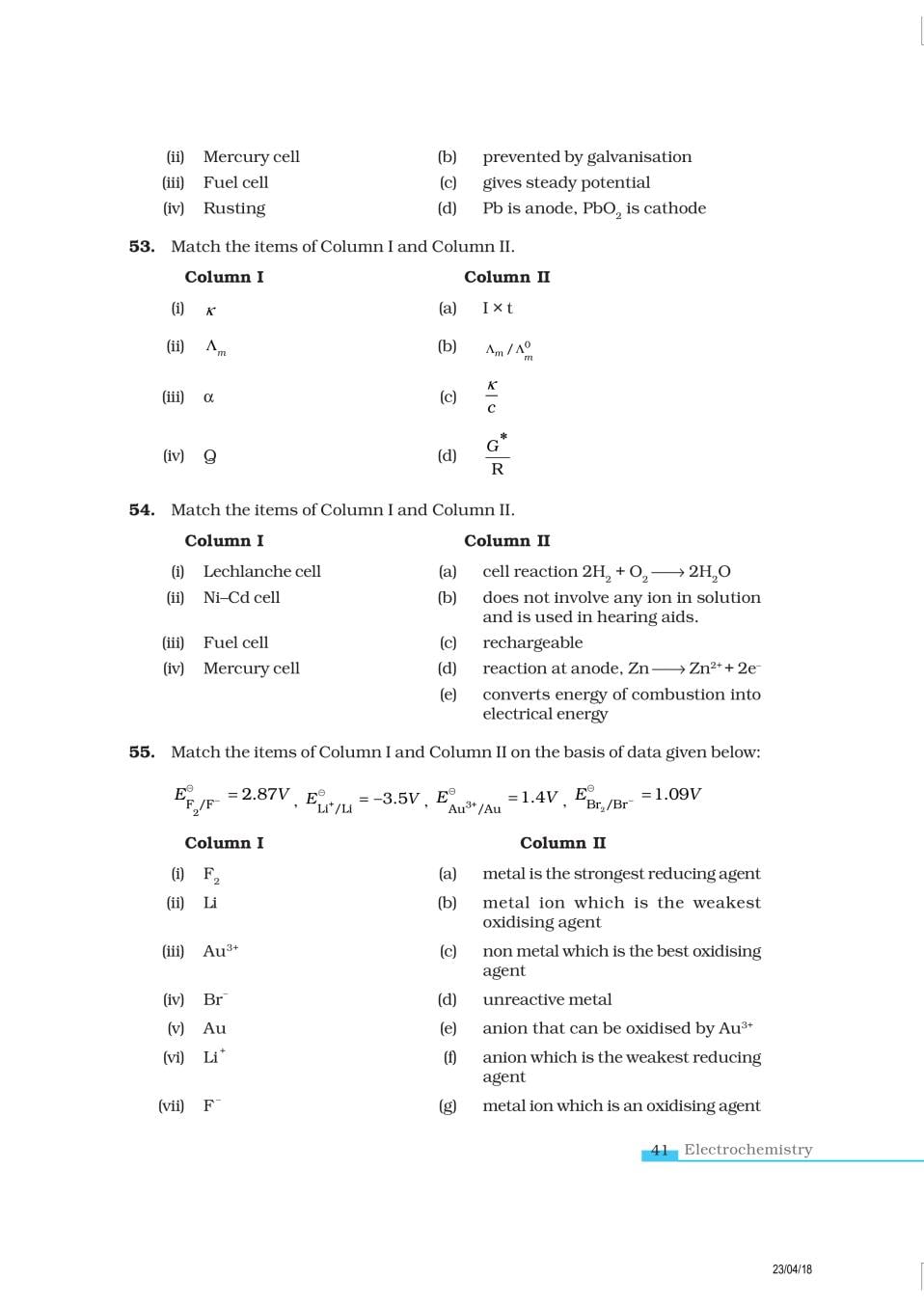

4. Match the items of Column I and Column II.




5. Match the items of Column I and Column II.


   Column I	Column II
   (i) Lechlanche cell	(a) cell reaction 2H2 + O2 → 2H2O
   ii) Ni–Cd cell	(b) does not involve any ion in solution and is used in hearing aids.
   iii) Fuel cell	(c) rechargeable
   iv) Mercury cell	(d) reaction at anode, Zn → Zn2+ + 2e–
   	(e) converts energy of combustion into electrical energy

6. Match the items of Column I and Column II on the basis of data given below:

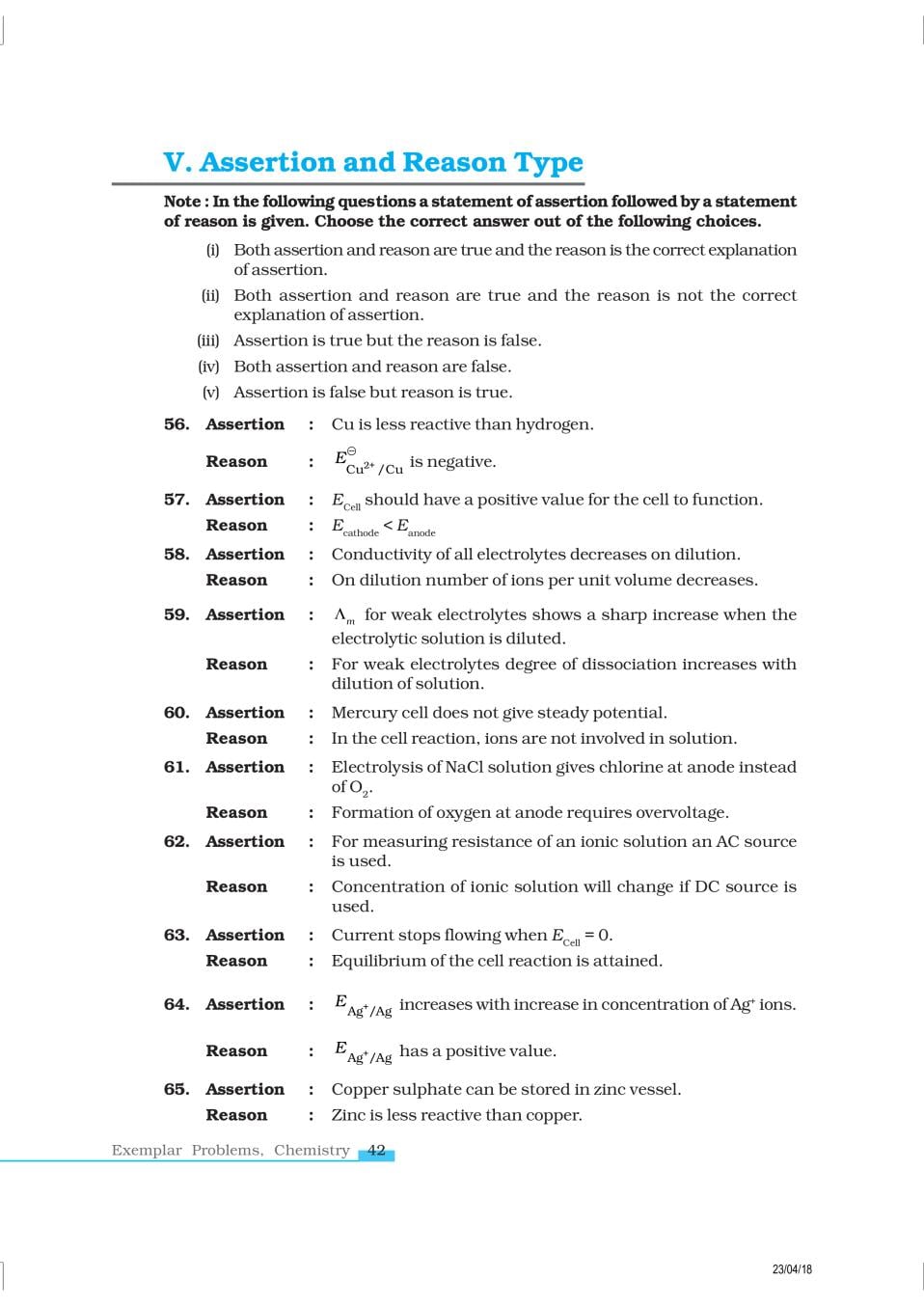

Assertion and Reason Type Questions

Note : In the following questions a statement of assertion followed by a statement of reason is given. Choose the correct answer out of the following choices.

(i) Both assertion and reason are true and the reason is the correct explanation of assertion.
(ii) Both assertion and reason are true and the reason is not the correct explanation of assertion.
(iii) Assertion is true but the reason is false.
(iv) Both assertion and reason are false.
(v) Assertion is false but reason is true.

1. Assertion : Cu is less reactive than hydrogen.
   Reason :



   is negative.
2. Assertion : ECell should have a positive value for the cell to function.
   Reason : E_cathode < E_anode
3. Assertion : Conductivity of all electrolytes decreases on dilution.
   Reason : On dilution number of ions per unit volume decreases.
4. Assertion : Λ_m for weak electrolytes shows a sharp increase when the electrolytic solution is diluted.
   Reason : For weak electrolytes degree of dissociation increases with dilution of solution.
5. Assertion : Mercury cell does not give steady potential.
   Reason : In the cell reaction, ions are not involved in solution.
6. Assertion : Electrolysis of NaCl solution gives chlorine at anode instead of O₂.
   Reason : Formation of oxygen at anode requires overvoltage.
7. Assertion : For measuring resistance of an ionic solution an AC source is used.
   Reason : Concentration of ionic solution will change if DC source is used.
8. Assertion : Current stops flowing when E_Cell = 0.
   Reason : Equilibrium of the cell reaction is attained.
9. Assertion : E_Ag+/Ag increases with increase in concentration of Ag⁺ ions.
   Reason : E_Ag+/Ag has a positive value.
10. Assertion : Copper sulphate can be stored in zinc vessel.
    Reason : Zinc is less reactive than copper.

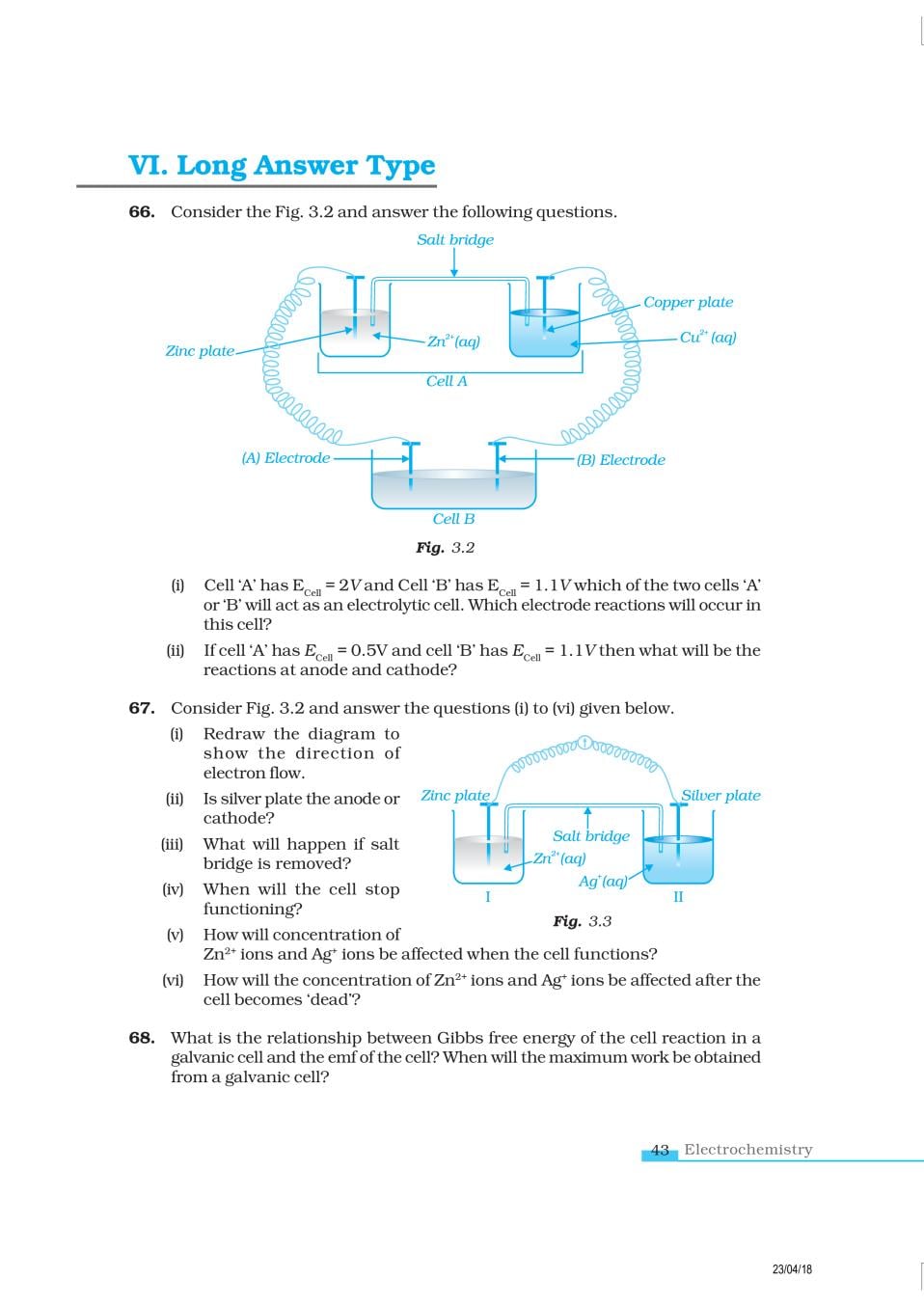

Long Answer Type Questions

1. Consider the Fig. and answer the following questions.





   (i) Cell ‘A’ has E_Cell = 2V and Cell ‘B’ has E_Cell = 1.1V which of the two cells ‘A’ or ‘B’ will act as an electrolytic cell. Which electrode reactions will occur in this cell?
   (ii) If cell ‘A’ has E_Cell = 0.5V and cell ‘B’ has E_Cell = 1.1V then what will be the reactions at anode and cathode?
2. Consider Fig.  and answer the questions (i) to (vi) given below.





   (i) Redraw the diagram to show the direction of electron flow.
   (ii) Is silver plate the anode or cathode?
   (iii) What will happen if salt bridge is removed?
   (iv) When will the cell stop functioning?
   (v) How will concentration of Zn²⁺ ions and Ag⁺ ions be affected when the cell functions?
   (vi) How will the concentration of Zn²⁺ ions and Ag⁺ ions be affected after the cell becomes ‘dead’?
3. What is the relationship between Gibbs free energy of the cell reaction in a galvanic cell and the emf of the cell? When will the maximum work be obtained from a galvanic cell?

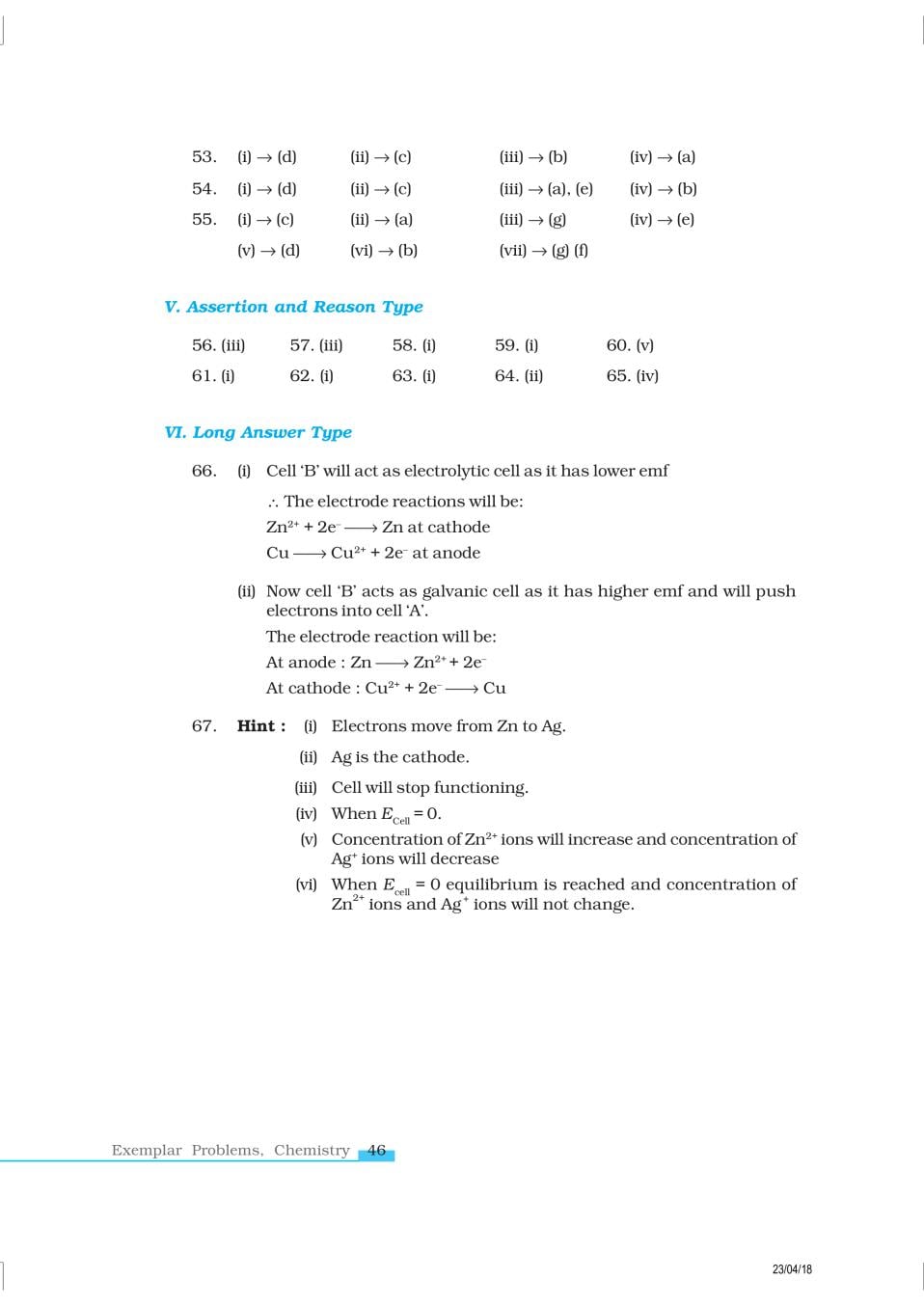

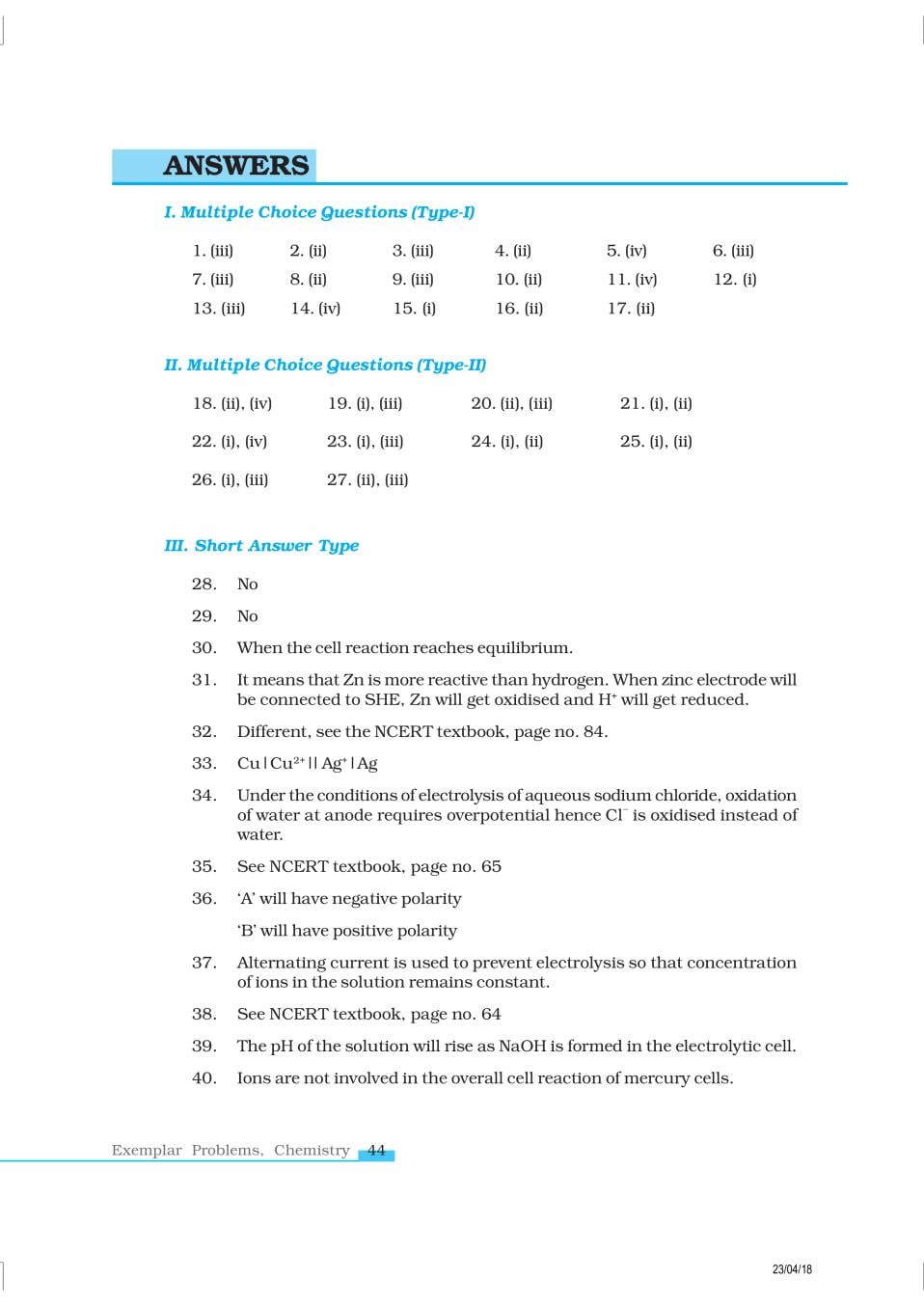

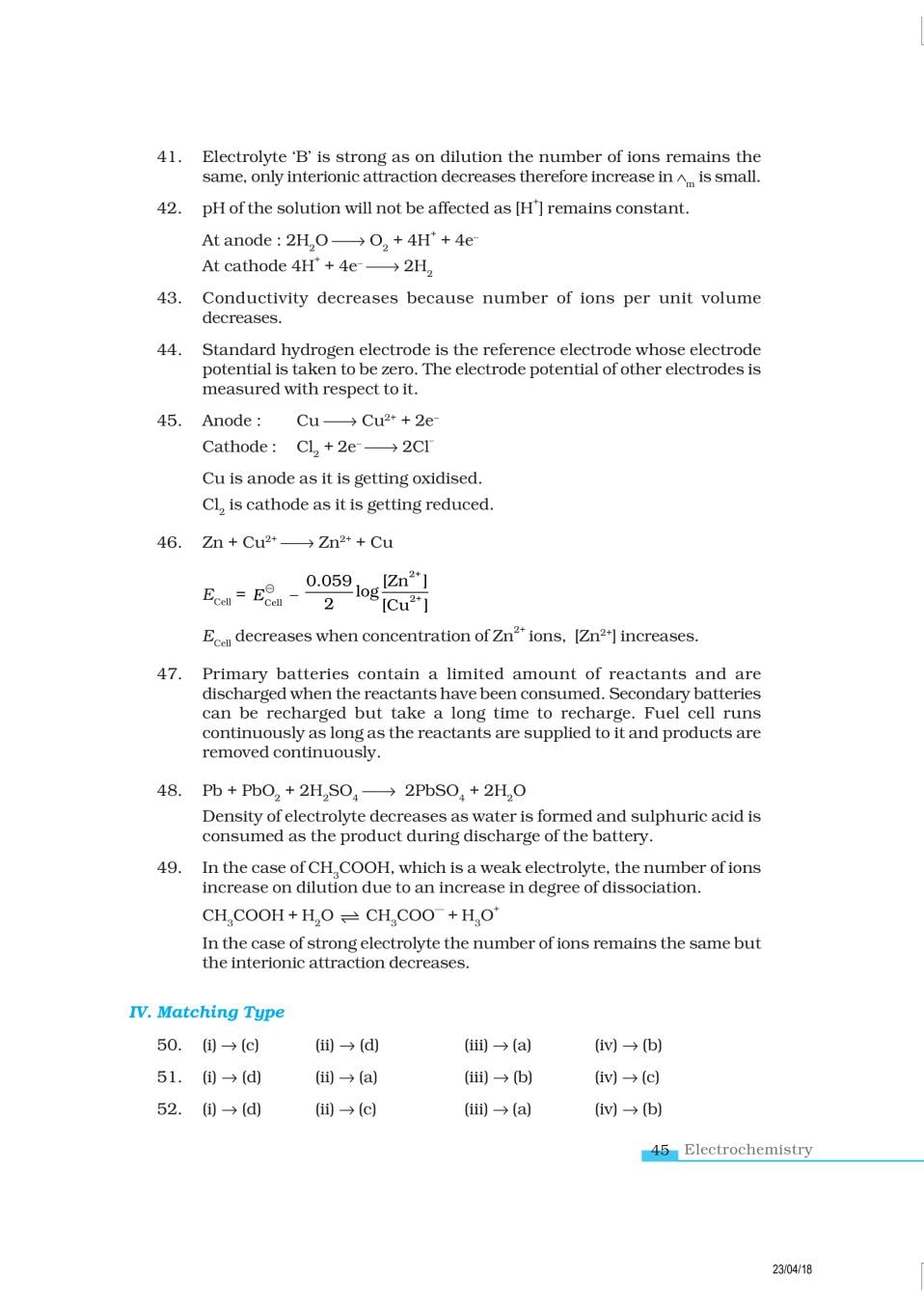

Answers
