NCERT Solutions for Class 6 Maths Chapter 2 Lines and Angles (PDF) – 2027

NCERT Solutions for Class 6 Maths Chapter 2 Lines and Angles – step-by-step answers to every exercise and in-text question of the chapter, as per the latest NCERT syllabus for 2027. Read them online or download the free question-answer PDF.

Solutions to Class 6 Maths (Ganita Prakash) Chapter 2, Lines and Angles: every in-text question, activity and Figure it Out exercise from pages 14 to 54, with the figures, protractor readings and the reason for each answer.

NCERT Solutions for Class 6 Maths Chapter 2 Lines and Angles PDF

All the answers are on this page below. The PDF also explains every answer – why it is right and how to check it – so download it for revision.

PDFChapterDownload
Solutions PDF (English medium)Lines and AnglesView PDF
Solutions PDF (Hindi medium)रेखाएँ और कोणView PDF

NCERT Solutions for Class 6 Maths Chapter 2 Lines and Angles – Questions and Answers

All 77 questions of the chapter (textbook pages 13 – 54) are answered below, in the order of the book – in-text questions, activities and the end-of-chapter exercises. Each answer is written the way you would write it in the exam.

In-text Questions — Pages 14 & 15Sections 2.2 & 2.3 Line Segment and Line

Q1Mark any two points A and B on a sheet of paper. Try to connect A to B by various routes (Fig. 2.1). What is the shortest route from A to B?
AB
Fig. 2.1 — several routes joining A to B; only one of them is straight.
Answer

The straight path from A to B is the shortest route. All the curved and bent routes are longer.

This shortest path from point A to point B — including A and B — is called the line segment AB (or BA). The points A and B are its end points.

Q2Imagine that the line segment from A to B (i.e., AB) is extended beyond A in one direction and beyond B in the other direction without any end. This is a model for a line. Do you think you can draw a complete picture of a line? No. Why?
ABm
Fig. 2.2 — the line m through A and B, going on endlessly both ways.
Answer

No — a complete picture of a line can never be drawn.

A line has no end points. It goes on endlessly in both directions, so however long a paper you take, the line would still have to continue beyond both edges.

Figure it Out — Pages 15 – 17Section 2.4 Ray

Q1Rihan marked a point on a piece of paper. How many lines can he draw that pass through the point? Sheetal marked two points on a piece of paper. How many different lines can she draw that pass through both of the points? Can you help Rihan and Sheetal find their answers?
Answer

Rihan can draw endlessly many lines (an uncountable number) through his single point.

Sheetal can draw only one line through her two points.

Q2Name the line segments in Fig. 2.4. Which of the five marked points are on exactly one of the line segments? Which are on two of the line segments?
LMPQR
Fig. 2.4 — the five marked points L, M, P, Q and R joined end to end.
Answer

The four line segments are:

LM, MP, PQ and QR
PointSegments it lies onHow many
LLM1
MLM, MP2
PMP, PQ2
QPQ, QR2
RQR1

On exactly one segment: L and R. On two segments: M, P and Q.

Q3Name the rays shown in Fig. 2.5. Is T the starting point of each of these rays?
TANB
Fig. 2.5 — two rays starting at T; N and B lie on the horizontal one, A on the slanting one.
Answer

The rays are TA, TB and NB. (TN is another name for ray TB, because N lies on it.)

No, T is not the starting point of every ray.

  • T is the starting point of TA and TB (= TN).
  • The starting point of NB is N, not T.
Q4Draw a rough figure and write labels appropriately to illustrate each of the following:
a. Lines OP and OQ meet at O.
b. Ray XY and line PQ intersect at point M.
c. Line l contains points E and F but not point D.
d. Point P lies on AB.
(In the book, arrows over the letters show that OP, OQ and PQ are lines and XY is a ray.)
Answer

Rough figures for the four situations:

PQOXYPQMEFDlABPa.b.c.d.
(a) lines OP and OQ crossing at O; (b) ray XY cut by line PQ at M; (c) line l through E and F, with D off it; (d) P on AB.
Q5In Fig. 2.6, name:
a. Five points
b. A line
c. Four rays
d. Five line segments
DEOCB
Fig. 2.6 — the line through D, E, O and B, with two more rays drawn from O.
Answer

D, E, O and B lie on one line; OC is a separate ray from O.

PartAnswer
a. Five pointsD, E, O, B, C
b. A lineDB (it may also be named DE, DO, EO, EB or OB)
c. Four raysOB, OC, OD, EB (OE is only another name for OD)
d. Five line segmentsDE, DO, DB, EO, EB (OB and OC are also correct)
Q6Here is a ray OA (Fig. 2.7). It starts at O and passes through the point A. It also passes through the point B.
a. Can you also name it as OB? Why?
b. Can we write OA as AO? Why or why not?
OBA
Fig. 2.7 — the ray OA; it starts at O and passes through B and then A.
Answer

a. Yes, it can be named OB. A ray is named by its starting point followed by any other point on it. The ray starts at O, and B lies on it just as A does, so OA and OB are two names for the same ray.

b. No, OA cannot be written as AO.

Ray OA — starts at O and goes past A, endlessly
Ray AO — starts at A and goes past O, in the opposite direction

In-text Questions — Pages 17 & 18Section 2.5 Angle

Q1Vidya has just opened her book. Let us observe her opening the cover of the book in different scenarios.
(Pictures, Case 1 to Case 6: in each case Vidya turns the cover further — in Case 1 it is lifted a little, in Case 3 it lies open flat on the table, and by Case 6 it has been turned almost all the way round, under the book.)
Do you see angles being made in each of these cases? Can you mark their arms and vertex?
Answer

Yes — an angle is formed in every case.

  • The vertex is the spine of the book, the fixed edge about which the cover turns.
  • The two arms are the cover of the book and the page (or table) lying flat underneath it.
Q2Which angle is greater—the angle in Case 1 or the angle in Case 2?
Answer

The angle in Case 2 is greater.

To reach Case 2, Vidya has to rotate the cover more than she did for Case 1.

Case 1 < Case 2 < Case 3 < Case 4 < Case 5 < Case 6
Q3Let’s look at some other examples where angles arise in real life by rotation or turn:
• In a compass or divider, we turn the arms to form an angle. The vertex is the point where the two arms are joined. Identify the arms and vertex of the angle.
• A pair of scissors has two blades. When we open them (or ‘turn them’) to cut something, the blades form an angle. Identify the arms and the vertex of the angle.
• Look at the pictures of spectacles, wallet and other common objects. Identify the angles in them by marking out their arms and vertices.
spectacleswalletstaplerpencil boxcarton
Everyday objects that open and shut: spectacles, a wallet, a stapler, a pencil box and a carton.
Answer

Every one of these objects has a hinge — and a hinge is a vertex.

ObjectVertex (fixed point)Arms of the angle
Compass / dividerthe screw joining the two legsthe two legs
Scissorsthe rivet at the centrethe two blades
Spectaclesthe hinge near each glassthe frame and the side arm
Walletthe foldthe two flaps
Staplerthe hinge at the backthe top arm and the base
Pencil boxthe hinge of the lidthe lid and the box
Cartonthe fold where the flap joins the boxthe open flap and the face of the box it is joined to

Figure it Out — Pages 19 – 21Section 2.5 Angle

Math Talk
Q1Can you find the angles in the given pictures? Draw the rays forming any one of the angles and name the vertex of the angle.
ABCD
A bicycle and a panel made of wooden slats (drawn here in simplified form). On the bicycle, the rays DA, DB and DC are drawn from the point D.
(The book also shows two more pictures: a step-ladder with its rungs, and a bridge made of steel bars joined in triangles.)
Answer

Yes. On the bicycle, one angle is ∠BDC.

  • Vertex: D — the point where the two rods meet.
  • Arms: the rays DB and DC drawn along the two rods.
DBC∠BDC
The rays DB and DC drawn from D form ∠BDC.
Q2Draw and label an angle with arms ST and SR.
Answer

The two arms are ST and SR, so both rays must start from the same point S — that makes S the vertex.

TR∠TSRS
The angle ∠TSR — both arms ST and SR start from the same point S, which is therefore the vertex.
Q3Explain why ∠APB cannot be labelled as ∠P.
APBC
The figure printed with this question: three rays start at P and pass through A, B and C.
Answer

Because at the point P there is more than one angle, so the single letter P would not tell us which one is meant.

In the figure, three rays PA, PB and PC all start at P. That gives three different angles at the same vertex:

∠APB    ∠BPC    ∠APC
Q4Name the angles marked in the given figure.
PQRT
Two angles are marked with curved arrows: one from ray TR to ray TQ, and one from ray TR to ray TP.
Answer

The two marked angles are

∠PTR (or ∠RTP)    and    ∠QTR (or ∠RTQ)

Both have their vertex at T. The first is formed by the arms TP and TR, the second by the arms TQ and TR.

Q5Mark any three points on your paper that are not on one line. Label them A, B, C. Draw all possible lines going through pairs of these points. How many lines do you get? Name them. How many angles can you name using A, B, C? Write them down, and mark each of them with a curve as in Fig. 2.9.
VertexInitial position of rayFinal position of rayAmount of turn isthe size of the angle
Fig. 2.9 — the size of an angle is the amount of turn from the first ray to the second.
Answer
ABC
Three points not on a line give 3 lines and 3 angles, one at each corner.

Number of lines: 3. They are AB, BC and CA.

Number of angles: 3. One at each corner:

∠ABC (or ∠CBA)    ∠BCA (or ∠ACB)    ∠CAB (or ∠BAC)
Q6Now mark any four points on your paper so that no three of them are on one line. Label them A, B, C, D. Draw all possible lines going through pairs of these points. How many lines do you get? Name them. How many angles can you name using A, B, C, D? Write them all down, and mark each of them with a curve as in Fig. 2.9.
VertexInitial position of rayFinal position of rayAmount of turn isthe size of the angle
Fig. 2.9 — the size of an angle is the amount of turn from the first ray to the second.
Answer
ABCD
Four points, no three on a line, give 6 lines: AB, BC, CD, DA, AC and BD.

Number of lines: 6.

AB,   BC,   CD,   DA,   AC,   BD

Number of angles: 12 — three at each of the four points.

VertexRays from itAngles
AAB, AC, AD∠BAC, ∠CAD, ∠BAD
BBA, BC, BD∠ABC, ∠CBD, ∠ABD
CCA, CB, CD∠ACB, ∠BCD, ∠ACD
DDA, DB, DC∠ADB, ∠BDC, ∠ADC

In-text Questions — Pages 21 & 23Section 2.6 Comparing Angles

Math Talk
Q1Look at these animals opening their mouths. Do you see any angles here? If yes, mark the arms and vertex of each one. Can you arrange the angles in this picture from smallest to largest?
snakefishchickcrocodile
Four animals with their mouths open (simplified from the book’s picture): a snake, a fish, a chick and a crocodile.
Answer

Yes. Every open mouth makes an angle.

  • Vertex: the hinge of the jaw, where the upper and lower jaws are joined.
  • Arms: the upper jaw and the lower jaw.

From smallest to largest: fish and crocodile (both open only a little; these two angles are nearly equal) → snake → chick (its beak is open the widest).

Q2Is it always easy to compare two angles?
Answer

No. Comparing by looking is easy only when the two angles are clearly different. When two angles are nearly the same size, the eye cannot decide which is bigger; then we superimpose them or measure them.

Q3Here are some angles. Label each of the angles. How will you compare them? Draw a few more angles; label them and compare.
(i)(ii)(iii)(iv)
The four angles printed in the book, numbered (i) to (iv) from left to right.
Answer

Labelling: name each angle with three letters, vertex in the middle — for example (i) ∠ABC, (ii) ∠DEF, (iii) ∠GHI, (iv) ∠JKL.

Comparing: trace each angle and superimpose it on the others (vertex on vertex, one arm along one arm).

Smallest to largest: (iii) → (iv) → (ii) → (i). Angles (iii) and (iv) are close, so superimpose them to be sure.

Q4Where else do we use superimposition to compare?
Answer

Superimposition (placing one thing exactly over another) is used to compare:

  • Line segments — put one over the other with the left ends together and see which one sticks out.
  • Circles — place them centre on centre; the one whose boundary lies outside is bigger.
  • Squares, triangles and other figures — to check whether two cut-outs are of exactly the same size and shape.

Figure it Out — Page 23Section 2.6 Comparing Angles

Math Talk
Q1Fold a rectangular sheet of paper, then draw a line along the fold created. Name and compare the angles formed between the fold and the sides of the paper. Make different angles by folding a rectangular sheet of paper and compare the angles. Which is the largest and smallest angle you made?
Answer
ABCDEF
A rectangular sheet ABCD folded along a slanting crease EF (dashed).

Sample answer. The crease EF meets side AB at E and side DC at F. The angles formed are

∠AEF,   ∠BEF,   ∠DFE,   ∠CFE

By tracing and superimposing: ∠AEF = ∠CFE and ∠BEF = ∠DFE, and ∠AEF is larger than ∠BEF. So ∠AEF and ∠CFE are the largest, ∠BEF and ∠DFE the smallest. (If the crease is folded straight across, all four angles are equal right angles.)

Q2In each case, determine which angle is greater and why.
a. ∠AOB or ∠XOY
b. ∠AOB or ∠XOB
c. ∠XOB or ∠XOC
Discuss with your friends on how you decided which one is greater.
AOBCXY
The figure printed with this question (vertex O).
Answer

a. ∠AOB is greater. ∠XOY lies inside ∠AOB:

∠AOB = ∠AOX + ∠XOY + ∠YOB

The whole is bigger than any of its parts.

b. ∠AOB is greater.

∠AOB = ∠AOX + ∠XOB   so   ∠AOB > ∠XOB

c. Neither — they are equal: ∠XOB = ∠XOC, because B and C lie on the same ray from O, so both angles have the same two arms.

Q3Which angle is greater: ∠XOY or ∠AOB? Give reasons.
XOBAY
The figure printed with this question (vertex O).
Answer

∠XOY is greater.

Both angles share the part ∠AOY:

∠XOY = ∠XOA + ∠AOY
∠AOB = ∠AOY + ∠YOB

The extra part ∠XOA is much wider than the extra part ∠YOB, so ∠XOY > ∠AOB. We can confirm this by tracing ∠AOB and superimposing it on ∠XOY.

In-text Questions — Pages 24 – 27Sections 2.6 & 2.7 Comparing Angles, Rotating Arms

Q1Two cranes are arguing about who can open their mouth wider, i.e., who is making a bigger angle (Fig. 2.10). Suppose we have a transparent circle which can be moved and placed on figures. We place it on the first crane’s angle with its centre on the vertex, and mark A and B where the arms pass through the circle. Then we place it on the second crane’s angle so that the vertex is on the centre and one arm passes through OA. Can you now tell which angle is bigger? Which crane was making the bigger angle?
OBAOBAOBYAX
Left: the transparent circle placed on the first crane’s angle, with A and B marked where the arms cross its edge. Middle: the circle on its own, showing O, A and B. Right: the same circle placed on the second crane’s angle, with O on the vertex and OA along one arm; the second crane’s arms pass through X and Y.
Answer

Yes. On the circle, the second crane’s arm OY falls inside ∠AOB (Y comes before B), so the second angle is smaller. The first crane was making the bigger angle.

Q2Make several ‘rotating arms’ (two paper straws joined by a paper clip) with different angles between the arms, and arrange them from smallest to largest by comparing and using superimposition.
Passing through a slit: Collect a number of rotating arms with different angles (do not rotate any of them). Take a cardboard and make an angle-shaped slit by tracing and cutting out the shape of one of the rotating arms. Now, shuffle and mix up all the rotating arms. Can you identify which of the rotating arms will pass through the slit?
Answer

Arranging: place two rotating arms one over the other, vertex on vertex and one arm on one arm; the one whose second arm lies inside has the smaller angle. Repeat to put all of them in order.

Slit: only the rotating arm whose angle is exactly equal to the angle of the slit will pass through.

SituationWill it pass?
Slit angle greater than the arms’ angleNo
Slit angle less than the arms’ angleNo
Slit angle equal to the arms’ angleYes
Q3Challenge: Reduce this angle. (The arms are cut shorter — is the angle reduced?)
Answer

No! Cutting the arms shorter does not reduce the angle — the angle is still the same.

In-text Questions — Pages 28 – 31Section 2.8 Special Types of Angles

Math Talk
Q1Let us consider a straight angle ∠AOB. Observe that any ray OC divides it into two angles, ∠AOC and ∠COB. Is it possible to draw OC such that the two angles are equal to each other in size?
(Let’s Explore: mark the straight angle AOB on one side of a rectangular paper and fold the paper so that OB overlaps with OA.) Justify why the two angles are equal. Is there a way to superimpose and check? Can this superimposition be done by folding?
Answer

Yes. Fold the paper so that ray OB falls exactly on ray OA. The crease through O is the required ray OC.

ABC90°90°O
The ray OC divides the straight angle ∠AOB into two equal right angles of 90° each.

Justification: when the paper is folded, ∠COB lies exactly on top of ∠AOC — vertex on vertex and arm on arm. So the folding itself is the superimposition, and the two angles are equal. Each is called a right angle.

Q2If a straight angle is formed by half of a full turn, how much of a full turn will form a right angle?
Answer

A quarter of a full turn.

1 straight angle = ½ of a full turn
1 straight angle = 2 right angles
1 right angle = ½ × ½ = ¼ of a full turn
Q3Angles are classified in three groups as shown. Right angles are shown in the second group. What could be the common feature of the other two groups?
First groupSecond groupThird group
The three groups of angles. The middle group holds the right angles.
Answer

The groups are decided by comparing each angle with a right angle.

GroupCommon featureName
Firstevery angle is smaller than a right angle — less than a quarter turnAcute angles
Secondevery angle is exactly a quarter turnRight angles
Thirdevery angle is greater than a right angle but smaller than a straight angle — between a quarter turn and a half turnObtuse angles

Figure it Out — Pages 29 – 31Section 2.8 Right Angles and Perpendicular Lines

Q1How many right angles do the windows of your classroom contain? Do you see other right angles in your classroom?
Answer

Sample answer. A window is a rectangle, and every rectangle has 4 right angles, one at each corner. Our classroom window has 4 rectangular panes, so the panes have 4 × 4 = 16 right angles, and the outer frame has 4 more.

Other right angles in the classroom: corners of the blackboard, door, desk top, notebook and floor tiles, and the corner where two walls meet.

Q2Join A to other grid points in the figure by a straight line to get a straight angle. What are all the different ways of doing it?
ABAB
The two dot grids: in each one the segment AB is already drawn and A has to be joined to another grid point.
Answer

For a straight angle at A, the new arm must go in exactly the opposite direction to AB — along BA extended beyond A.

AB180°AB180°
Straight angles at A.

Ways: first grid — join A to any of the 3 grid points to the left of A in the same row; second grid — join A to either of the 2 grid points up-left of A on the same slant (1 left & 1 up, or 2 left & 2 up).

Q3Now join A to other grid points in the figure by a straight line to get a right angle. What are all the different ways of doing it?
Hint: Extend the line further as shown in the figure below. To get a right angle at A, we need to draw a line through it that divides the straight angle CAB into two equal parts.
ABABCAB
The two grids for the question, and below them the hint grid in which AB is extended back through A to C.
Answer

For a right angle at A, the new line must be perpendicular to AB — one on each side of AB.

AB90°AB90°
Right angles at A.
  • First grid (AB horizontal): join A to a grid point straight above A (2 points) or straight below A (3 points).
  • Second grid (AB goes 2 right, 2 down): join A to a point up-right of A (1 right & 1 up, or 2 right & 2 up) or down-left of A (1 left & 1 down, or 2 left & 2 down).
Q4Get a slanting crease on the paper. Now, try to get another crease that is perpendicular to the slanting crease.
a. How many right angles do you have now? Justify why the angles are exact right angles.
b. Describe how you folded the paper so that any other person who doesn’t know the process can simply follow your description to get the right angle.
Answer
4 right angles
Two creases crossing at right angles.

a. 4 right angles. The second fold puts one part of the first crease exactly on its other part, so the two angles beside the second crease cover each other exactly — they are equal. Together they make a straight angle, so each is a right angle. The same holds on the other side.

b. Steps: (1) Fold along any slanting line and unfold. (2) Fold again so that one part of this crease lies exactly on its other part. (3) Unfold: the new crease is perpendicular to the first.

Figure it Out — Pages 31 & 32Section 2.8 Classifying Angles

Q1Identify acute, right, obtuse and straight angles in the previous figures.
First groupSecond groupThird group
The three groups of angles printed just above this exercise (page 31): acute, right and obtuse.
Answer

Compare each angle with a right angle (use the corner of your notebook as a tester).

TypeWhere it appears in the previous figures
Acuteall six angles of the first group; Vidya’s book in Case 1; the open mouths of the fish, crocodile and snake
Rightall five angles of the second group; the two angles made by the crease OC with OA and OB (page 28)
Obtuseall six angles of the third group; Vidya’s book in Case 2
Straight∠AOB in Fig. 2.11; Vidya’s book lying open flat on the table (Case 3)
Q2Make a few acute angles and a few obtuse angles. Draw them in different orientations.
Answer

Draw them opening upwards, downwards, to the left and to the right — the direction in which an angle points does not change its type.

45°60°80°100°135°160°
Acute angles (45°, 60°, 80°) and obtuse angles (100°, 135°, 160°) drawn in different orientations.
Q3Do you know what the words acute and obtuse mean? Acute means sharp and obtuse means blunt. Why do you think these words have been chosen?
Answer

Because the words describe exactly how the angles look.

  • An acute angle has a narrow opening, so the vertex ends in a sharp point — like the tip of a pencil, a needle or a thorn.
  • An obtuse angle has a wide opening, so the vertex looks flat and blunt — like the edge of a spoon or a rounded stone.
Q4Find out the number of acute angles in each of the figures below. What will be the next figure and how many acute angles will it have? Do you notice any pattern in the numbers?
(i)(ii)(iii)
The three figures: a plain triangle, then one and then two more triangles drawn inside it.
Answer
FigureSmall triangles in itNumber of acute angles
1st13
2nd412
3rd721
4th (next)1030

The next figure is made by joining the midpoints of the sides of the smallest triangle in the middle (shown in red), and it contains 30 acute angles.

30 acute angles
The next (4th) figure.

The pattern: the count goes up by 9 every time.

In-text Questions — Page 34Section 2.9 Measuring Angles

Q1The circle has been divided into 1, 2, 3, 4, 5, 6, 8, 9, 10 and 12 parts below. What are the degree measures of the resulting angles? Write the degree measures down near the indicated angles.
123456891012
The circle divided into 1, 2, 3, 4, 5, 6, 8, 9, 10 and 12 equal parts; in each circle one angle is marked in red.
Answer

A full turn is 360°. So to find each angle, simply divide 360 by the number of equal parts.

Number of equal partsWorkingAngle of each part
1360 ÷ 1360°
2360 ÷ 2180°
3360 ÷ 3120°
4360 ÷ 490°
5360 ÷ 572°
6360 ÷ 660°
8360 ÷ 845°
9360 ÷ 940°
10360 ÷ 1036°
12360 ÷ 1230°

Figure it Out — Page 35Section 2.9 The Unlabelled Protractor

Q1Write the measures of the following angles:
a. ∠KAL
(Notice that the vertex of this angle coincides with the centre of the protractor. So the number of units of 1 degree angle between KA and AL gives the measure of ∠KAL. By counting, we get ∠KAL = 30°. Making use of the medium sized and large sized marks, is it possible to count the number of units in 5s or 10s?)
b. ∠WAL
c. ∠TAK
Figure
An unlabelled protractor with its centre at A; the rays AK, AL, AW and AT start at A.
Answer

Count the 1° units between the two arms, in tens (long marks) and fives (medium marks).

AngleHow to countMeasure
a. ∠KAL3 tens = 3 × 1030°
b. ∠WAL5 tens = 5 × 1050°
c. ∠TAK12 tens = 12 × 10120°

Yes, counting in 5s and 10s is definitely possible — and it is far quicker and safer than counting 120 single marks.

In-text Questions — Pages 36 & 37Section 2.9 The Labelled Protractor

Q1There are two sets of numbers on the protractor: one increasing from right to left and the other increasing from left to right. Why does it include two sets of numbers?
Answer

So that the protractor can be used from either side without any subtraction.

  • If the base arm of your angle points to the right, start at the 0 on the right and read the inner set of numbers.
  • If the base arm points to the left, start at the 0 on the left and read the outer set.
Q2Name the different angles in the figure and write their measures. Did you include angles such as ∠TOQ? Which set of markings did you use — inner or outer?
18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180PQRSTUO
A labelled protractor with its centre at O; the rays OP, OQ, OR, OS, OT and OU start at O.
Answer

I used the inner scale, which starts from 0 at OP. The readings of the rays are:

P → 0°    Q → 35°    R → 95°    S → 125°    T → 160°    U → 180°

Each angle = difference of two readings:

AngleWorkingMeasure
∠POQ35 − 035°
∠POR95 − 095°
∠POS125 − 0125°
∠POT160 − 0160°
∠POU180 − 0180° (straight angle)
∠QOR95 − 3560°
∠QOS125 − 3590°
∠QOT160 − 35125°
∠QOU180 − 35145°
∠ROS125 − 9530°
∠ROT160 − 9565°
∠ROU180 − 9585°
∠SOT160 − 12535°
∠SOU180 − 12555°
∠TOU180 − 16020°

Yes, angles such as ∠TOQ must also be included — it is the same as ∠QOT = 125°. In all, 15 angles can be named from these six rays.

Q3What is the measure of ∠TOS? Can you use the numbers marked to find the angle without counting the number of markings? Here, OT and OS pass through the numbers 20 and 55 on the outer scale. How many units of 1 degree are contained between these two arms? Can subtraction be used here?
18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180PQRSTUO
A labelled protractor with its centre at O; the rays OP, OQ, OR, OS, OT and OU start at O.
Answer

Yes, subtraction can be used.

OS is at 55    OT is at 20  (outer scale)
∠TOS = 55 − 20 = 35°

So there are 35 units of 1° between the two arms, and we did not have to count a single mark.

Q4How can we measure angles directly without having to subtract? Place the protractor so the centre is on the vertex of the angle. Align the protractor so that one of the arms passes through the 0º mark. What is the degree measure of ∠AOB?
18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180ABO
Angle AOB, with the protractor’s centre on the vertex O and the arm OB along the 0° mark.
Answer

If one arm is placed on the 0 mark, then the reading of the other arm is the answer — the subtraction becomes 0 and disappears.

Reading of OB = 0
Reading of OA = 80
∠AOB = 80 − 0 = 80°

In-text Questions — Pages 38 – 40Section 2.9 Make your own Protractor

Try This
Q1The measure of half a circle is ½ of a full turn. So, the measure of half a turn = ½ of ____ = 180°. The measure of a ¼ turn = ¼ of 360° = ________. When folded, this is ⅛ of the circle, or ⅛ of a turn, or ⅛ of 360°, or ¼ of 180° or ½ of 90° = ________. Continuing with another half fold, we get an angle of measure ________.
Fig. 2.18 — the quarter-circle sheet folded in half once more; the dotted crease halves the angle again.
Answer

Each fold halves the angle. Fill the blanks like this:

FoldPart of a full turnWorkingAngle
Whole circle1—360°
1st fold (semicircle)½½ of 360°180°
2nd fold (quarter)¼¼ of 360° = ½ of 180°90°
3rd fold⅛⅛ of 360° = ¼ of 180° = ½ of 90°45°
4th fold1/16½ of 45°22.5°

So the blanks are 360°, 90°, 45° and 22.5°. The new creases also give 180° − 45° = 135°, and later 67.5°, 112.5° and 157.5°.

Q2Think! In Fig. 2.19, we have ∠AOB = ∠BOC = ∠COD = ∠DOE = ∠EOF = ∠FOG = ∠GOH = ∠HOI = _____. Why?
ABCDEFGHIO
Fig. 2.19 — the semicircle folded into eight equal parts, marked O, A, B, … , I.
Answer

Each of these angles is 22.5°.

The straight angle ∠AOI = 180°
It has been folded into 8 equal parts
Each part = 180° ÷ 8 = 22.5°
Q3Identify the angle bisectors in your handmade protractor. Try to make different angles using the concept of angle bisector through paper folding.
Answer

A line that cuts an angle into two equal parts is called the angle bisector of that angle. In the paper protractor every crease is a bisector of the angle formed by the two creases beside it.

Crease atBisects the angleInto two angles of
90°the straight angle 0°–180°90° each
45°the right angle 0°–90°45° each
135°the right angle 90°–180°45° each
22.5°the angle 0°–45°22.5° each
67.5°the angle 45°–90°22.5° each

Figure it Out — Pages 40 – 43Section 2.9 Measuring Angles with a Protractor

Q1Find the degree measures of the following angles using your protractor.
HIJHIJGKIHJ
The three angles printed with this question.
Answer

Place the centre of the protractor on the vertex H, put one arm on the 0 line, and read the other arm on the same scale.

FigureAngleMeasure
1st (vertex H at the bottom)∠IHJ47°
2nd (vertex H at the top)∠GHK (= ∠IHJ)about 23½° (23° or 24°)
3rd (vertex H on the left)∠IHJabout 109°
Q2Find the degree measures of different angles in your classroom using your protractor.
Answer

(activity — your own readings may differ a little):

ObjectWhere the angle isExpected measure
Notebook / blackboard cornerbetween two edges90°
Open doorbetween the door and the wallanything from 0° to about 180°
Open scissorsbetween the bladesan acute angle, say 30°–60°
Hands of the wall clockat the centrea multiple of 30° at exact hours
Set-squareits three corners90°, 60°, 30° (or 90°, 45°, 45°)
Open geometry box lidbetween lid and boxan obtuse angle
Q3Find the degree measures for the angles given below. Check if your paper protractor can be used here!
IHJHIJ
The two angles printed with this question. In each, H is the vertex and I and J are points on the arms.
Answer
First angle: ∠IHJ = 42°  (acute)
Second angle: ∠IHJ = 116°  (obtuse)

No, the paper protractor cannot be used here, because it has creases only at 0°, 22.5°, 45°, 67.5°, 90°, 112.5°, 135°, 157.5° and 180°, and 42° and 116° are not among them.

Q4How can you find the degree measure of the angle given below using a protractor?
The angle printed with this question. The curve drawn at the vertex shows which angle is to be measured.
Answer

The marked angle is a reflex angle (more than 180°), so it cannot be read directly — a protractor only goes up to 180°.

Method: measure the unmarked angle at the same vertex, then subtract it from a full turn.

Unmarked angle ≈ 102°
Marked angle = 360° − unmarked angle
= 360° − 102° = 258° (about)
Q5Measure and write the degree measures for each of the following angles: a, b, c, d, e, f.
a.b.d.c.e.f.
The six angles a to f printed with this question; the curve at each vertex shows which angle to measure.
Answer

Place the centre of the protractor on each vertex, one arm on 0, and read off the other arm:

AngleMeasure (about)Type
a.79° (≈ 80°)acute
b.121° (≈ 120°)obtuse
c.59° (≈ 60°)acute
d.129° (≈ 130°)obtuse
e.128° (≈ 130°)obtuse
f.61° (≈ 60°)acute
Q6Find the degree measures of ∠BXE, ∠CXE, ∠AXB and ∠BXC.
18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180AEBCX
A protractor with its centre at X and its base along AE; the rays XB and XC start at X.
Answer

A, X and E lie in one straight line, so ∠AXE = 180°. Reading the rays from the 0 mark at E:

E → 0°    C → 85°    B → 115°    A → 180°
AngleWorkingMeasure
∠BXE115 − 0115°
∠CXE85 − 085°
∠AXB180 − 11565°
∠BXC115 − 8530°
Q7Find the degree measures of ∠PQR, ∠PQS and ∠PQT.
PQRST
Rays QP, QR, QS and QT start from Q; the curves mark the angles to be measured.
Answer

The vertex is Q. Keeping QP on the 0 mark and reading the same scale for the other three rays:

AngleReadingMeasureType
∠PQR45 − 045°acute
∠PQS100 − 0100°obtuse
∠PQT151 − 0151° (about)obtuse
Q8Make the paper craft as per the given instructions. Then, unfold and open the paper fully. Draw lines on the creases made and measure the angles formed.
Figure
The folding instructions printed with this question, pictures 1 to 8. Dashed lines show where to fold; curved arrows show the direction of each fold.
Answer

(activity). On the unfolded square:

  • the crease of picture 1 and the crease along the dashed line of picture 3 are the two diagonals; they cross at the centre at 90°;
  • each diagonal crease meets the edges of the square at 45°;
  • the strip crease of picture 2 is parallel to the first diagonal, so it also makes 45° with the edges and 90° with the other diagonal.
Q9Measure all three angles of the triangle shown in Fig. 2.21 (a), and write the measures down near the respective angles. Now add up the three measures. What do you get? Do the same for the triangles in Fig. 2.21 (b) and (c). Try it for other triangles as well, and then make a conjecture for what happens in general!
ACB(a)CAB(b)ACB(c)
Fig. 2.21 — the three triangles (a), (b) and (c) whose angles are to be measured.
Answer

Measure each corner and add. For Fig. 2.21 (a):

45°65°70°ABC
Fig. 2.21 (a) with its measured angles.
∠A + ∠B + ∠C = 45° + 65° + 70° = 180°
Triangle∠A∠B∠CSum
(a)45°65°70°180°
(b)54°63°63°180°
(c)31°52°97°180°

Conjecture: the three angles of any triangle add up to 180° (a straight angle).

In-text Questions — Page 44Mind the Mistake, Mend the Mistake!

Q1A student used a protractor to measure the angles as shown (∠U = 35°, ∠V = 80°, ∠W = 70°, ∠X = 150°, ∠Y = 120°, ∠Z = 85°). In each figure, identify the incorrect usage(s) of the protractor and discuss how the reading could have been made and think how it can be corrected.
18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180∠U = 35°U 18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180∠V = 80°V 18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180∠W = 70° 18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180∠X = 150° 18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180∠Y = 120°Y 18001701016020150301404013050120601107010080909080100701106012050130401403015020160101700180∠Z = 85°
Six angles, each measured by a student with a protractor. The red lines are the arms of each angle, and the student’s reading is written beside it.
Answer

Look at each picture and ask the same three questions: Is the centre on the vertex? Is one arm on the 0 line? Which scale was read?

FigureWhat has gone wrongHow to correct it
∠U = 35°The centre is on the vertex, but the lower arm is not on the 0 line — it dips below the base line. 35 is only where the upper arm crosses the scale.Turn the protractor until the lower arm lies along the base line through 0, then read the upper arm (it comes to about 60°).
∠V = 80°The centre is on the vertex, but the protractor is tilted: neither arm lies along the 0 line. 80 is only where the upper arm crosses the scale.Turn the protractor until one arm runs along the base line through 0. (Or subtract: the arms cross the scale at about 10 and 80, so ∠V ≈ 80 − 10 = 70°.)
∠W = 70°The corner of the angle (its vertex) is above the protractor. The centre of the protractor has been put on the far end of one arm instead, and neither arm is on the 0 line; 70 is just where that arm crosses the scale.Move the protractor so that its centre is on the corner where the two arms meet, turn it until one arm lies along 0, then read the other arm.
∠X = 150°The vertex is not on the centre — it is to the right of the centre mark. The lower arm lies along the base at the 0 of the outer scale, but 150 was read on the inner scale.Put the centre on the vertex, keep the lower arm on 0 and read the scale that starts at 0 on that arm. The angle is very small — only about 12° — so 150° cannot be right.
∠Y = 120°The vertex is not on the centre of the protractor (it is to the right of the centre mark), and neither arm is on 0. The arms cross the outer scale at about 30 and 150, and 150 − 30 = 120 was taken.Move the protractor so that its centre is on the vertex and one arm is on 0. The angle is then about 145°.
∠Z = 85°The centre is on the vertex and one arm lies along the flat edge at the 0 of the outer scale, but the other arm has been misread: on the outer scale it crosses at about 105, not 85.Count on from the 0 on the base arm along the same (outer) scale: the angle is about 105°.

Figure it Out — Pages 45 & 46Section 2.9 Where are the Angles?

Q1Angles in a clock:
a. The hands of a clock make different angles at different times. At 1 o’clock, the angle between the hands is 30°. Why?
b. What will be the angle at 2 o’clock? And at 4 o’clock? 6 o’clock?
c. Explore other angles made by the hands of a clock.
Answer

a. The centre of the dial is one full turn of 360°, and the twelve hour marks divide it into 12 equal parts.

Angle between two neighbouring hour marks = 360° ÷ 12 = 30°

At 1 o’clock the hour hand is on 1 and the minute hand on 12 — exactly one part apart. So the angle is 30°.

b. Just multiply 30° by the number of hour-parts between the hands:

TimeParts between the handsAngleType
2 o’clock2 × 3060°acute
4 o’clock4 × 30120°obtuse
6 o’clock6 × 30180°straight

c. Other clock angles:

TimeSmaller angleAngle on the other side
3 o’clock90° (right angle)270°
5 o’clock150°210°
9 o’clock90°270°
10 o’clock60°300°
12 o’clock0° (the hands overlap)a full turn, 360°
Q2The angle of a door: Is it possible to express the amount by which a door is opened using an angle? What will be the vertex of the angle and what will be the arms of the angle?
Answer

Yes. A door turns about its hinges, so an angle describes exactly how far it is open.

  • Vertex: the hinge — the line where the door is joined to the wall (the frame).
  • Arms: the bottom edge of the door in its open position, and the line of the closed door (the doorway, in line with the wall).
Q3Vidya is enjoying her time on the swing. She notices that the greater the angle with which she starts the swinging, the greater is the speed she achieves on her swing. But where is the angle? Are you able to see any angle?
Answer

Yes — the angle is at the top, where the ropes are tied.

  • Vertex: the point (or bar) from which the swing hangs.
  • Arm 1: the rope in its resting position, hanging straight down.
  • Arm 2: the rope at the moment Vidya is pulled back to start, or at the highest point she reaches.
Q4Here is a toy with slanting slabs attached to its sides; the greater the angles or slopes of the slabs, the faster the balls roll. Can angles be used to describe the slopes of the slabs? What are the arms of each angle? Which arm is visible and which is not?
Answer

Yes, the slope of each slab is exactly an angle — the steeper the slab, the bigger the angle and the faster the ball rolls.

  • Vertex: the point where the slab meets the side of the toy.
  • Arm 1 (visible): the edge of the slanting slab itself.
  • Arm 2 (not visible): the horizontal line through that point — an imaginary level line, the direction the slab would take if it were flat.
Q5Observe the images below where there is an insect and its rotated version. Can angles be used to describe the amount of rotation? How? What will be the arms of the angle and the vertex?
Hint: Observe the horizontal line touching the insects.
A snail and a ladybird, each shown twice: once in its usual position and once turned about the point where it touches the horizontal line.
Answer

Yes. The amount of rotation is exactly what an angle measures.

  • Vertex: the fixed point about which the insect has been turned (the centre of rotation).
  • Arm 1: the horizontal line touching the insect in its original position.
  • Arm 2: the corresponding line touching the insect in its rotated position.

The angle between these two lines tells how much the insect has been turned. In the pictures, each insect has been turned through about a quarter turn, that is, about 90°.

In-text Activities — Pages 48 & 49Section 2.10 Let’s Play a Game #1 and #2

Q1Let’s Play a Game #1 (angle guessing). Make two teams.
• Team 1 secretly chooses an angle measure, for example 49°, and makes an angle with that measure using a protractor, without Team 2 seeing it.
• Team 2 looks at the angle and quickly guesses its measure (without a protractor).
• Team 1 shows the true measure with a protractor.
• Team 2 scores the difference between the guess and the true measure; for example, a guess of 39° scores 10 points (49° − 39°).
• Each team gets five turns. The team with the lowest score wins.
Answer

Sample score sheet for Team 2 (your own angles and guesses will differ):

TurnTrue angleGuessPoints
149°39°10
2120°110°10
375°80°5
4150°145°5
530°35°5

Team 2’s total = 10 + 10 + 5 + 5 + 5 = 35 points. If Team 1 scores fewer points in its five turns, Team 1 wins.

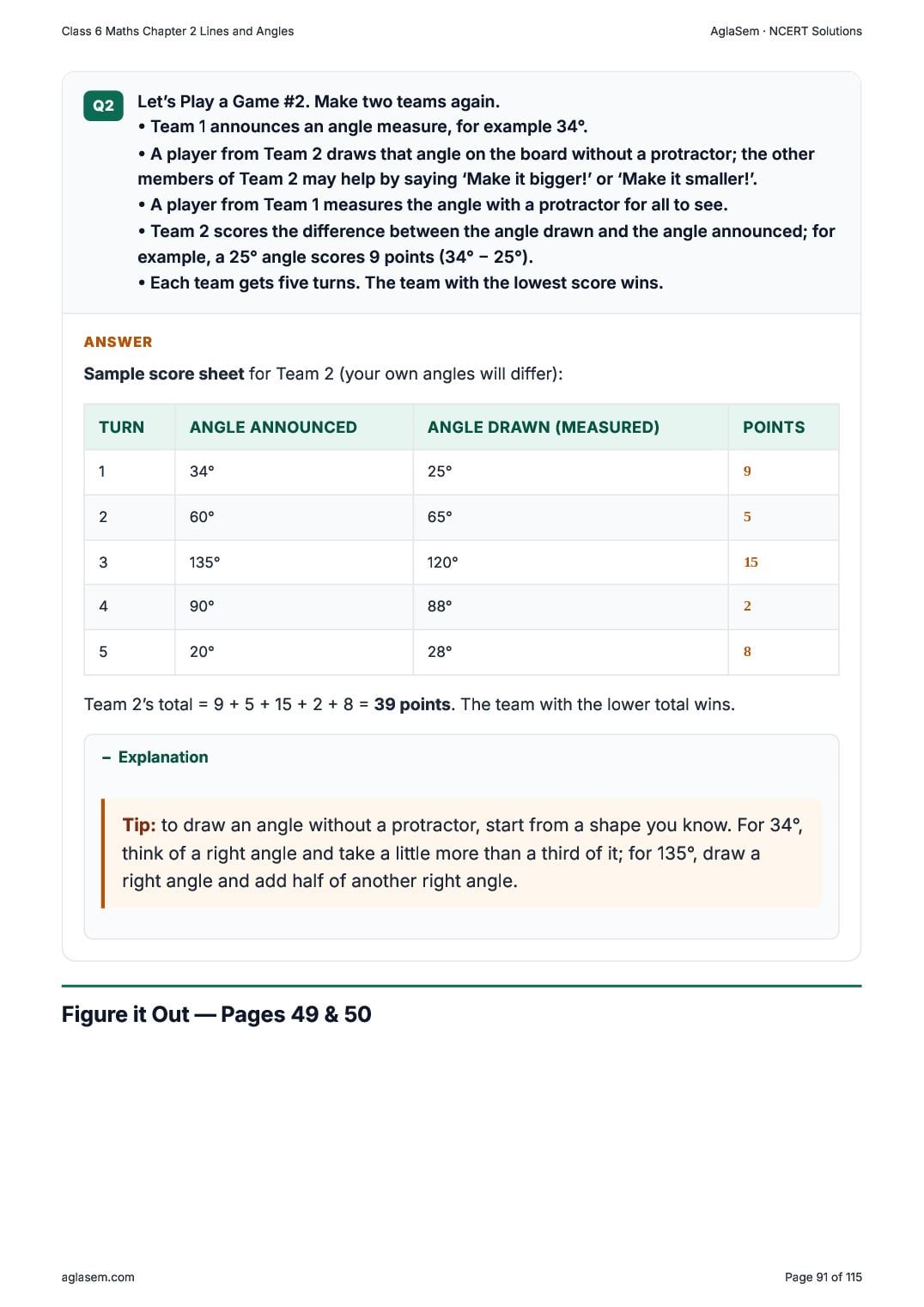

Q2Let’s Play a Game #2. Make two teams again.
• Team 1 announces an angle measure, for example 34°.
• A player from Team 2 draws that angle on the board without a protractor; the other members of Team 2 may help by saying ‘Make it bigger!’ or ‘Make it smaller!’.
• A player from Team 1 measures the angle with a protractor for all to see.
• Team 2 scores the difference between the angle drawn and the angle announced; for example, a 25° angle scores 9 points (34° − 25°).
• Each team gets five turns. The team with the lowest score wins.
Answer

Sample score sheet for Team 2 (your own angles will differ):

TurnAngle announcedAngle drawn (measured)Points
134°25°9
260°65°5
3135°120°15
490°88°2
520°28°8

Team 2’s total = 9 + 5 + 15 + 2 + 8 = 39 points. The team with the lower total wins.

Figure it Out — Pages 49 & 50Section 2.10 Drawing Angles

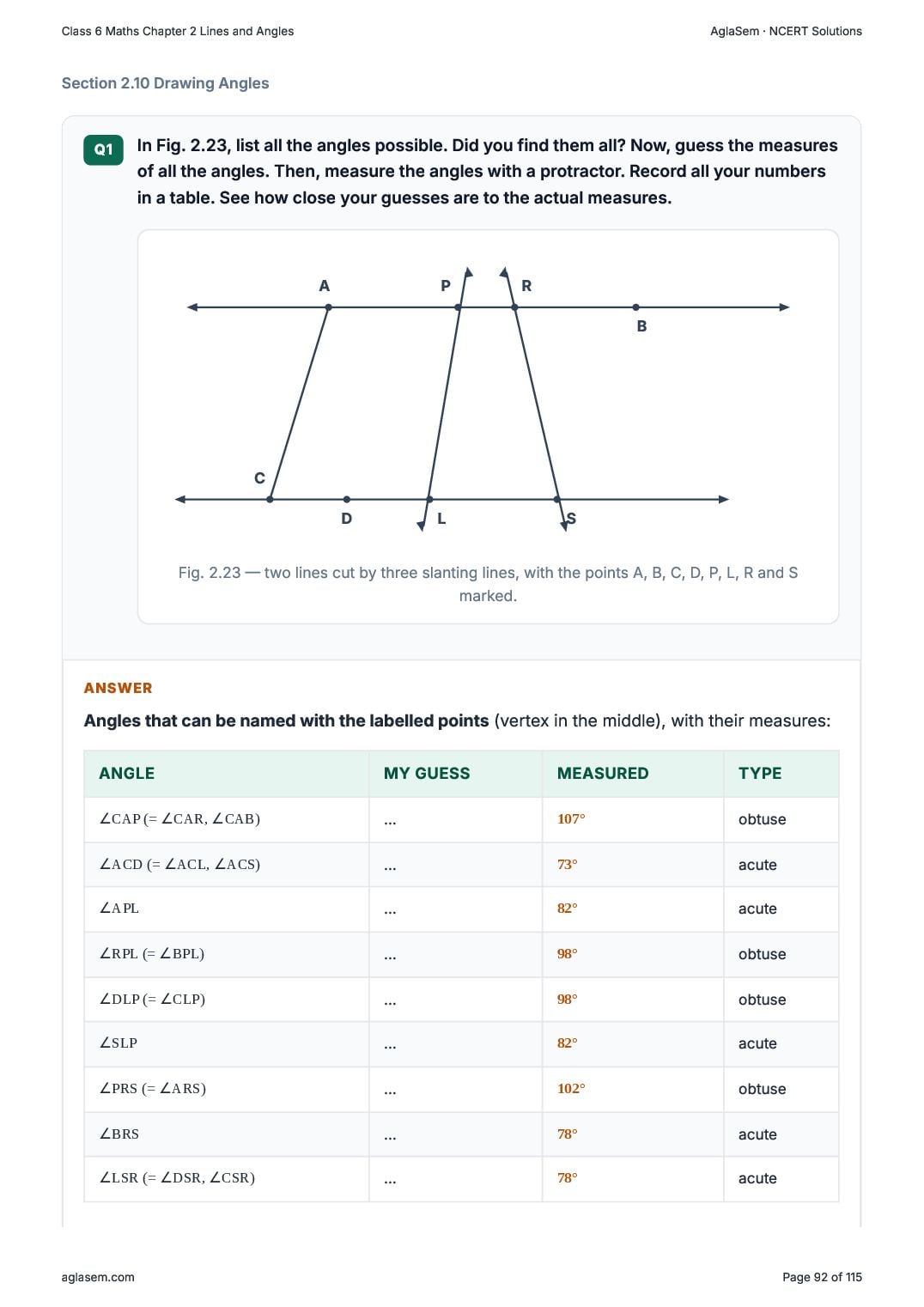

Q1In Fig. 2.23, list all the angles possible. Did you find them all? Now, guess the measures of all the angles. Then, measure the angles with a protractor. Record all your numbers in a table. See how close your guesses are to the actual measures.
APRBCDLS
Fig. 2.23 — two lines cut by three slanting lines, with the points A, B, C, D, P, L, R and S marked.
Answer

Angles that can be named with the labelled points (vertex in the middle), with their measures:

AngleMy guessMeasuredType
∠CAP (= ∠CAR, ∠CAB)…107°obtuse
∠ACD (= ∠ACL, ∠ACS)…73°acute
∠APL…82°acute
∠RPL (= ∠BPL)…98°obtuse
∠DLP (= ∠CLP)…98°obtuse
∠SLP…82°acute
∠PRS (= ∠ARS)…102°obtuse
∠BRS…78°acute
∠LSR (= ∠DSR, ∠CSR)…78°acute

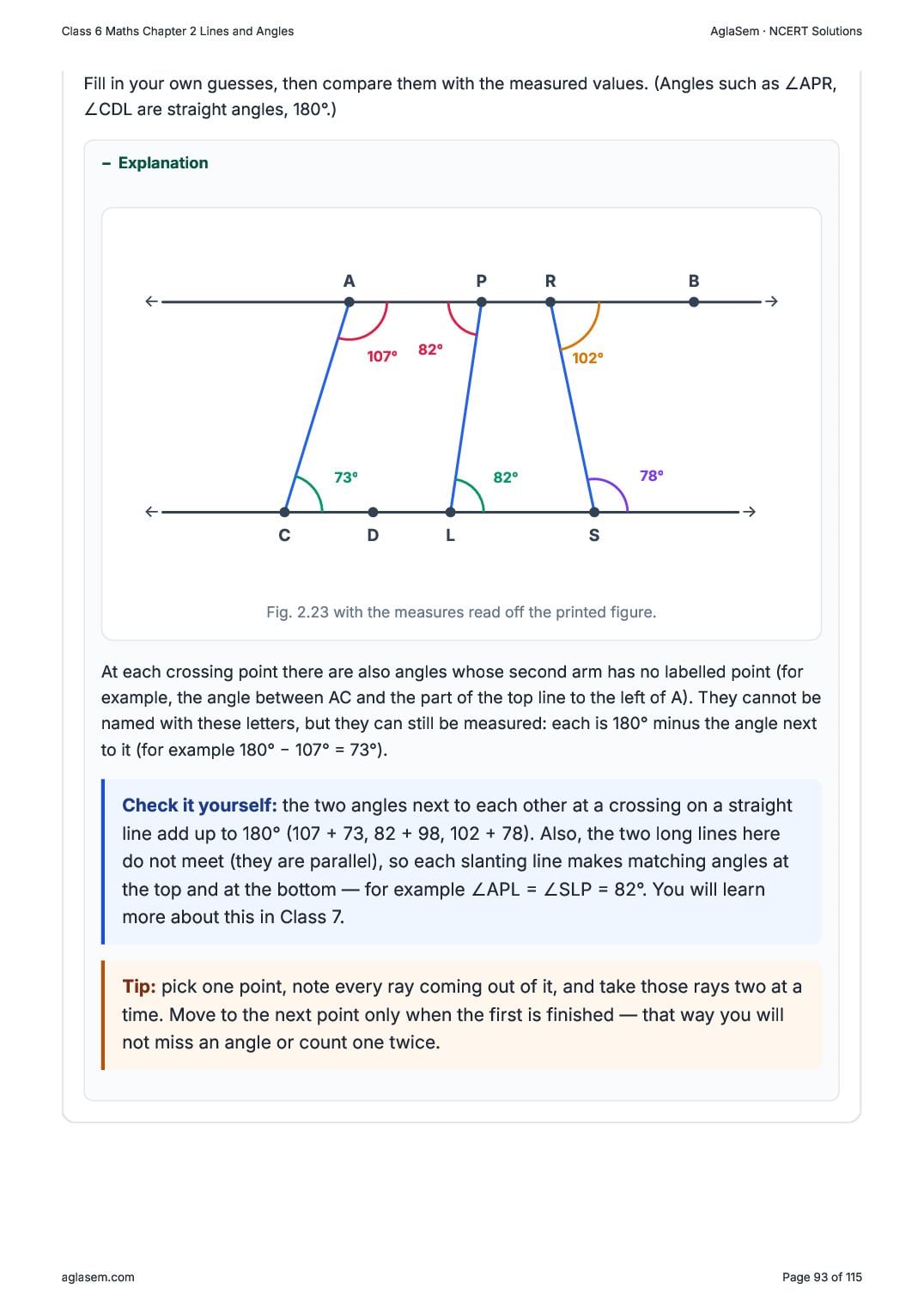

Fill in your own guesses, then compare them with the measured values. (Angles such as ∠APR, ∠CDL are straight angles, 180°.)

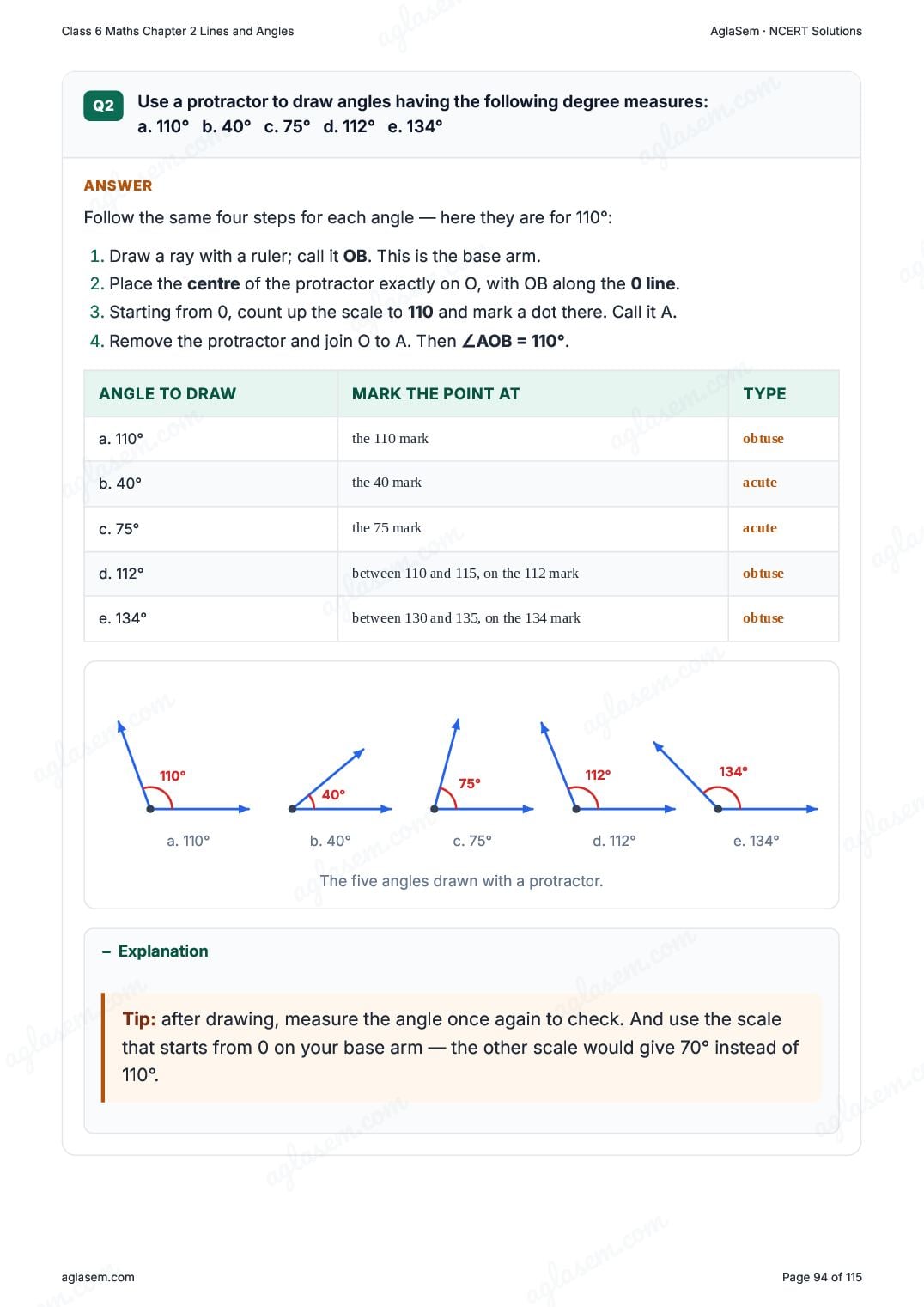

Q2Use a protractor to draw angles having the following degree measures:
a. 110°   b. 40°   c. 75°   d. 112°   e. 134°
Answer

Follow the same four steps for each angle — here they are for 110°:

  1. Draw a ray with a ruler; call it OB. This is the base arm.
  2. Place the centre of the protractor exactly on O, with OB along the 0 line.
  3. Starting from 0, count up the scale to 110 and mark a dot there. Call it A.
  4. Remove the protractor and join O to A. Then ∠AOB = 110°.
Angle to drawMark the point atType
a. 110°the 110 markobtuse
b. 40°the 40 markacute
c. 75°the 75 markacute
d. 112°between 110 and 115, on the 112 markobtuse
e. 134°between 130 and 135, on the 134 markobtuse
110°a. 110°40°b. 40°75°c. 75°112°d. 112°134°e. 134°
The five angles drawn with a protractor.
Q3Draw an angle whose degree measure is the same as the angle given below. Also, write down the steps you followed to draw the angle.
HIJ
The angle printed with this question: H is the vertex, and I and J are points on its arms.
Answer

Step 1 — measure the given angle. Centre of the protractor on H, arm HJ on 0; arm HI reads 116°. So ∠IHJ = 116°.

Step 2 — draw your own angle of the same measure.

  1. Draw a ray QR with a ruler.
  2. Place the centre of the protractor on Q, with QR along the 0 line.
  3. On the scale starting from 0 at QR, mark P at 116.
  4. Remove the protractor and join Q to P. Now ∠PQR = ∠IHJ.

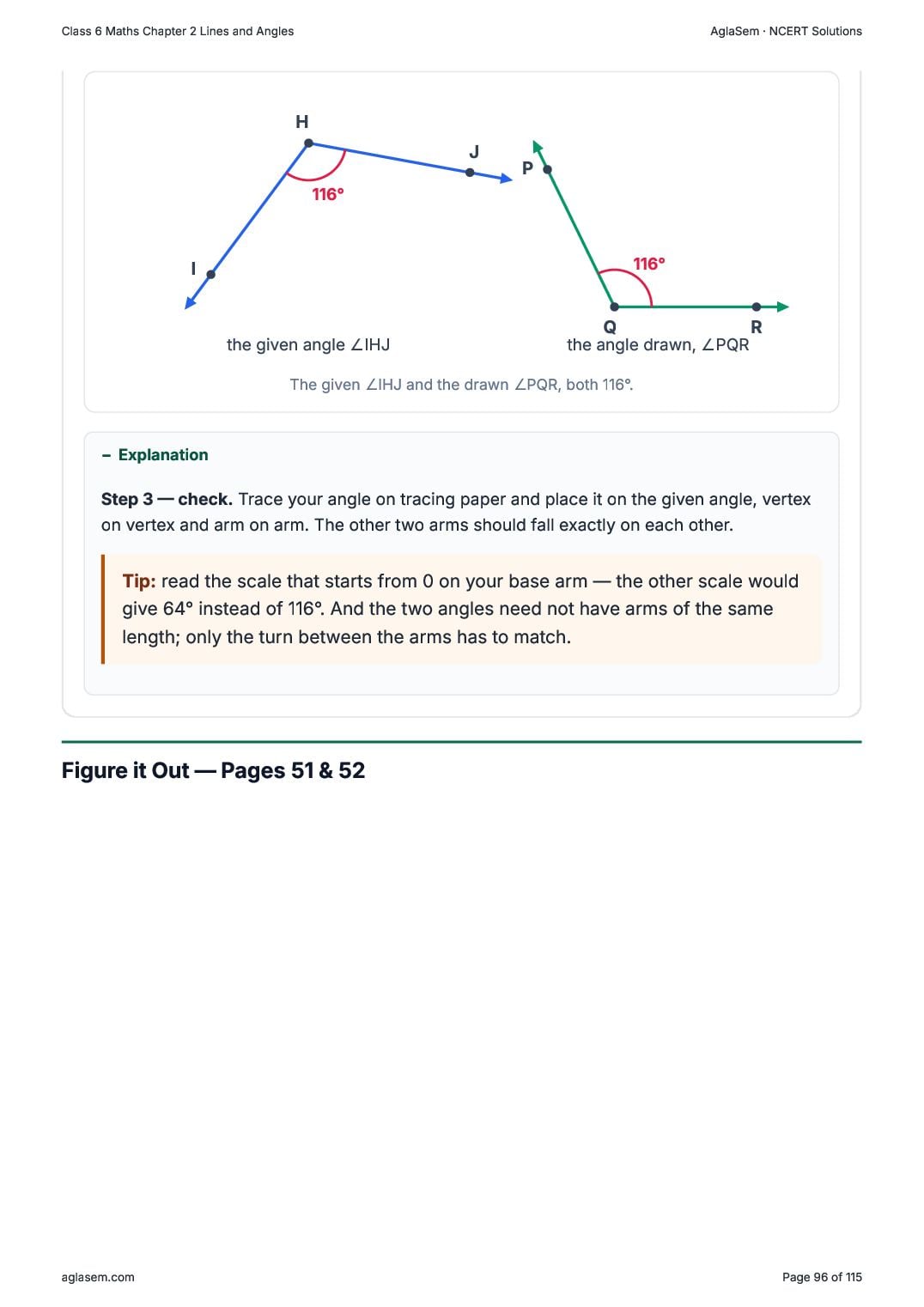

HJI116°QRP116°the given angle ∠IHJthe angle drawn, ∠PQR
The given ∠IHJ and the drawn ∠PQR, both 116°.

Figure it Out — Pages 51 & 52Section 2.11 Types of Angles and their Measures

Q1In each of the below grids, join A to other grid points in the figure by a straight line to get:
a. An acute angle
b. An obtuse angle
c. A reflex angle
Mark the intended angles with curves to specify the angles. One has been done for you.

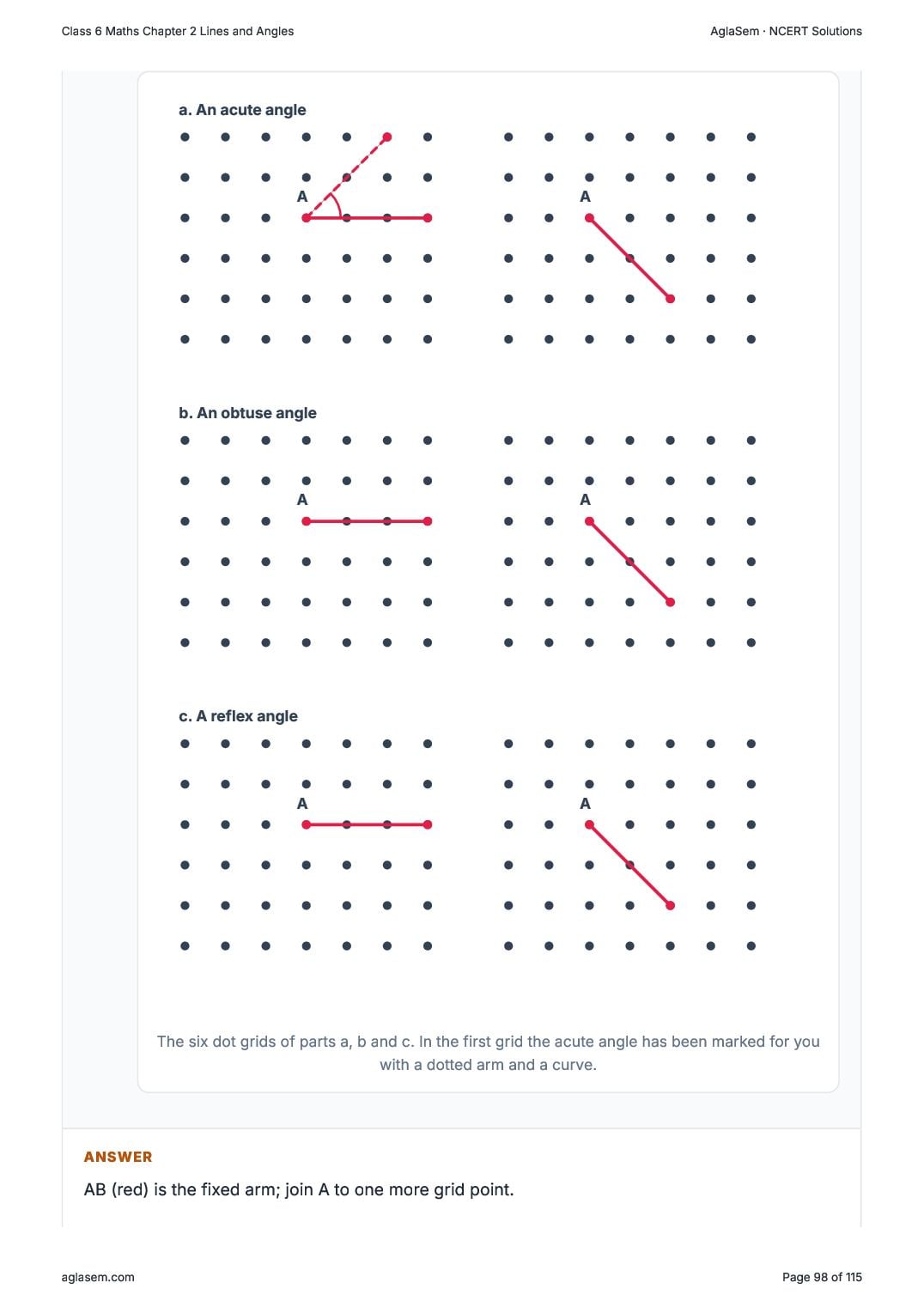

a. An acute angleAAb. An obtuse angleAAc. A reflex angleAA
The six dot grids of parts a, b and c. In the first grid the acute angle has been marked for you with a dotted arm and a curve.
Answer

AB (red) is the fixed arm; join A to one more grid point.

Aa. acute: 45°Aa. acute: 45°Ab. obtuse: 135°Ab. obtuse: 135°Ac. reflex: 225°Ac. reflex: 225°

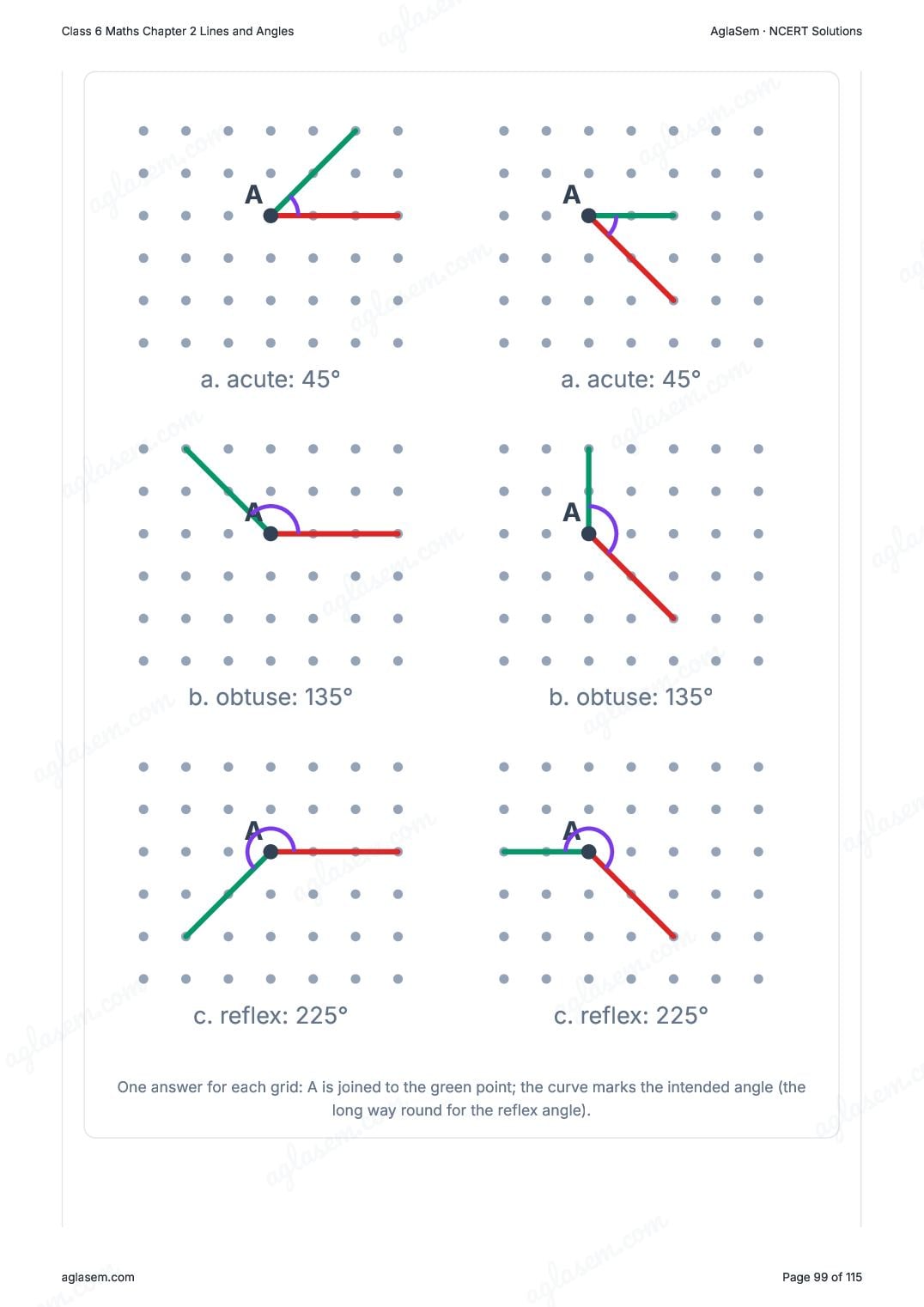

One answer for each grid: A is joined to the green point; the curve marks the intended angle (the long way round for the reflex angle).

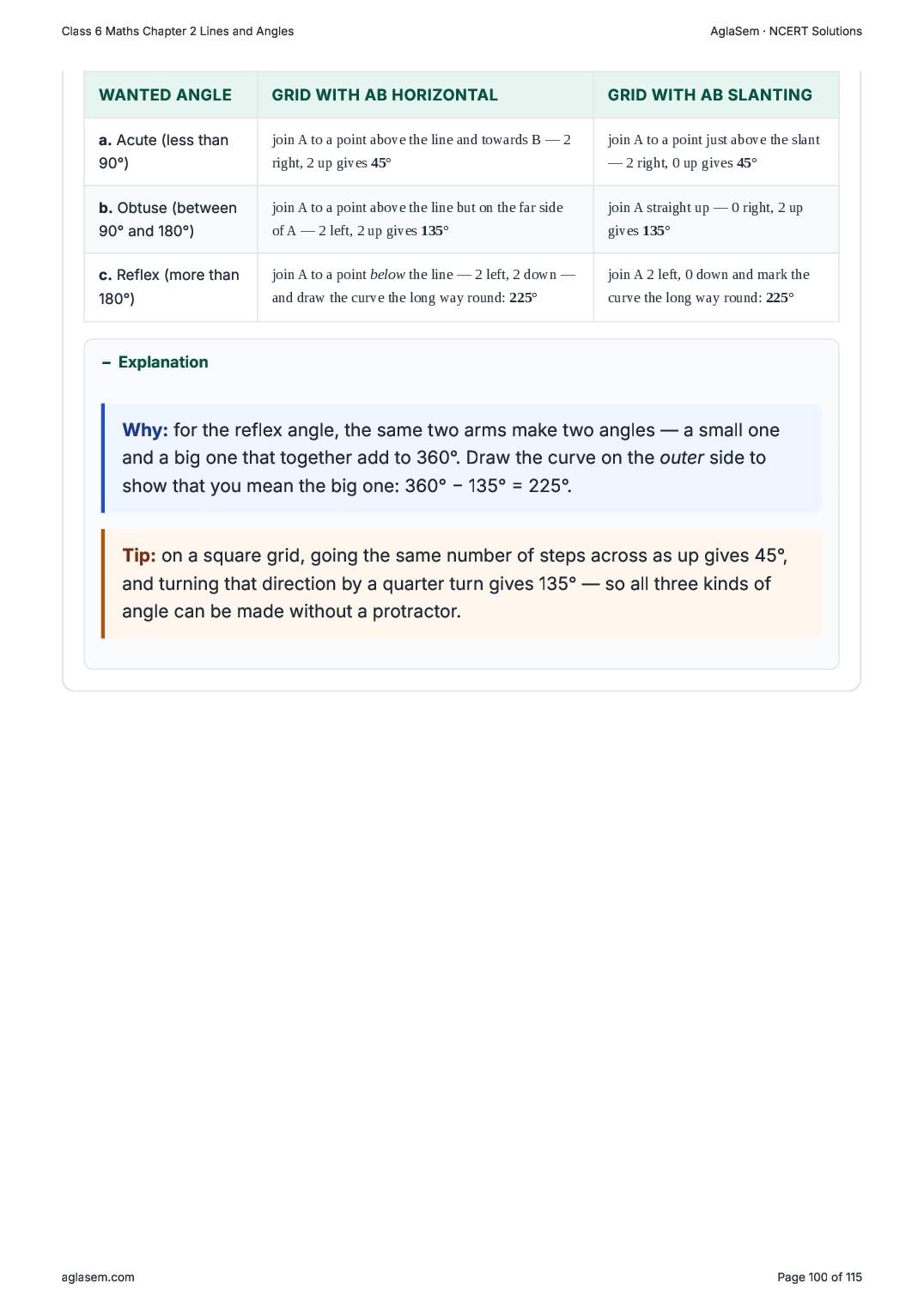

Wanted angleGrid with AB horizontalGrid with AB slanting
a. Acute (less than 90°)join A to a point above the line and towards B — 2 right, 2 up gives 45°join A to a point just above the slant — 2 right, 0 up gives 45°
b. Obtuse (between 90° and 180°)join A to a point above the line but on the far side of A — 2 left, 2 up gives 135°join A straight up — 0 right, 2 up gives 135°
c. Reflex (more than 180°)join A to a point below the line — 2 left, 2 down — and draw the curve the long way round: 225°join A 2 left, 0 down and mark the curve the long way round: 225°

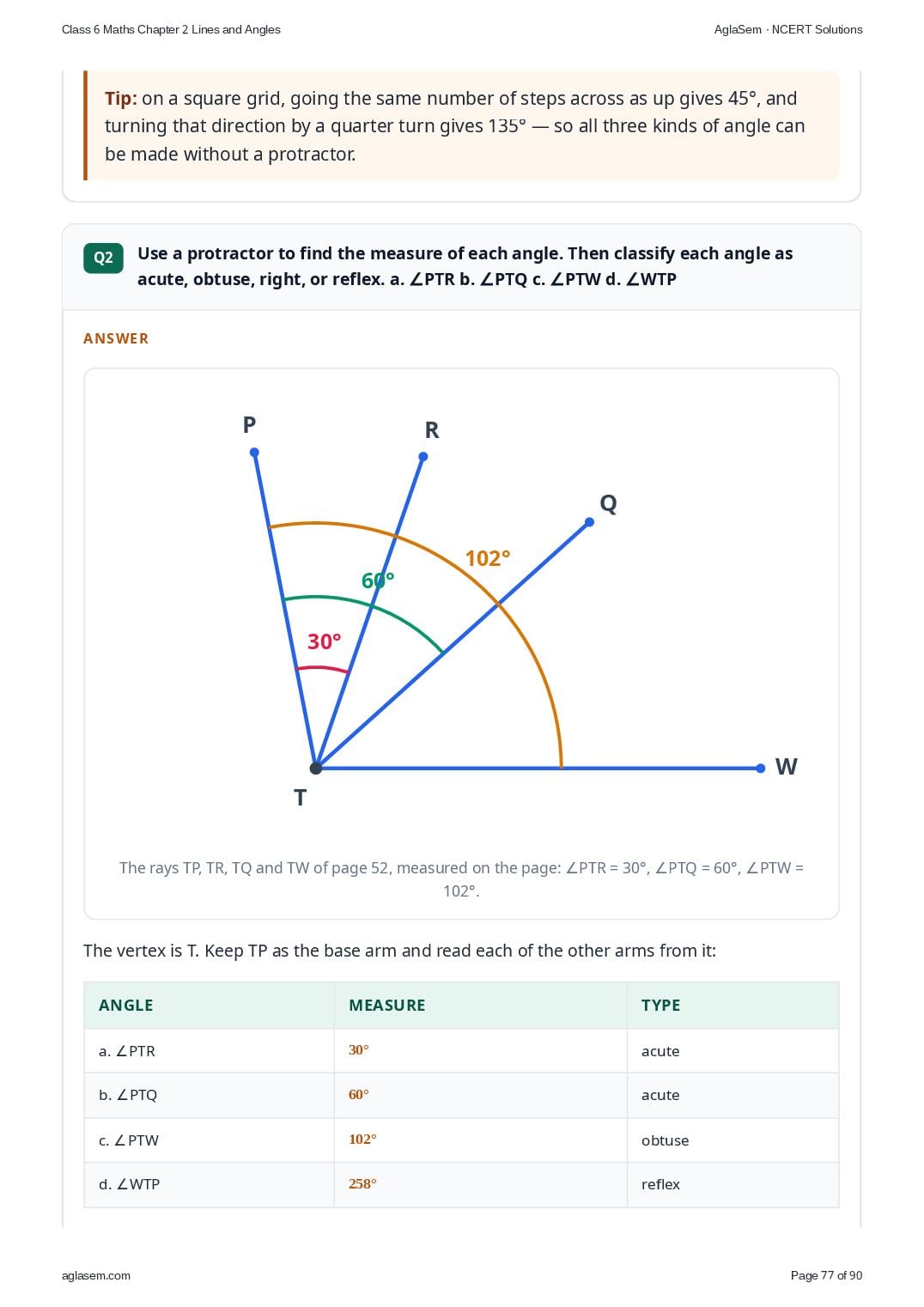

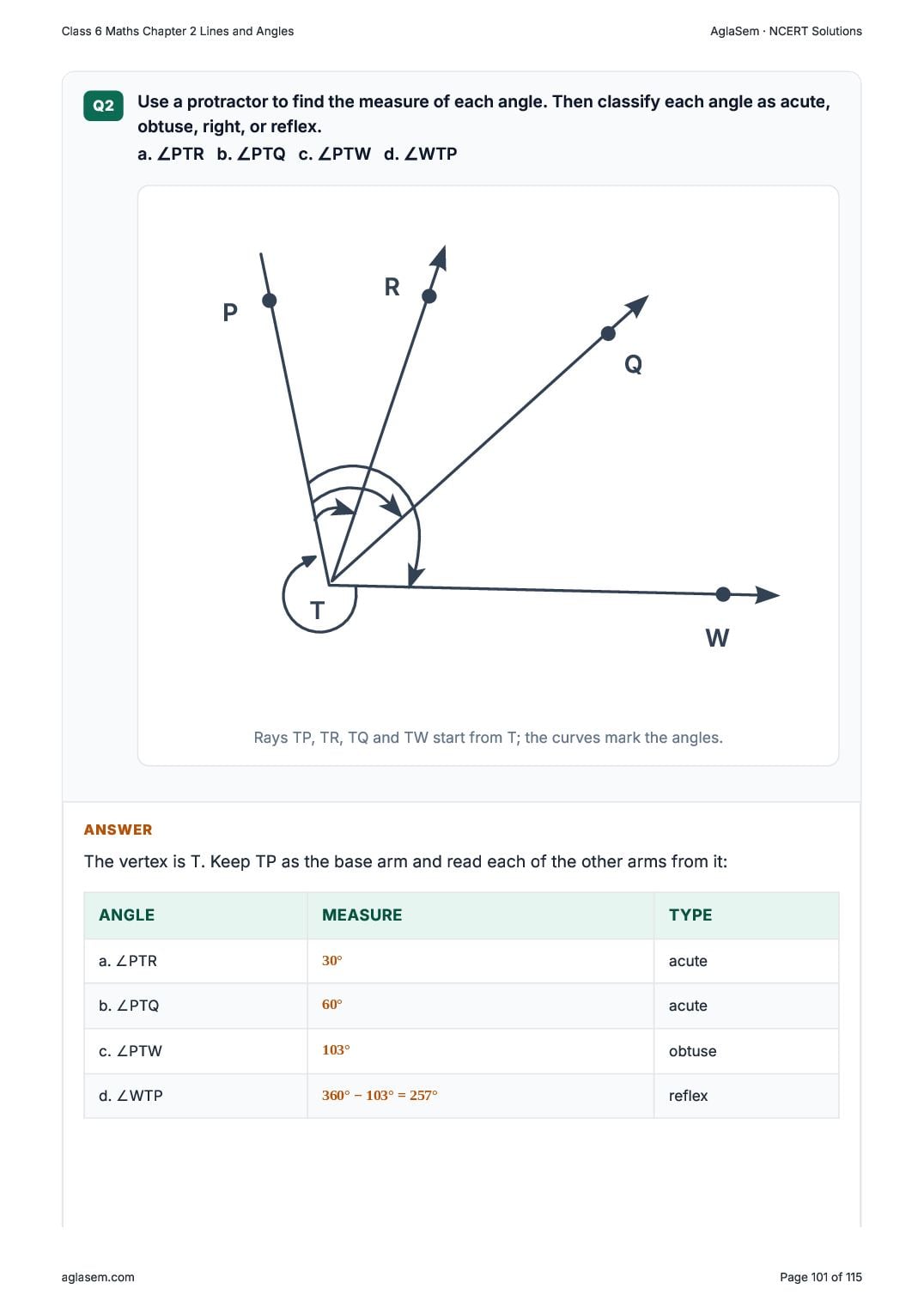

Q2Use a protractor to find the measure of each angle. Then classify each angle as acute, obtuse, right, or reflex.
a. ∠PTR   b. ∠PTQ   c. ∠PTW   d. ∠WTP
TQRPW
Rays TP, TR, TQ and TW start from T; the curves mark the angles.
Answer

The vertex is T. Keep TP as the base arm and read each of the other arms from it:

AngleMeasureType
a. ∠PTR30°acute
b. ∠PTQ60°acute
c. ∠PTW103°obtuse
d. ∠WTP360° − 103° = 257°reflex

In-text Questions — Page 53Let’s Explore

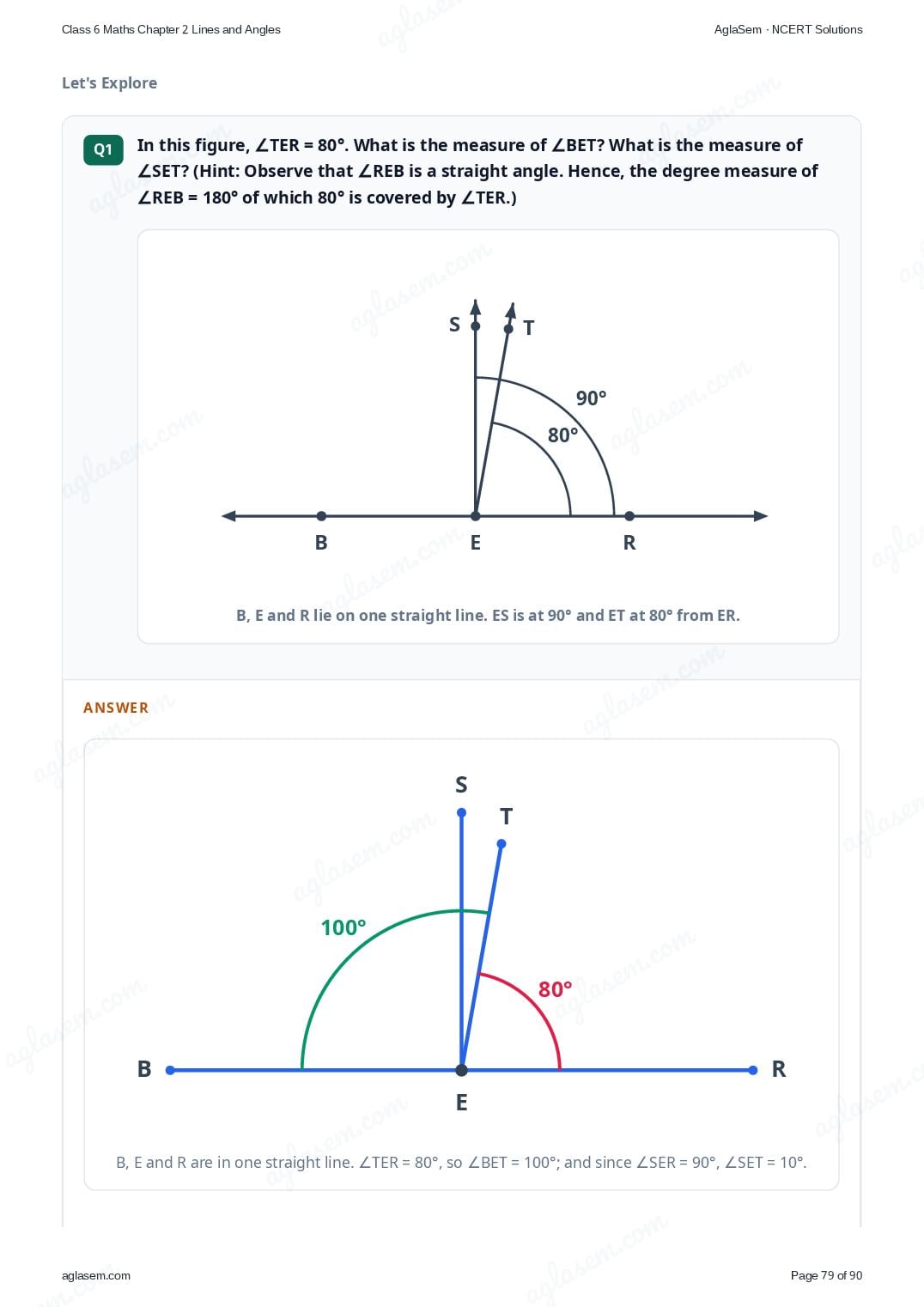

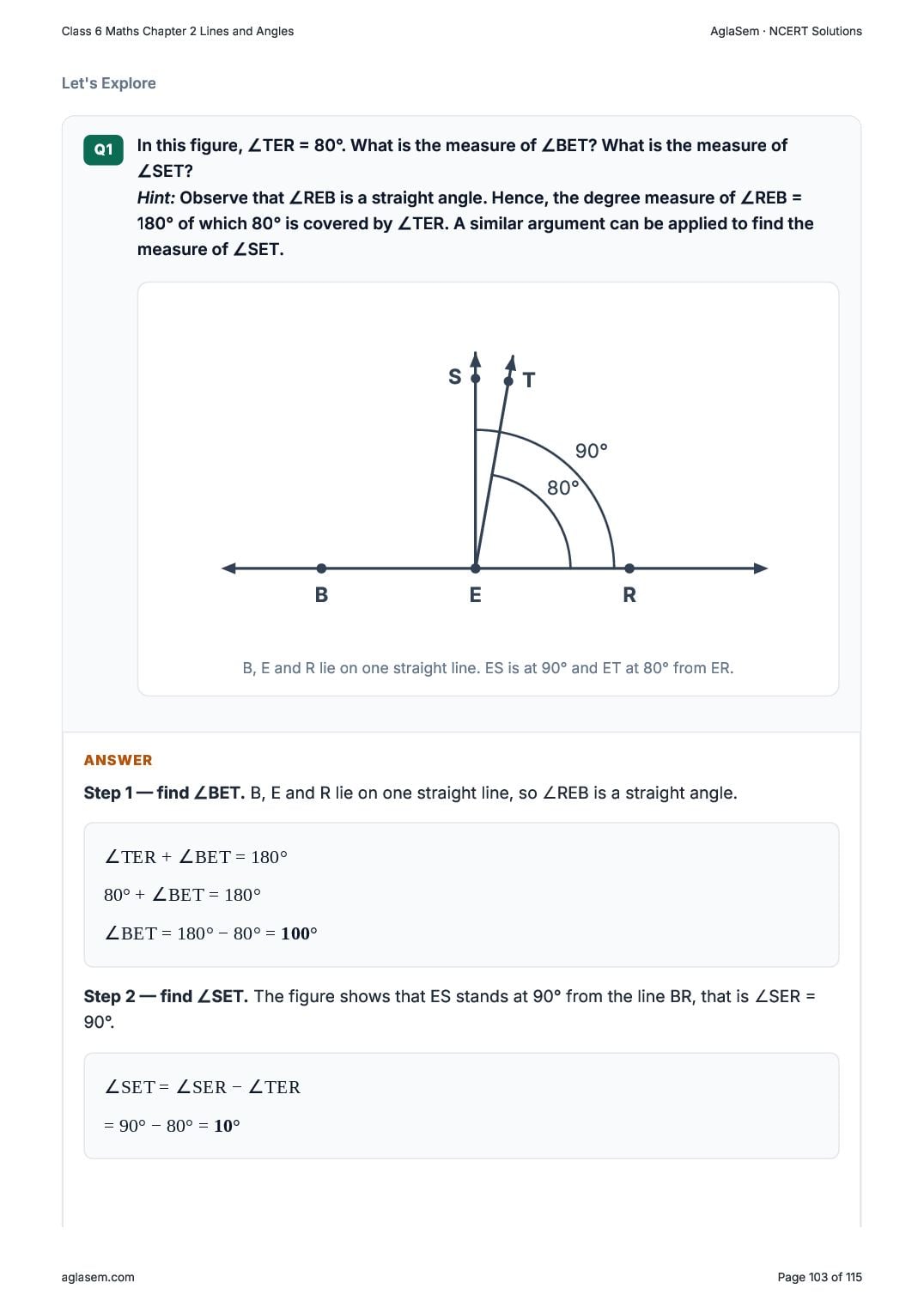

Q1In this figure, ∠TER = 80°. What is the measure of ∠BET? What is the measure of ∠SET?
Hint: Observe that ∠REB is a straight angle. Hence, the degree measure of ∠REB = 180° of which 80° is covered by ∠TER. A similar argument can be applied to find the measure of ∠SET.
ST80°90°BER
B, E and R lie on one straight line. ES is at 90° and ET at 80° from ER.
Answer

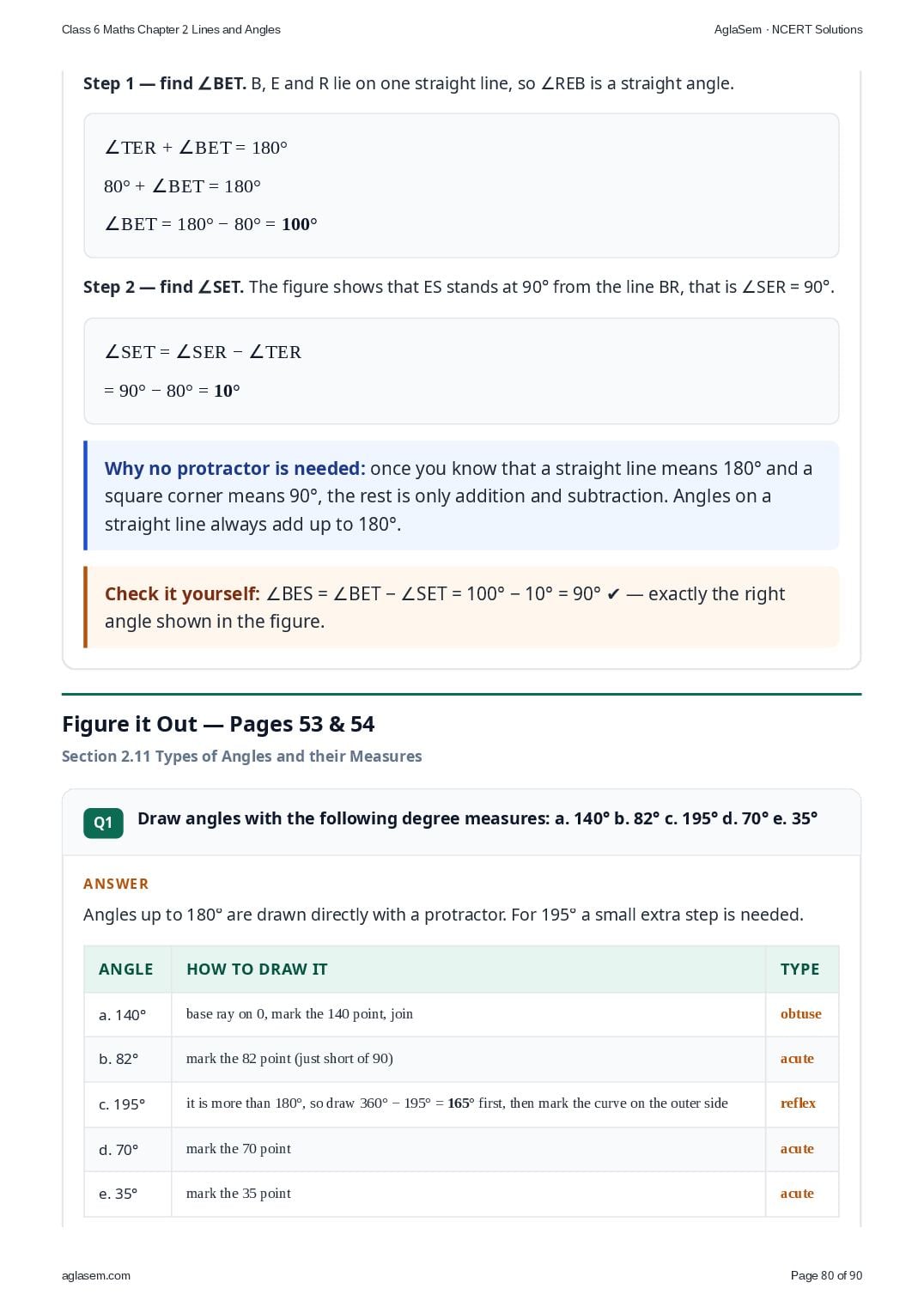

Step 1 — find ∠BET. B, E and R lie on one straight line, so ∠REB is a straight angle.

∠TER + ∠BET = 180°
80° + ∠BET = 180°
∠BET = 180° − 80° = 100°

Step 2 — find ∠SET. The figure shows that ES stands at 90° from the line BR, that is ∠SER = 90°.

∠SET = ∠SER − ∠TER
= 90° − 80° = 10°

Figure it Out — Pages 53 & 54Section 2.11 Types of Angles and their Measures

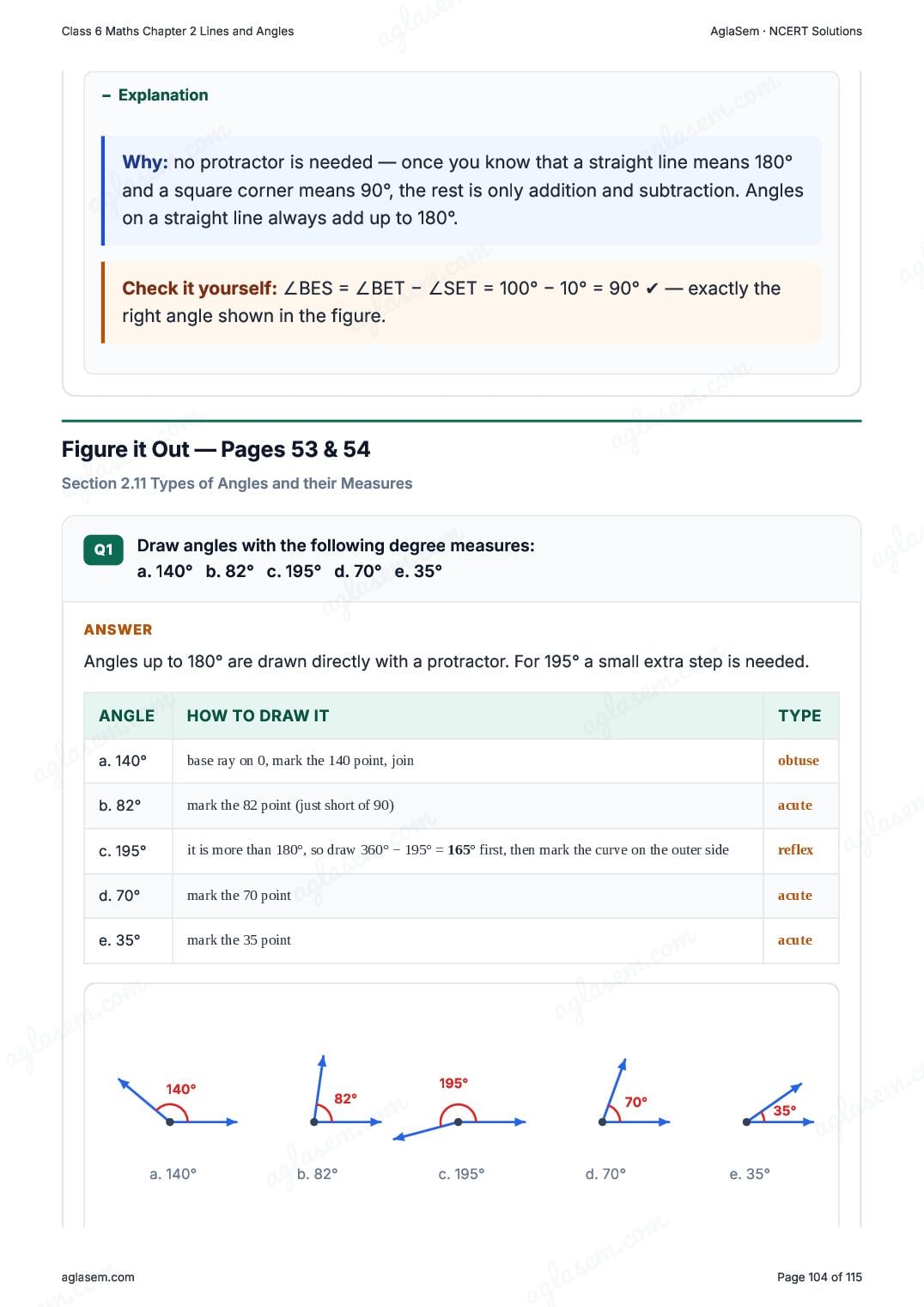

Q1Draw angles with the following degree measures:
a. 140°   b. 82°   c. 195°   d. 70°   e. 35°
Answer

Angles up to 180° are drawn directly with a protractor. For 195° a small extra step is needed.

AngleHow to draw itType
a. 140°base ray on 0, mark the 140 point, joinobtuse
b. 82°mark the 82 point (just short of 90)acute
c. 195°it is more than 180°, so draw 360° − 195° = 165° first, then mark the curve on the outer sidereflex
d. 70°mark the 70 pointacute
e. 35°mark the 35 pointacute
140°a. 140°82°b. 82°195°c. 195°70°d. 70°35°e. 35°
The five angles; for 195° the curve goes the long way round.

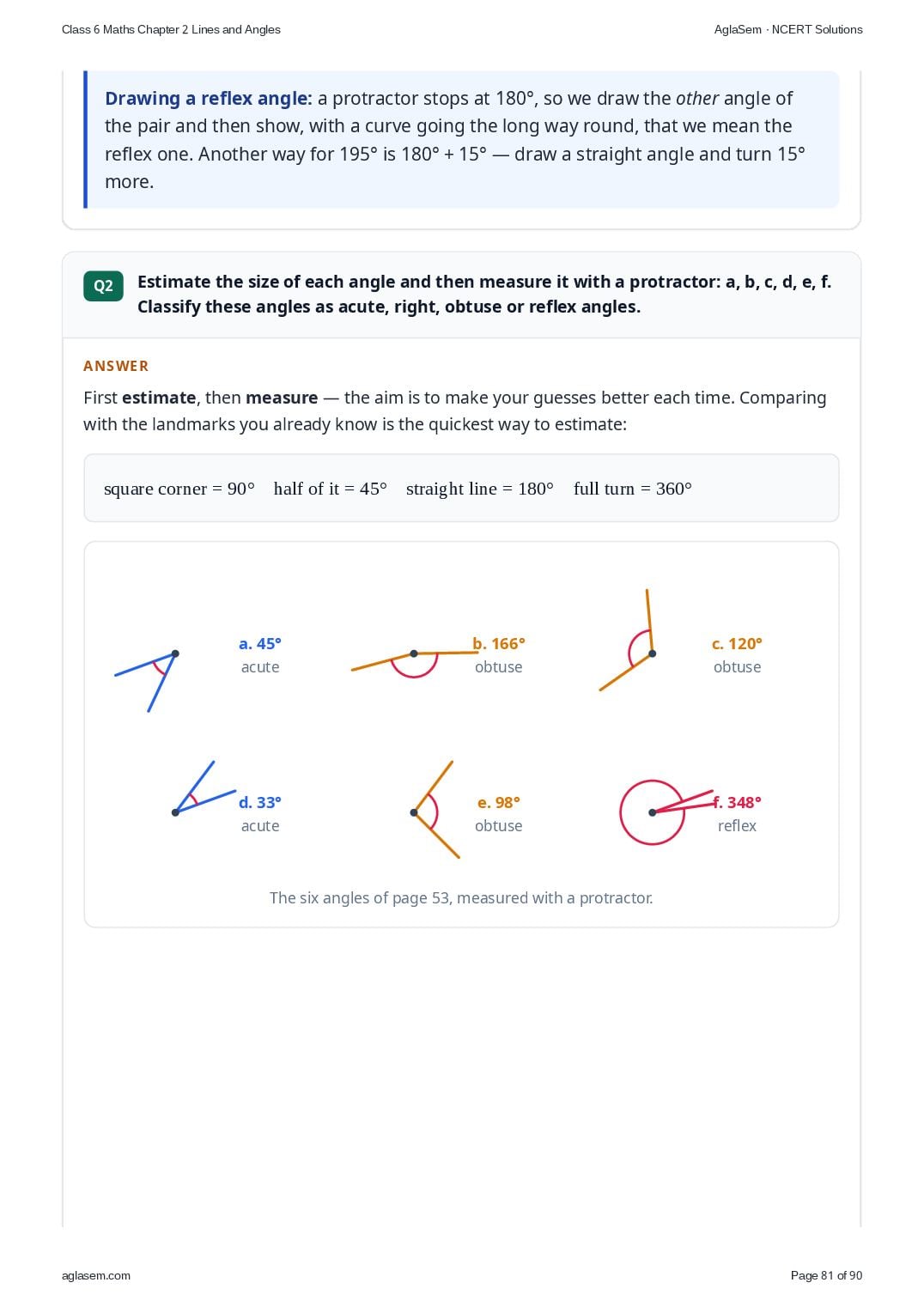

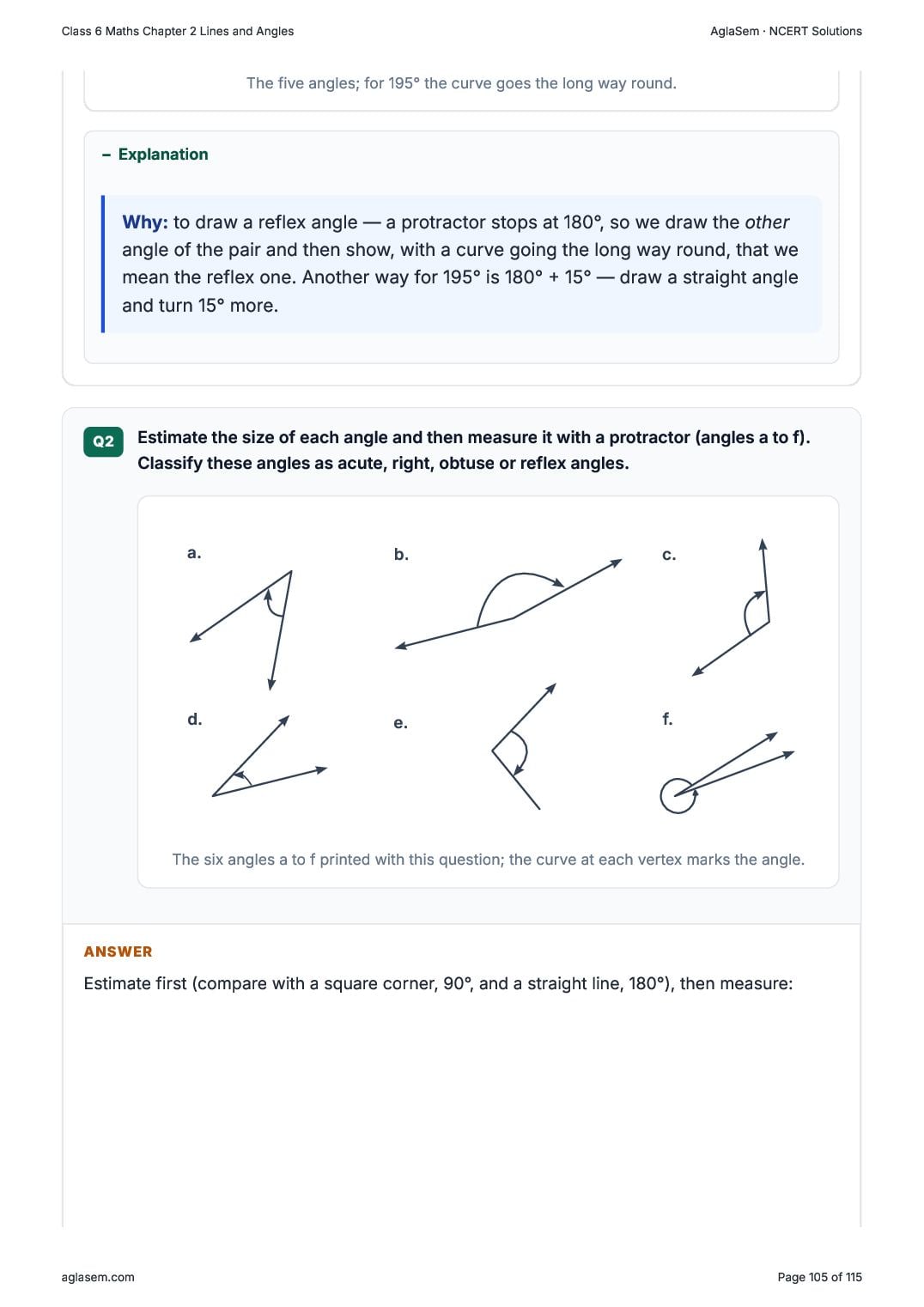

Q2Estimate the size of each angle and then measure it with a protractor (angles a to f).
Classify these angles as acute, right, obtuse or reflex angles.
a.b.c.d.e.f.
The six angles a to f printed with this question; the curve at each vertex marks the angle.
Answer

Estimate first (compare with a square corner, 90°, and a straight line, 180°), then measure:

a. 45°acuteb. 166°obtusec. 120°obtused. 33°acutee. 97°obtusef. 349°reflex

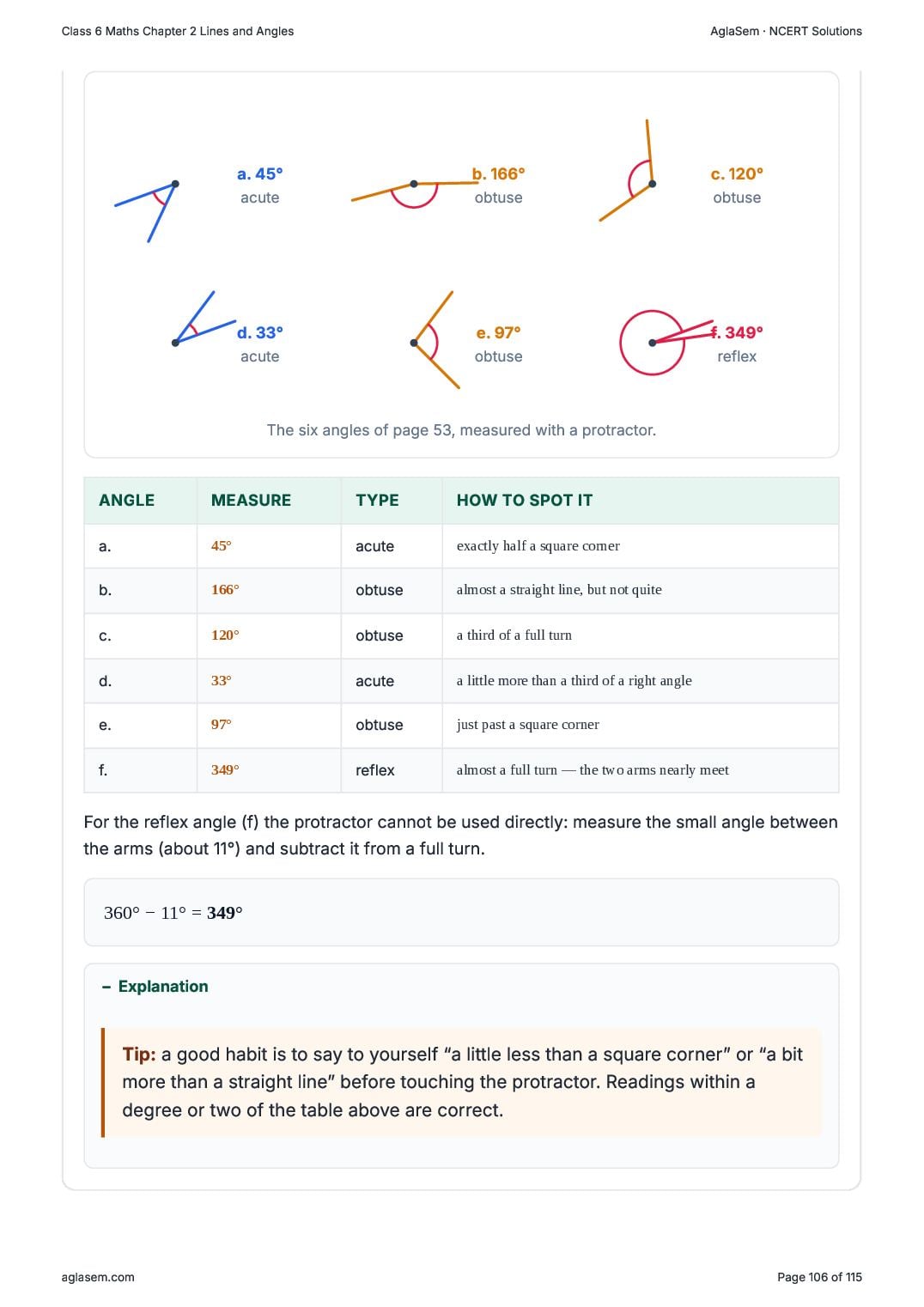

The six angles of page 53, measured with a protractor.
AngleMeasureTypeHow to spot it
a.45°acuteexactly half a square corner
b.166°obtusealmost a straight line, but not quite
c.120°obtusea third of a full turn
d.33°acutea little more than a third of a right angle
e.97°obtusejust past a square corner
f.349°reflexalmost a full turn — the two arms nearly meet

For the reflex angle (f) the protractor cannot be used directly: measure the small angle between the arms (about 11°) and subtract it from a full turn.

360° − 11° = 349°

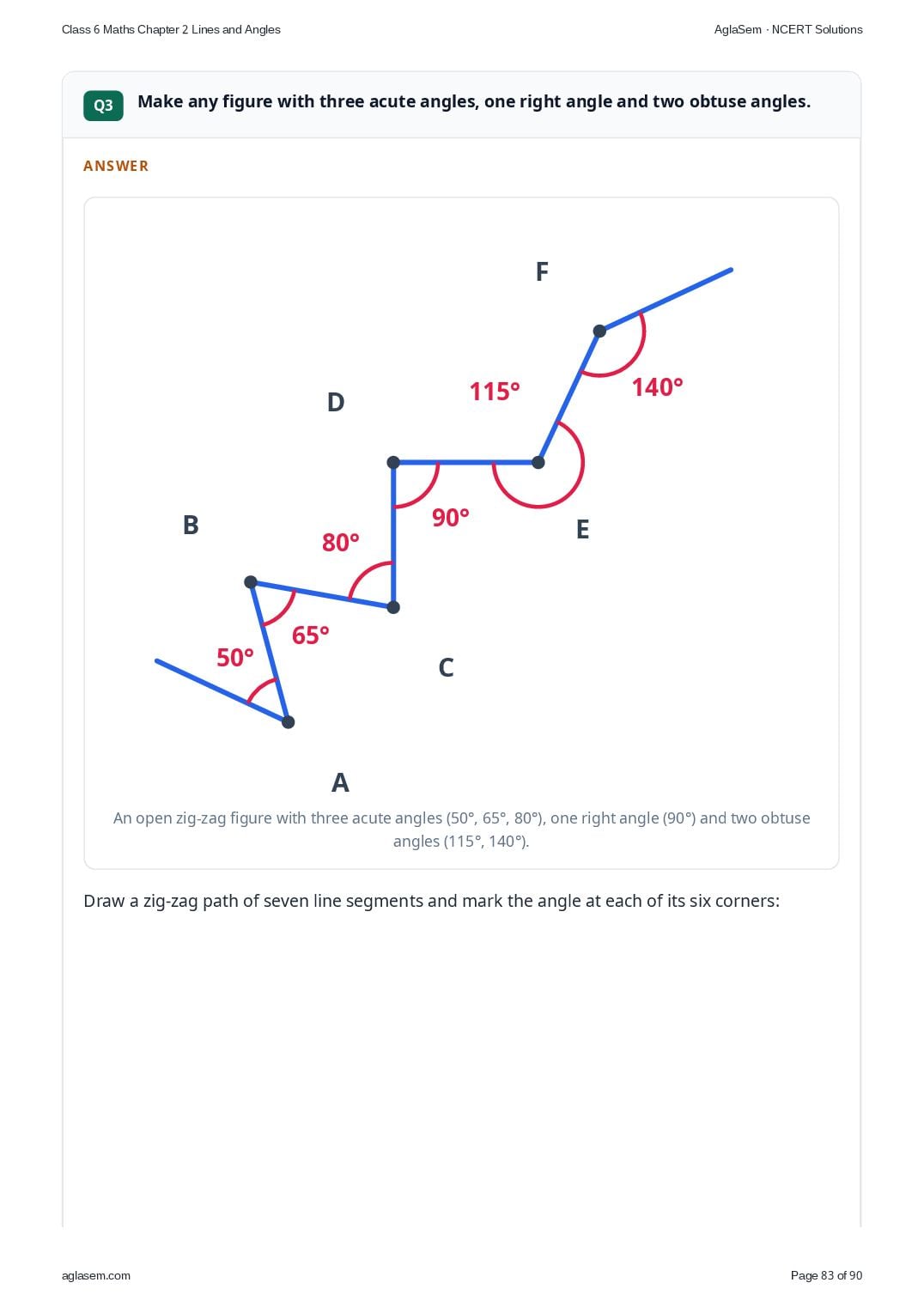

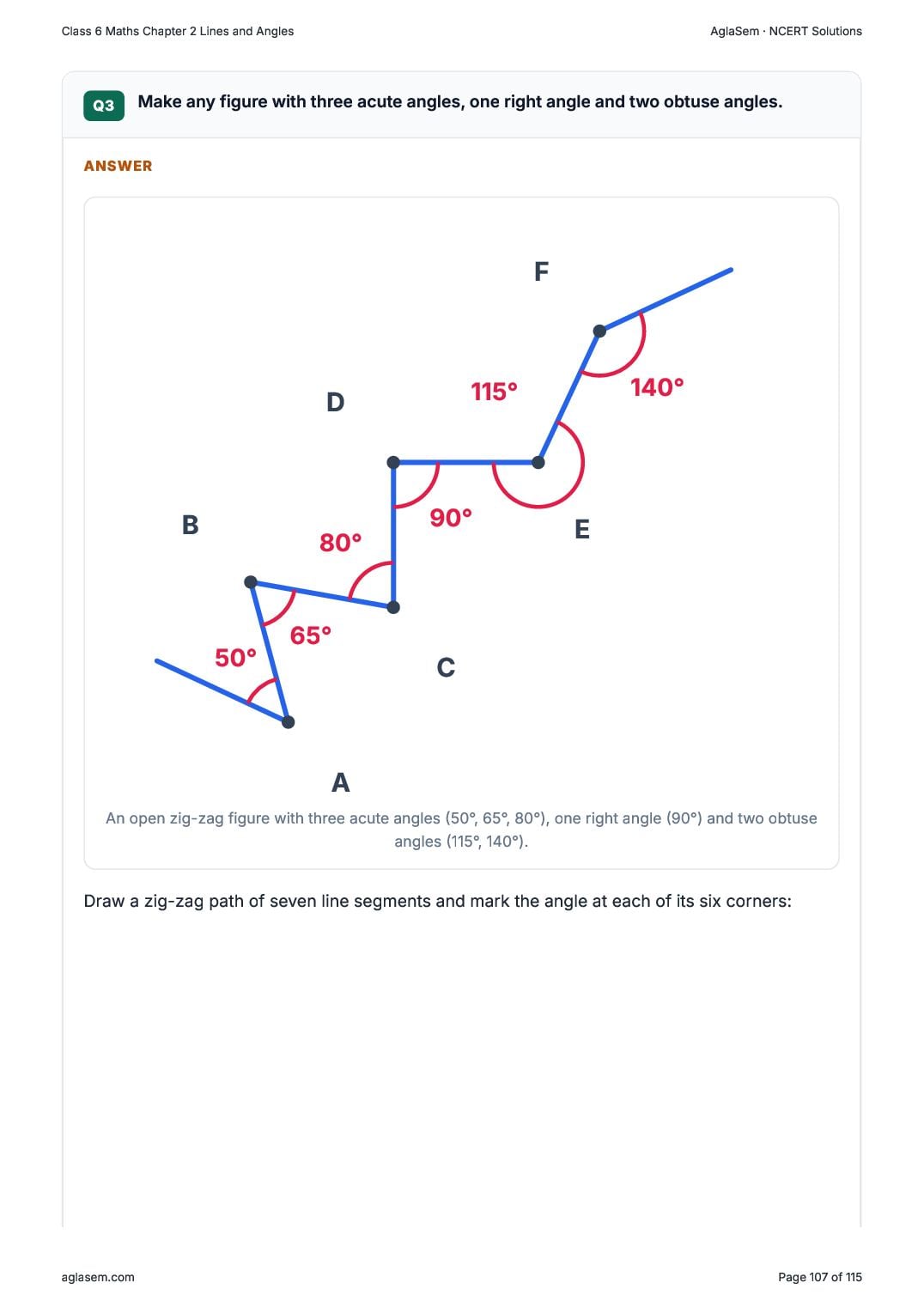

Q3Make any figure with three acute angles, one right angle and two obtuse angles.
Answer
50°A65°B80°C90°D115°E140°F
An open zig-zag figure with three acute angles (50°, 65°, 80°), one right angle (90°) and two obtuse angles (115°, 140°).

Draw a zig-zag path of seven line segments and mark the angle at each of its six corners:

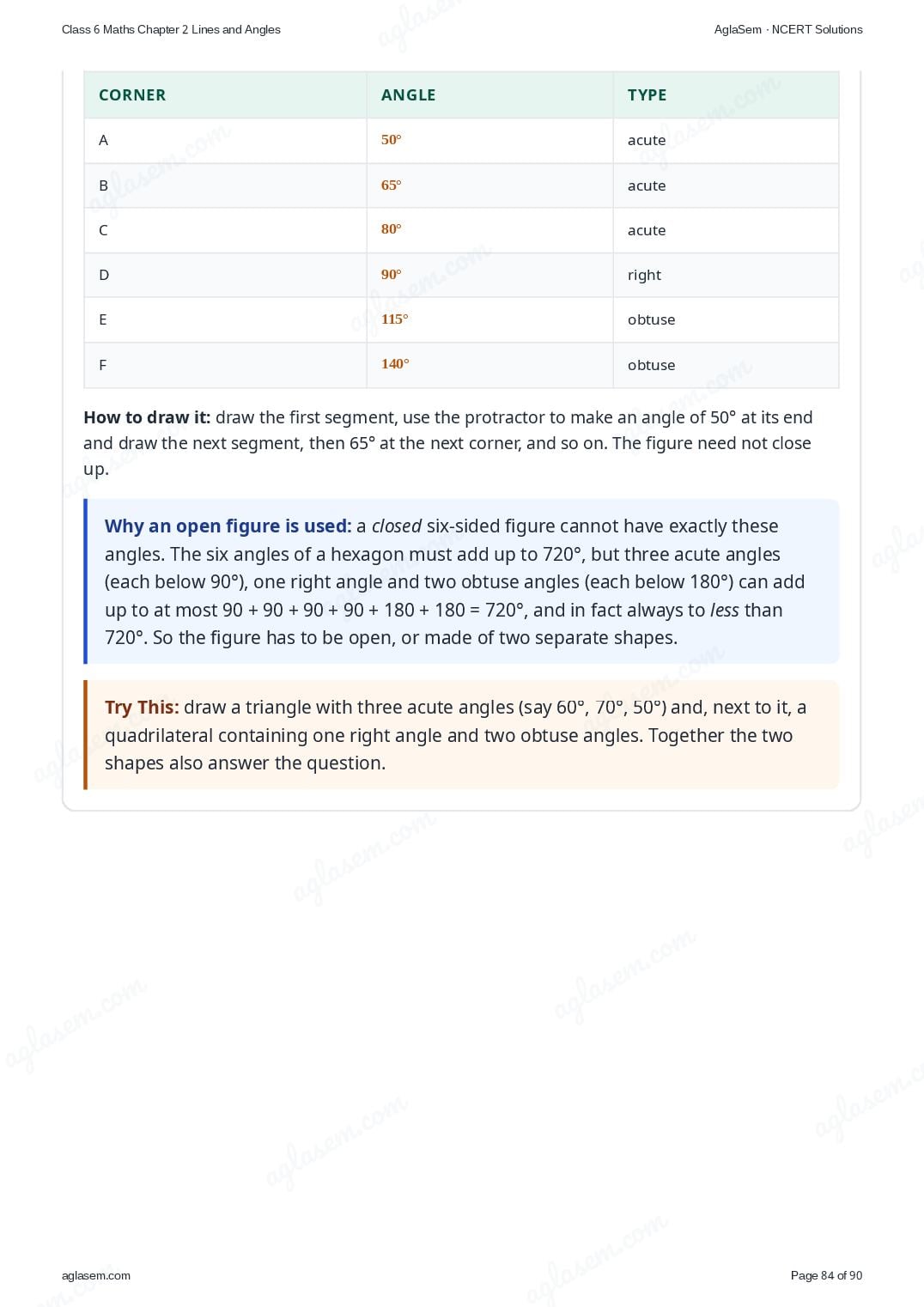

CornerAngleType
A50°acute
B65°acute
C80°acute
D90°right
E115°obtuse
F140°obtuse

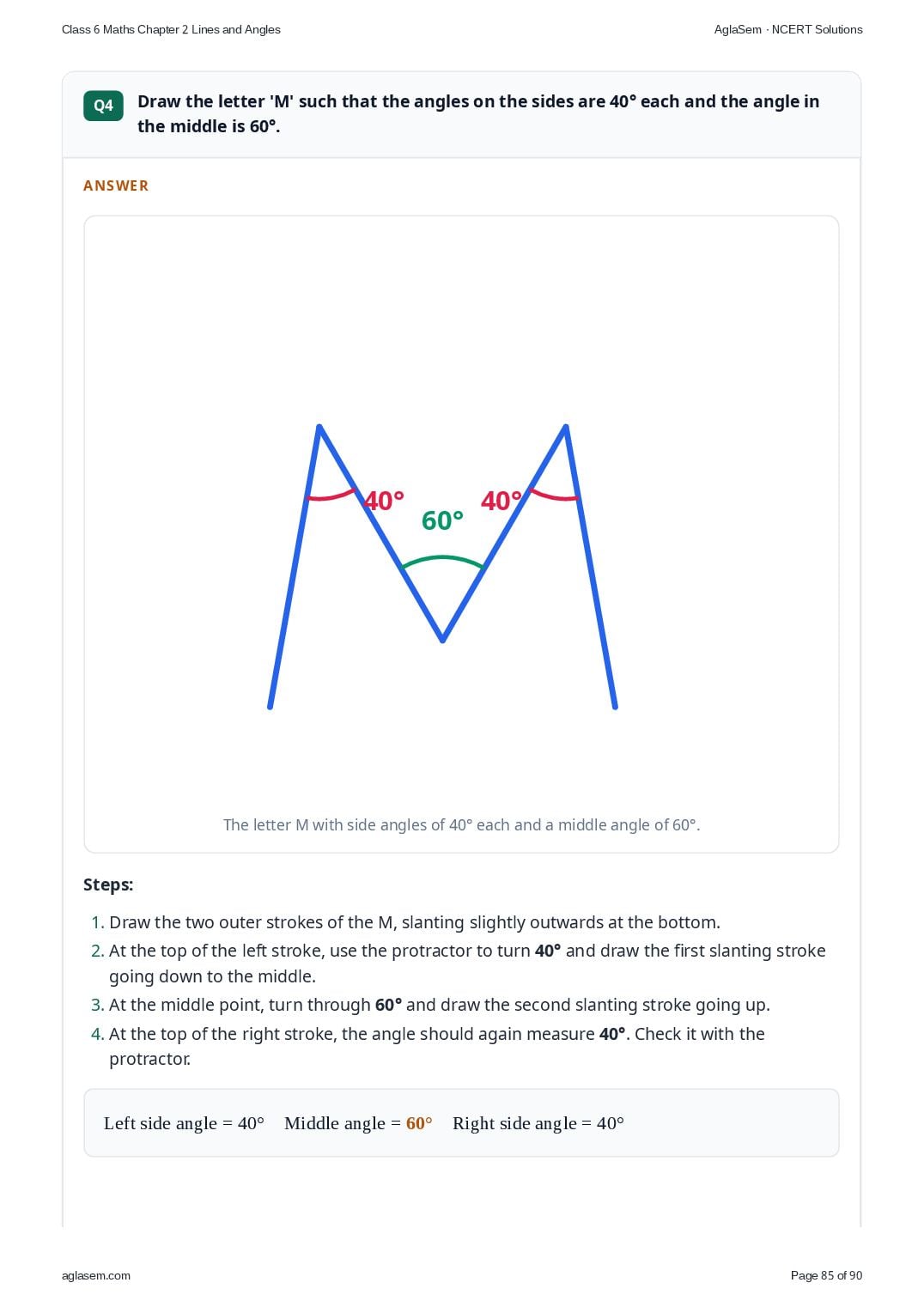

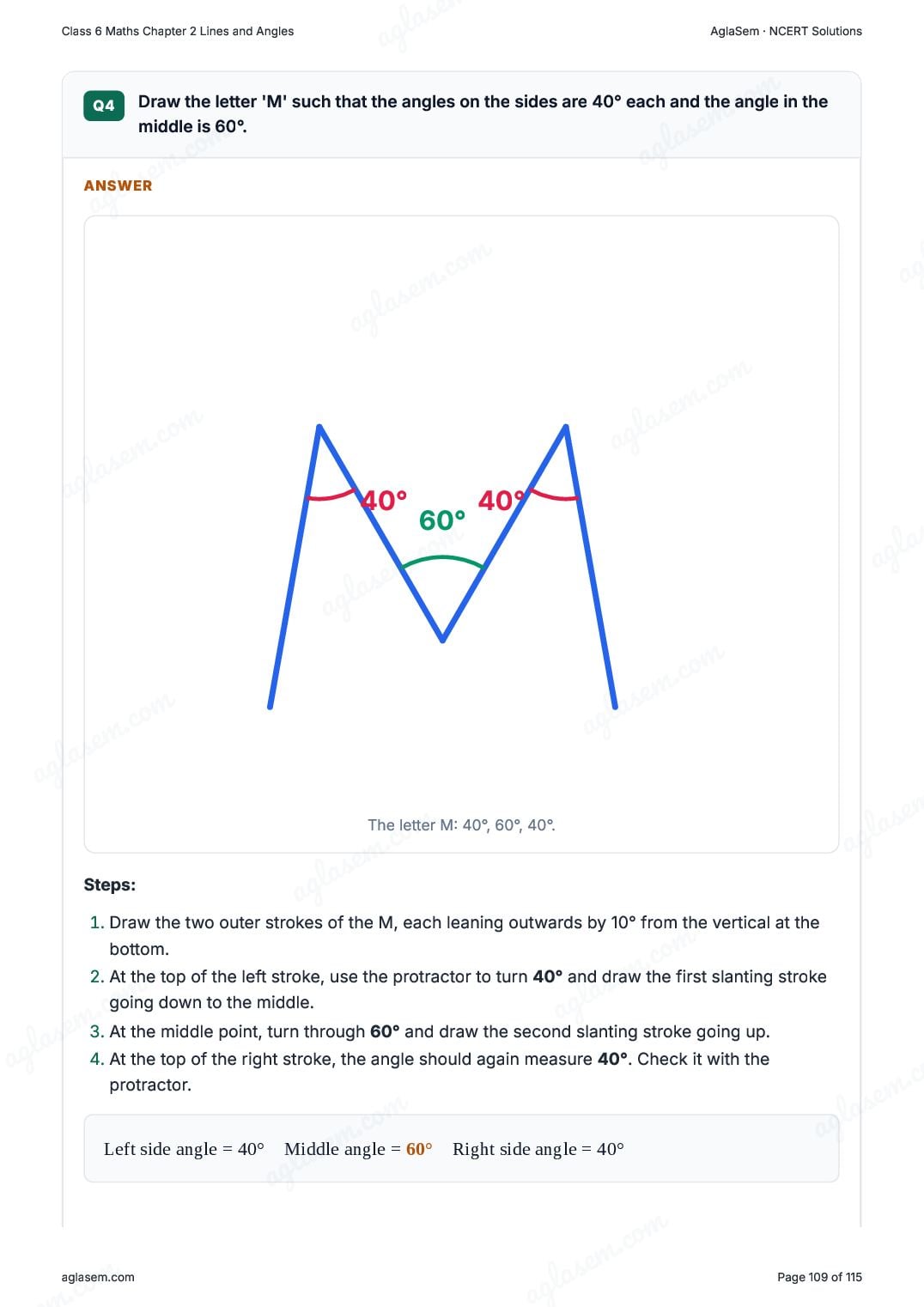

Q4Draw the letter ‘M’ such that the angles on the sides are 40° each and the angle in the middle is 60°.
Answer
40°40°60°
The letter M: 40°, 60°, 40°.

Steps:

  1. Draw the two outer strokes of the M, each leaning outwards by 10° from the vertical at the bottom.
  2. At the top of the left stroke, use the protractor to turn 40° and draw the first slanting stroke going down to the middle.
  3. At the middle point, turn through 60° and draw the second slanting stroke going up.
  4. At the top of the right stroke, the angle should again measure 40°. Check it with the protractor.
Left side angle = 40°    Middle angle = 60°    Right side angle = 40°

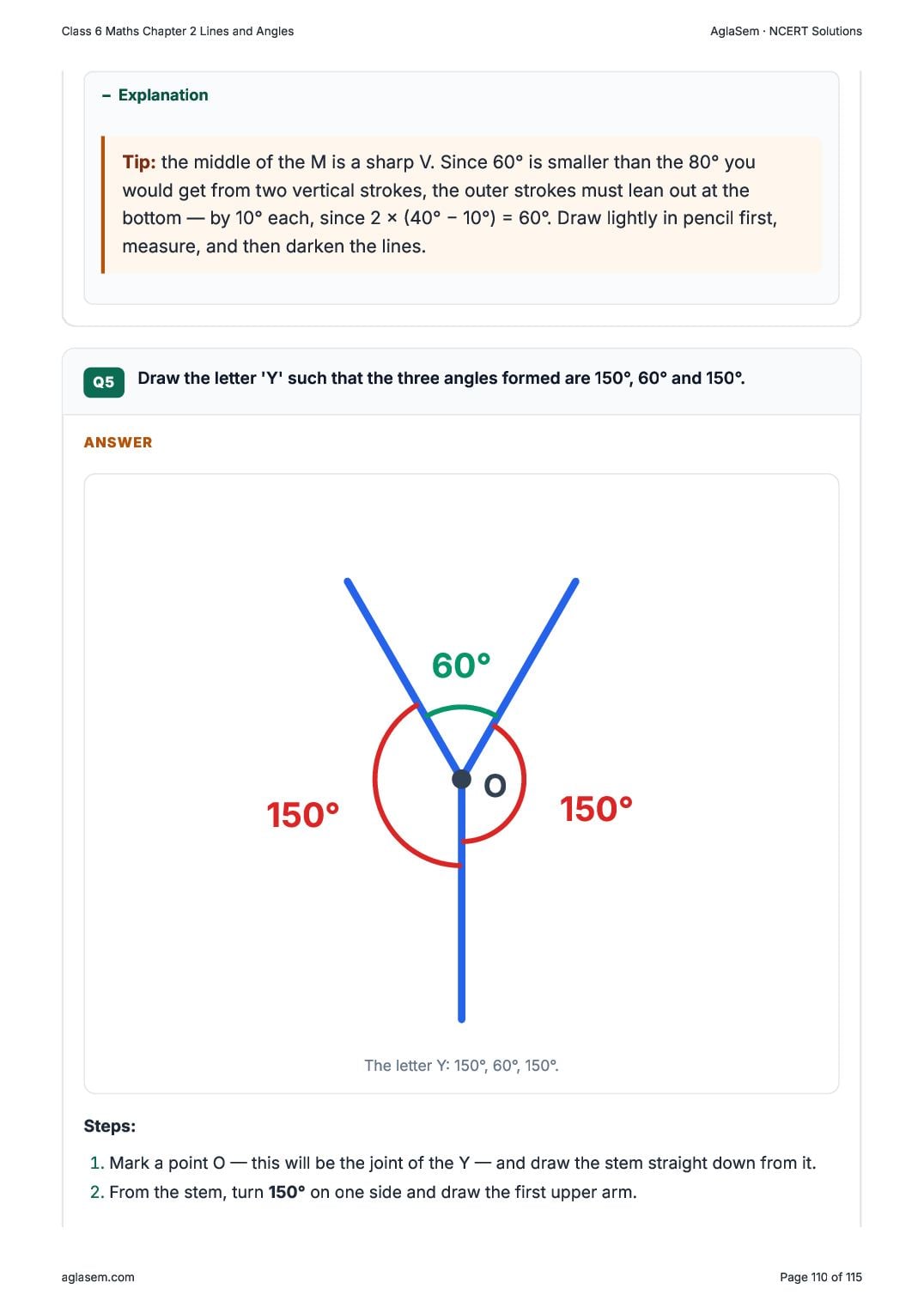

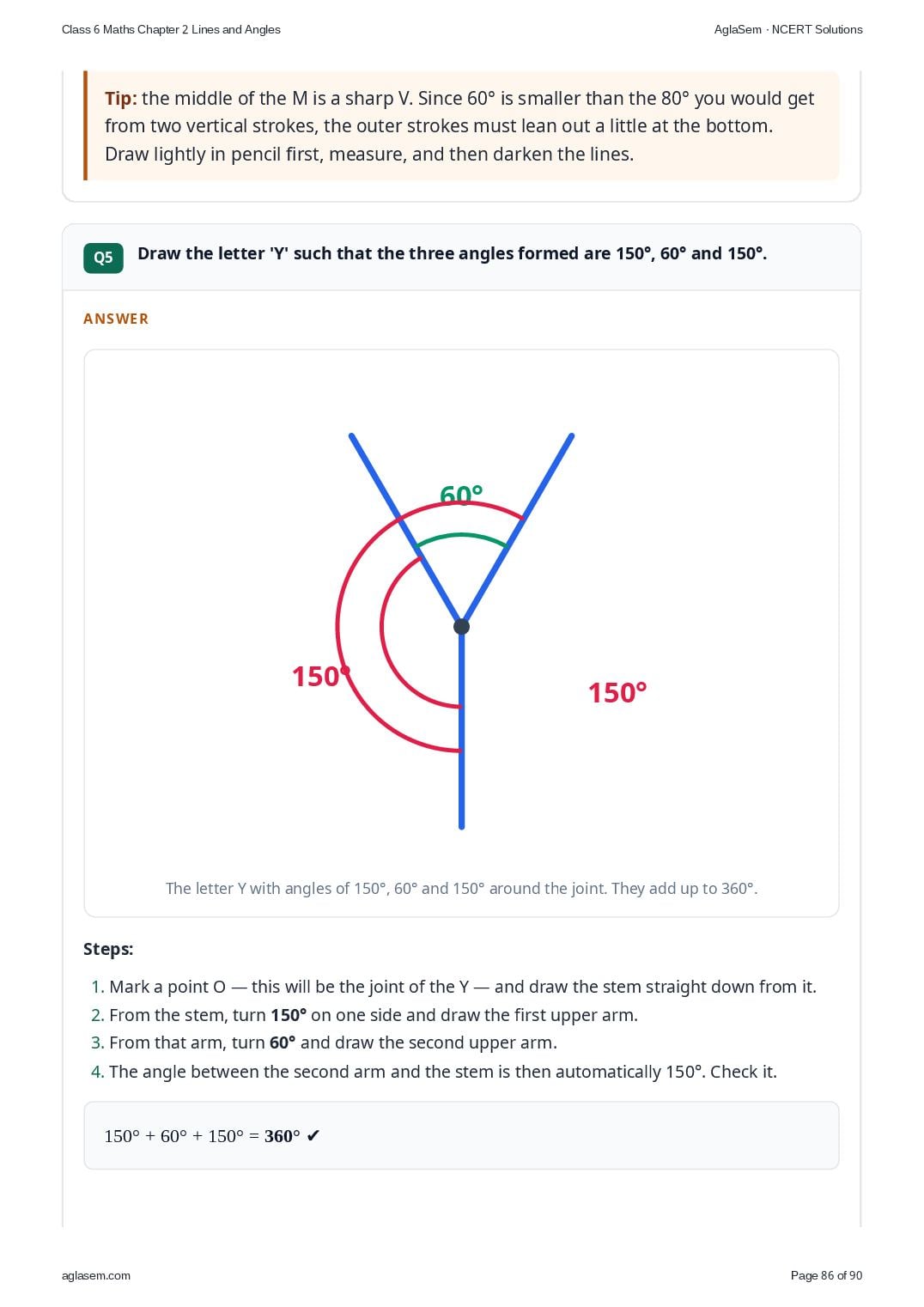

Q5Draw the letter ‘Y’ such that the three angles formed are 150°, 60° and 150°.
Answer
60°150°150°O
The letter Y: 150°, 60°, 150°.

Steps:

  1. Mark a point O — this will be the joint of the Y — and draw the stem straight down from it.
  2. From the stem, turn 150° on one side and draw the first upper arm.

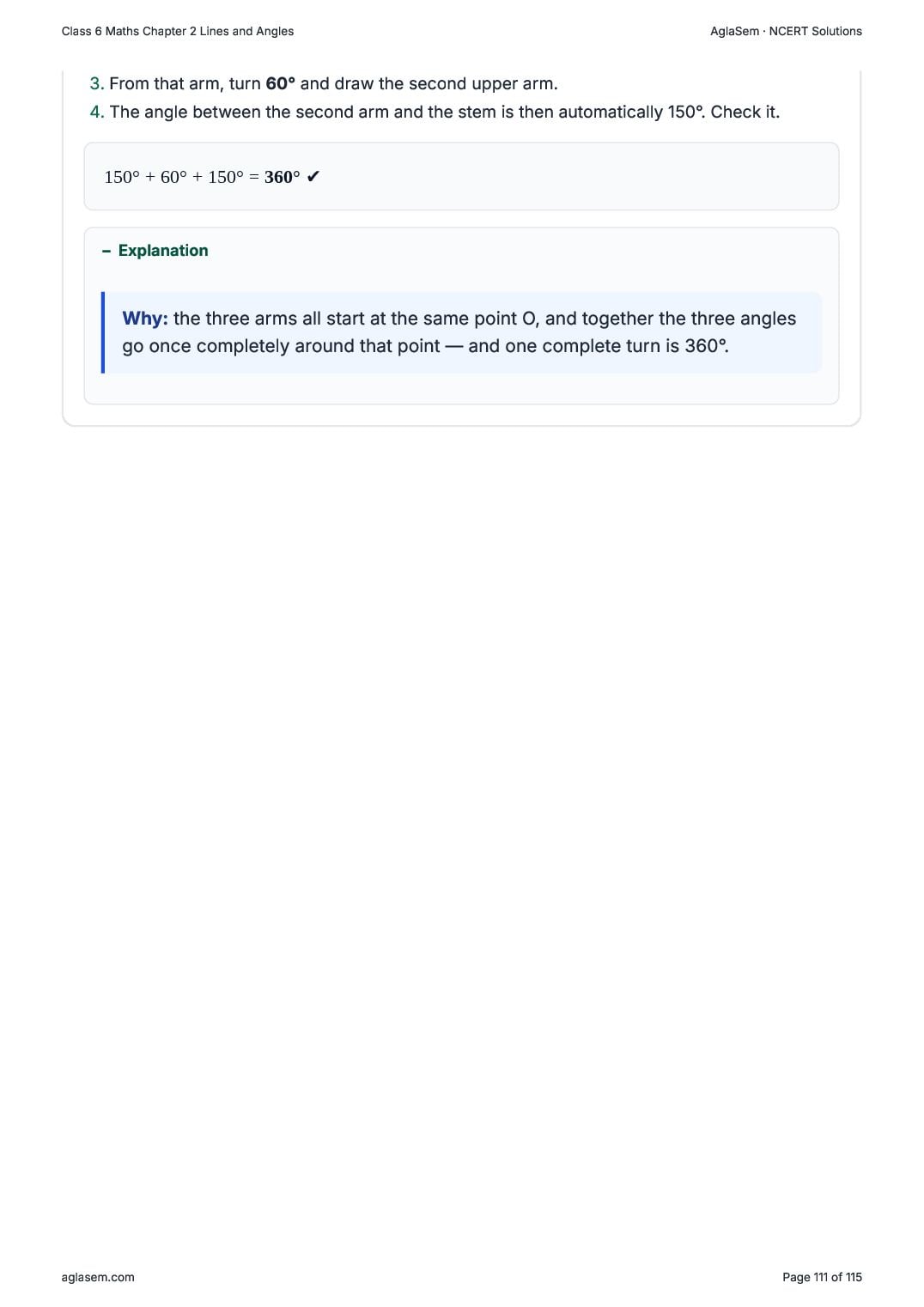

  3. From that arm, turn 60° and draw the second upper arm.
  4. The angle between the second arm and the stem is then automatically 150°. Check it.
150° + 60° + 150° = 360° ✔

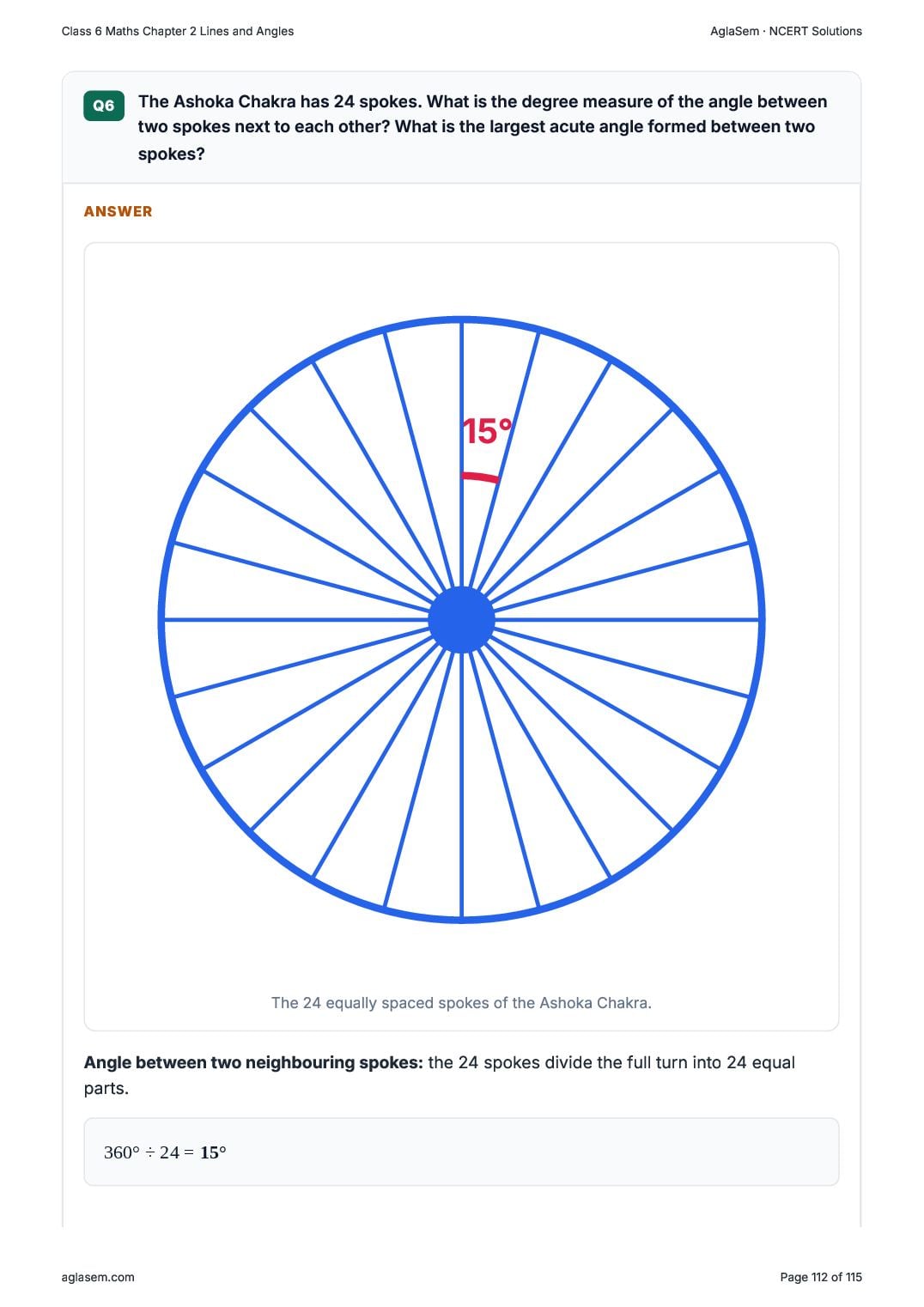

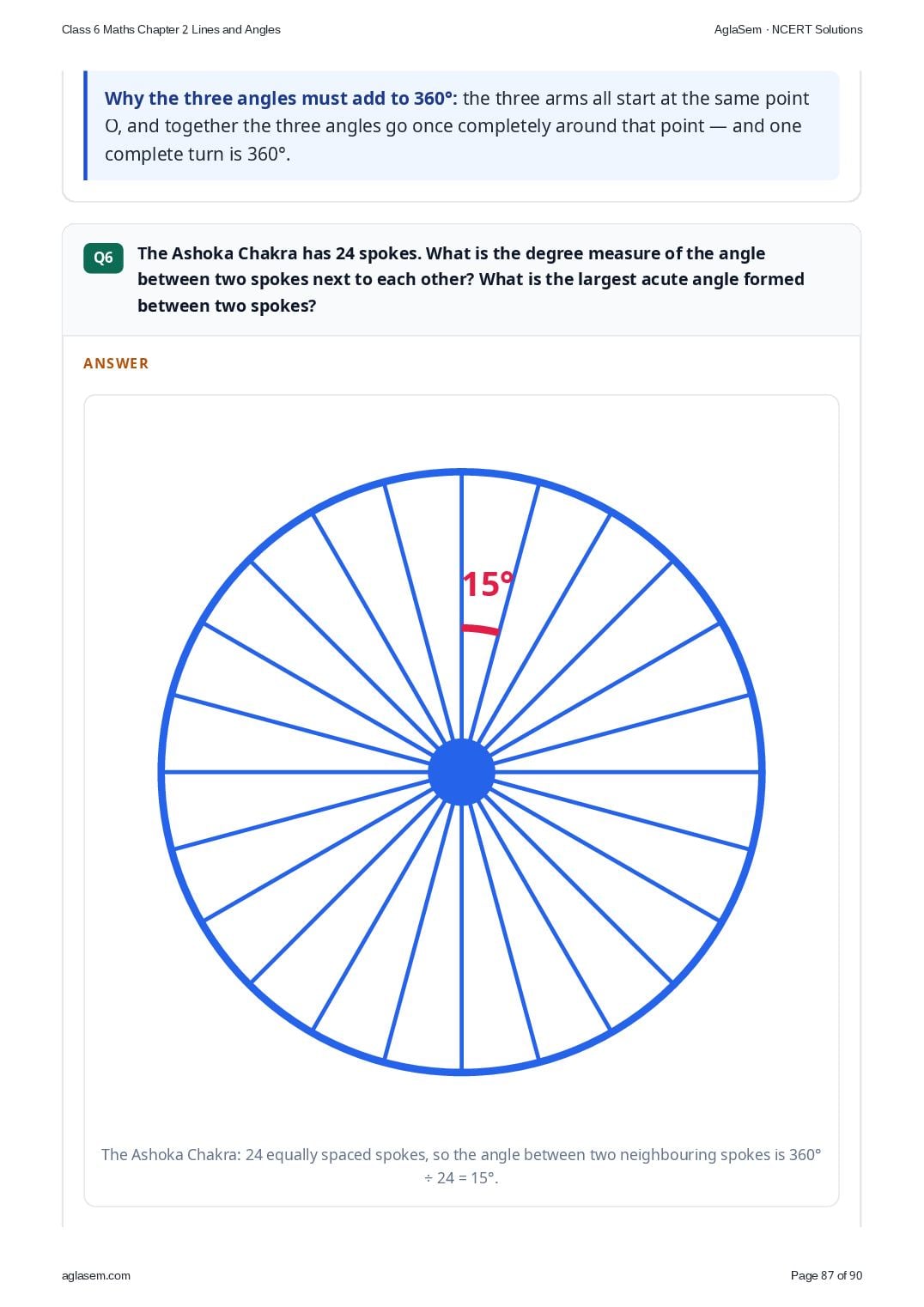

Q6The Ashoka Chakra has 24 spokes. What is the degree measure of the angle between two spokes next to each other? What is the largest acute angle formed between two spokes?
Answer
15°
The 24 equally spaced spokes of the Ashoka Chakra.

Angle between two neighbouring spokes: the 24 spokes divide the full turn into 24 equal parts.

360° ÷ 24 = 15°

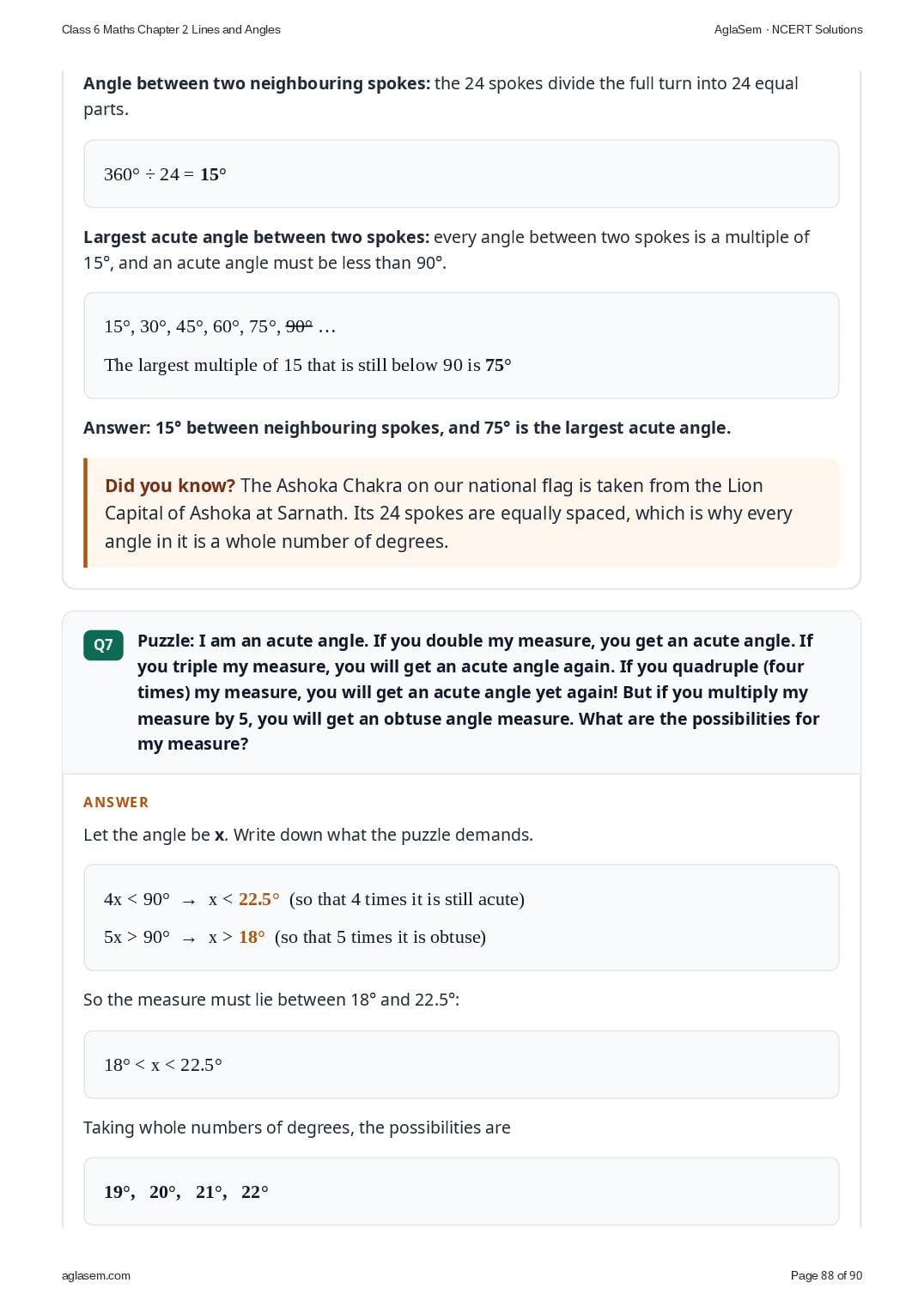

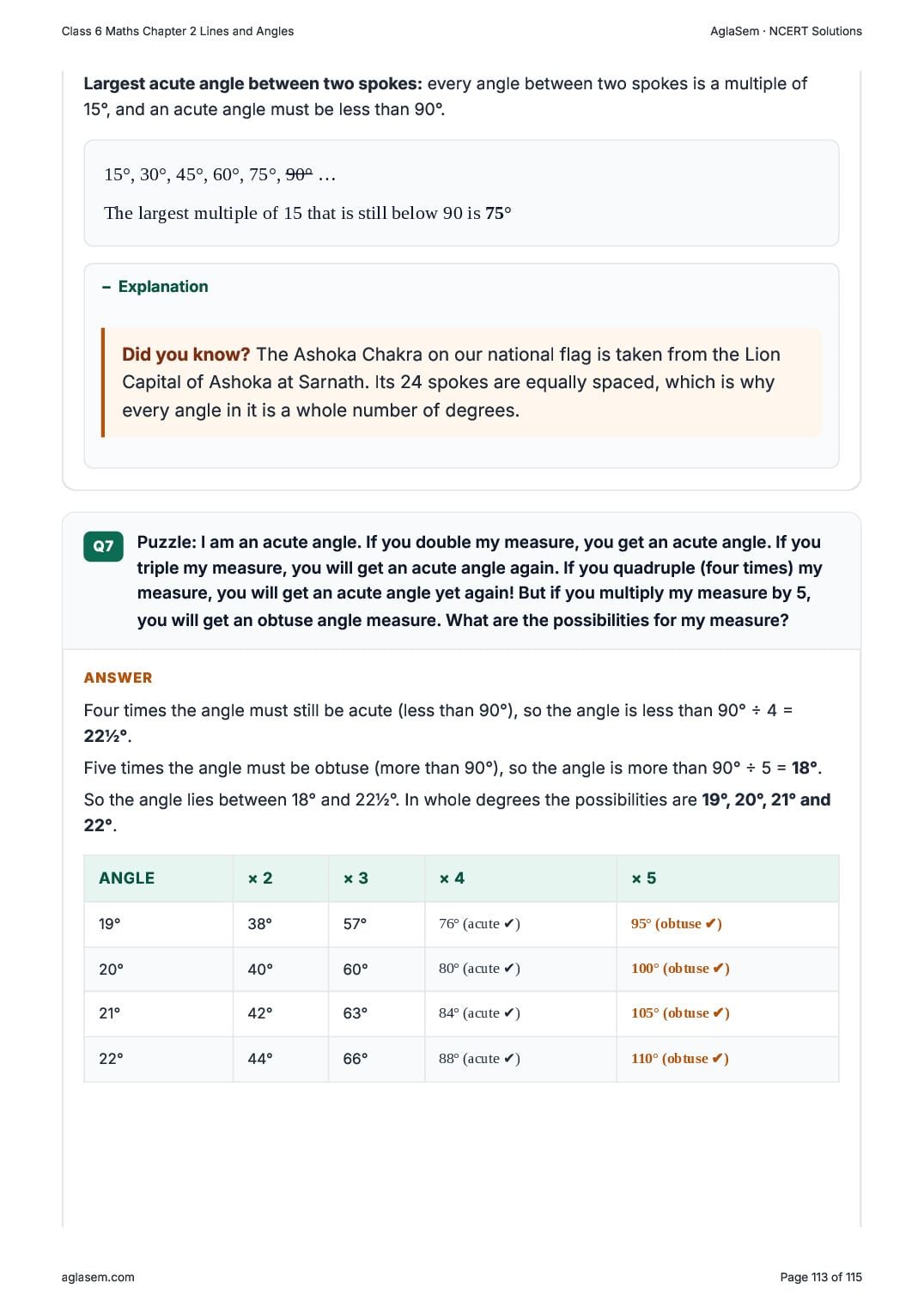

Largest acute angle between two spokes: every angle between two spokes is a multiple of 15°, and an acute angle must be less than 90°.

15°, 30°, 45°, 60°, 75°, 90° …
The largest multiple of 15 that is still below 90 is 75°
Q7Puzzle: I am an acute angle. If you double my measure, you get an acute angle. If you triple my measure, you will get an acute angle again. If you quadruple (four times) my measure, you will get an acute angle yet again! But if you multiply my measure by 5, you will get an obtuse angle measure. What are the possibilities for my measure?
Answer

Four times the angle must still be acute (less than 90°), so the angle is less than 90° ÷ 4 = 22½°.

Five times the angle must be obtuse (more than 90°), so the angle is more than 90° ÷ 5 = 18°.

So the angle lies between 18° and 22½°. In whole degrees the possibilities are 19°, 20°, 21° and 22°.

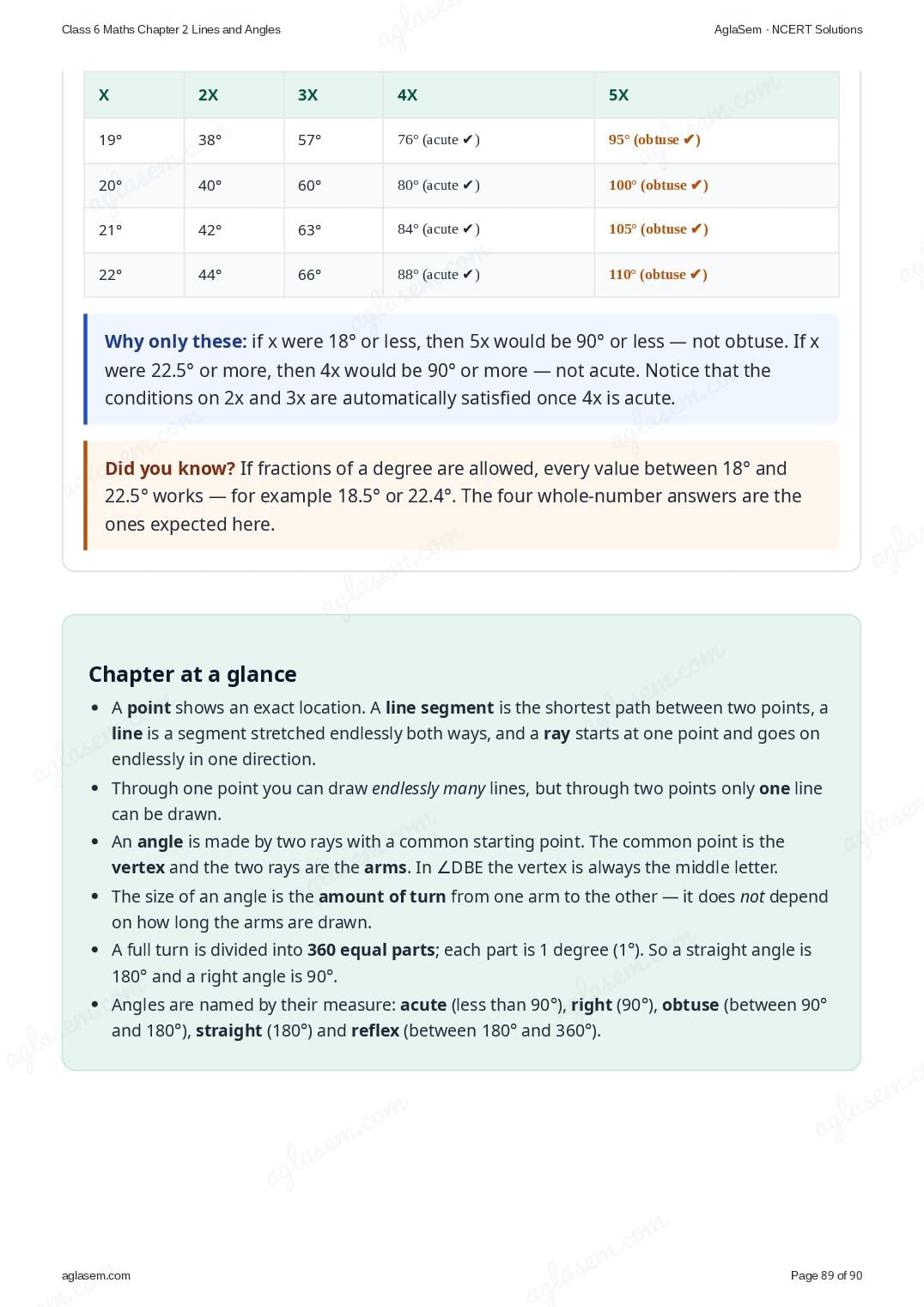

Angle× 2× 3× 4× 5
19°38°57°76° (acute ✔)95° (obtuse ✔)
20°40°60°80° (acute ✔)100° (obtuse ✔)
21°42°63°84° (acute ✔)105° (obtuse ✔)
22°44°66°88° (acute ✔)110° (obtuse ✔)

Chapter 2 of 10 – Maths

Also for This Chapter

NCERT Solutions Class 6 Maths Chapter 2 Lines and Angles – Overview

ClassClass 6
SubjectMaths
Chapter2 – Lines and Angles
Textbook pages13 – 54
Questions solved77
Session2027
FormatFull answers on this page + PDF

NCERT Solutions Class 6 Maths Chapter 2 – FAQs

Where can I download NCERT Solutions Class 6 Maths Chapter 2 Lines and Angles PDF?

Read every answer on this page, or download the free PDF from the table at the top.

Is this for the 2027 session?

Yes, it follows the latest NCERT Class 6 Maths book for 2027.

How many questions are solved in NCERT Class 6 Maths Chapter 2?

All 77 questions of the chapter (textbook pages 13 – 54) – the in-text questions, activities and the end-of-chapter exercises.

How should I use these solutions?

Read the chapter in the NCERT book first, attempt the questions yourself, then check your answers here.

Official website: ncert.nic.inNational Council of Educational Research and Training publishes date sheets, admit cards and results here
Visit

Ask a question

?

Loading comments…
