NCERT Solutions for Class 6 Science Chapter 5 Measurement of Length and Motion (PDF) – 2027

NCERT Solutions for Class 6 Science Chapter 5 Measurement of Length and Motion – step-by-step answers to every exercise and in-text question of the chapter, as per the latest NCERT syllabus for 2027. Read them online or download the free question-answer PDF.

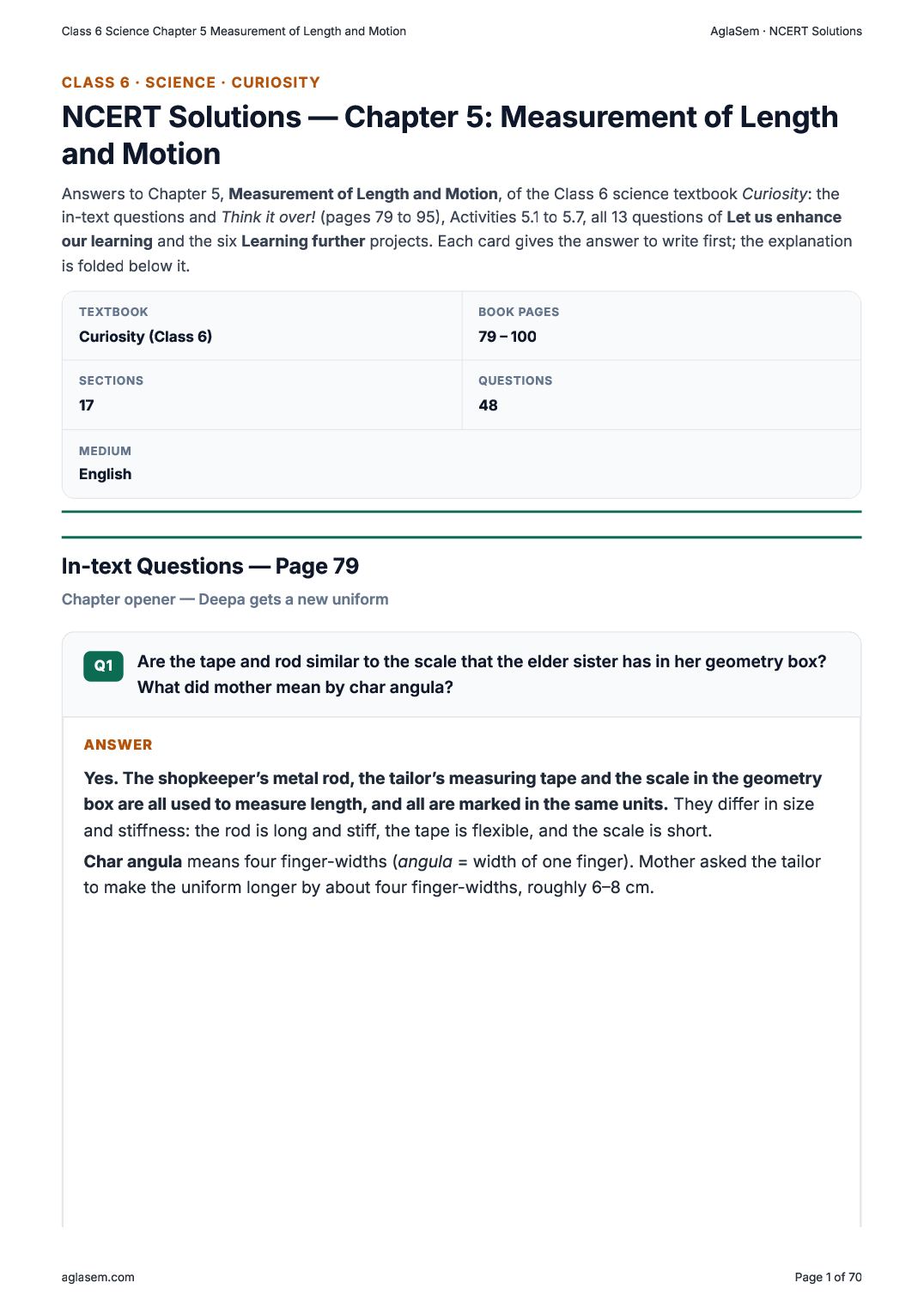

Answers to Chapter 5, Measurement of Length and Motion, of the Class 6 science textbook Curiosity: the in-text questions and Think it over! (pages 79 to 95), Activities 5.1 to 5.7, all 13 questions of Let us enhance our learning and the six Learning further projects. Each card gives the answer to write first; the explanation is folded below it.

NCERT Solutions for Class 6 Science Chapter 5 Measurement of Length and Motion PDF

All the answers are on this page below. The PDF also explains every answer – why it is right and how to check it – so download it for revision.

PDFChapterDownload
Solutions PDF (English medium)Measurement of Length and MotionView PDF
Solutions PDF (Hindi medium)लंबाई एवं गति का मापनView PDF

NCERT Solutions for Class 6 Science Chapter 5 Measurement of Length and Motion – Questions and Answers

All 48 questions of the chapter (textbook pages 79 – 100) are answered below, in the order of the book – in-text questions, activities and the end-of-chapter exercises. Each answer is written the way you would write it in the exam.

In-text Questions — Page 79Chapter opener — Deepa gets a new uniform

Q1Are the tape and rod similar to the scale that the elder sister has in her geometry box? What did mother mean by char angula?
Answer

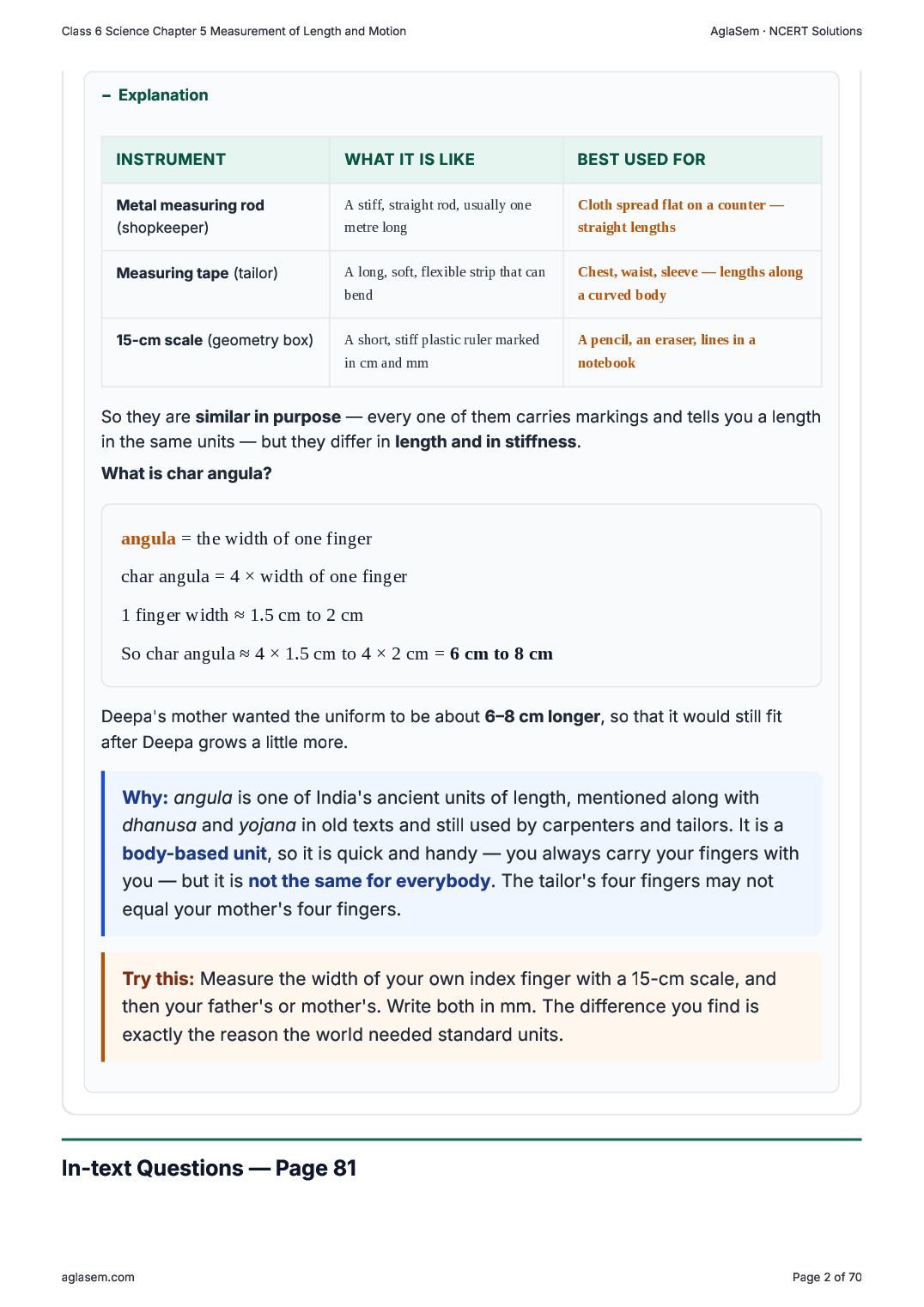

Yes. The shopkeeper’s metal rod, the tailor’s measuring tape and the scale in the geometry box are all used to measure length, and all are marked in the same units. They differ in size and stiffness: the rod is long and stiff, the tape is flexible, and the scale is short.

Char angula means four finger-widths (angula = width of one finger). Mother asked the tailor to make the uniform longer by about four finger-widths, roughly 6–8 cm.

In-text Questions — Page 815.1 How do we Measure?

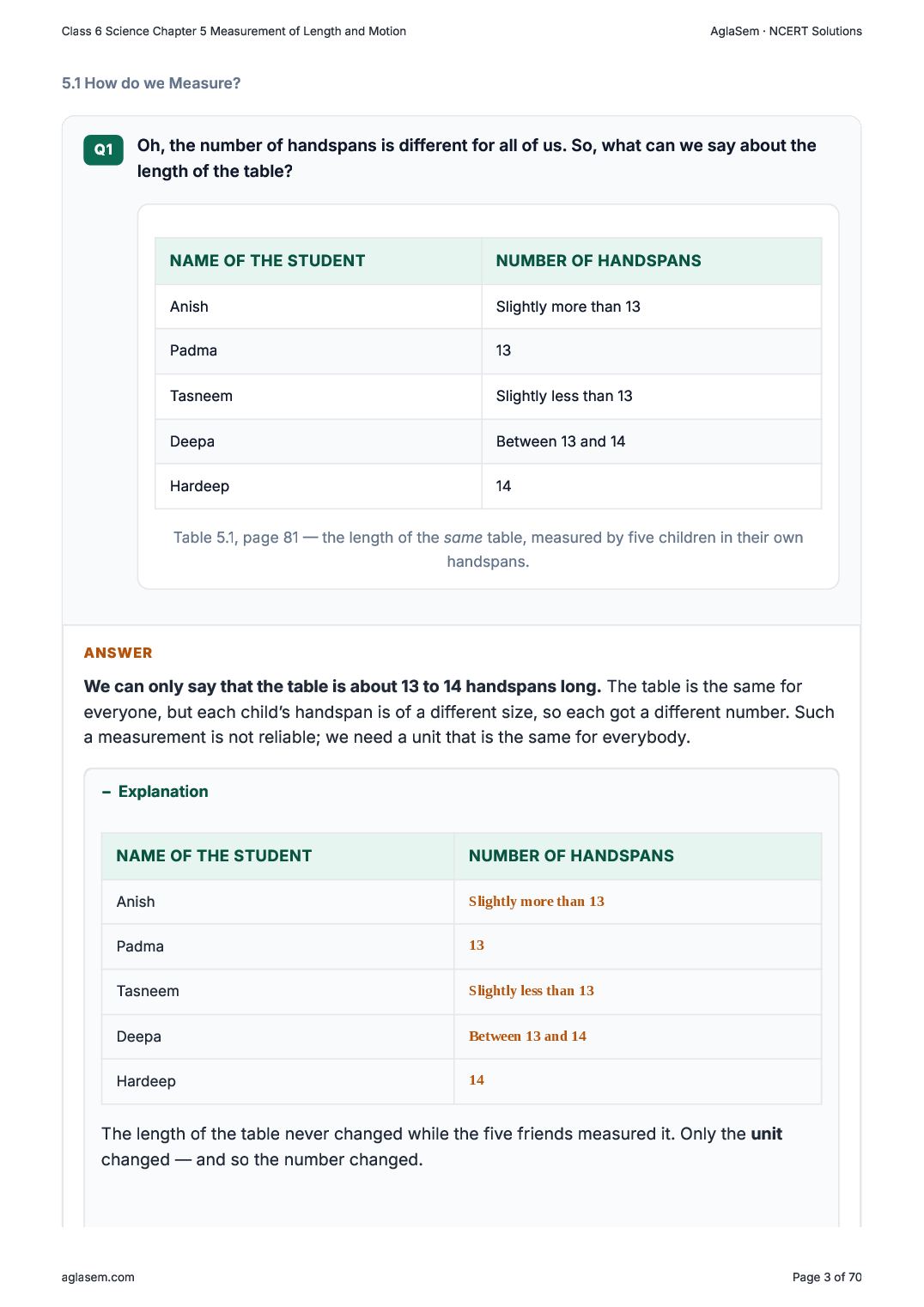

Q1Oh, the number of handspans is different for all of us. So, what can we say about the length of the table?
Name of the StudentNumber of Handspans
AnishSlightly more than 13
Padma13
TasneemSlightly less than 13
DeepaBetween 13 and 14
Hardeep14
Table 5.1, page 81 — the length of the same table, measured by five children in their own handspans.
Answer

We can only say that the table is about 13 to 14 handspans long. The table is the same for everyone, but each child’s handspan is of a different size, so each got a different number. Such a measurement is not reliable; we need a unit that is the same for everybody.

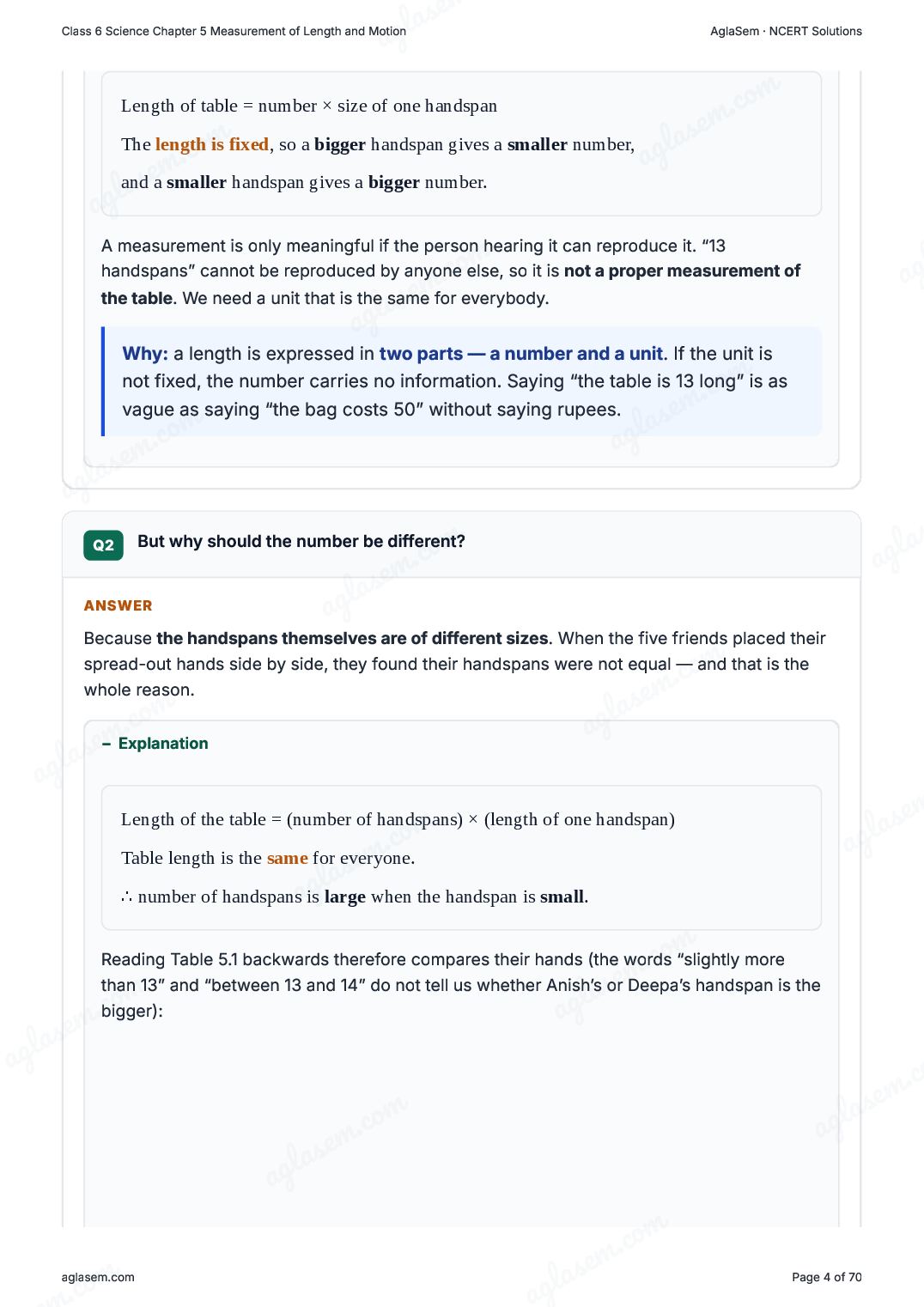

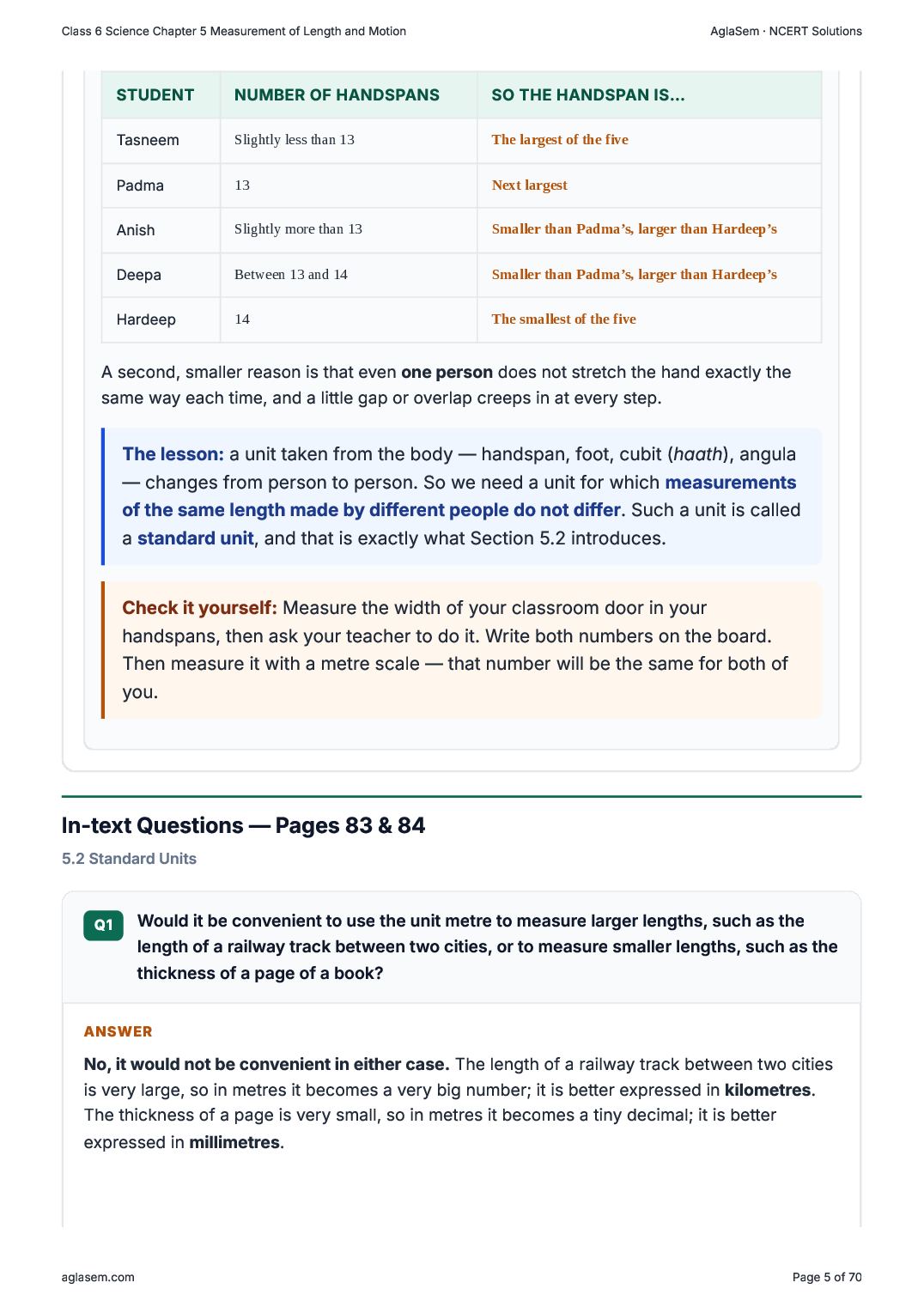

Q2But why should the number be different?
Answer

Because the handspans themselves are of different sizes. When the five friends placed their spread-out hands side by side, they found their handspans were not equal — and that is the whole reason.

In-text Questions — Pages 83 & 845.2 Standard Units

Q1Would it be convenient to use the unit metre to measure larger lengths, such as the length of a railway track between two cities, or to measure smaller lengths, such as the thickness of a page of a book?
Answer

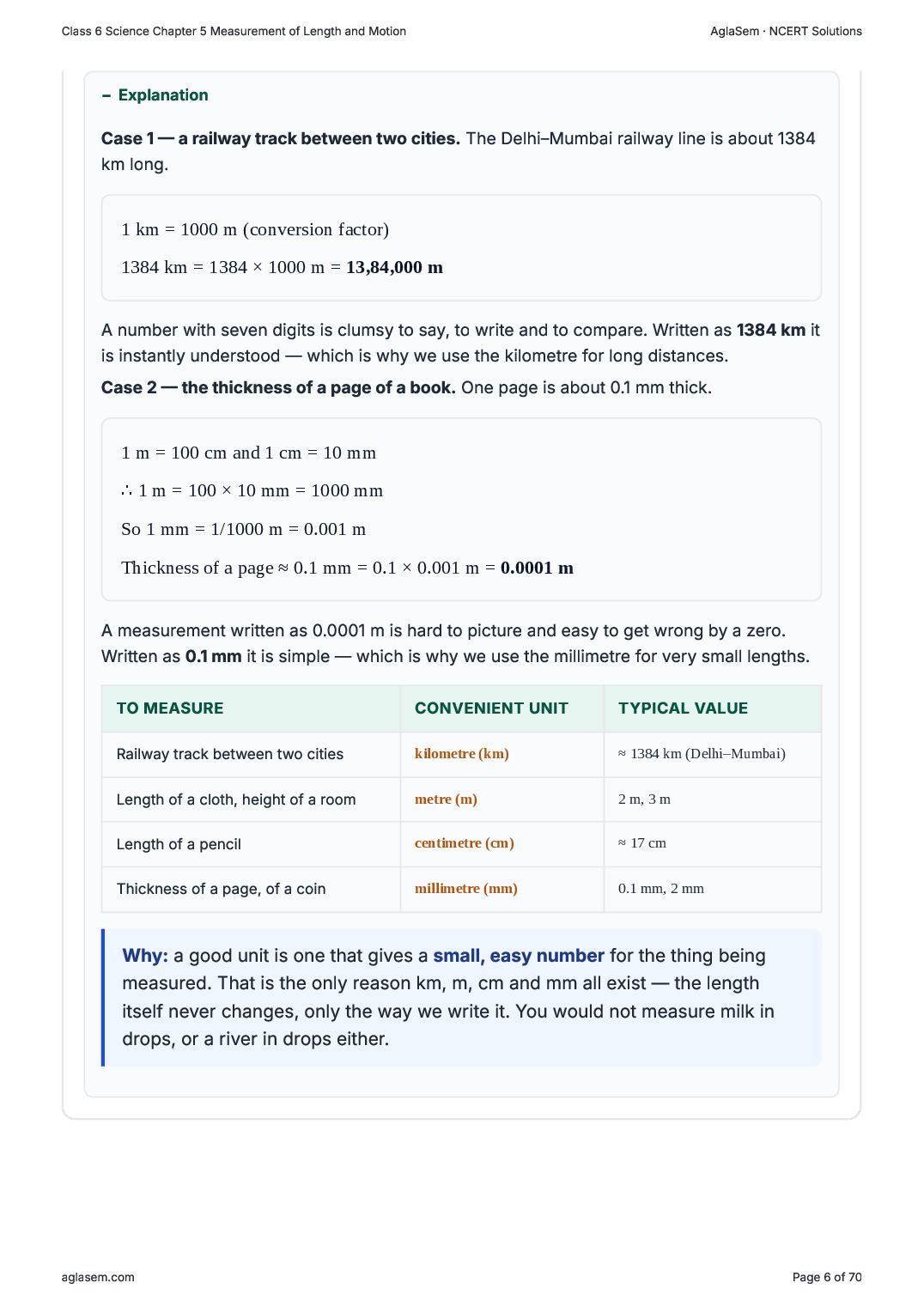

No, it would not be convenient in either case. The length of a railway track between two cities is very large, so in metres it becomes a very big number; it is better expressed in kilometres. The thickness of a page is very small, so in metres it becomes a tiny decimal; it is better expressed in millimetres.

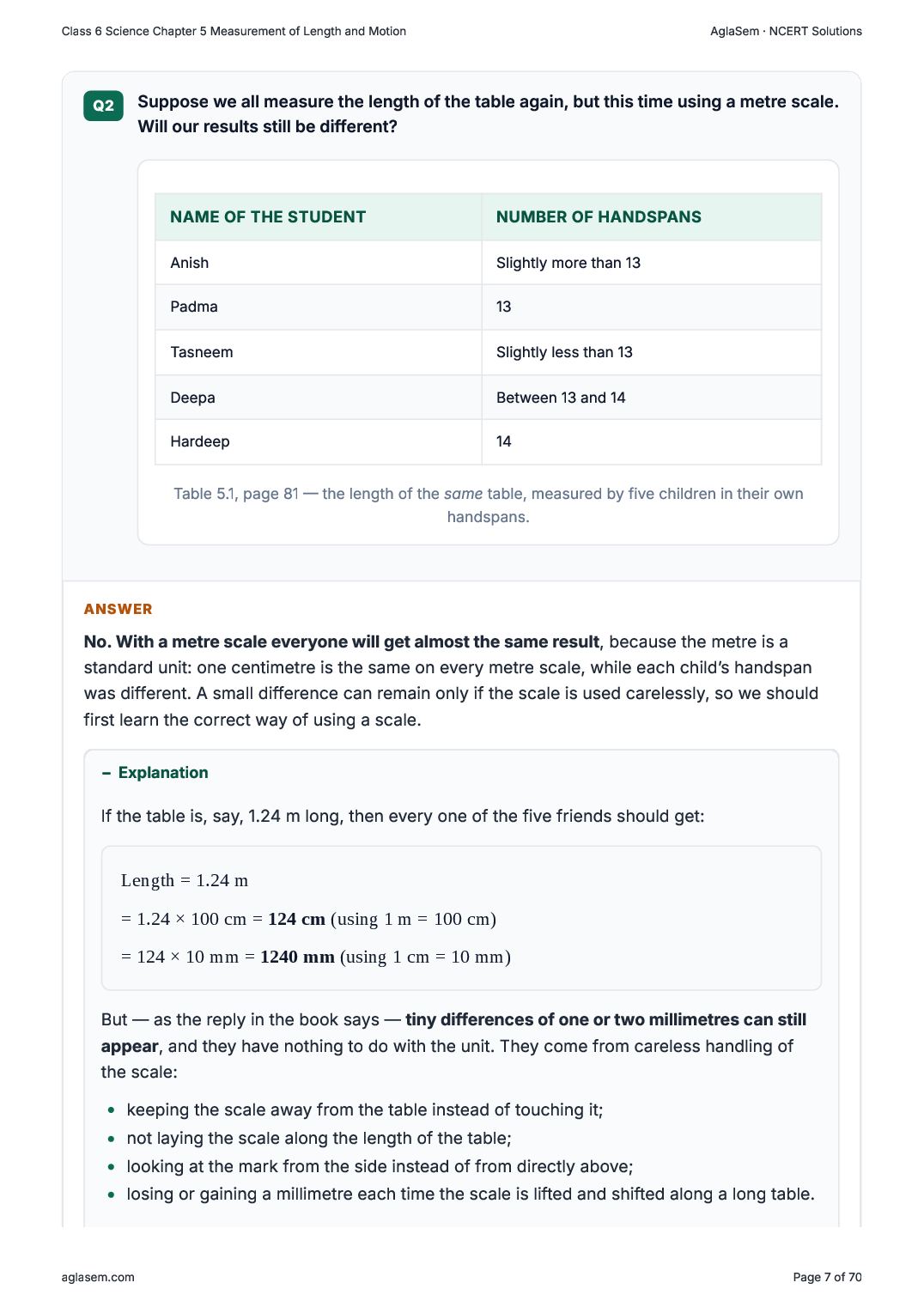

Q2Suppose we all measure the length of the table again, but this time using a metre scale. Will our results still be different?
Name of the StudentNumber of Handspans
AnishSlightly more than 13
Padma13
TasneemSlightly less than 13
DeepaBetween 13 and 14
Hardeep14
Table 5.1, page 81 — the length of the same table, measured by five children in their own handspans.
Answer

No. With a metre scale everyone will get almost the same result, because the metre is a standard unit: one centimetre is the same on every metre scale, while each child’s handspan was different. A small difference can remain only if the scale is used carelessly, so we should first learn the correct way of using a scale.

In-text Questions — Pages 84 & 855.3 Correct Way of Measuring Length

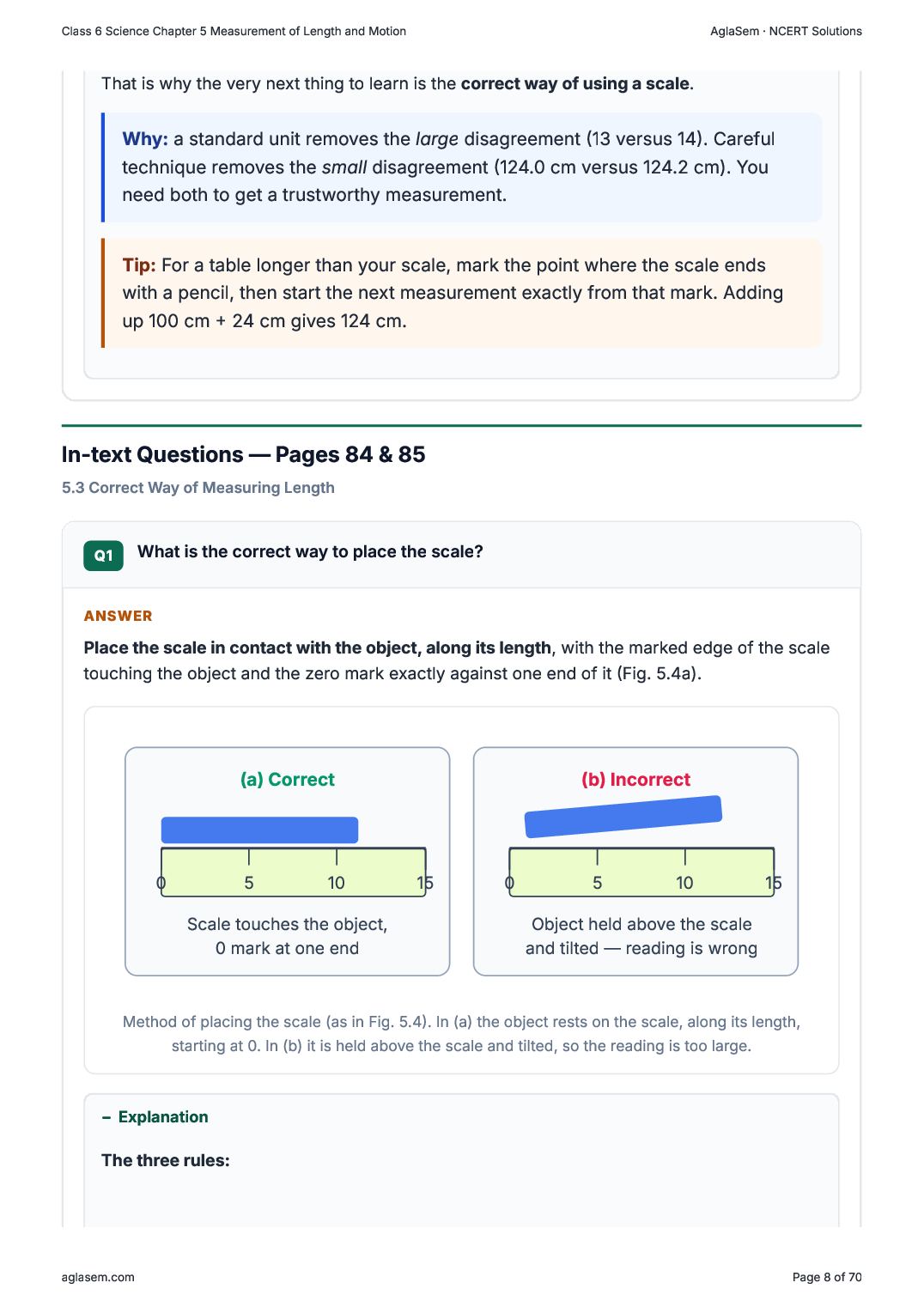

Q1What is the correct way to place the scale?
Answer

Place the scale in contact with the object, along its length, with the marked edge of the scale touching the object and the zero mark exactly against one end of it (Fig. 5.4a).

0 5 10 15 (a) Correct Scale touches the object, 0 mark at one end 0 5 10 15 (b) Incorrect Object held above the scale and tilted — reading is wrong
Method of placing the scale (as in Fig. 5.4). In (a) the object rests on the scale, along its length, starting at 0. In (b) it is held above the scale and tilted, so the reading is too large.

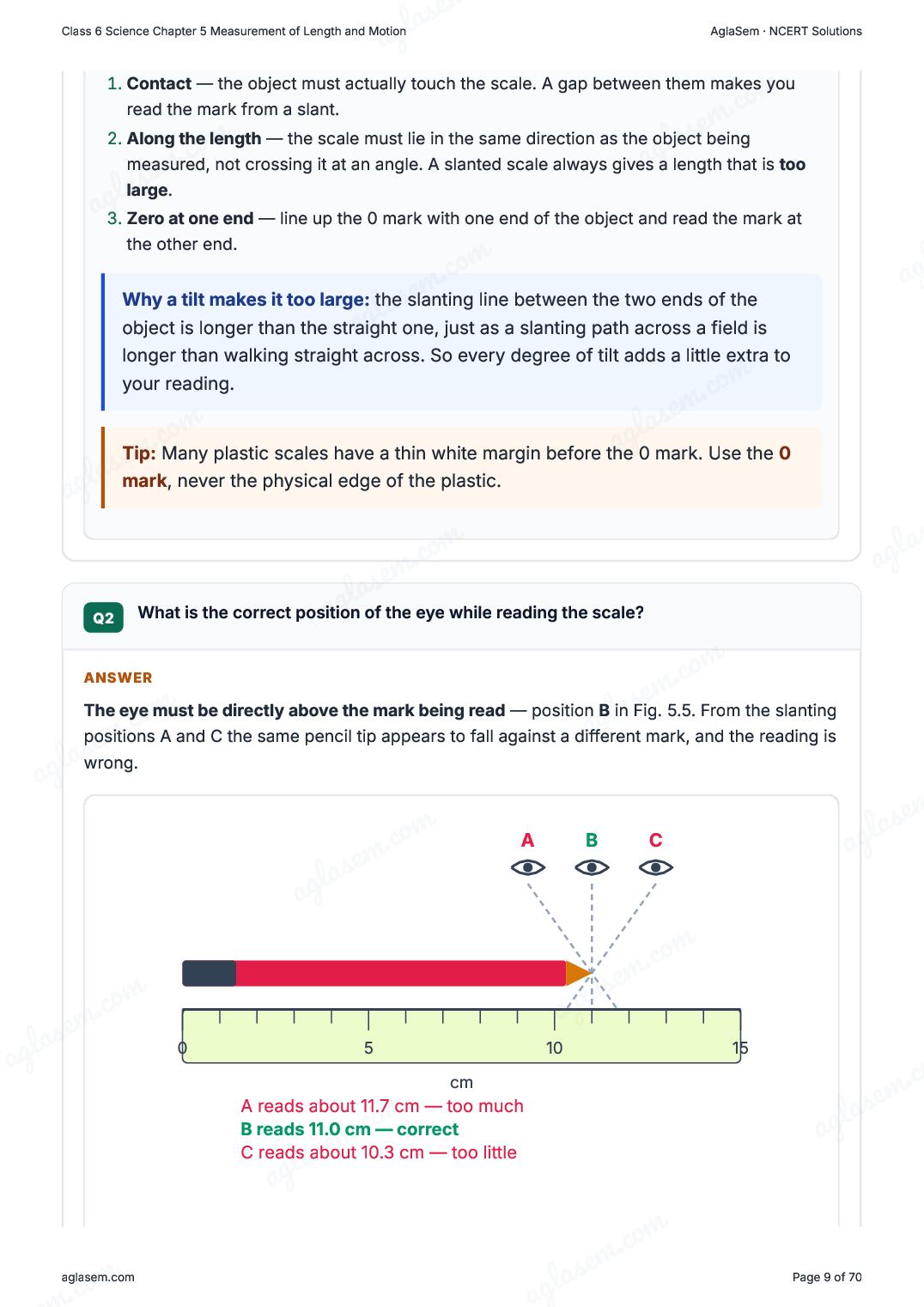

Q2What is the correct position of the eye while reading the scale?
Answer

The eye must be directly above the mark being read — position B in Fig. 5.5. From the slanting positions A and C the same pencil tip appears to fall against a different mark, and the reading is wrong.

A B C 0 5 10 15 cm A reads about 11.7 cm — too much B reads 11.0 cm — correct C reads about 10.3 cm — too little

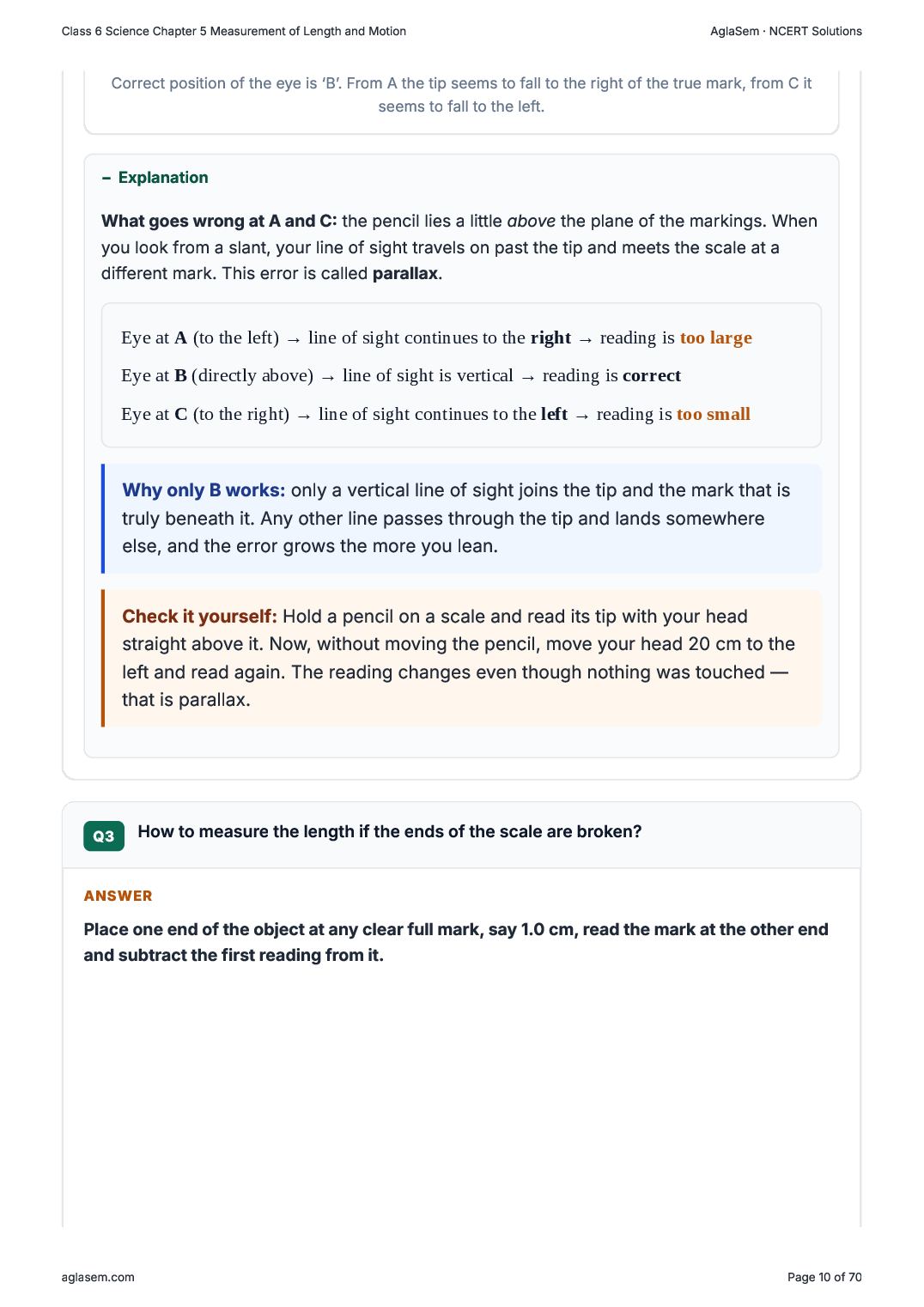

Correct position of the eye is ‘B’. From A the tip seems to fall to the right of the true mark, from C it seems to fall to the left.

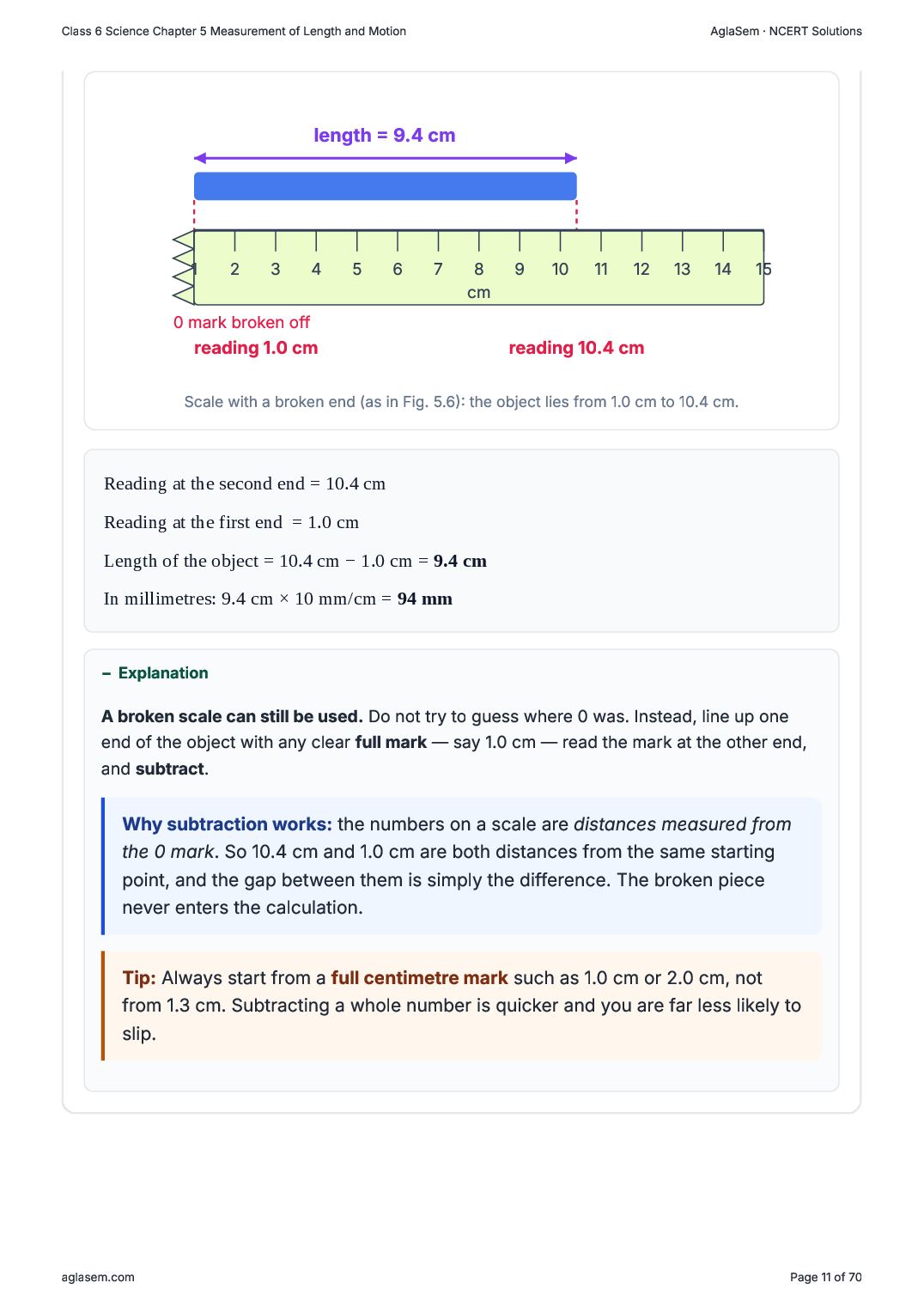

Q3How to measure the length if the ends of the scale are broken?
Answer

Place one end of the object at any clear full mark, say 1.0 cm, read the mark at the other end and subtract the first reading from it.

length = 9.4 cm 1234 5678 9101112 131415 cm 0 mark broken off reading 1.0 cm reading 10.4 cm
Scale with a broken end (as in Fig. 5.6): the object lies from 1.0 cm to 10.4 cm.
Reading at the second end = 10.4 cm
Reading at the first end  = 1.0 cm
Length of the object = 10.4 cm − 1.0 cm = 9.4 cm
In millimetres: 9.4 cm × 10 mm/cm = 94 mm

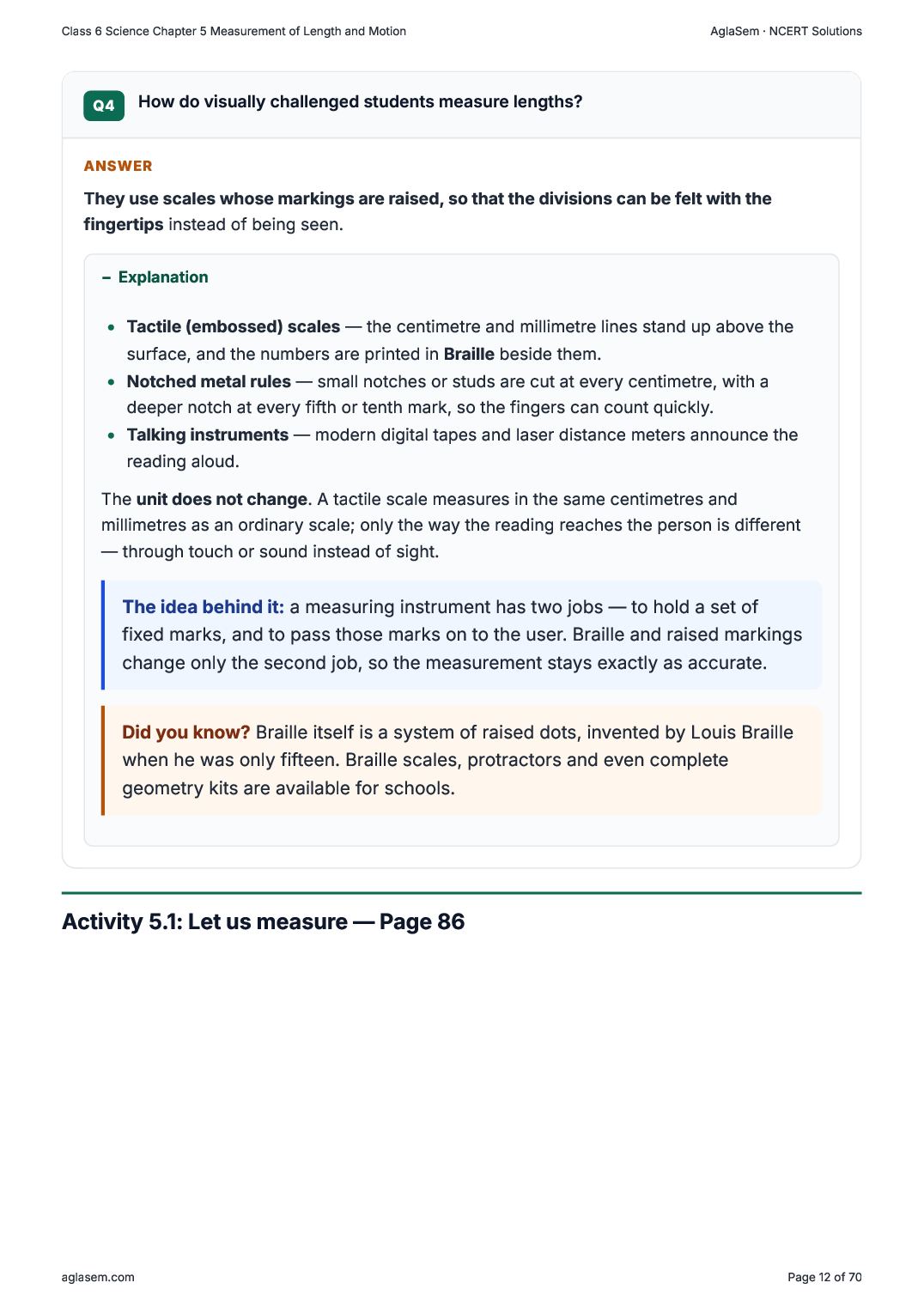

Q4How do visually challenged students measure lengths?
Answer

They use scales whose markings are raised, so that the divisions can be felt with the fingertips instead of being seen.

Activity 5.1: Let us measure — Page 865.3 Correct Way of Measuring Length

Activity

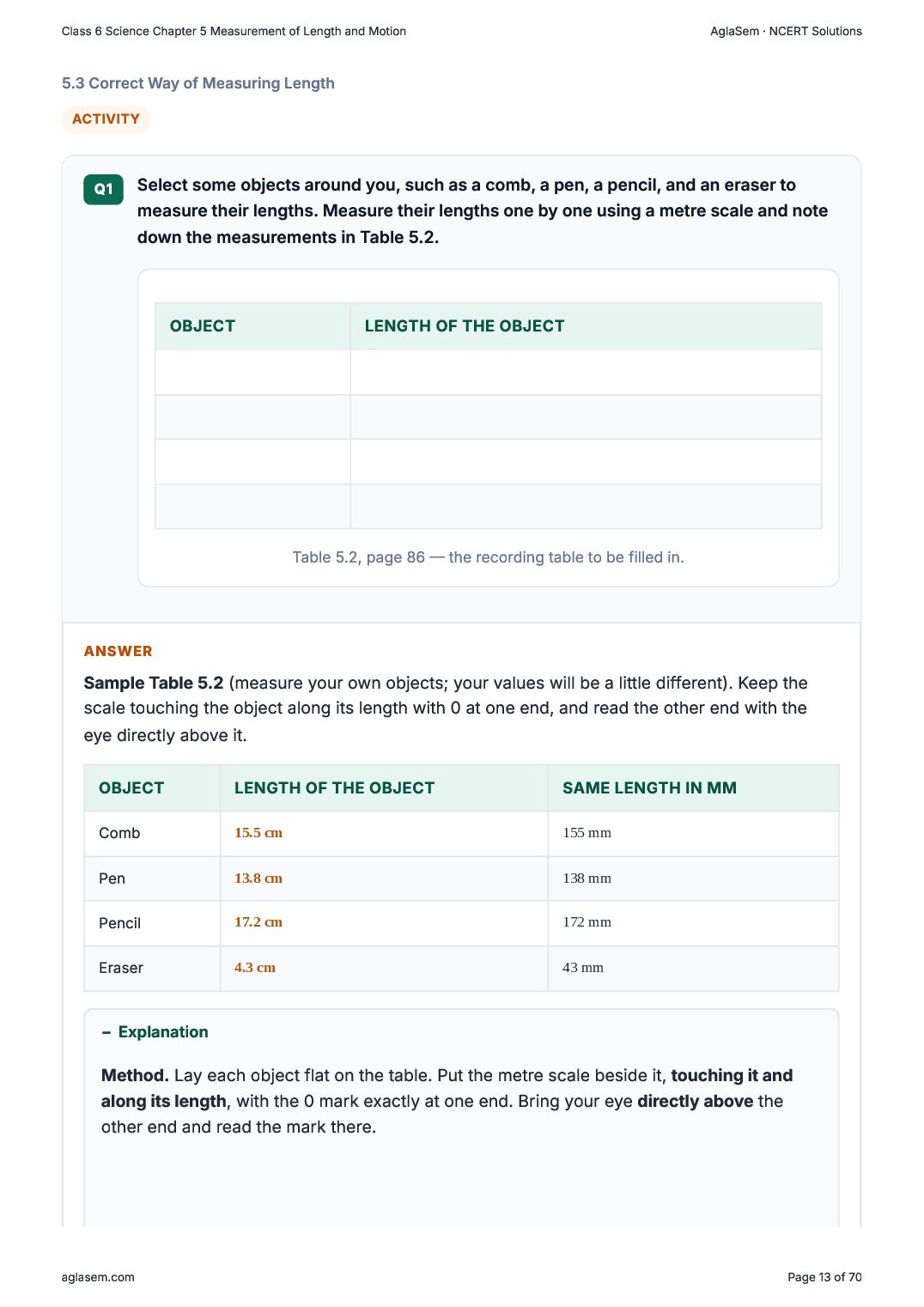

Q1Select some objects around you, such as a comb, a pen, a pencil, and an eraser to measure their lengths. Measure their lengths one by one using a metre scale and note down the measurements in Table 5.2.
ObjectLength of the object




Table 5.2, page 86 — the recording table to be filled in.
Answer

Sample Table 5.2 (measure your own objects; your values will be a little different). Keep the scale touching the object along its length with 0 at one end, and read the other end with the eye directly above it.

ObjectLength of the objectSame length in mm
Comb15.5 cm155 mm
Pen13.8 cm138 mm
Pencil17.2 cm172 mm
Eraser4.3 cm43 mm

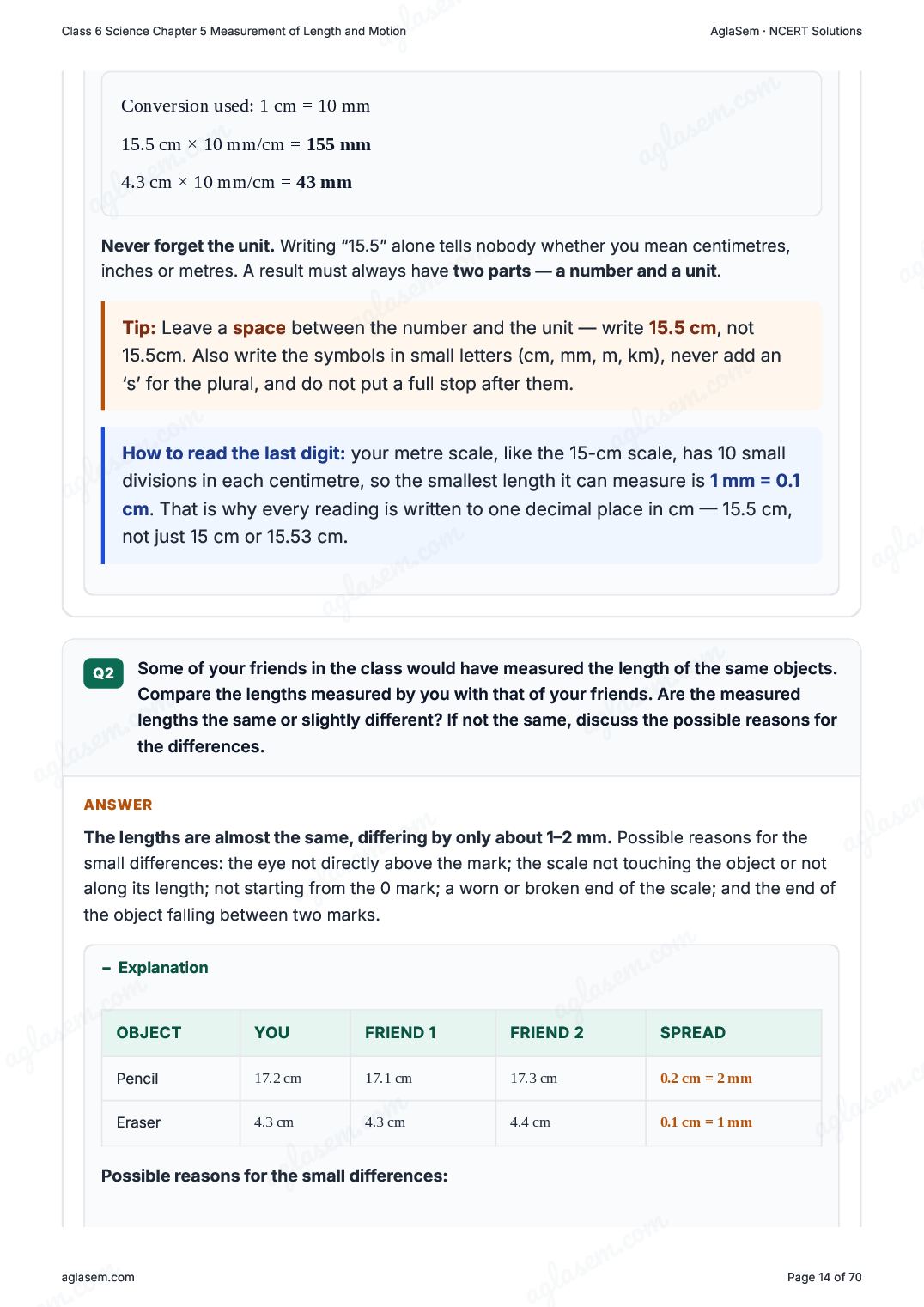

Q2Some of your friends in the class would have measured the length of the same objects. Compare the lengths measured by you with that of your friends. Are the measured lengths the same or slightly different? If not the same, discuss the possible reasons for the differences.
Answer

The lengths are almost the same, differing by only about 1–2 mm. Possible reasons for the small differences: the eye not directly above the mark; the scale not touching the object or not along its length; not starting from the 0 mark; a worn or broken end of the scale; and the end of the object falling between two marks.

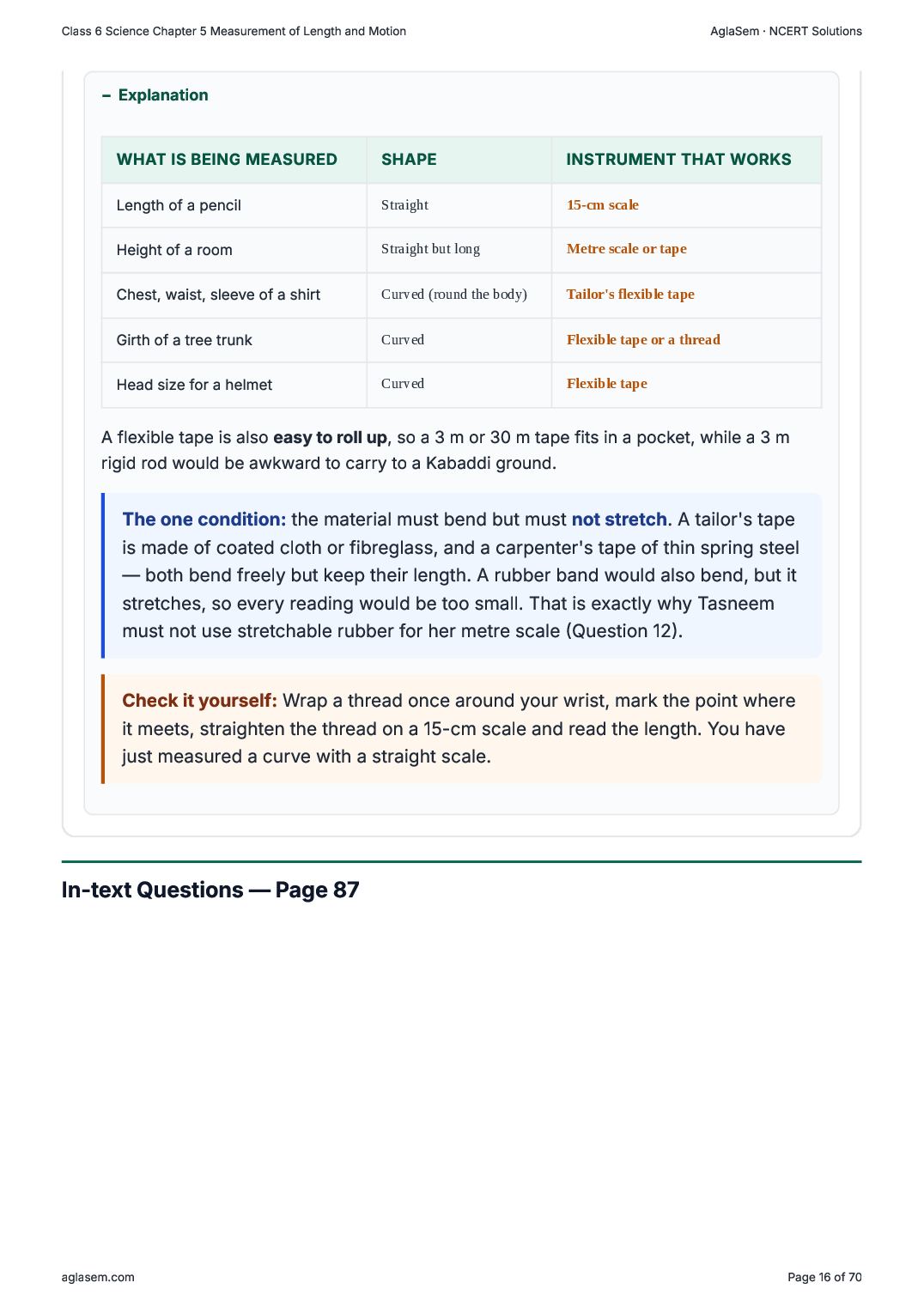

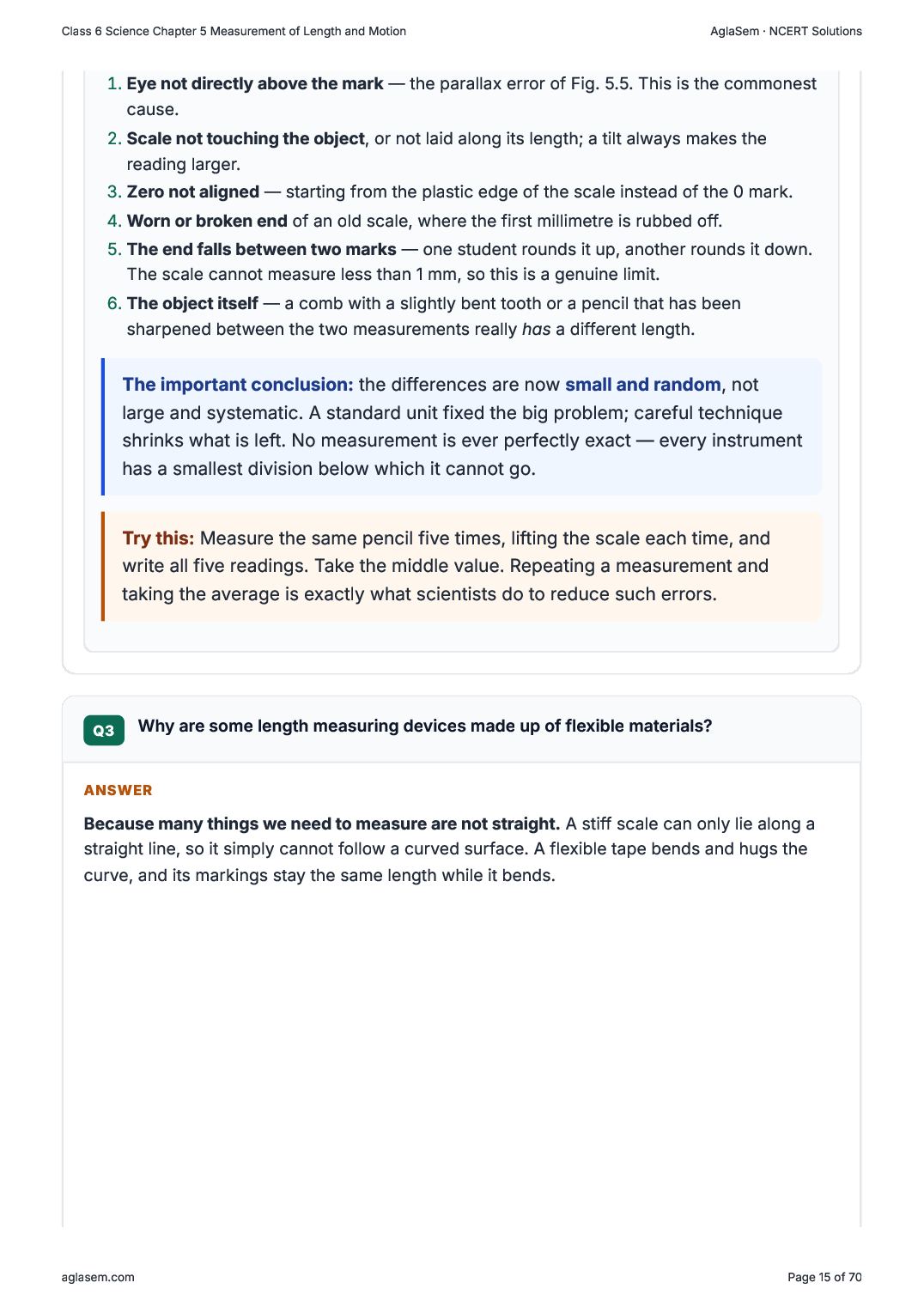

Q3Why are some length measuring devices made up of flexible materials?
Answer

Because many things we need to measure are not straight. A stiff scale can only lie along a straight line, so it simply cannot follow a curved surface. A flexible tape bends and hugs the curve, and its markings stay the same length while it bends.

In-text Questions — Page 875.4 Measuring the Length of a Curved Line

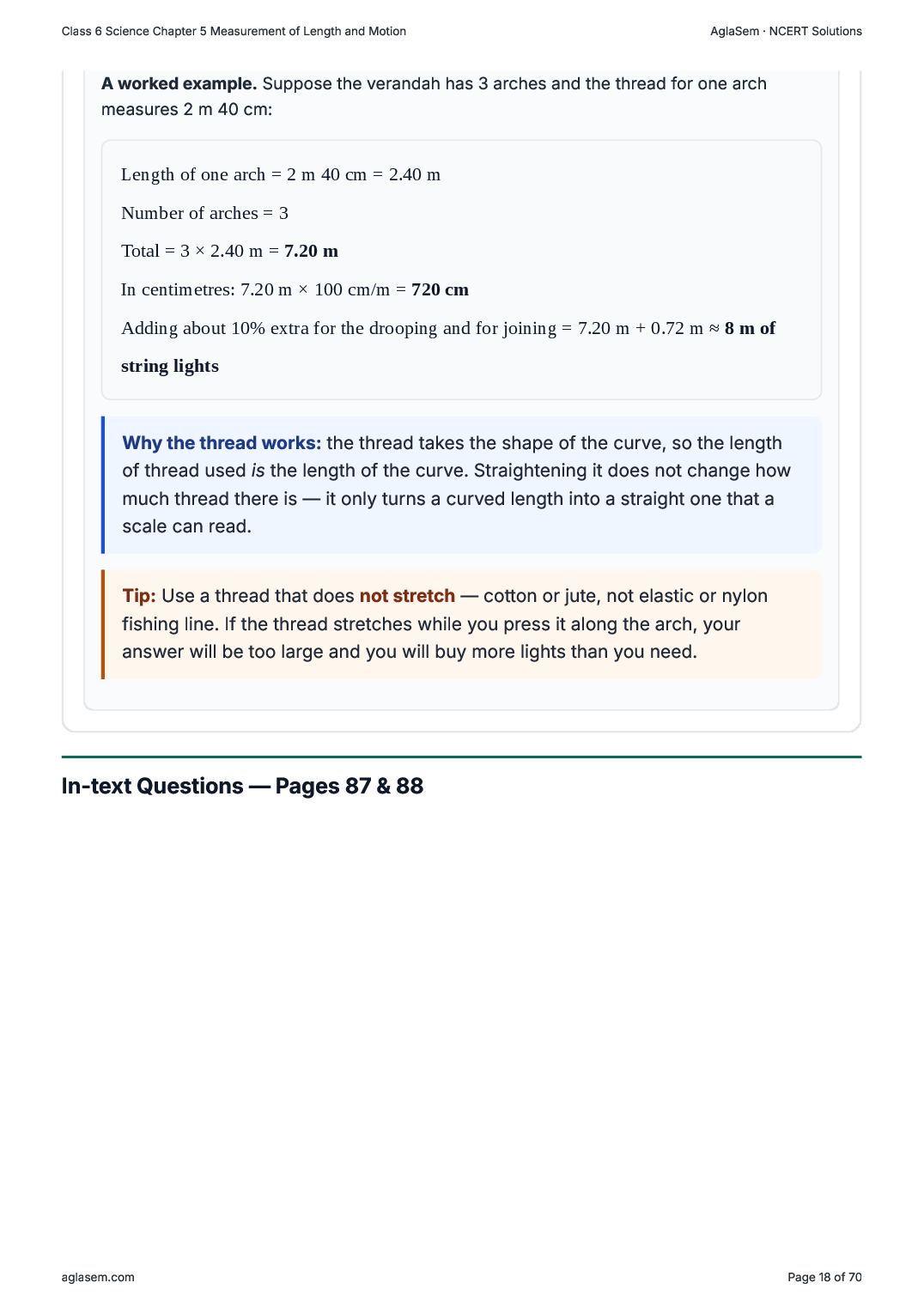

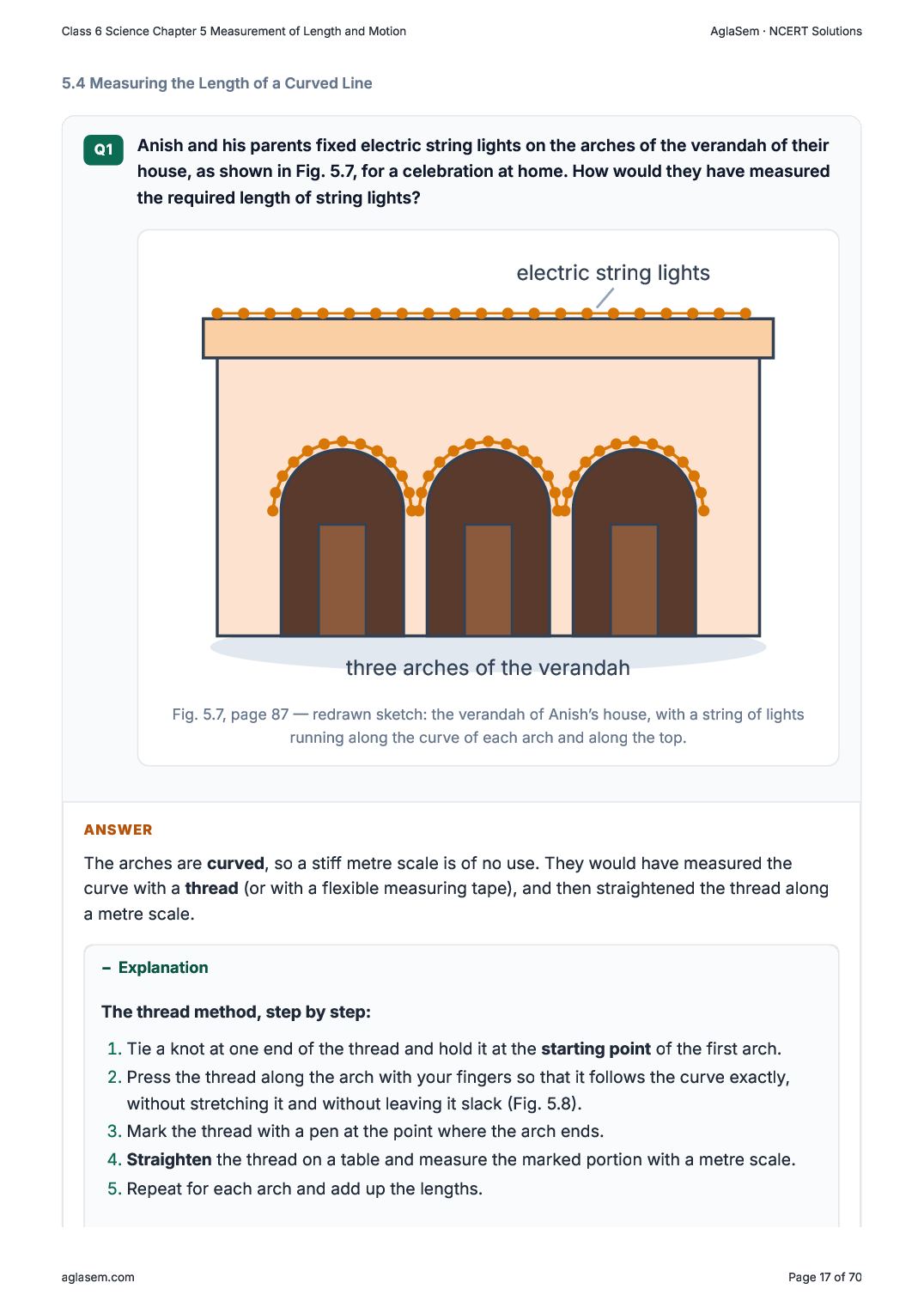

Q1Anish and his parents fixed electric string lights on the arches of the verandah of their house, as shown in Fig. 5.7, for a celebration at home. How would they have measured the required length of string lights?
electric string lights three arches of the verandah
Fig. 5.7, page 87 — redrawn sketch: the verandah of Anish’s house, with a string of lights running along the curve of each arch and along the top.
Answer

The arches are curved, so a stiff metre scale is of no use. They would have measured the curve with a thread (or with a flexible measuring tape), and then straightened the thread along a metre scale.

In-text Questions — Pages 87 & 885.5 Describing Position

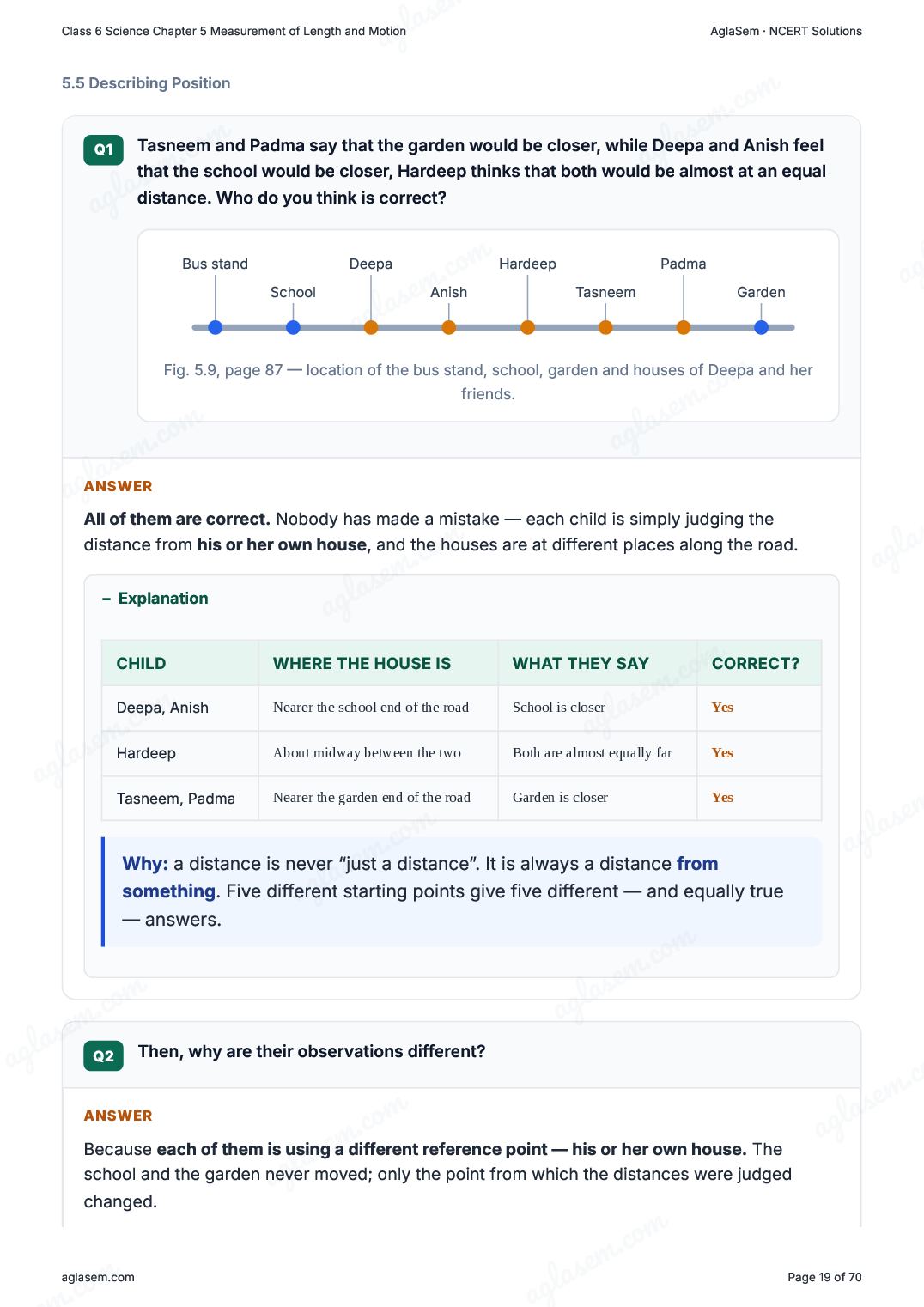

Q1Tasneem and Padma say that the garden would be closer, while Deepa and Anish feel that the school would be closer, Hardeep thinks that both would be almost at an equal distance. Who do you think is correct?
Bus stand School Deepa Anish Hardeep Tasneem Padma Garden
Fig. 5.9, page 87 — location of the bus stand, school, garden and houses of Deepa and her friends.
Answer

All of them are correct. Nobody has made a mistake — each child is simply judging the distance from his or her own house, and the houses are at different places along the road.

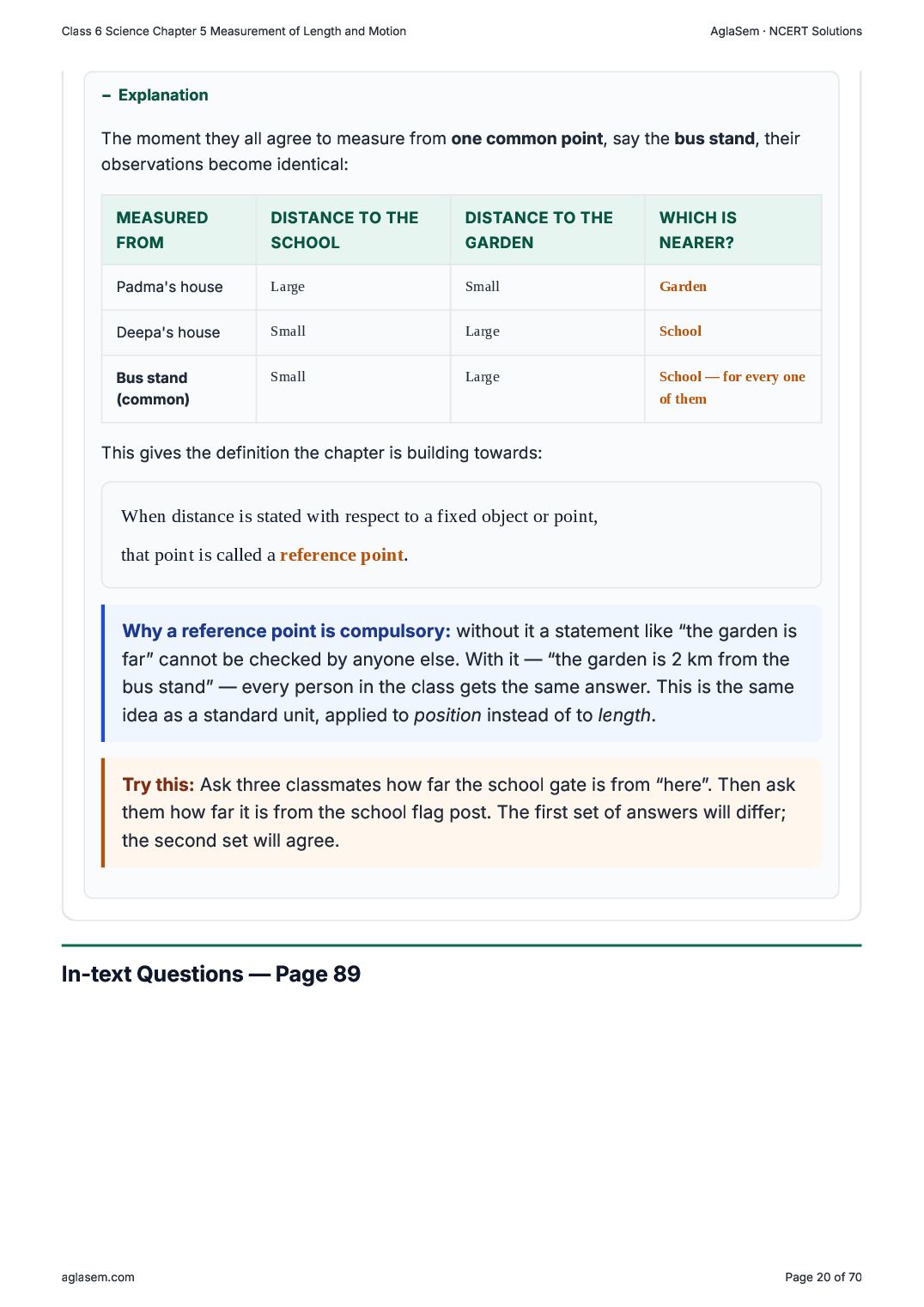

Q2Then, why are their observations different?
Answer

Because each of them is using a different reference point — his or her own house. The school and the garden never moved; only the point from which the distances were judged changed.

In-text Questions — Page 895.5 Describing Position

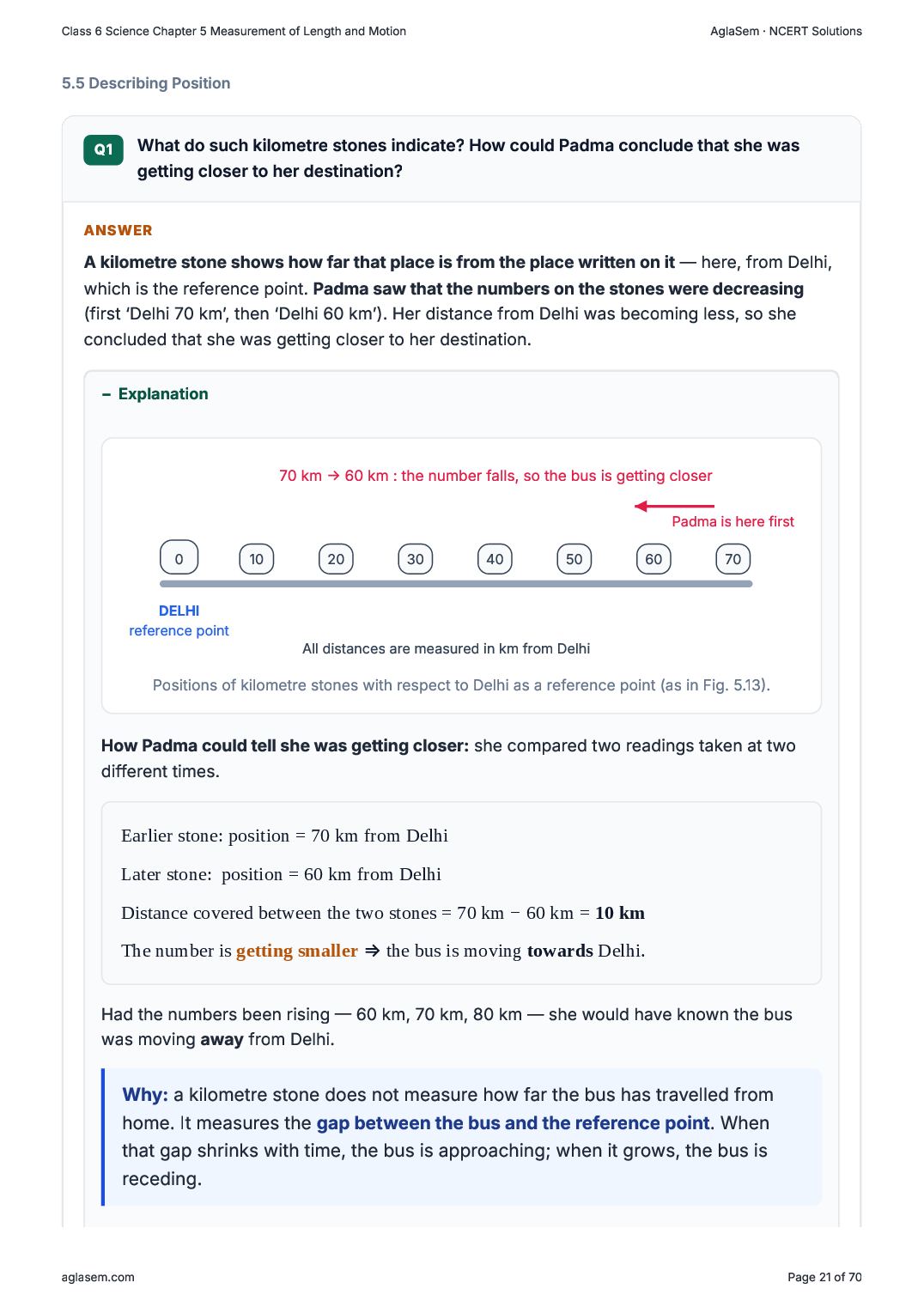

Q1What do such kilometre stones indicate? How could Padma conclude that she was getting closer to her destination?
Answer

A kilometre stone shows how far that place is from the place written on it — here, from Delhi, which is the reference point. Padma saw that the numbers on the stones were decreasing (first ‘Delhi 70 km’, then ‘Delhi 60 km’). Her distance from Delhi was becoming less, so she concluded that she was getting closer to her destination.

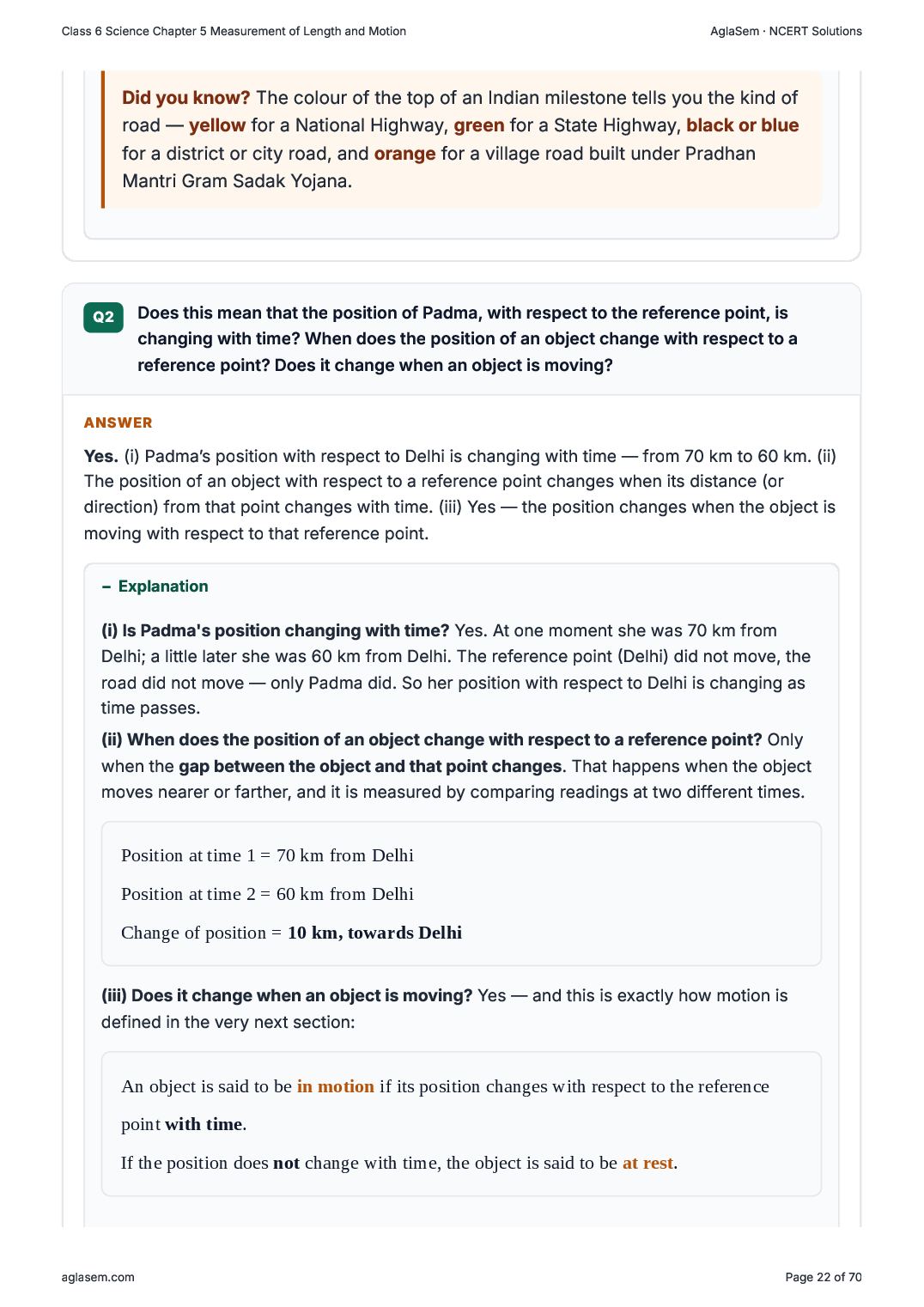

Q2Does this mean that the position of Padma, with respect to the reference point, is changing with time? When does the position of an object change with respect to a reference point? Does it change when an object is moving?
Answer

Yes. (i) Padma’s position with respect to Delhi is changing with time — from 70 km to 60 km. (ii) The position of an object with respect to a reference point changes when its distance (or direction) from that point changes with time. (iii) Yes — the position changes when the object is moving with respect to that reference point.

Activity 5.2: Let us explore — Page 905.6 Moving Things

Activity

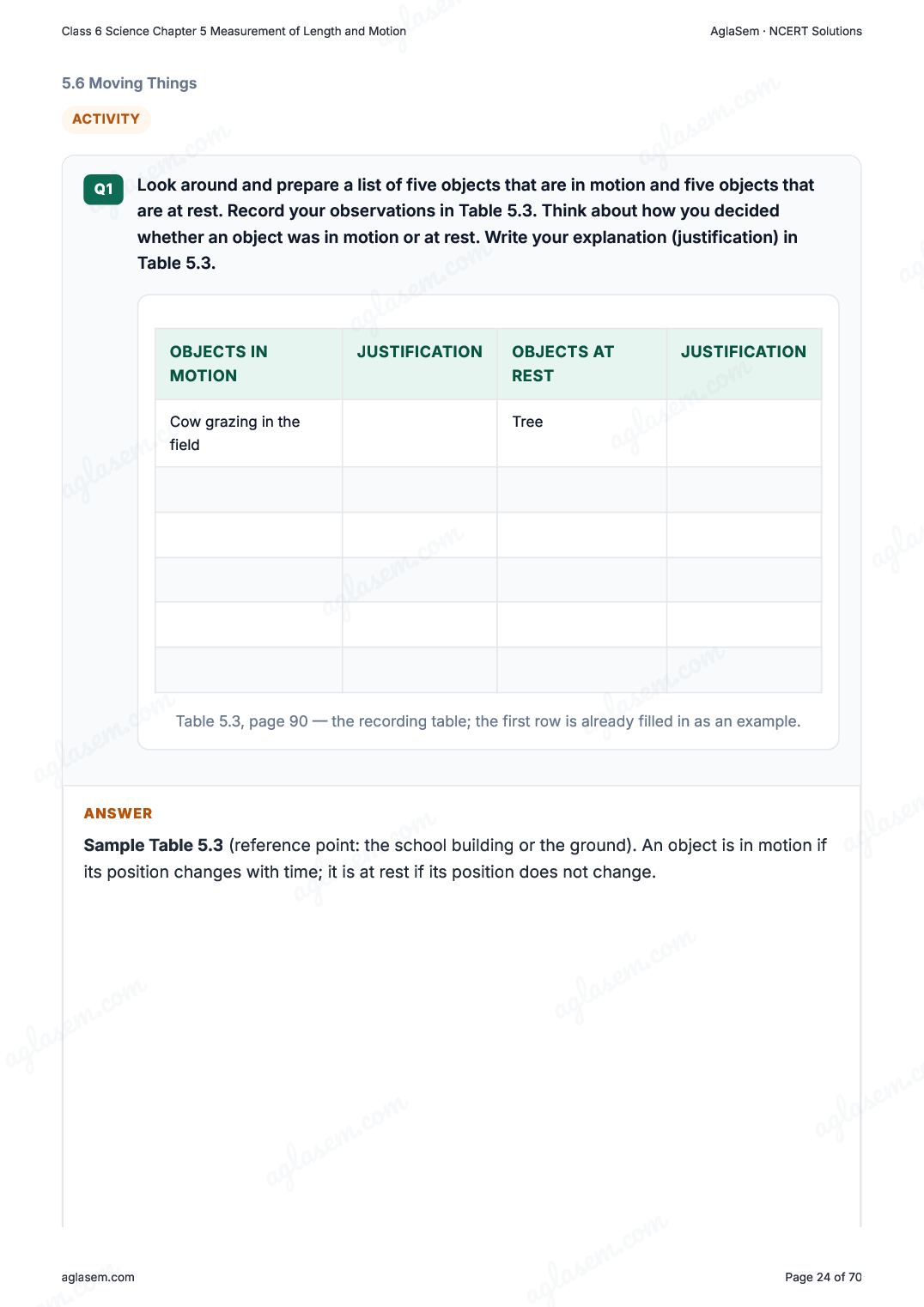

Q1Look around and prepare a list of five objects that are in motion and five objects that are at rest. Record your observations in Table 5.3. Think about how you decided whether an object was in motion or at rest. Write your explanation (justification) in Table 5.3.
Objects in motionJustificationObjects at restJustification
Cow grazing in the field Tree





Table 5.3, page 90 — the recording table; the first row is already filled in as an example.
Answer

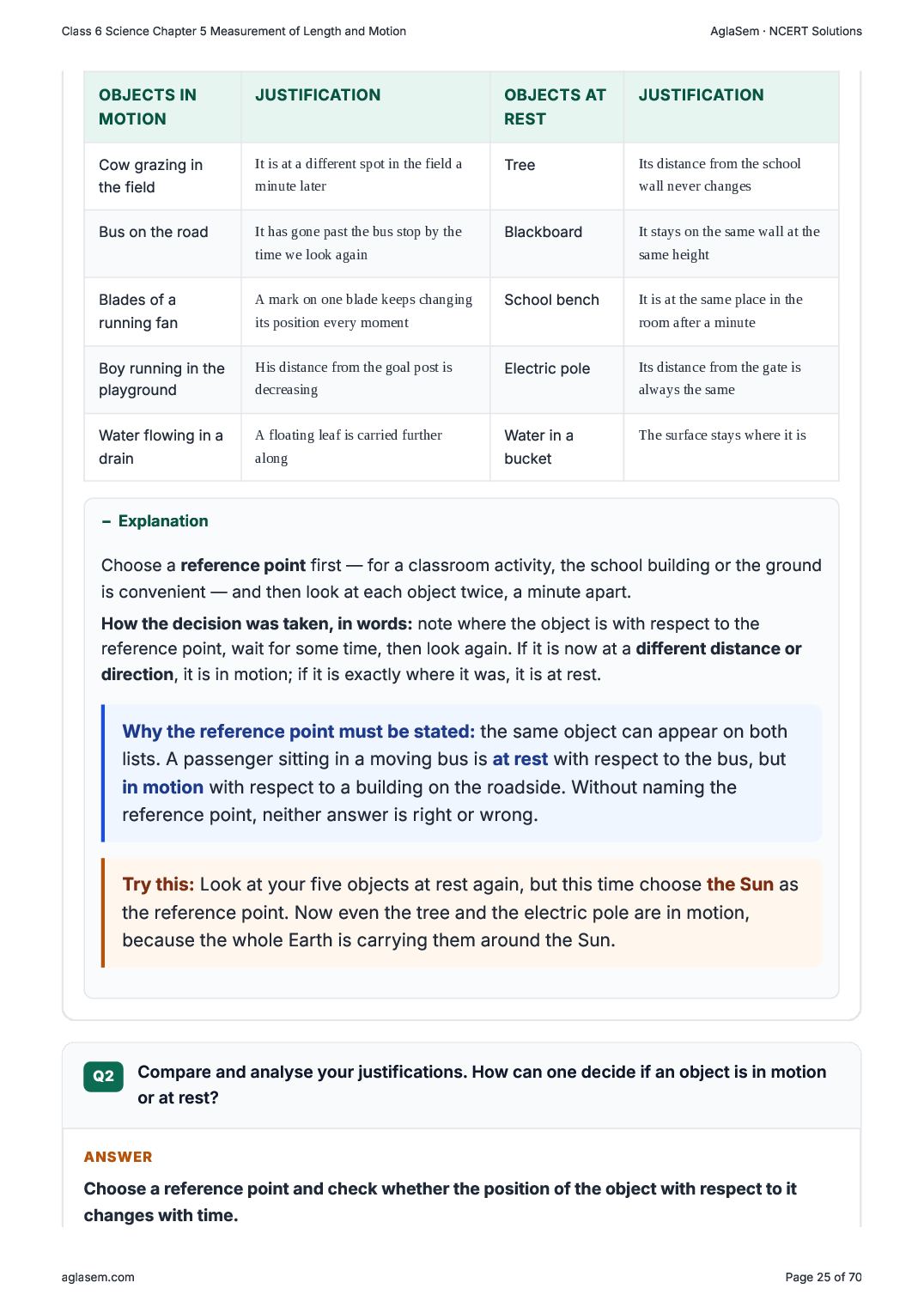

Sample Table 5.3 (reference point: the school building or the ground). An object is in motion if its position changes with time; it is at rest if its position does not change.

Objects in motionJustificationObjects at restJustification
Cow grazing in the fieldIt is at a different spot in the field a minute laterTreeIts distance from the school wall never changes
Bus on the roadIt has gone past the bus stop by the time we look againBlackboardIt stays on the same wall at the same height
Blades of a running fanA mark on one blade keeps changing its position every momentSchool benchIt is at the same place in the room after a minute
Boy running in the playgroundHis distance from the goal post is decreasingElectric poleIts distance from the gate is always the same
Water flowing in a drainA floating leaf is carried further alongWater in a bucketThe surface stays where it is
Q2Compare and analyse your justifications. How can one decide if an object is in motion or at rest?
Answer

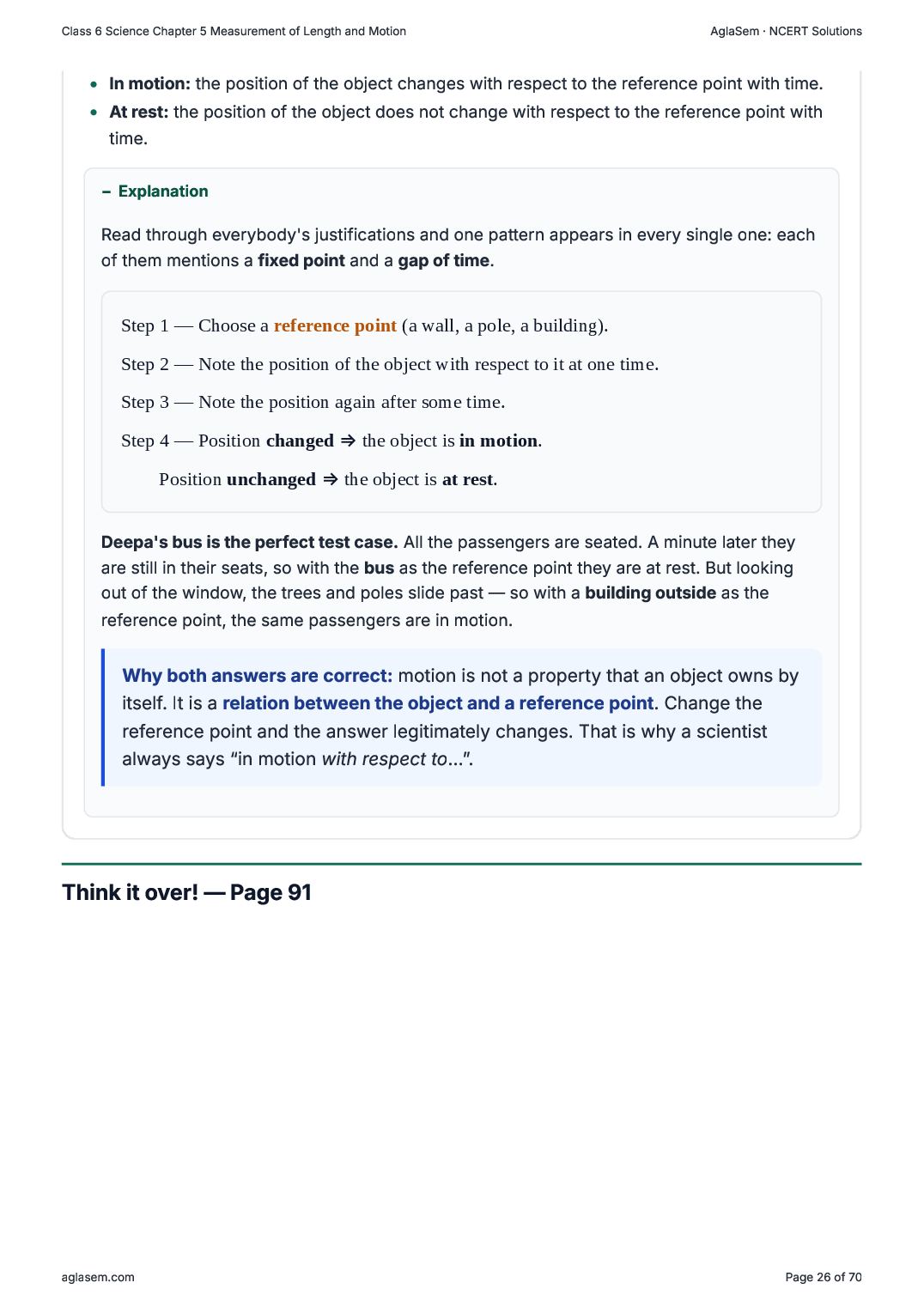

Choose a reference point and check whether the position of the object with respect to it changes with time.

  • In motion: the position of the object changes with respect to the reference point with time.
  • At rest: the position of the object does not change with respect to the reference point with time.

Think it over! — Page 915.6 Moving Things

Think it over!

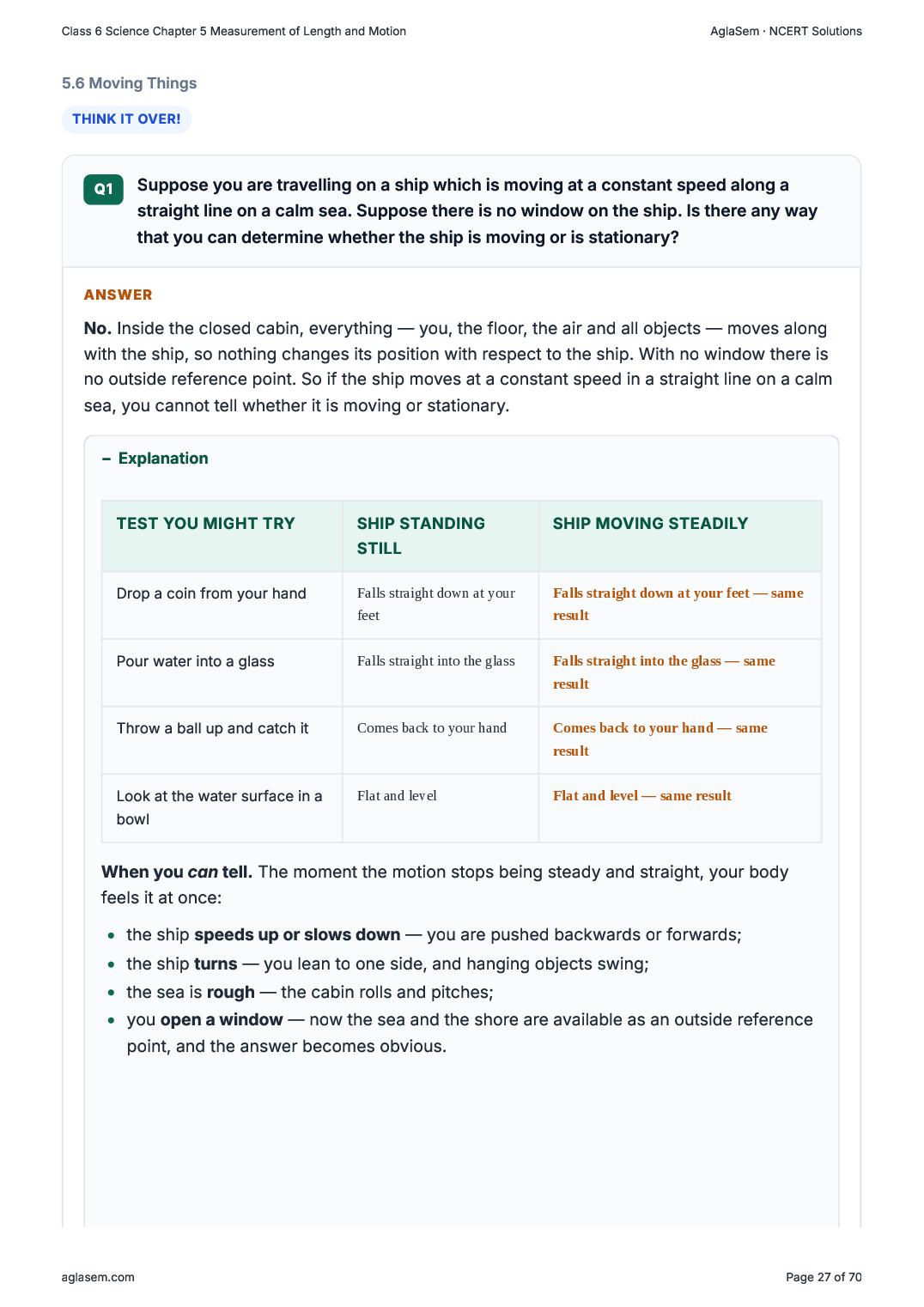

Q1Suppose you are travelling on a ship which is moving at a constant speed along a straight line on a calm sea. Suppose there is no window on the ship. Is there any way that you can determine whether the ship is moving or is stationary?
Answer

No. Inside the closed cabin, everything — you, the floor, the air and all objects — moves along with the ship, so nothing changes its position with respect to the ship. With no window there is no outside reference point. So if the ship moves at a constant speed in a straight line on a calm sea, you cannot tell whether it is moving or stationary.

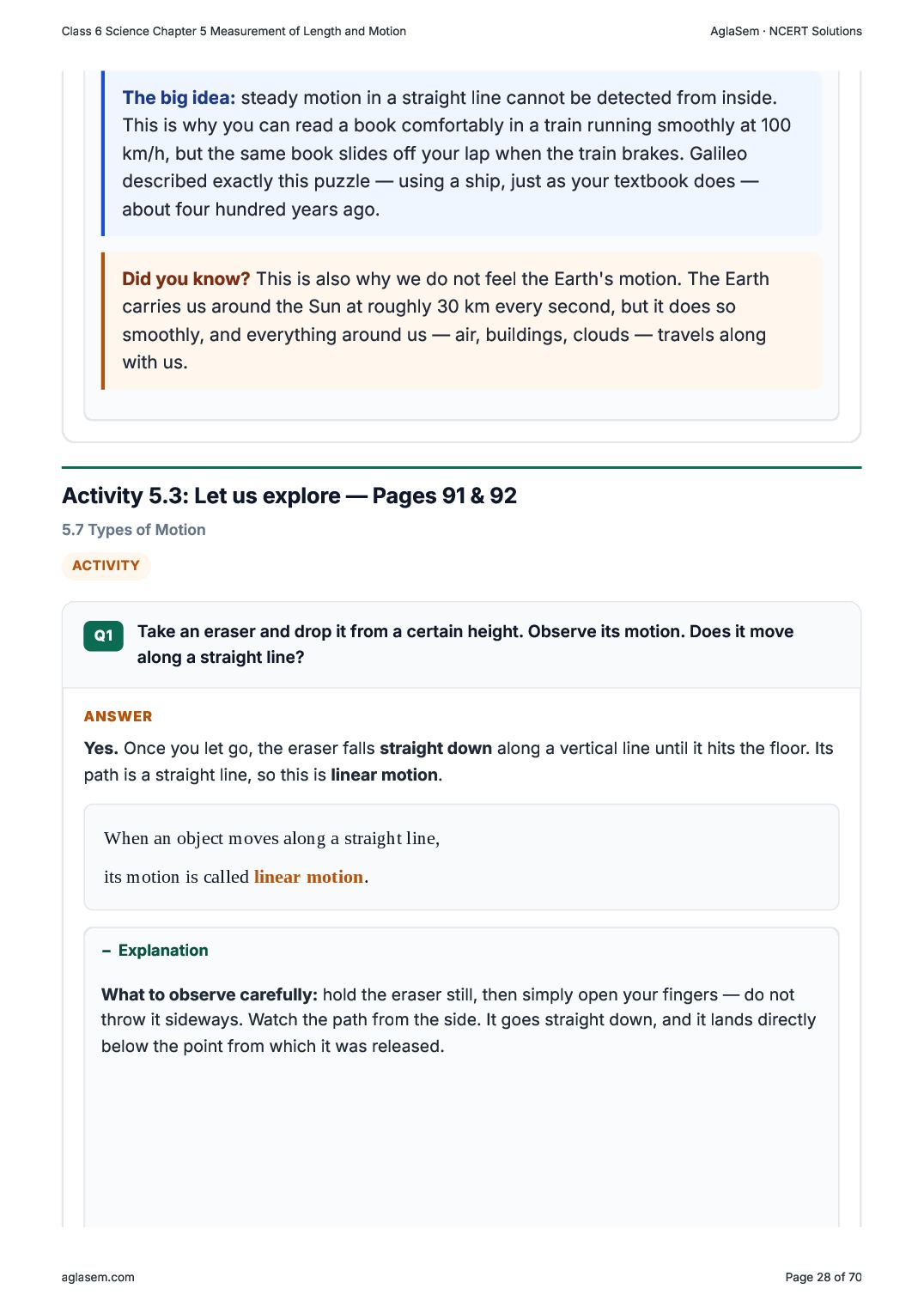

Activity 5.3: Let us explore — Pages 91 & 925.7 Types of Motion

Activity
Q1Take an eraser and drop it from a certain height. Observe its motion. Does it move along a straight line?
Answer

Yes. Once you let go, the eraser falls straight down along a vertical line until it hits the floor. Its path is a straight line, so this is linear motion.

When an object moves along a straight line,
its motion is called linear motion.

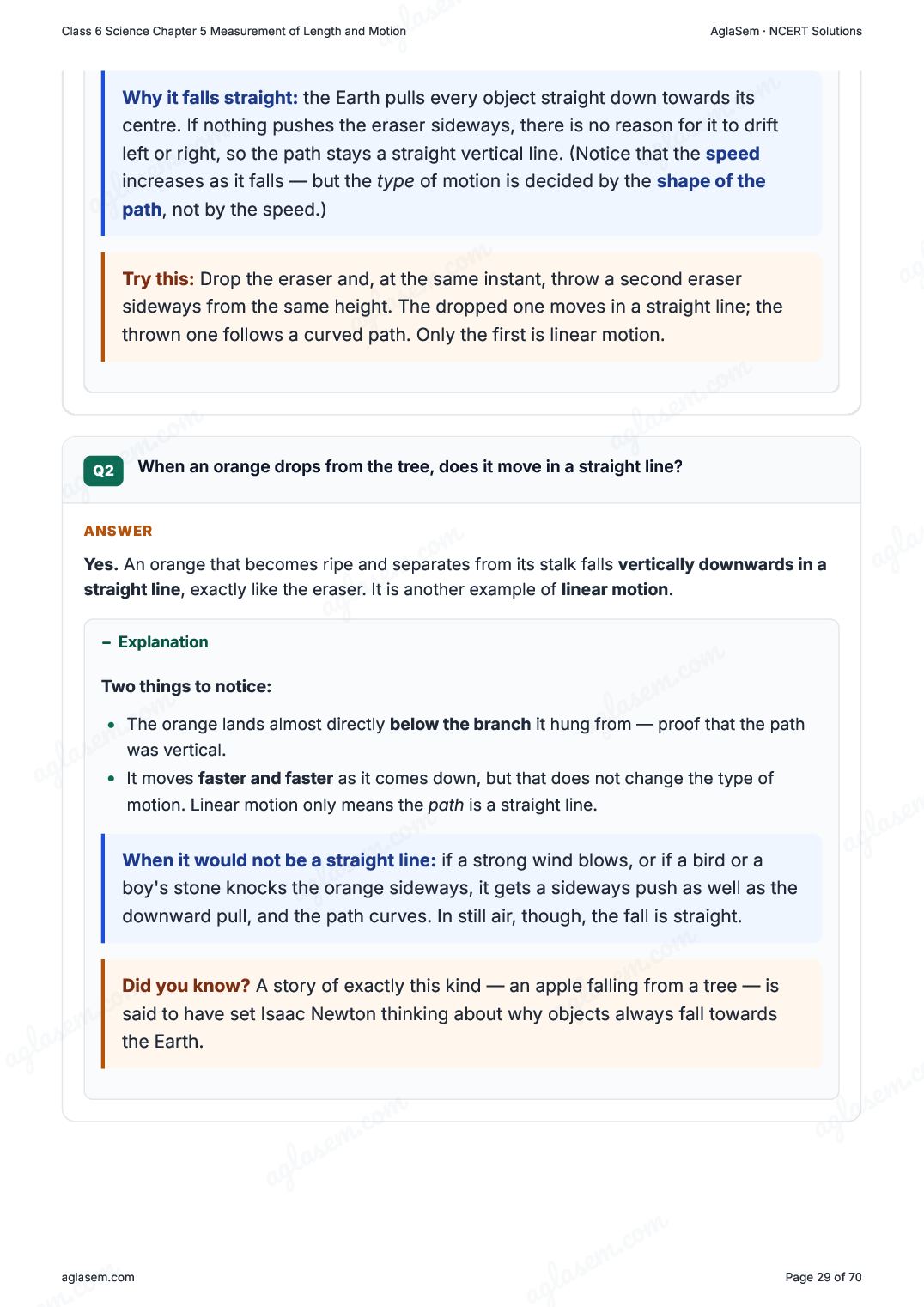

Q2When an orange drops from the tree, does it move in a straight line?
Answer

Yes. An orange that becomes ripe and separates from its stalk falls vertically downwards in a straight line, exactly like the eraser. It is another example of linear motion.

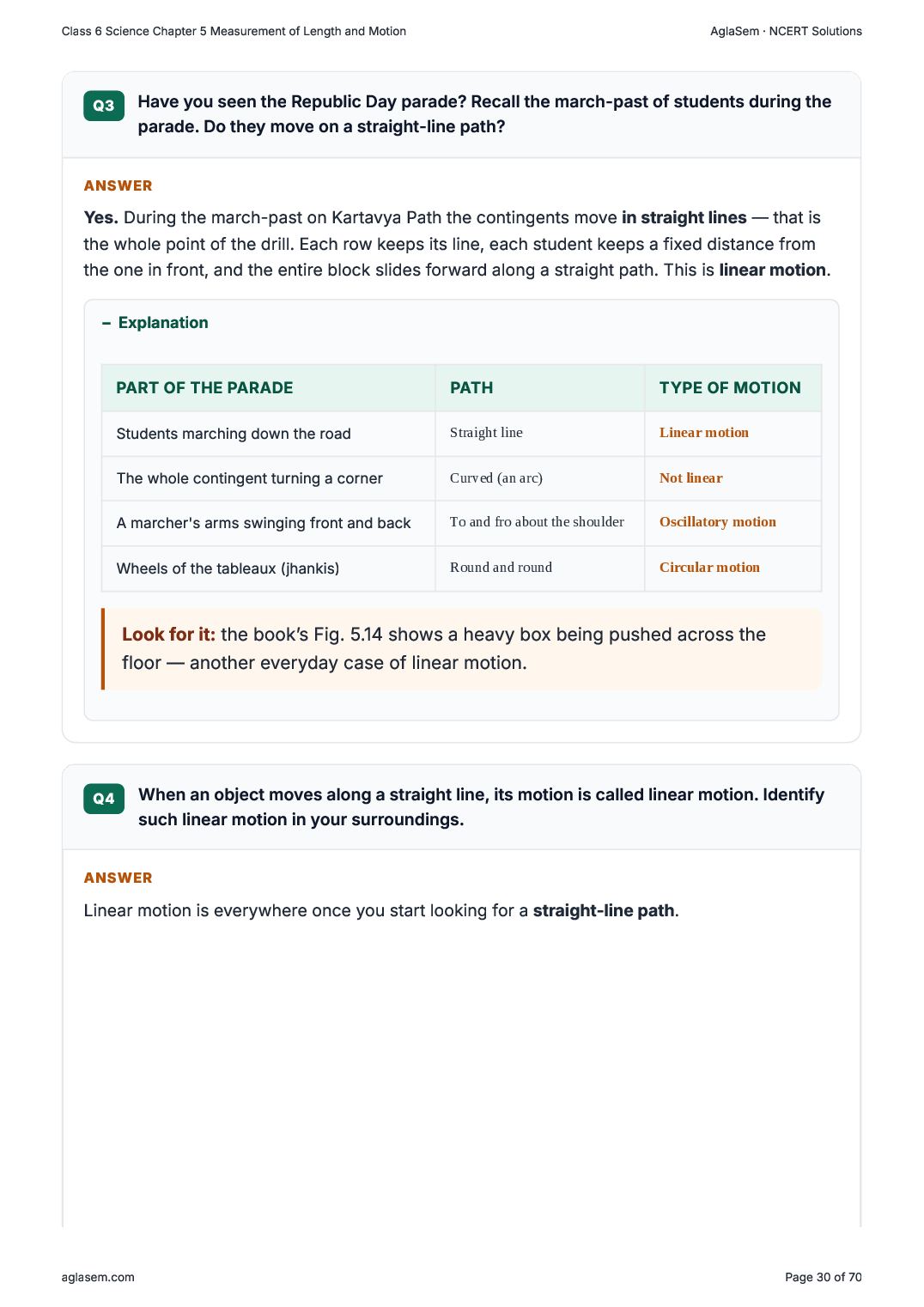

Q3Have you seen the Republic Day parade? Recall the march-past of students during the parade. Do they move on a straight-line path?
Answer

Yes. During the march-past on Kartavya Path the contingents move in straight lines — that is the whole point of the drill. Each row keeps its line, each student keeps a fixed distance from the one in front, and the entire block slides forward along a straight path. This is linear motion.

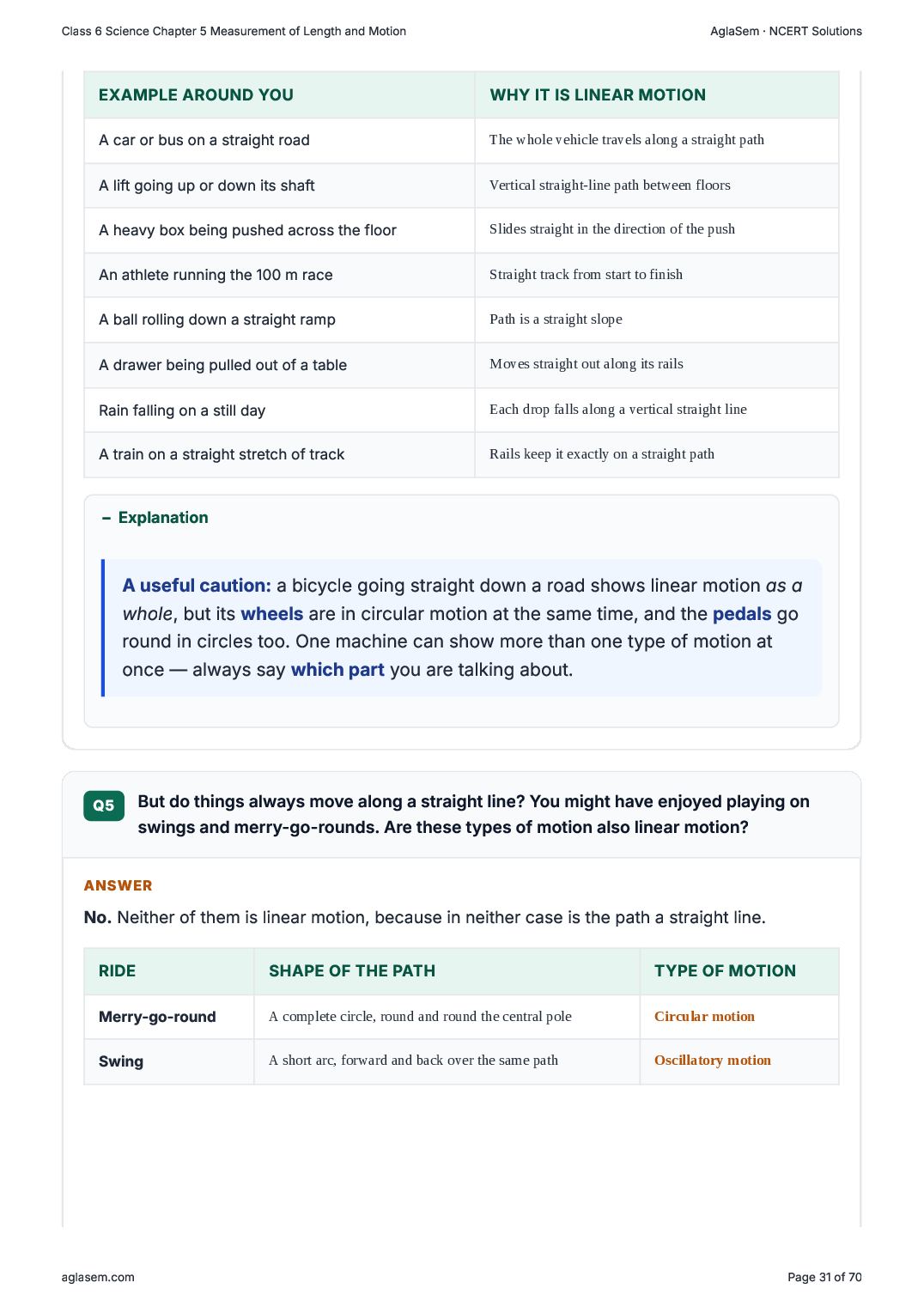

Q4When an object moves along a straight line, its motion is called linear motion. Identify such linear motion in your surroundings.
Answer

Linear motion is everywhere once you start looking for a straight-line path.

Example around youWhy it is linear motion
A car or bus on a straight roadThe whole vehicle travels along a straight path
A lift going up or down its shaftVertical straight-line path between floors
A heavy box being pushed across the floorSlides straight in the direction of the push
An athlete running the 100 m raceStraight track from start to finish
A ball rolling down a straight rampPath is a straight slope
A drawer being pulled out of a tableMoves straight out along its rails
Rain falling on a still dayEach drop falls along a vertical straight line
A train on a straight stretch of trackRails keep it exactly on a straight path

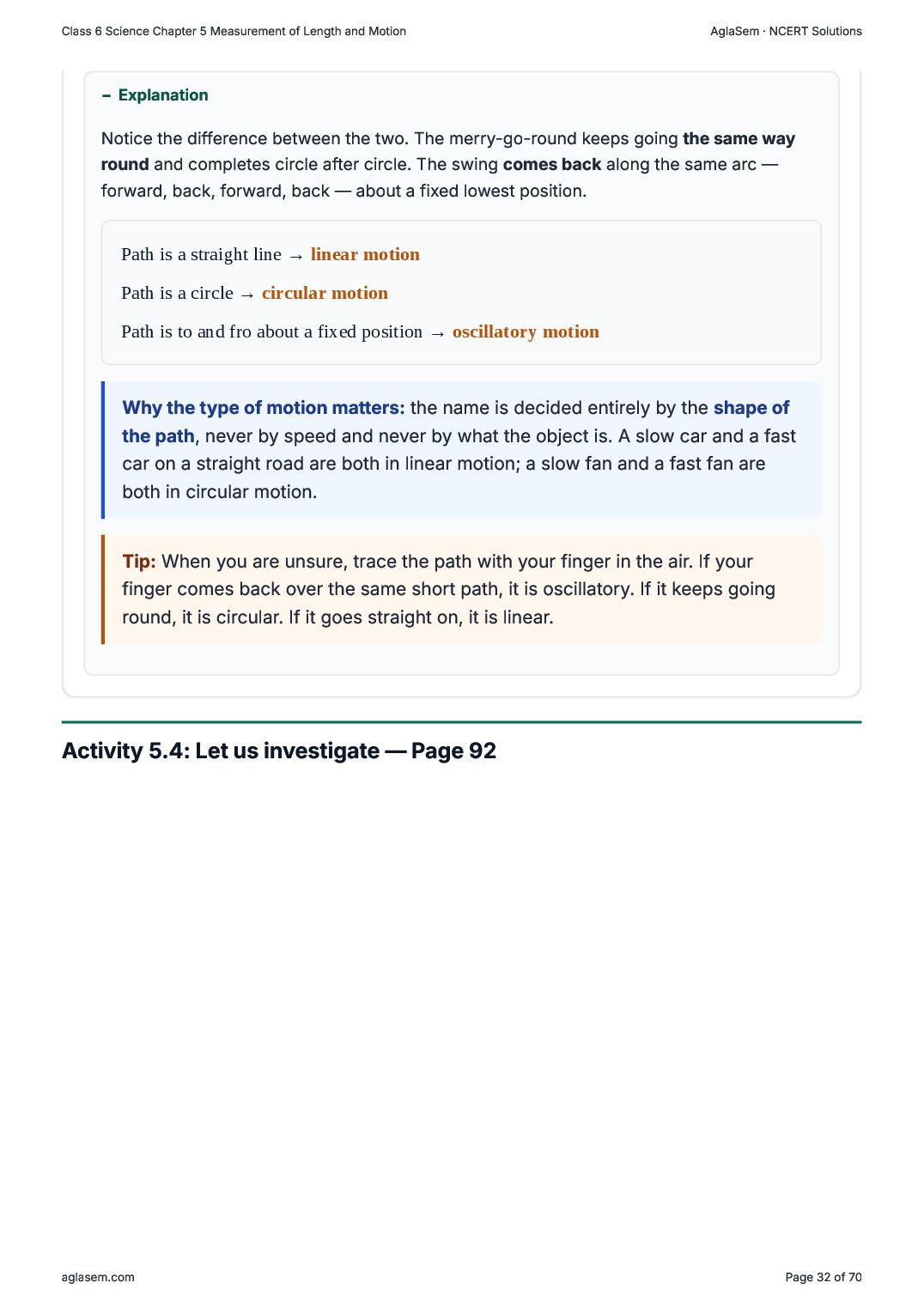

Q5But do things always move along a straight line? You might have enjoyed playing on swings and merry-go-rounds. Are these types of motion also linear motion?
Answer

No. Neither of them is linear motion, because in neither case is the path a straight line.

RideShape of the pathType of motion
Merry-go-roundA complete circle, round and round the central poleCircular motion
SwingA short arc, forward and back over the same pathOscillatory motion

Activity 5.4: Let us investigate — Page 925.7 Types of Motion

Activity

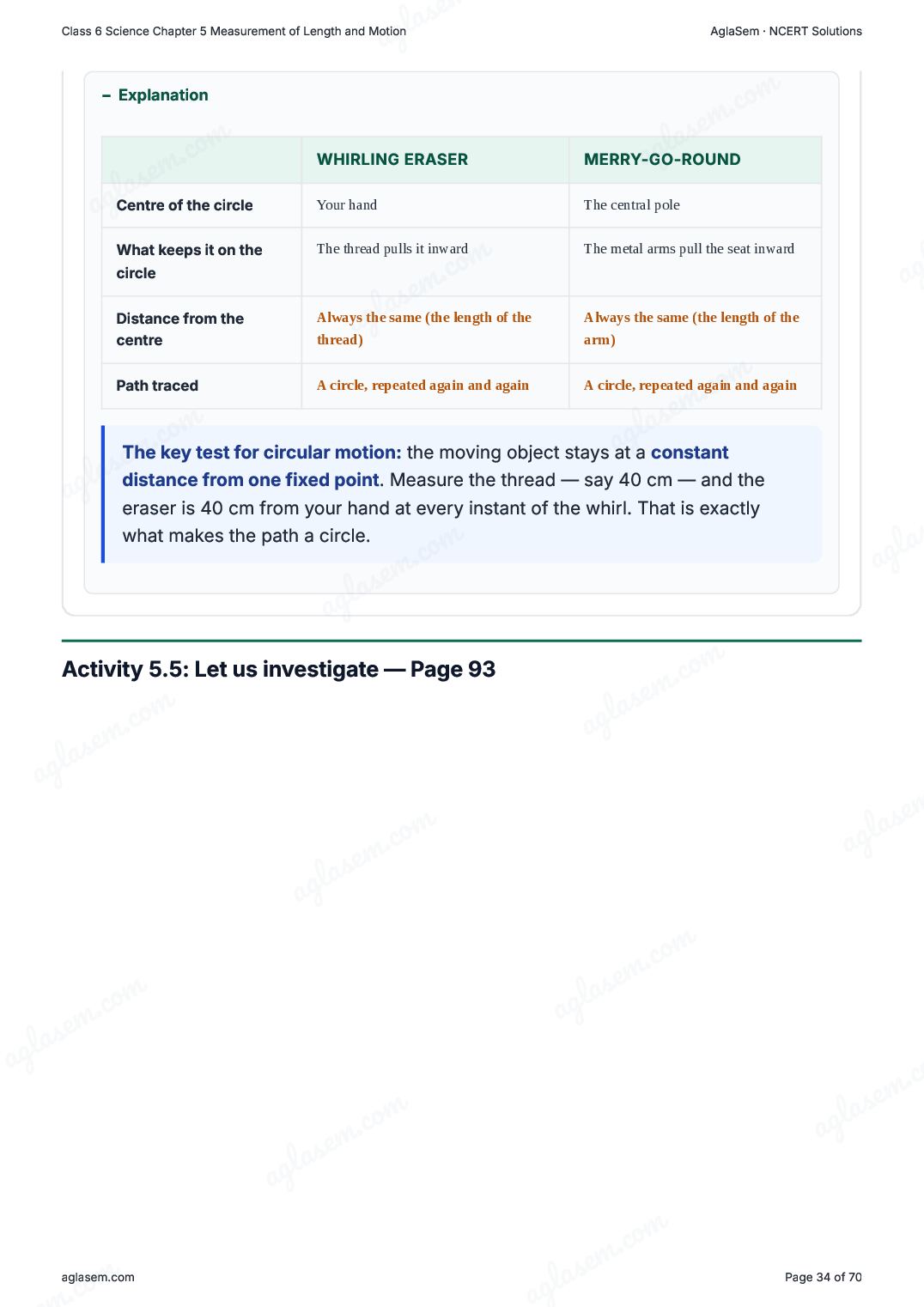

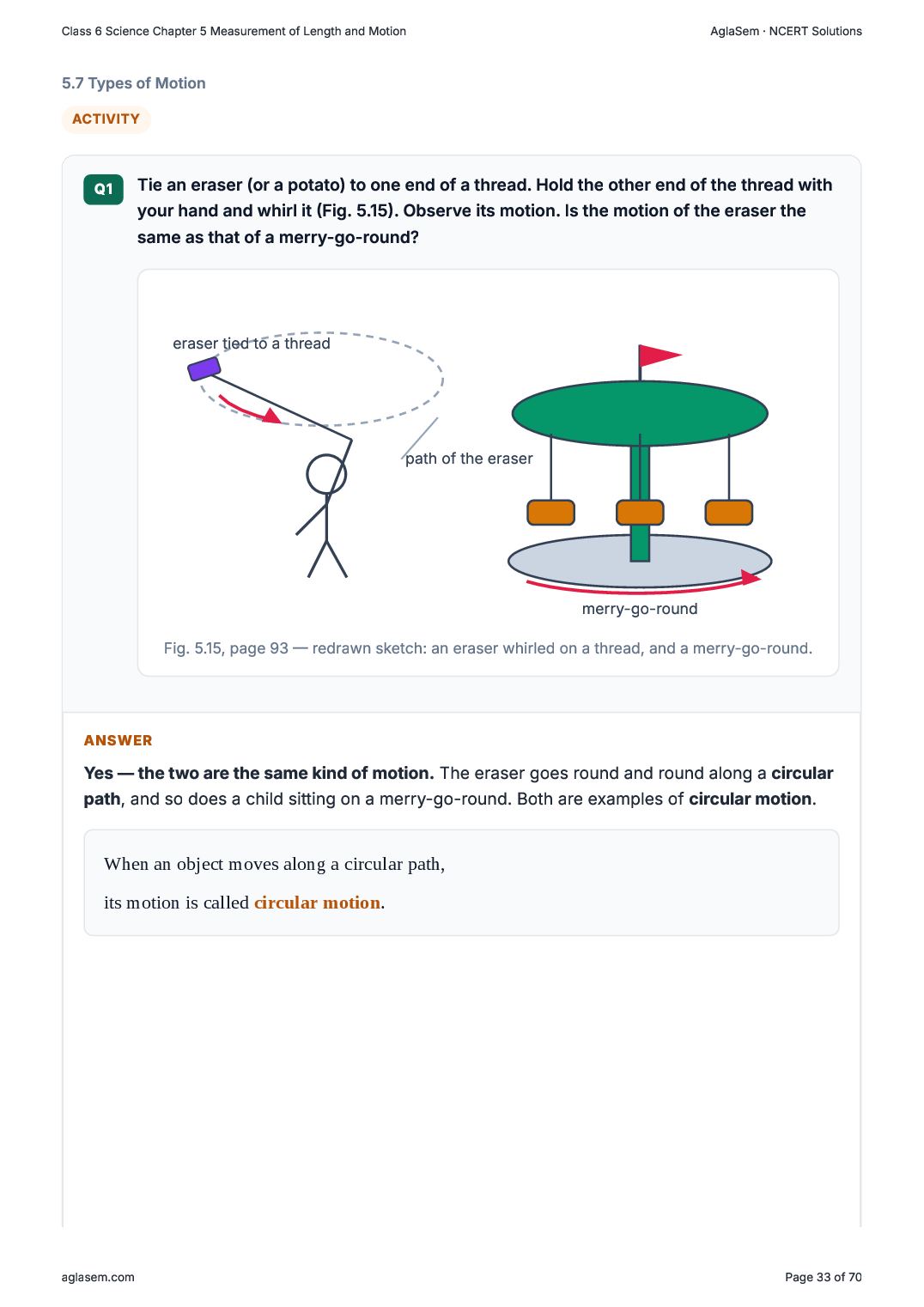

Q1Tie an eraser (or a potato) to one end of a thread. Hold the other end of the thread with your hand and whirl it (Fig. 5.15). Observe its motion. Is the motion of the eraser the same as that of a merry-go-round?
eraser tied to a thread path of the eraser merry-go-round
Fig. 5.15, page 93 — redrawn sketch: an eraser whirled on a thread, and a merry-go-round.
Answer

Yes — the two are the same kind of motion. The eraser goes round and round along a circular path, and so does a child sitting on a merry-go-round. Both are examples of circular motion.

When an object moves along a circular path,
its motion is called circular motion.

Activity 5.5: Let us investigate — Page 935.7 Types of Motion

Activity

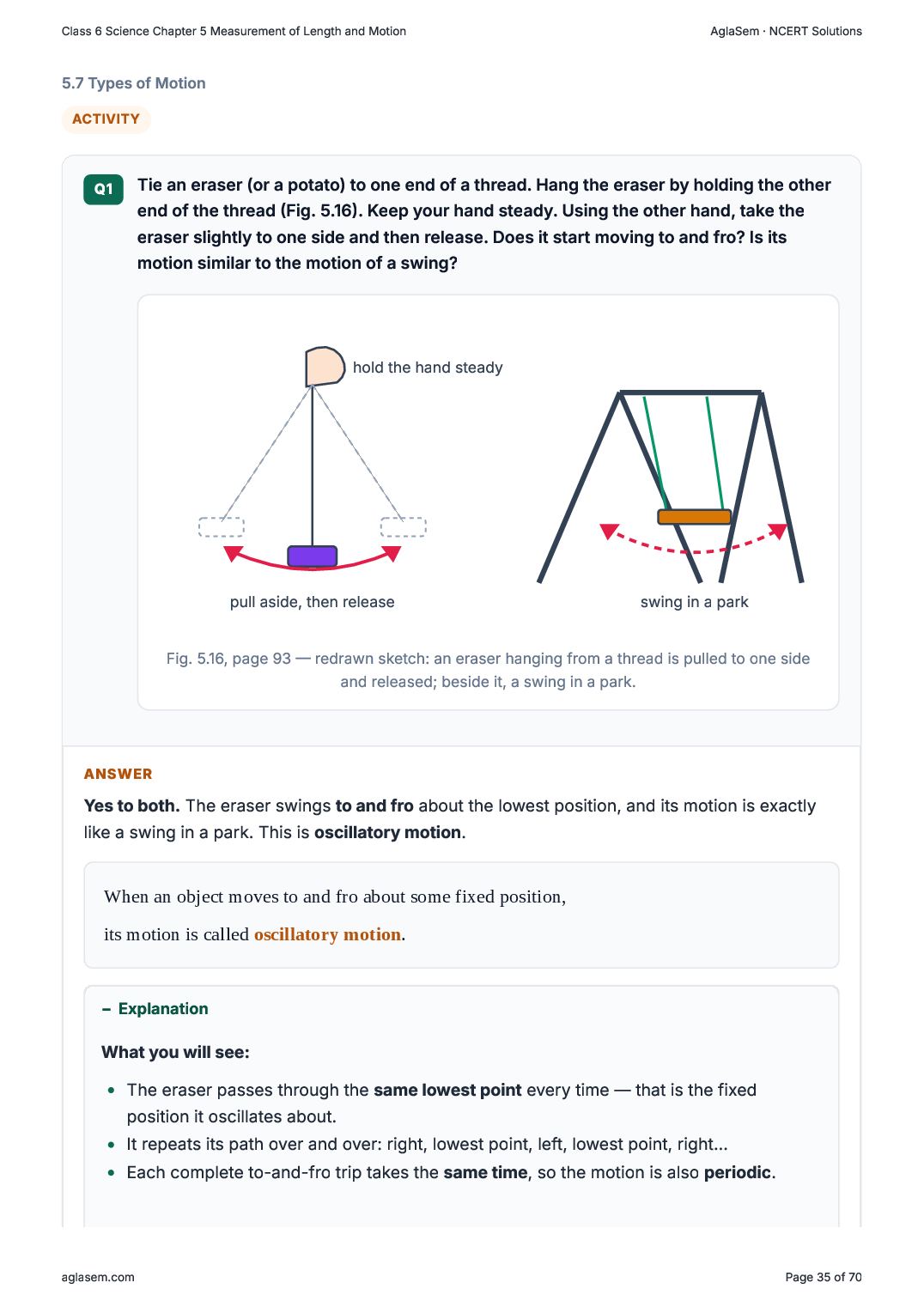

Q1Tie an eraser (or a potato) to one end of a thread. Hang the eraser by holding the other end of the thread (Fig. 5.16). Keep your hand steady. Using the other hand, take the eraser slightly to one side and then release. Does it start moving to and fro? Is its motion similar to the motion of a swing?
hold the hand steady pull aside, then release swing in a park
Fig. 5.16, page 93 — redrawn sketch: an eraser hanging from a thread is pulled to one side and released; beside it, a swing in a park.
Answer

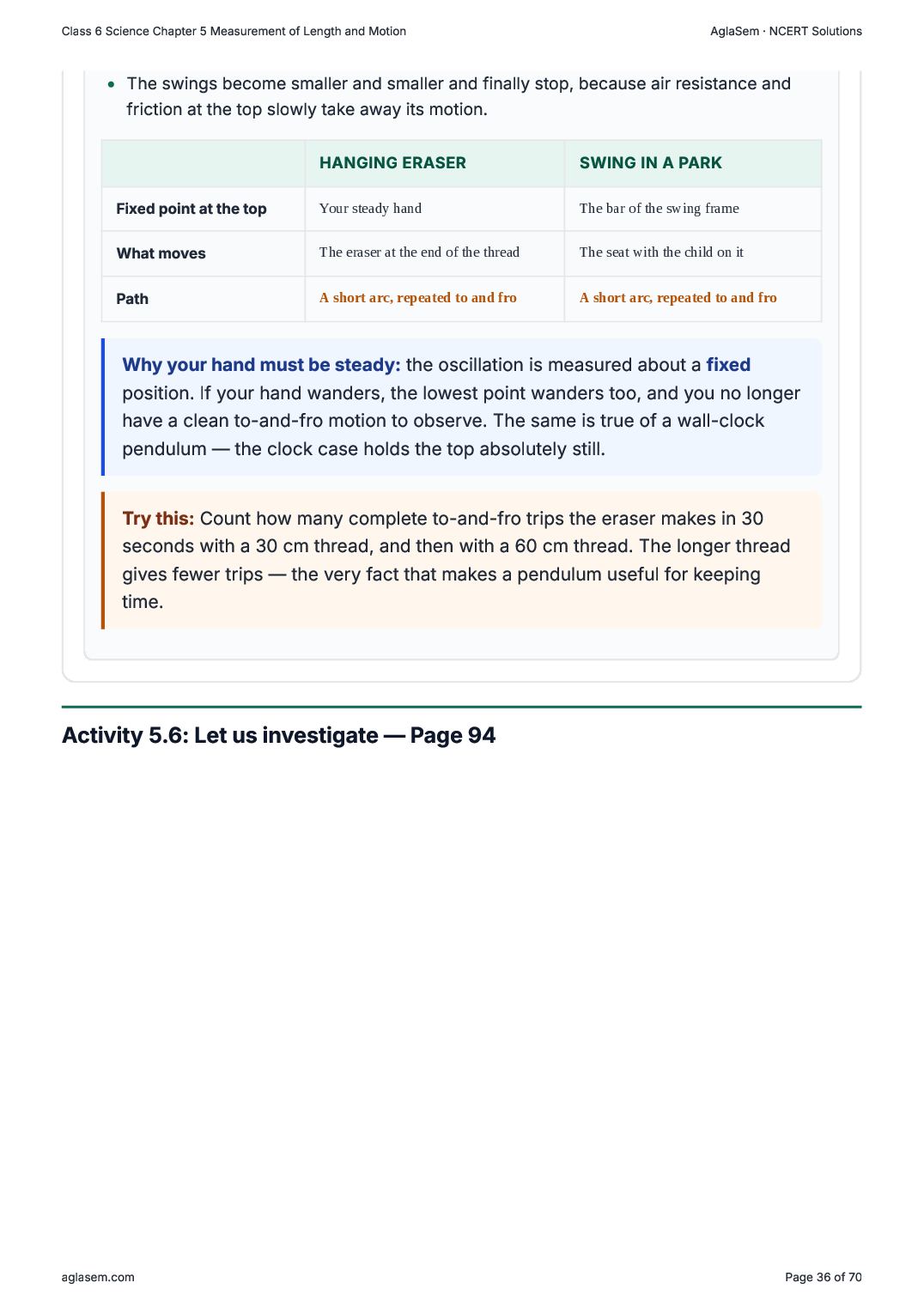

Yes to both. The eraser swings to and fro about the lowest position, and its motion is exactly like a swing in a park. This is oscillatory motion.

When an object moves to and fro about some fixed position,
its motion is called oscillatory motion.

Activity 5.6: Let us investigate — Page 945.7 Types of Motion

Activity

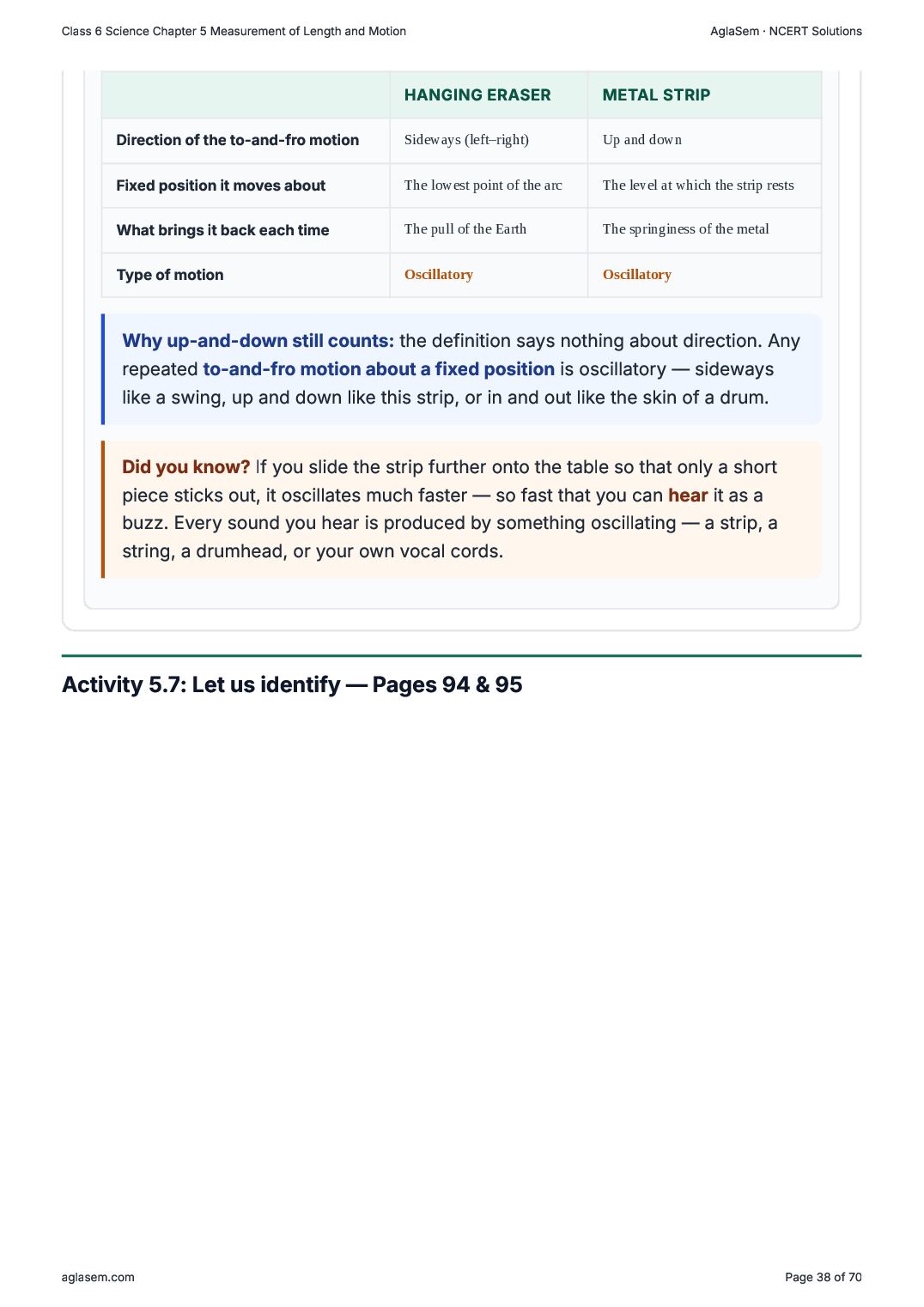

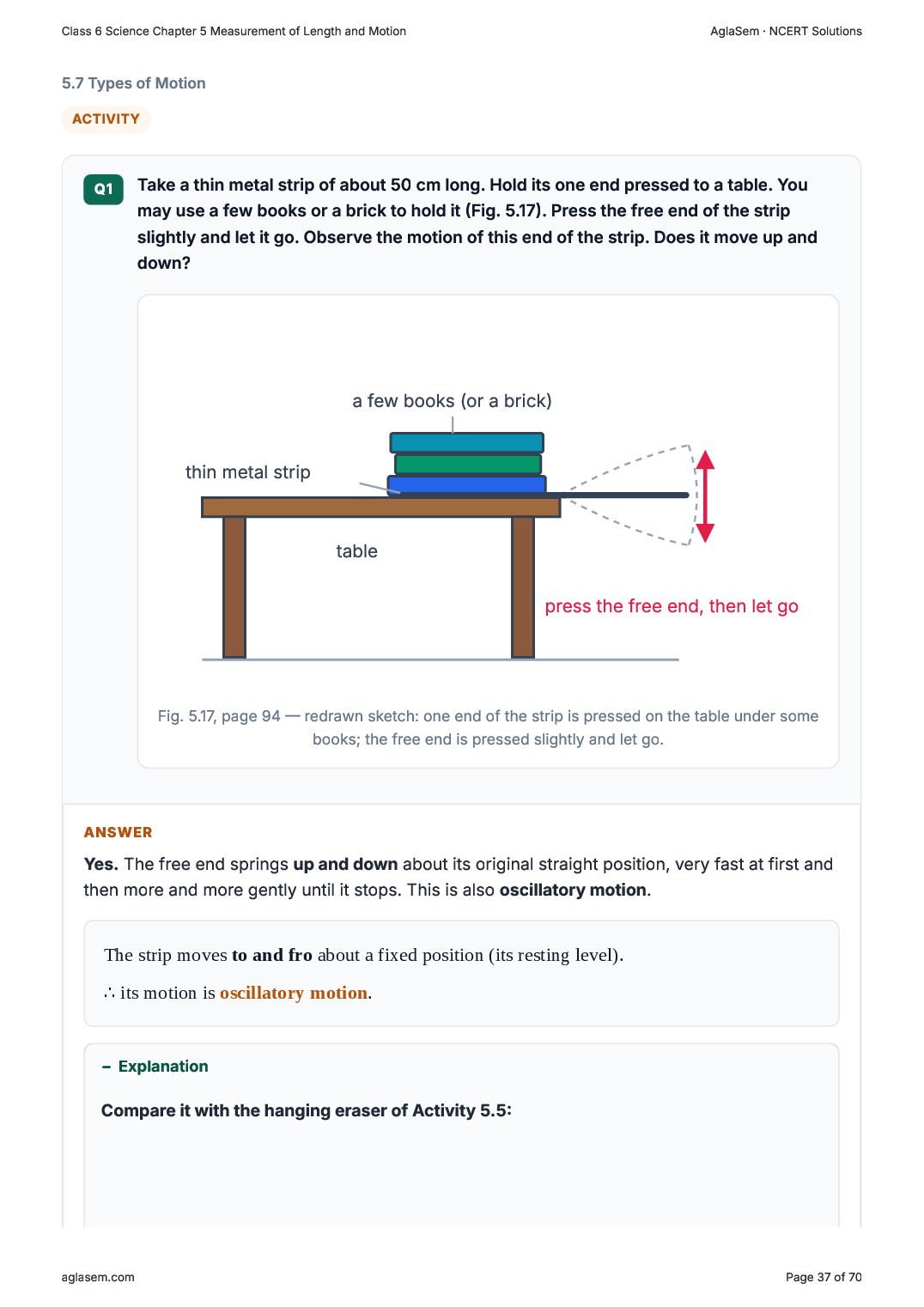

Q1Take a thin metal strip of about 50 cm long. Hold its one end pressed to a table. You may use a few books or a brick to hold it (Fig. 5.17). Press the free end of the strip slightly and let it go. Observe the motion of this end of the strip. Does it move up and down?
a few books (or a brick) table thin metal strip press the free end, then let go
Fig. 5.17, page 94 — redrawn sketch: one end of the strip is pressed on the table under some books; the free end is pressed slightly and let go.
Answer

Yes. The free end springs up and down about its original straight position, very fast at first and then more and more gently until it stops. This is also oscillatory motion.

The strip moves to and fro about a fixed position (its resting level).
∴ its motion is oscillatory motion.

Activity 5.7: Let us identify — Pages 94 & 955.7 Types of Motion

Activity

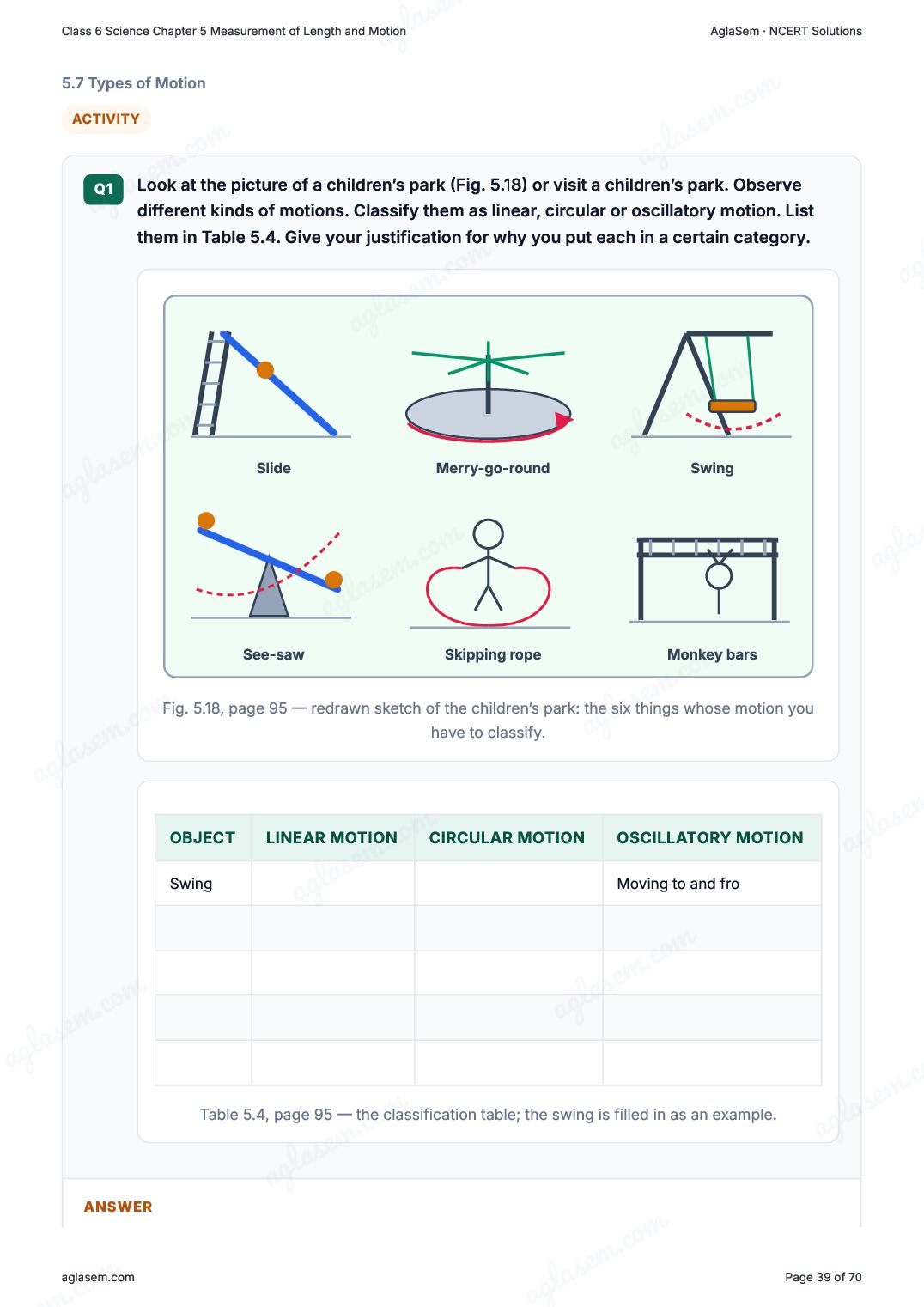

Q1Look at the picture of a children’s park (Fig. 5.18) or visit a children’s park. Observe different kinds of motions. Classify them as linear, circular or oscillatory motion. List them in Table 5.4. Give your justification for why you put each in a certain category.
Slide Merry-go-round Swing See-saw Skipping rope Monkey bars
Fig. 5.18, page 95 — redrawn sketch of the children’s park: the six things whose motion you have to classify.
ObjectLinear motionCircular motionOscillatory motion
Swing  Moving to and fro




Table 5.4, page 95 — the classification table; the swing is filled in as an example.
Answer

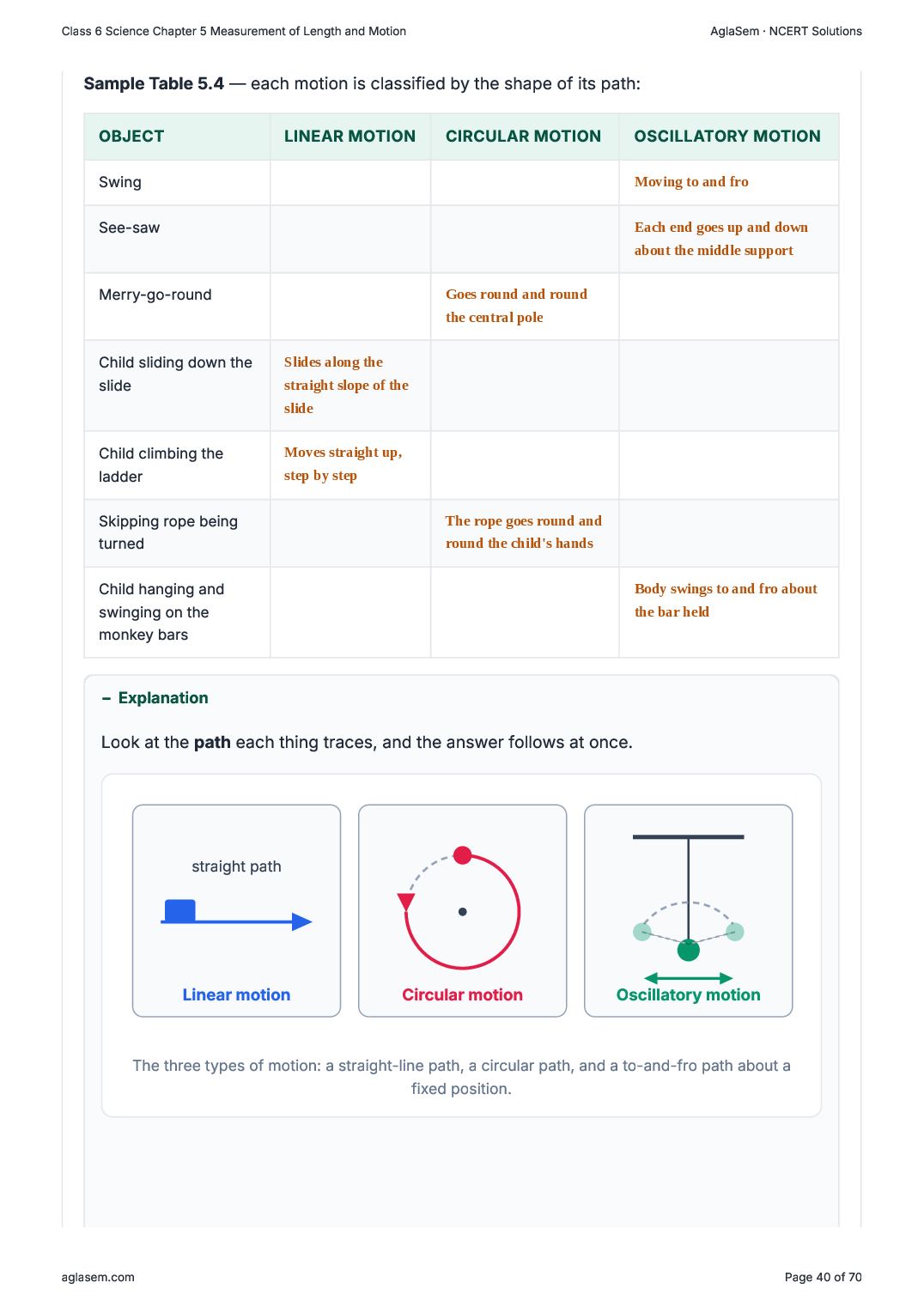

Sample Table 5.4 — each motion is classified by the shape of its path:

ObjectLinear motionCircular motionOscillatory motion
SwingMoving to and fro
See-sawEach end goes up and down about the middle support
Merry-go-roundGoes round and round the central pole
Child sliding down the slideSlides along the straight slope of the slide
Child climbing the ladderMoves straight up, step by step
Skipping rope being turnedThe rope goes round and round the child’s hands
Child hanging and swinging on the monkey barsBody swings to and fro about the bar held

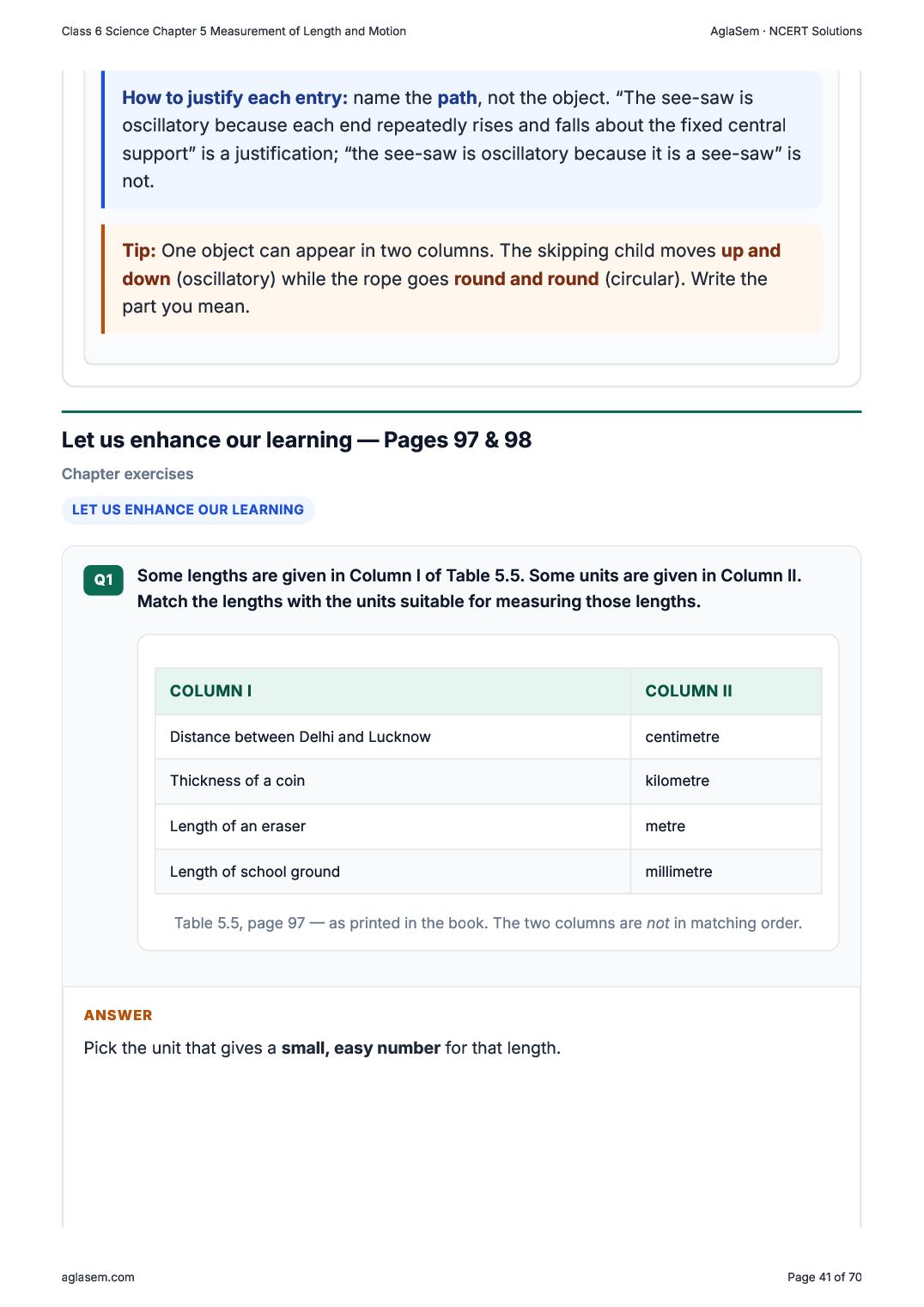

Let us enhance our learning — Pages 97 & 98Chapter exercises

Let us enhance our learning

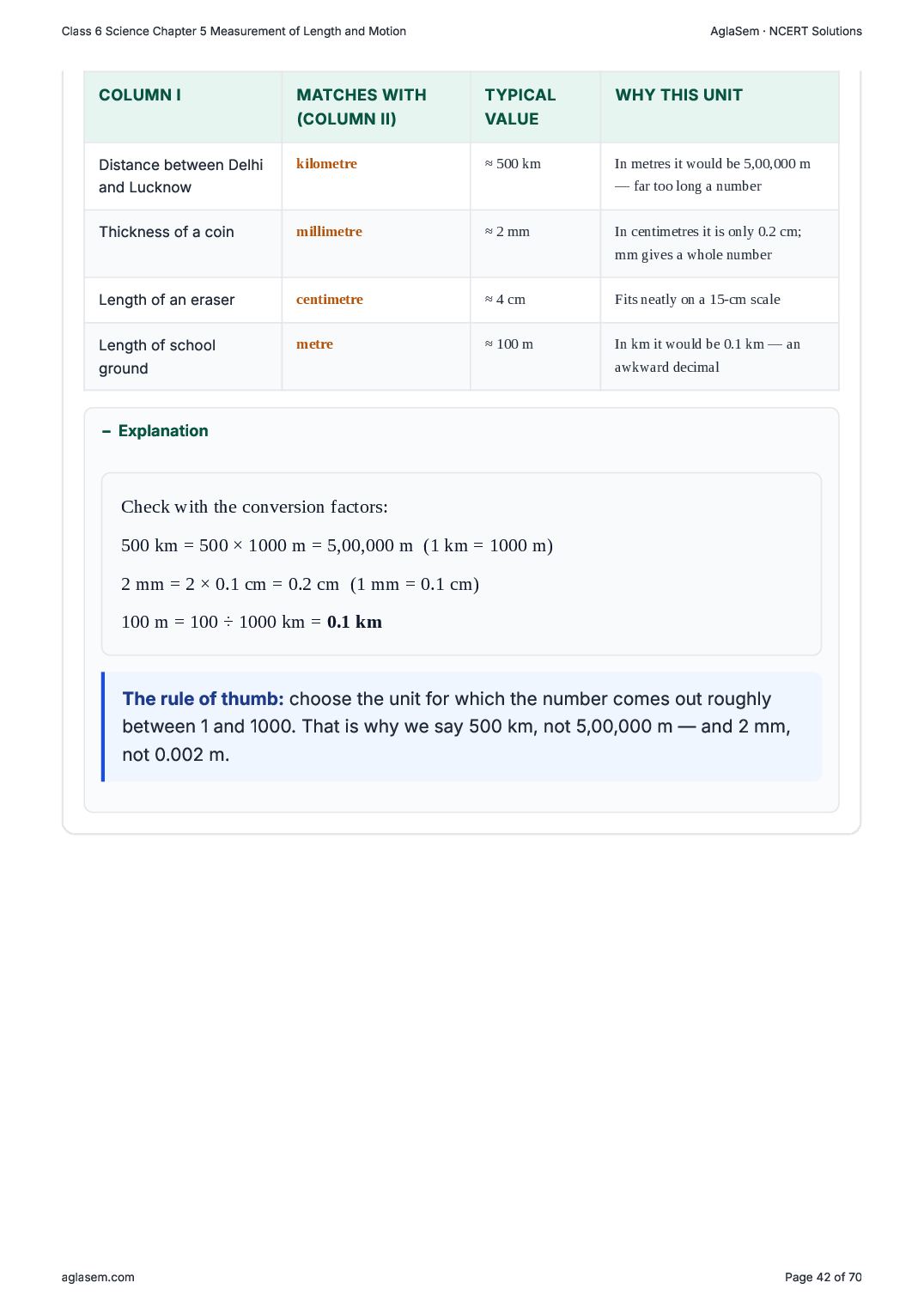

Q1Some lengths are given in Column I of Table 5.5. Some units are given in Column II. Match the lengths with the units suitable for measuring those lengths.
Column IColumn II
Distance between Delhi and Lucknowcentimetre
Thickness of a coinkilometre
Length of an erasermetre
Length of school groundmillimetre
Table 5.5, page 97 — as printed in the book. The two columns are not in matching order.
Answer

Pick the unit that gives a small, easy number for that length.

Column IMatches with (Column II)Typical valueWhy this unit
Distance between Delhi and Lucknowkilometre≈ 500 kmIn metres it would be 5,00,000 m — far too long a number
Thickness of a coinmillimetre≈ 2 mmIn centimetres it is only 0.2 cm; mm gives a whole number
Length of an erasercentimetre≈ 4 cmFits neatly on a 15-cm scale
Length of school groundmetre≈ 100 mIn km it would be 0.1 km — an awkward decimal

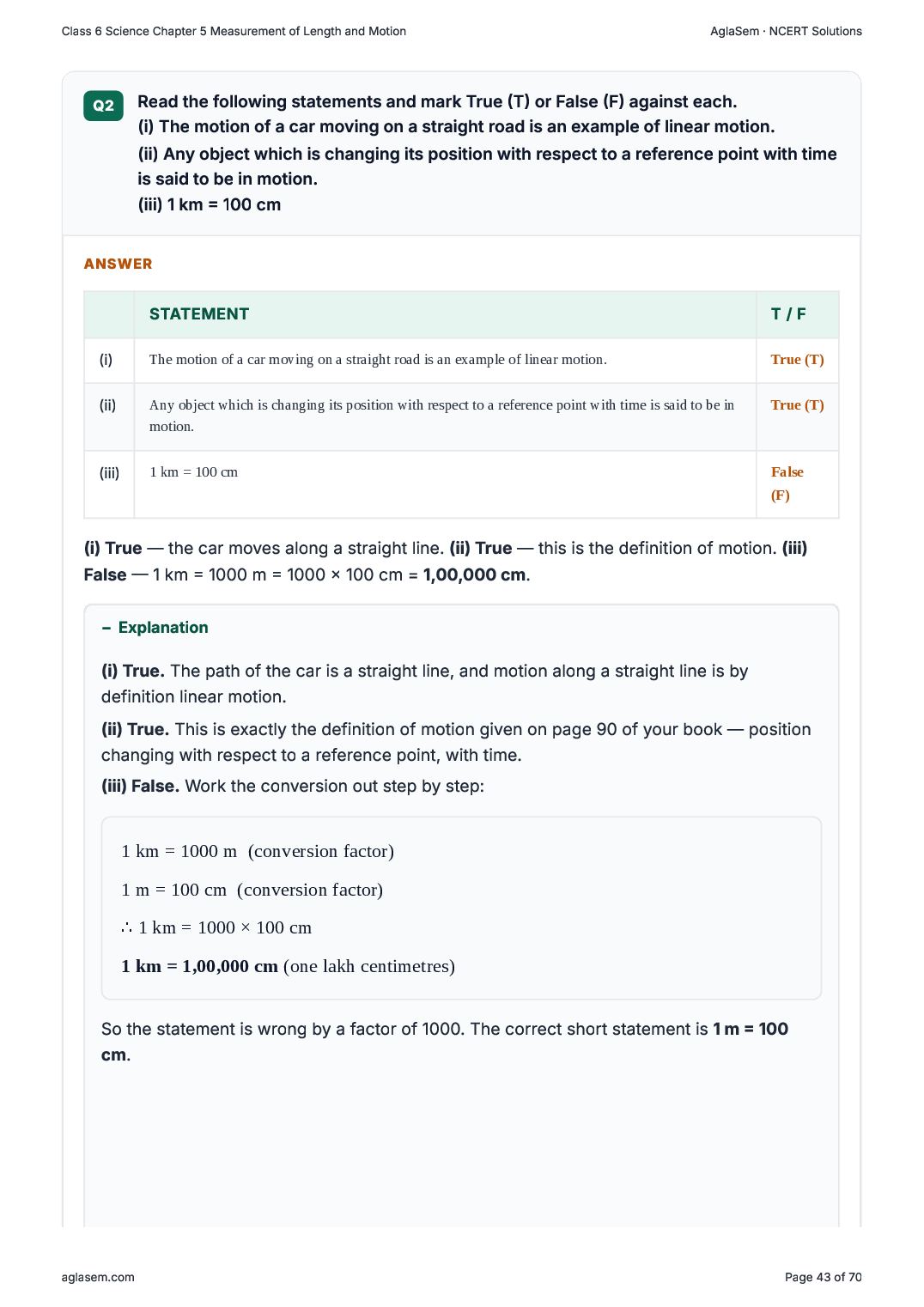

Q2Read the following statements and mark True (T) or False (F) against each.
(i) The motion of a car moving on a straight road is an example of linear motion.
(ii) Any object which is changing its position with respect to a reference point with time is said to be in motion.
(iii) 1 km = 100 cm
Answer
StatementT / F
(i)The motion of a car moving on a straight road is an example of linear motion.True (T)
(ii)Any object which is changing its position with respect to a reference point with time is said to be in motion.True (T)
(iii)1 km = 100 cmFalse (F)

(i) True — the car moves along a straight line. (ii) True — this is the definition of motion. (iii) False — 1 km = 1000 m = 1000 × 100 cm = 1,00,000 cm.

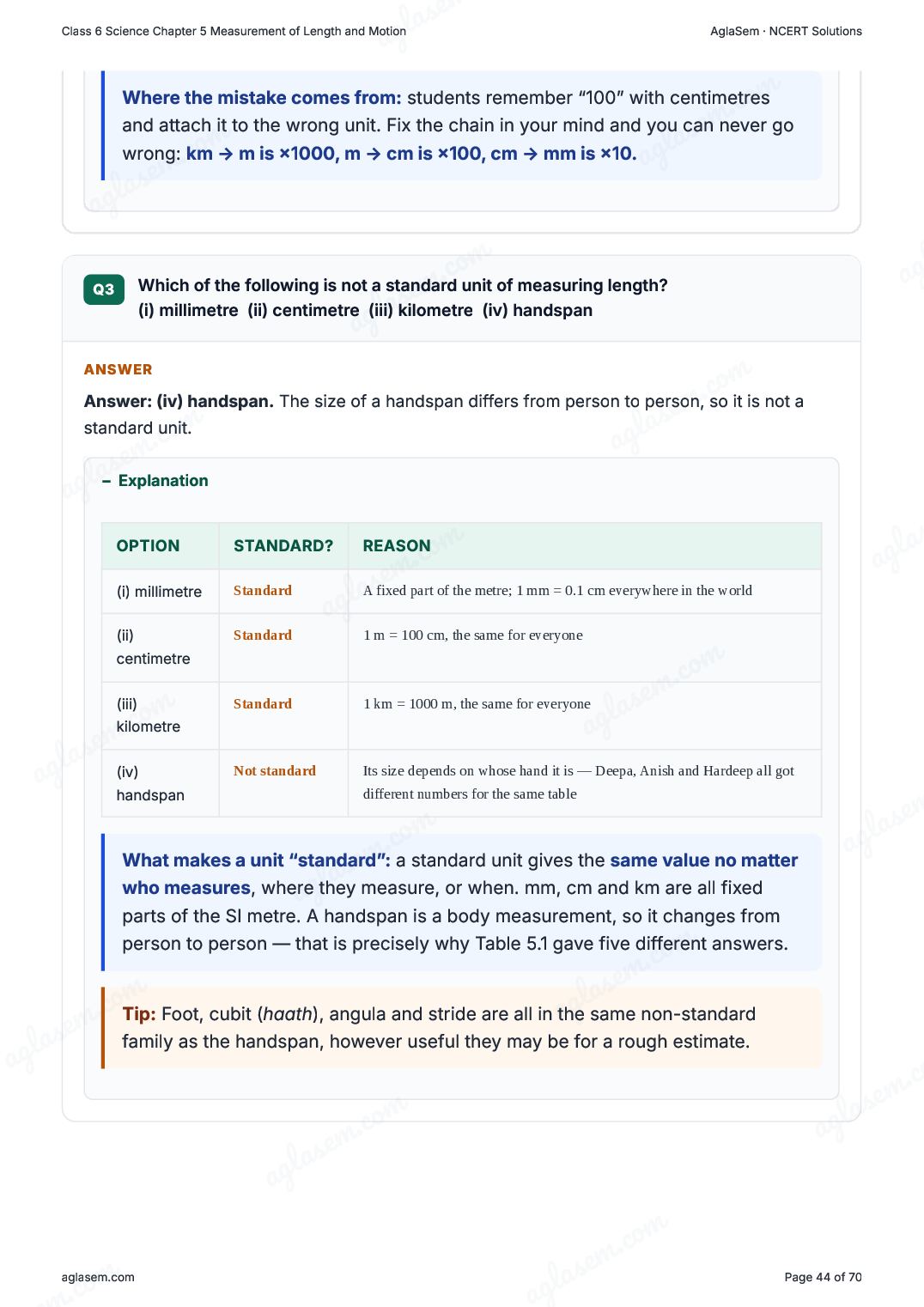

Q3Which of the following is not a standard unit of measuring length?
(i) millimetre  (ii) centimetre  (iii) kilometre  (iv) handspan
Answer

Answer: (iv) handspan. The size of a handspan differs from person to person, so it is not a standard unit.

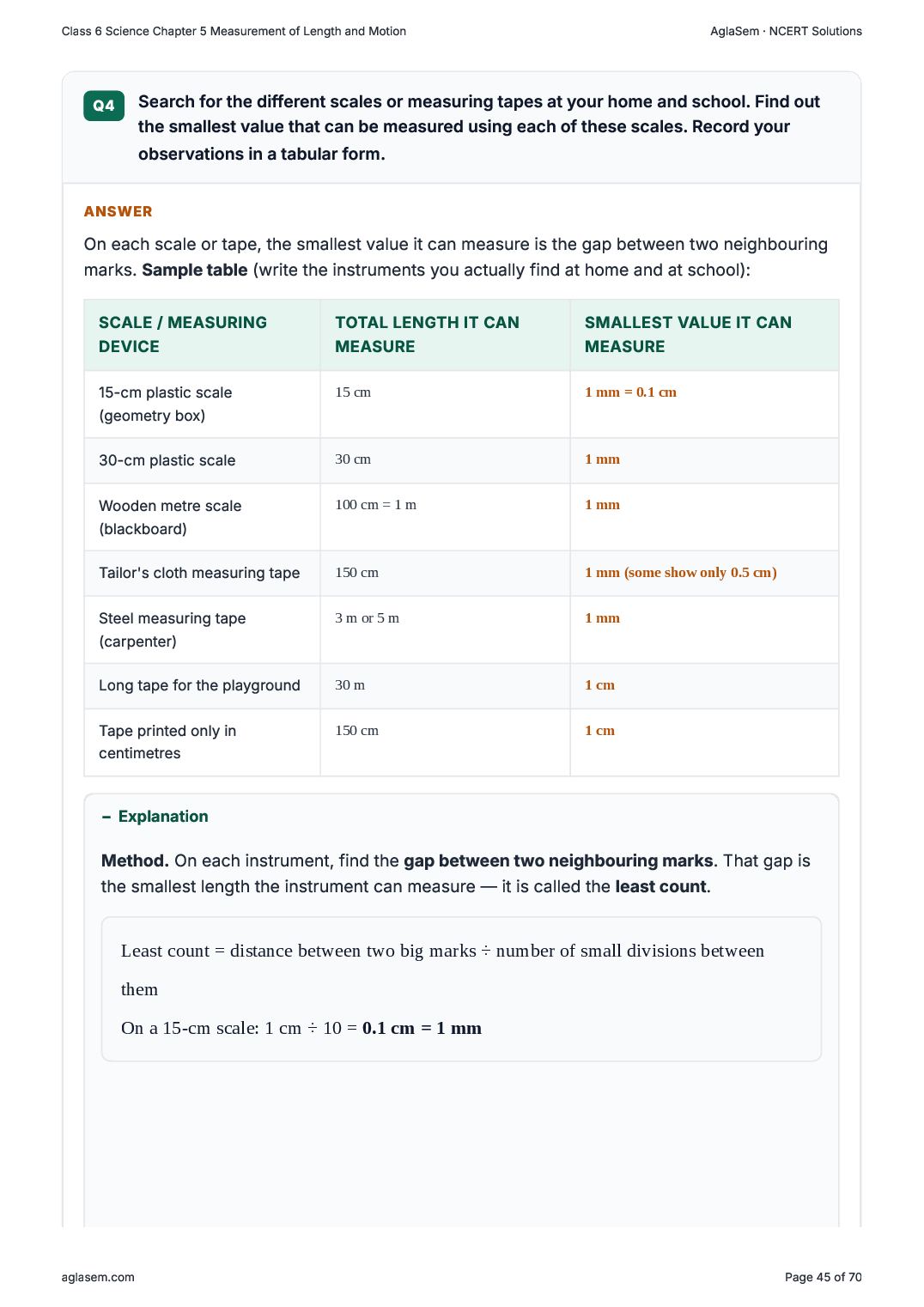

Q4Search for the different scales or measuring tapes at your home and school. Find out the smallest value that can be measured using each of these scales. Record your observations in a tabular form.
Answer

On each scale or tape, the smallest value it can measure is the gap between two neighbouring marks. Sample table (write the instruments you actually find at home and at school):

Scale / measuring deviceTotal length it can measureSmallest value it can measure
15-cm plastic scale (geometry box)15 cm1 mm = 0.1 cm
30-cm plastic scale30 cm1 mm
Wooden metre scale (blackboard)100 cm = 1 m1 mm
Tailor’s cloth measuring tape150 cm1 mm (some show only 0.5 cm)
Steel measuring tape (carpenter)3 m or 5 m1 mm
Long tape for the playground30 m1 cm
Tape printed only in centimetres150 cm1 cm

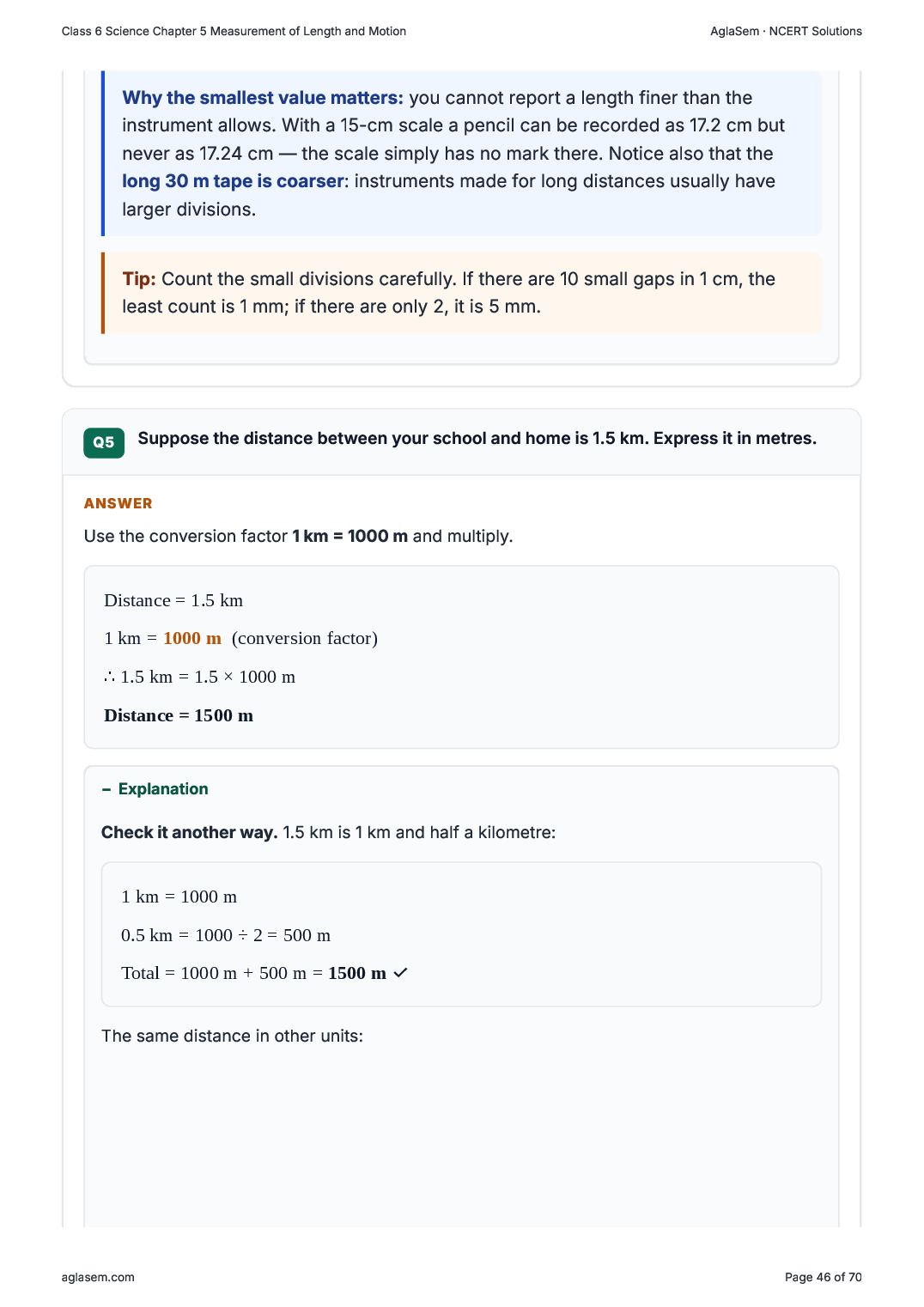

Q5Suppose the distance between your school and home is 1.5 km. Express it in metres.
Answer

Use the conversion factor 1 km = 1000 m and multiply.

Distance = 1.5 km
1 km = 1000 m  (conversion factor)
∴ 1.5 km = 1.5 × 1000 m
Distance = 1500 m

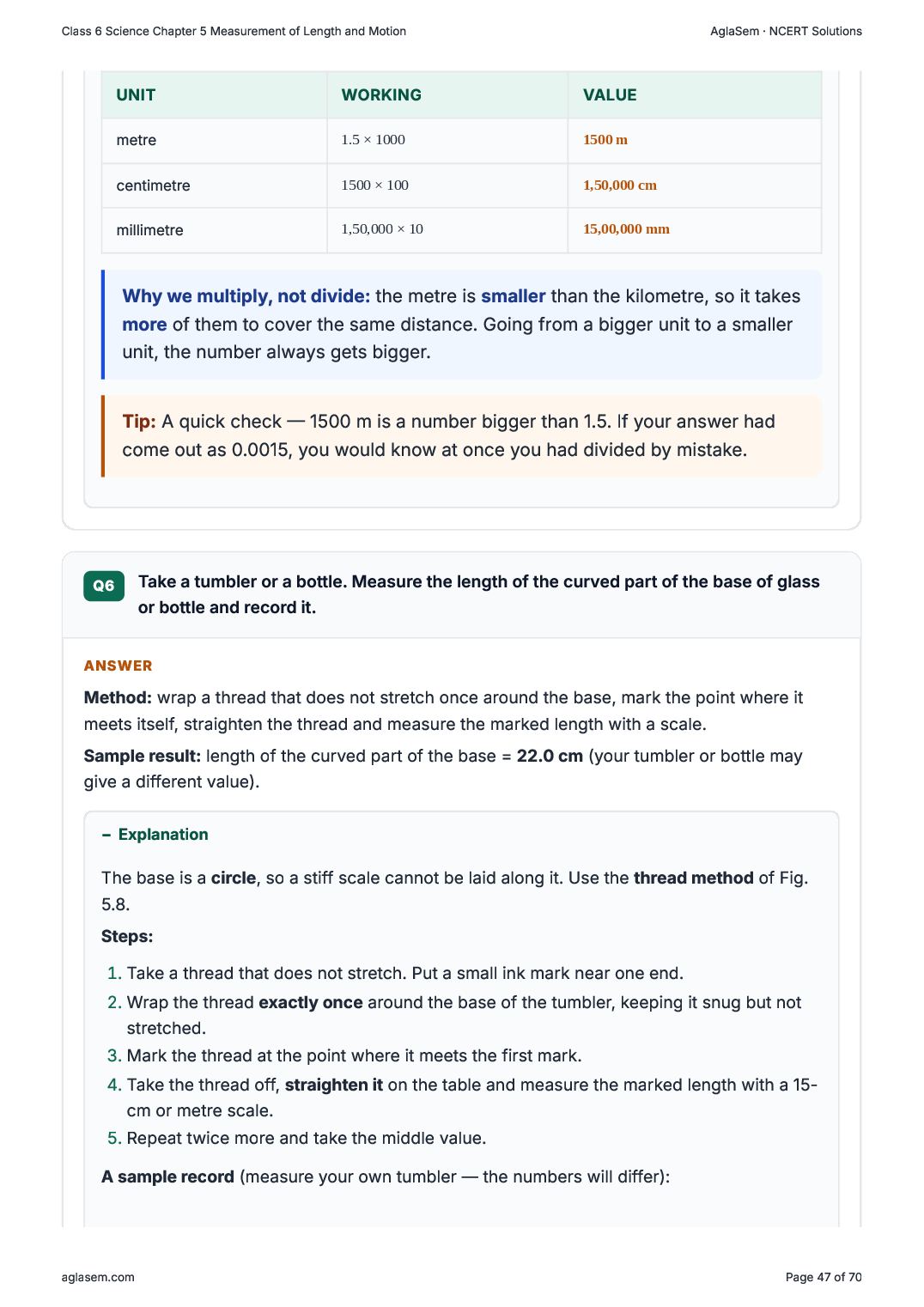

Q6Take a tumbler or a bottle. Measure the length of the curved part of the base of glass or bottle and record it.
Answer

Method: wrap a thread that does not stretch once around the base, mark the point where it meets itself, straighten the thread and measure the marked length with a scale.

Sample result: length of the curved part of the base = 22.0 cm (your tumbler or bottle may give a different value).

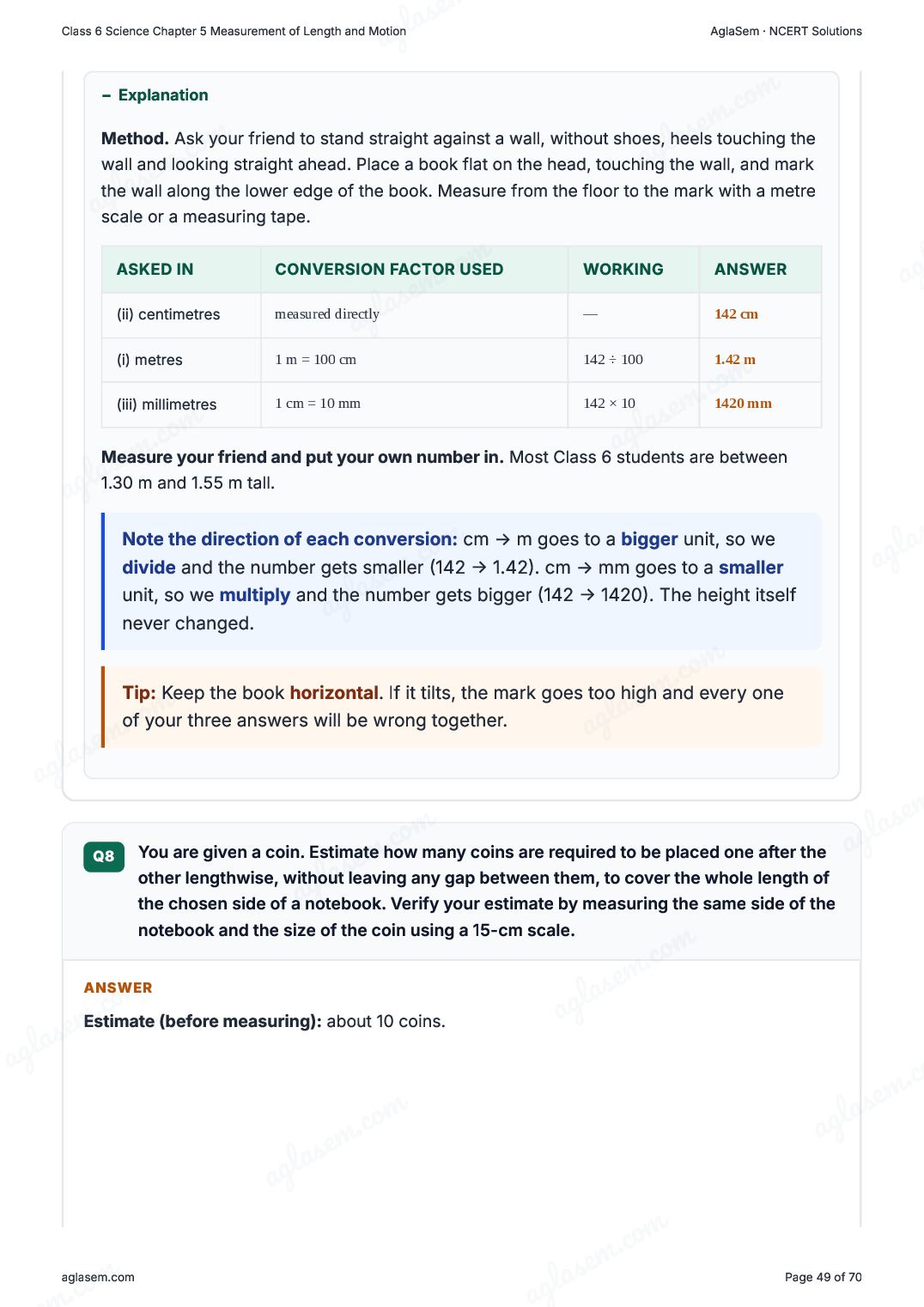

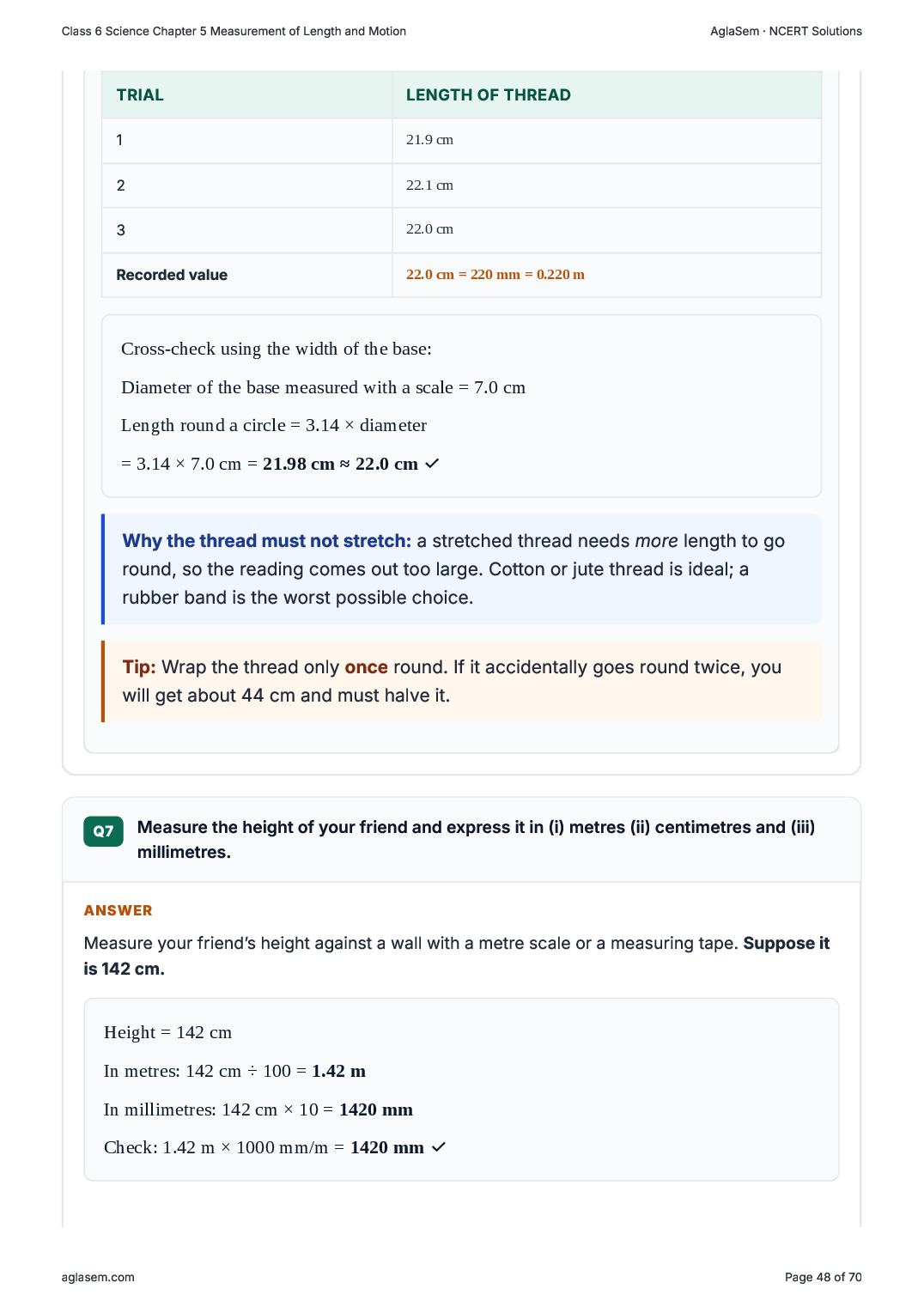

Q7Measure the height of your friend and express it in (i) metres (ii) centimetres and (iii) millimetres.
Answer

Measure your friend’s height against a wall with a metre scale or a measuring tape. Suppose it is 142 cm.

Height = 142 cm
In metres: 142 cm ÷ 100 = 1.42 m
In millimetres: 142 cm × 10 = 1420 mm
Check: 1.42 m × 1000 mm/m = 1420 mm ✓

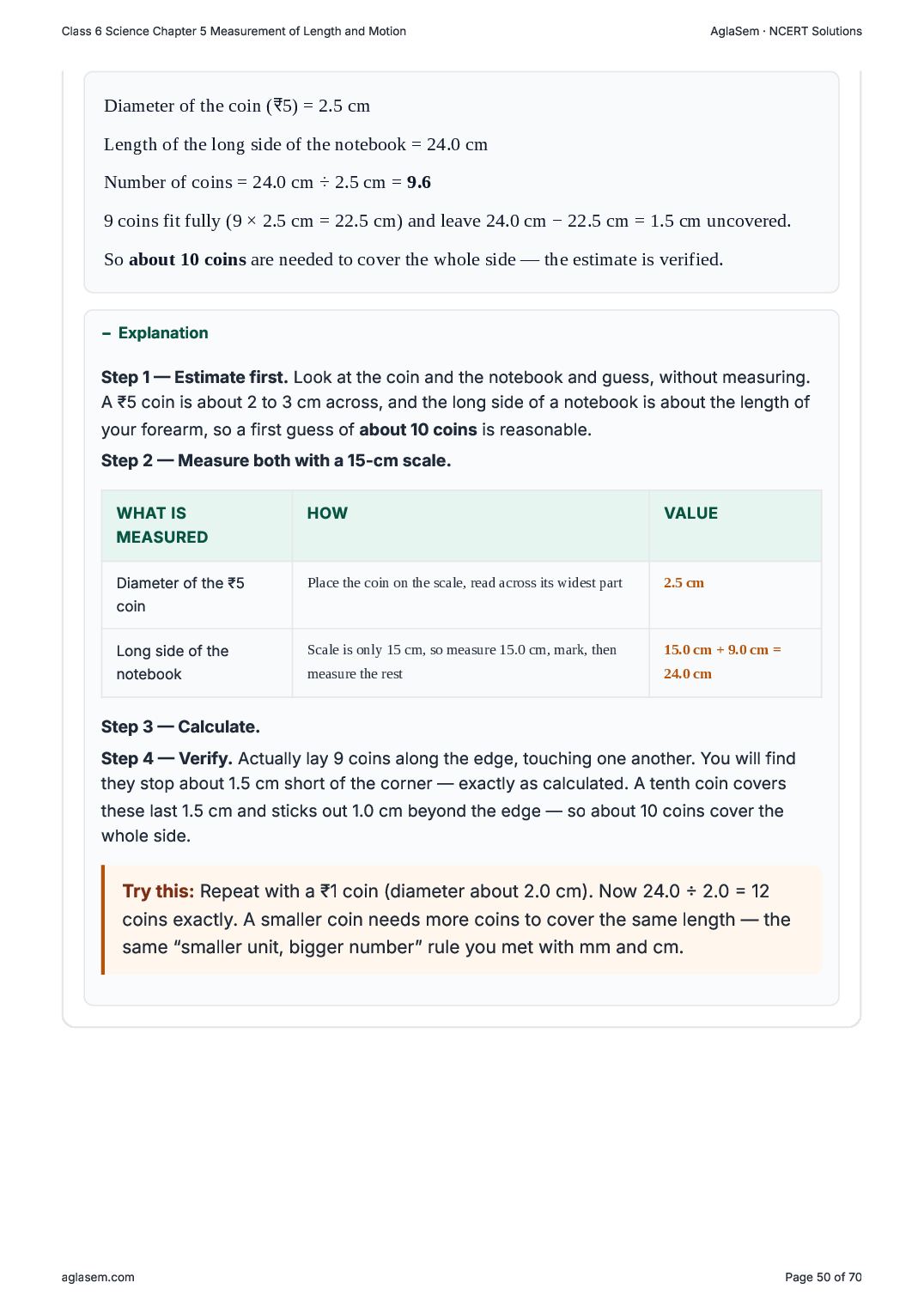

Q8You are given a coin. Estimate how many coins are required to be placed one after the other lengthwise, without leaving any gap between them, to cover the whole length of the chosen side of a notebook. Verify your estimate by measuring the same side of the notebook and the size of the coin using a 15-cm scale.
Answer

Estimate (before measuring): about 10 coins.

Diameter of the coin (₹5) = 2.5 cm
Length of the long side of the notebook = 24.0 cm
Number of coins = 24.0 cm ÷ 2.5 cm = 9.6
9 coins fit fully (9 × 2.5 cm = 22.5 cm) and leave 24.0 cm − 22.5 cm = 1.5 cm uncovered.
So about 10 coins are needed to cover the whole side — the estimate is verified.

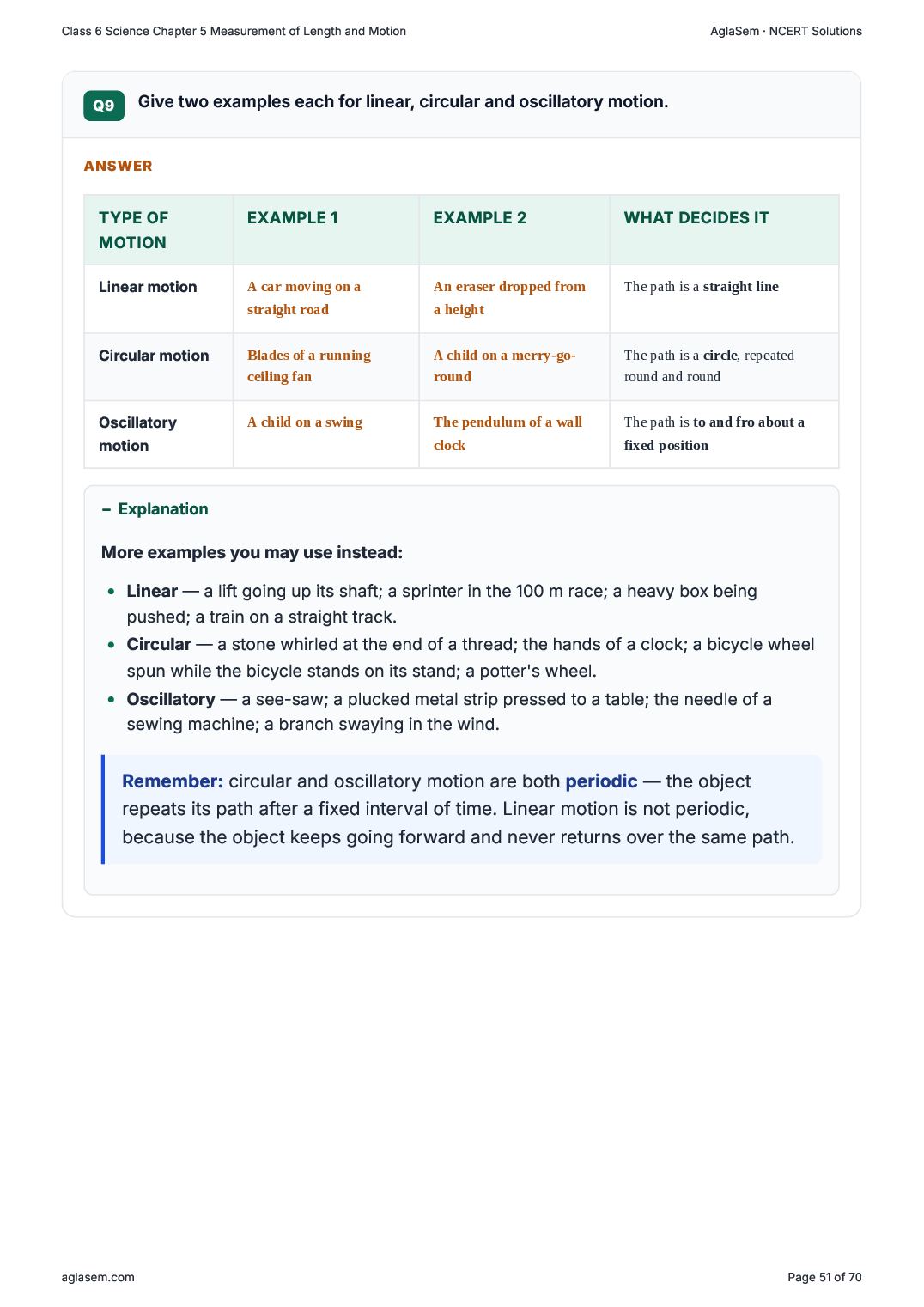

Q9Give two examples each for linear, circular and oscillatory motion.
Answer
Type of motionExample 1Example 2What decides it
Linear motionA car moving on a straight roadAn eraser dropped from a heightThe path is a straight line
Circular motionBlades of a running ceiling fanA child on a merry-go-roundThe path is a circle, repeated round and round
Oscillatory motionA child on a swingThe pendulum of a wall clockThe path is to and fro about a fixed position

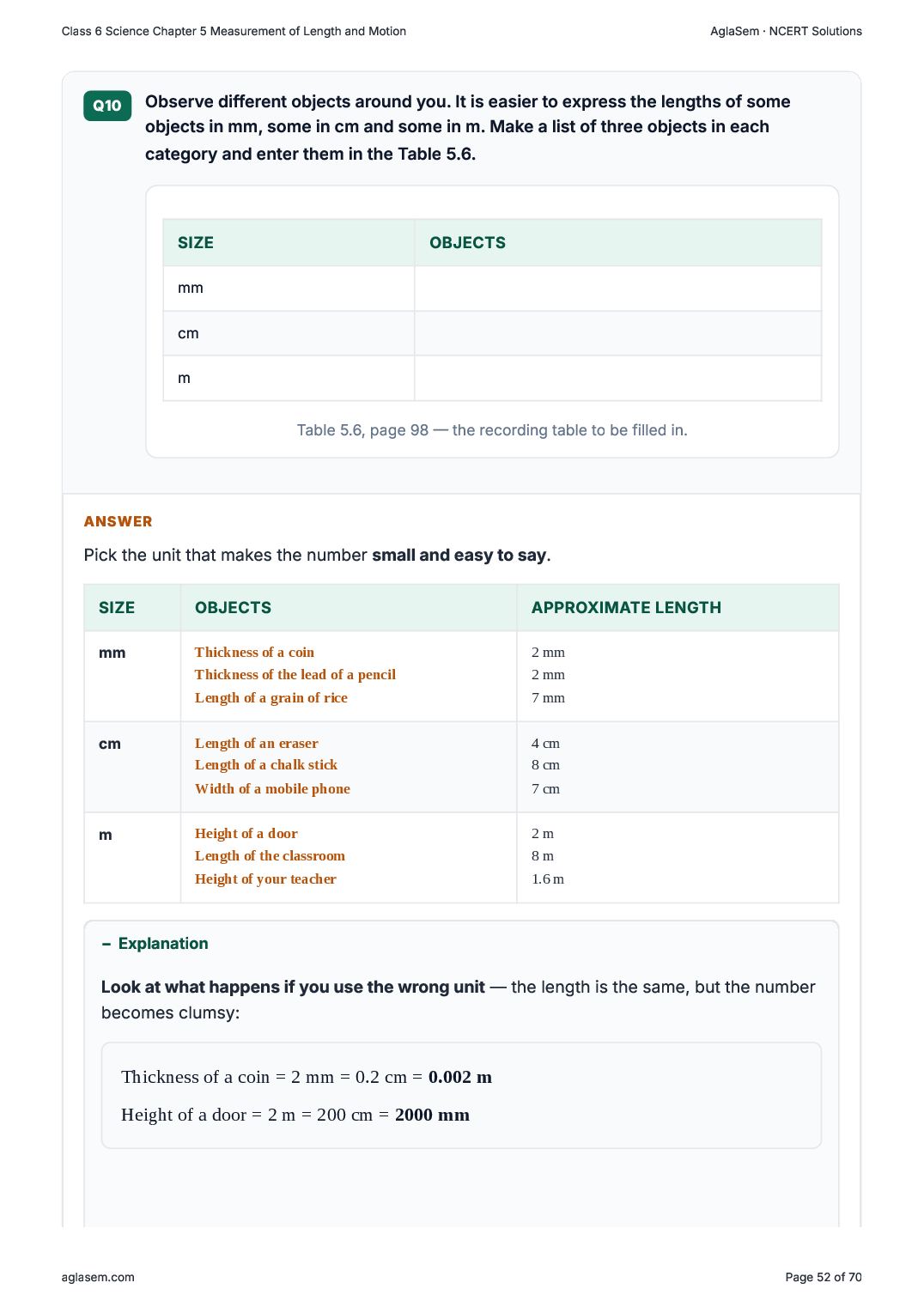

Q10Observe different objects around you. It is easier to express the lengths of some objects in mm, some in cm and some in m. Make a list of three objects in each category and enter them in the Table 5.6.
SizeObjects
mm
cm
m
Table 5.6, page 98 — the recording table to be filled in.
Answer

Pick the unit that makes the number small and easy to say.

SizeObjectsApproximate length
mmThickness of a coin
Thickness of the lead of a pencil
Length of a grain of rice
2 mm
2 mm
7 mm
cmLength of an eraser
Length of a chalk stick
Width of a mobile phone
4 cm
8 cm
7 cm
mHeight of a door
Length of the classroom
Height of your teacher
2 m
8 m
1.6 m

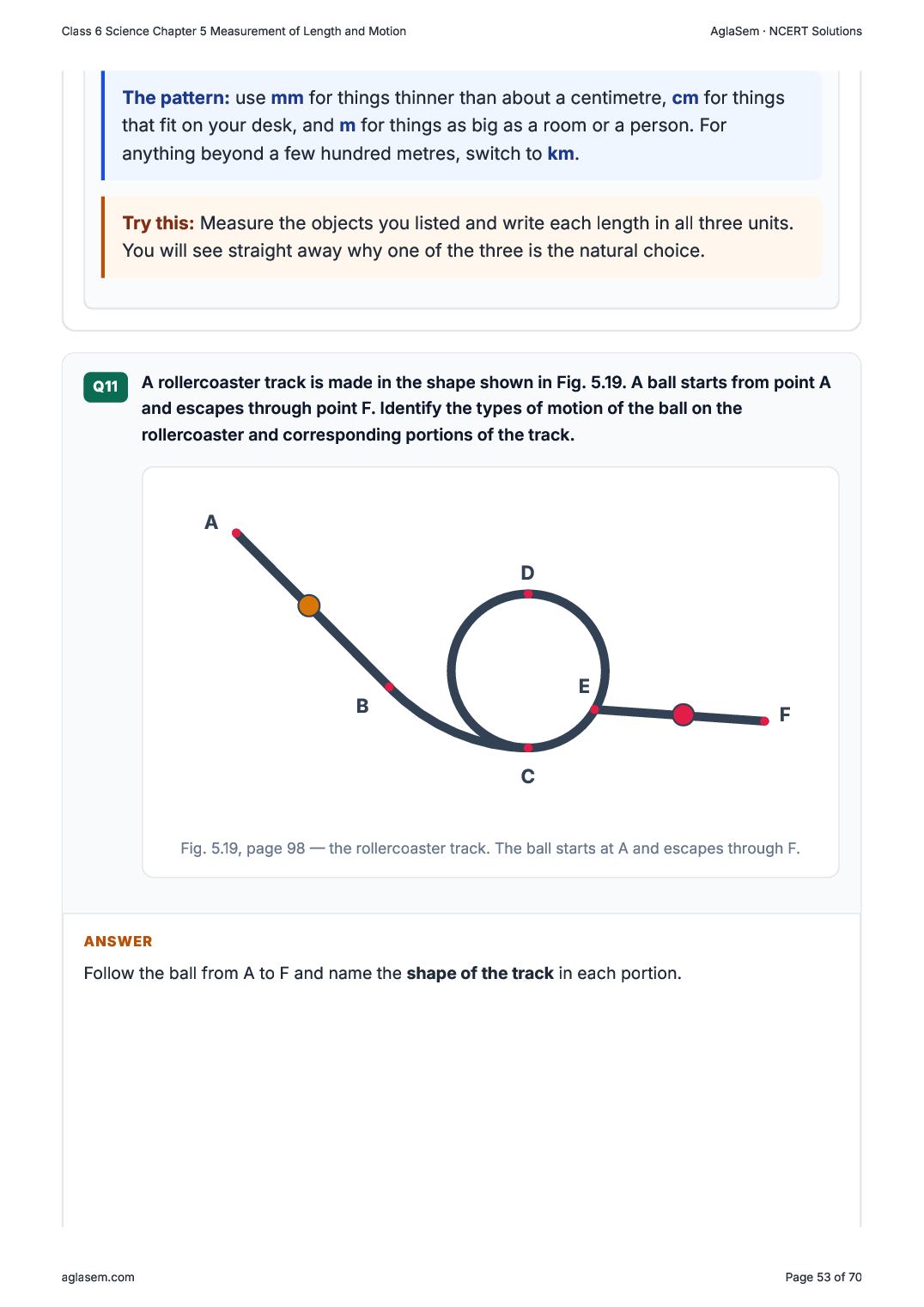

Q11A rollercoaster track is made in the shape shown in Fig. 5.19. A ball starts from point A and escapes through point F. Identify the types of motion of the ball on the rollercoaster and corresponding portions of the track.
A B C D E F
Fig. 5.19, page 98 — the rollercoaster track. The ball starts at A and escapes through F.
Answer

Follow the ball from A to F and name the shape of the track in each portion.

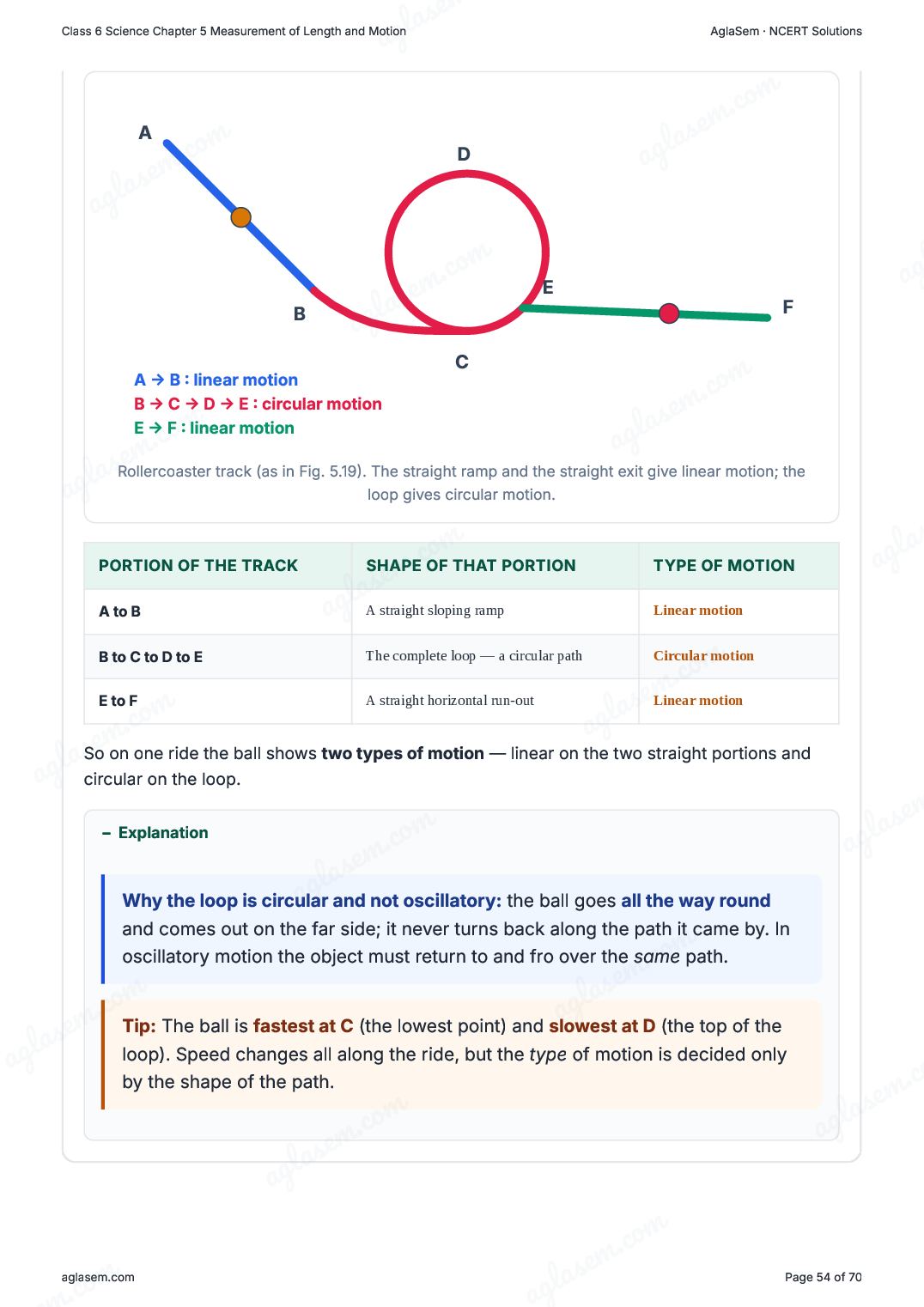

ABC DEF A → B : linear motion B → C → D → E : circular motion E → F : linear motion
Rollercoaster track (as in Fig. 5.19). The straight ramp and the straight exit give linear motion; the loop gives circular motion.
Portion of the trackShape of that portionType of motion
A to BA straight sloping rampLinear motion
B to C to D to EThe complete loop — a circular pathCircular motion
E to FA straight horizontal run-outLinear motion

So on one ride the ball shows two types of motion — linear on the two straight portions and circular on the loop.

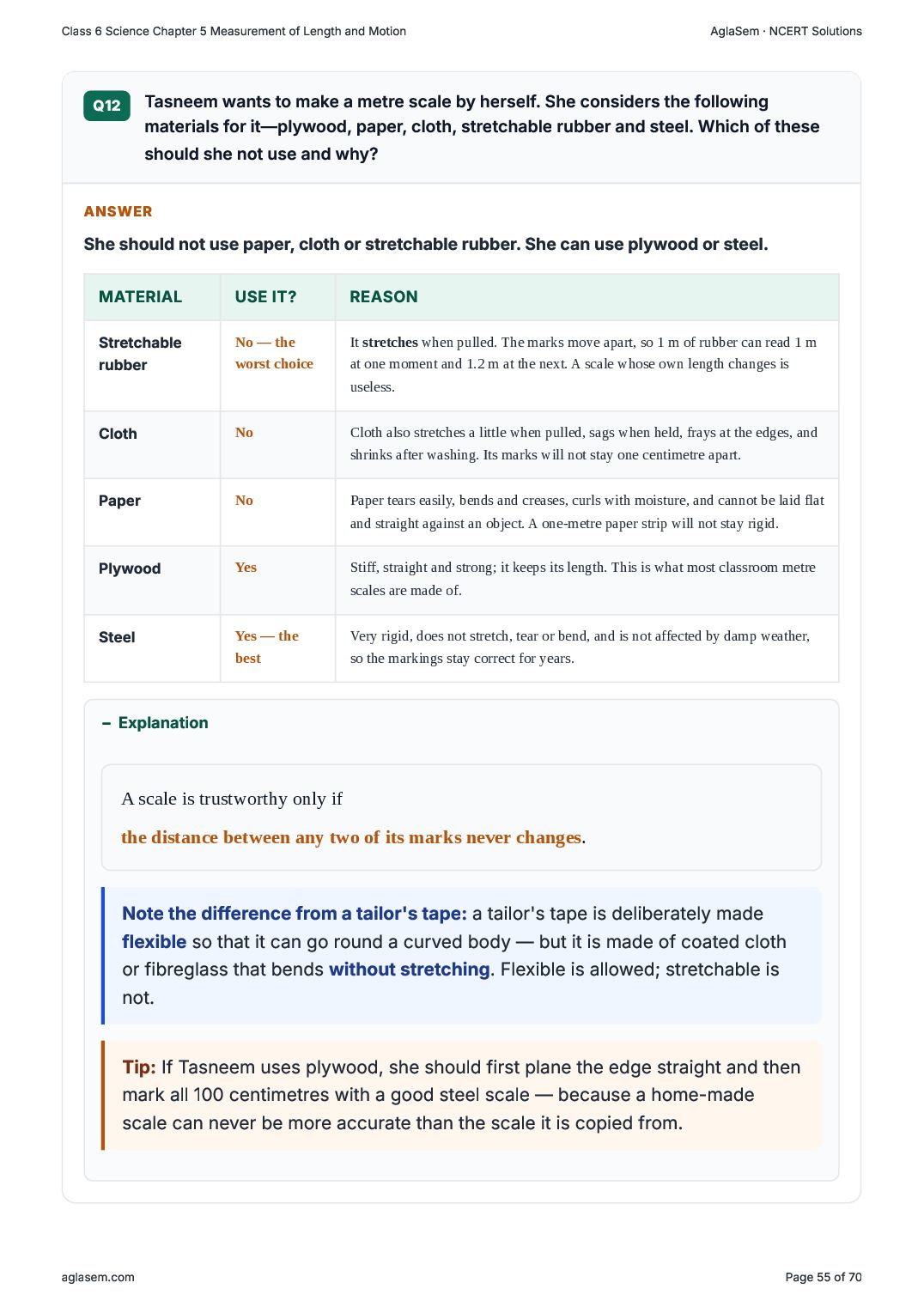

Q12Tasneem wants to make a metre scale by herself. She considers the following materials for it—plywood, paper, cloth, stretchable rubber and steel. Which of these should she not use and why?
Answer

She should not use paper, cloth or stretchable rubber. She can use plywood or steel.

MaterialUse it?Reason
Stretchable rubberNo — the worst choiceIt stretches when pulled. The marks move apart, so 1 m of rubber can read 1 m at one moment and 1.2 m at the next. A scale whose own length changes is useless.
ClothNoCloth also stretches a little when pulled, sags when held, frays at the edges, and shrinks after washing. Its marks will not stay one centimetre apart.
PaperNoPaper tears easily, bends and creases, curls with moisture, and cannot be laid flat and straight against an object. A one-metre paper strip will not stay rigid.
PlywoodYesStiff, straight and strong; it keeps its length. This is what most classroom metre scales are made of.
SteelYes — the bestVery rigid, does not stretch, tear or bend, and is not affected by damp weather, so the markings stay correct for years.

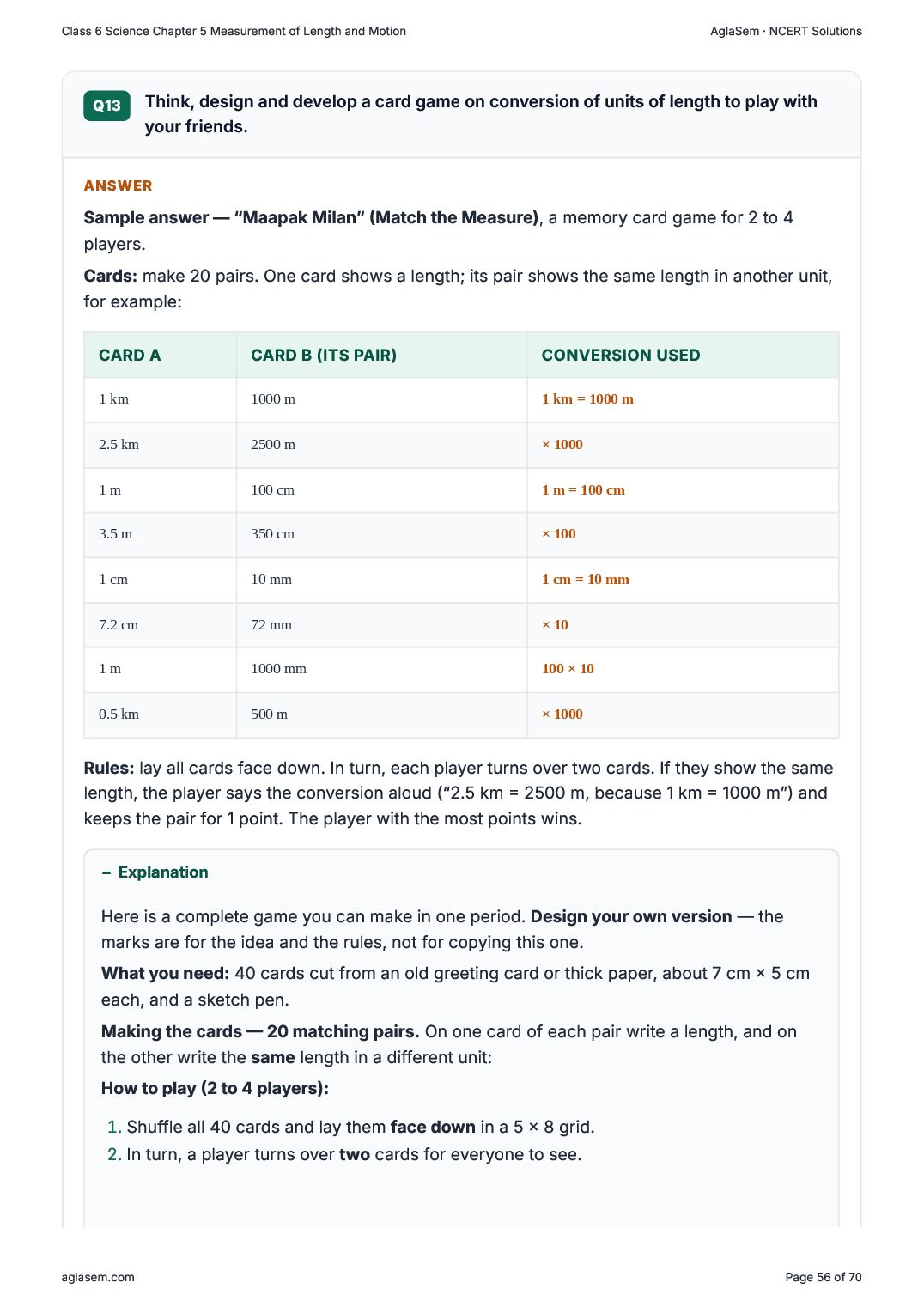

Q13Think, design and develop a card game on conversion of units of length to play with your friends.
Answer

Sample answer — “Maapak Milan” (Match the Measure), a memory card game for 2 to 4 players.

Cards: make 20 pairs. One card shows a length; its pair shows the same length in another unit, for example:

Card ACard B (its pair)Conversion used
1 km1000 m1 km = 1000 m
2.5 km2500 m× 1000
1 m100 cm1 m = 100 cm
3.5 m350 cm× 100
1 cm10 mm1 cm = 10 mm
7.2 cm72 mm× 10
1 m1000 mm100 × 10
0.5 km500 m× 1000

Rules: lay all cards face down. In turn, each player turns over two cards. If they show the same length, the player says the conversion aloud (“2.5 km = 2500 m, because 1 km = 1000 m”) and keeps the pair for 1 point. The player with the most points wins.

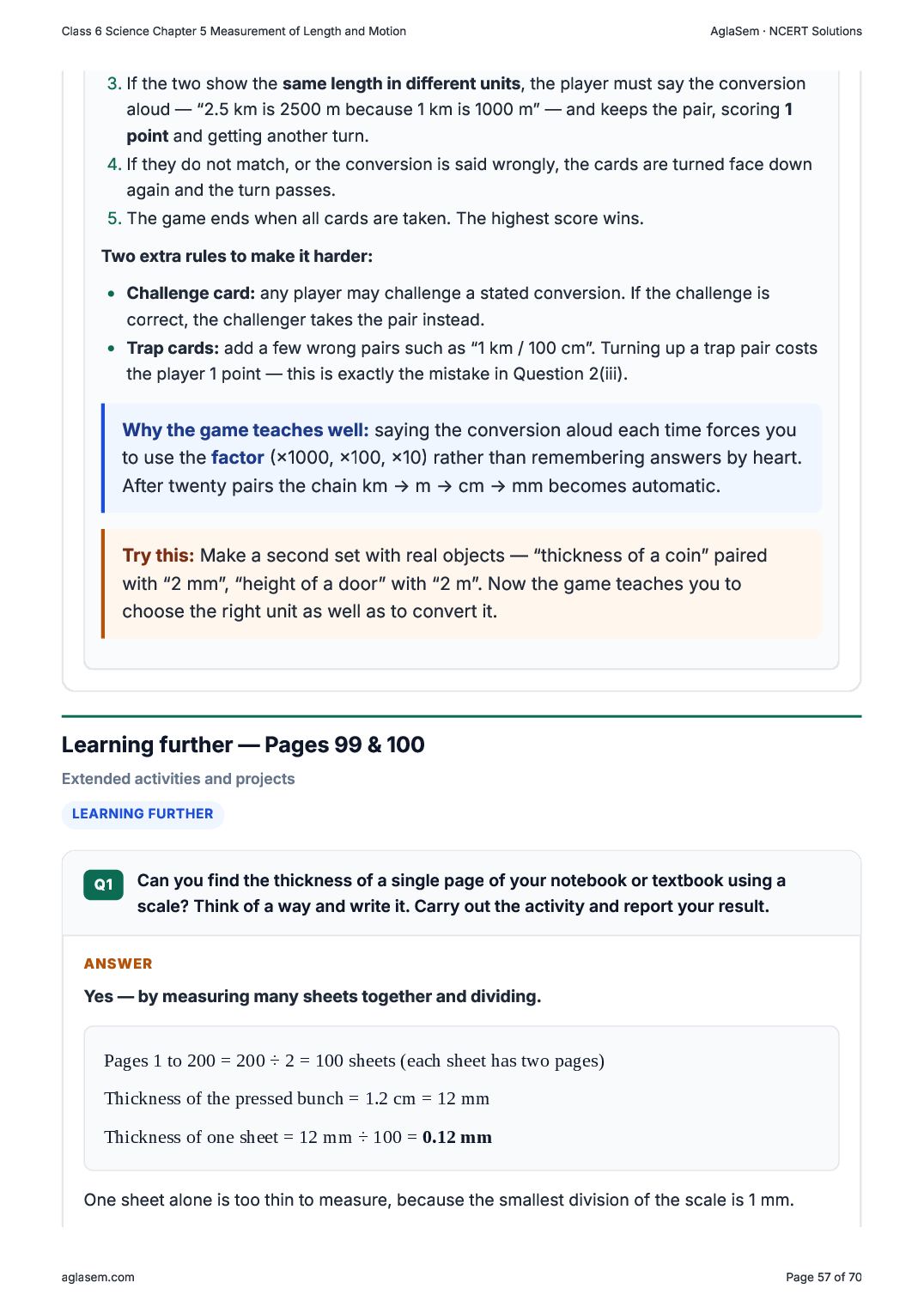

Learning further — Pages 99 & 100Extended activities and projects

Learning further

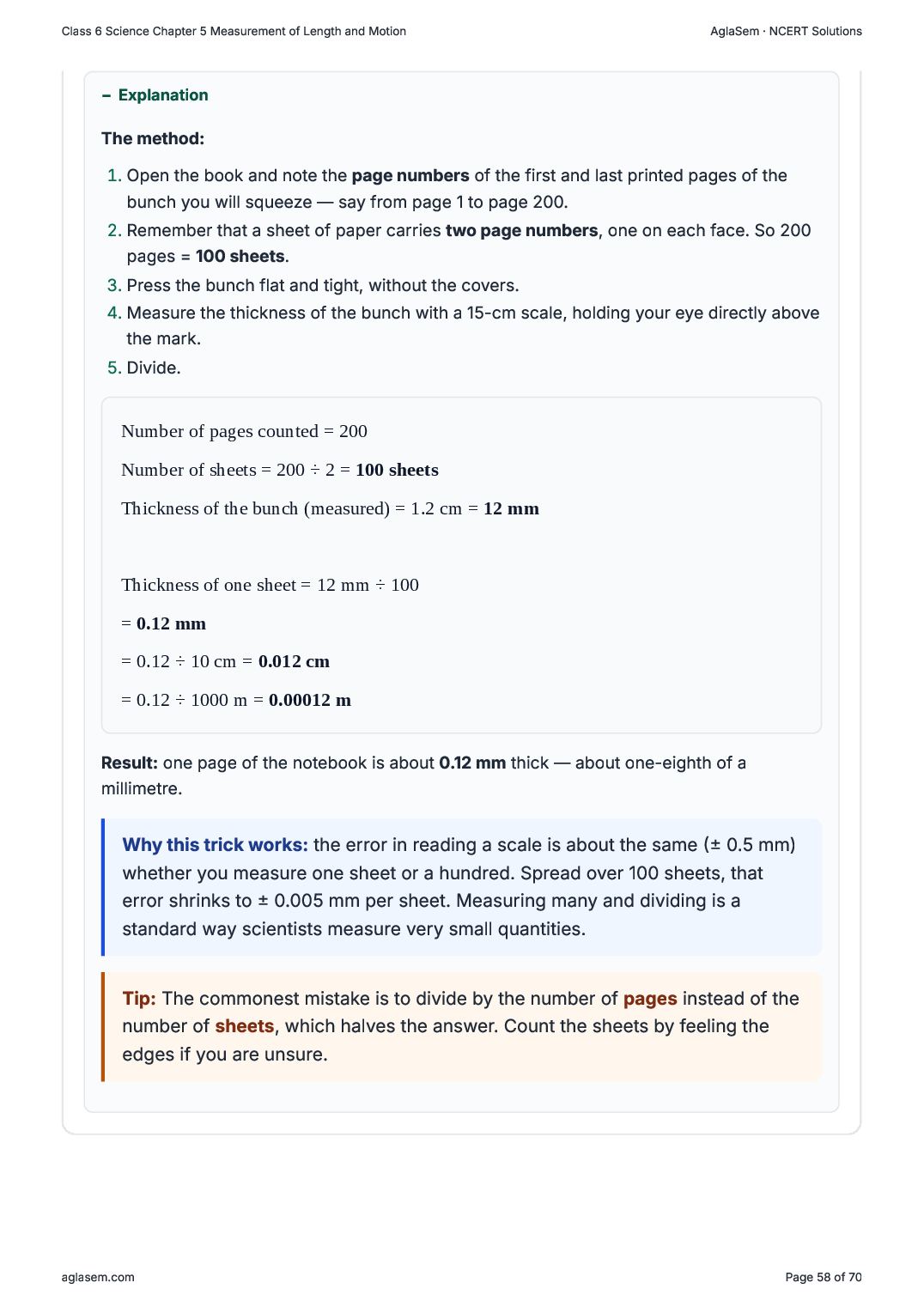

Q1Can you find the thickness of a single page of your notebook or textbook using a scale? Think of a way and write it. Carry out the activity and report your result.
Answer

Yes — by measuring many sheets together and dividing.

Pages 1 to 200 = 200 ÷ 2 = 100 sheets (each sheet has two pages)
Thickness of the pressed bunch = 1.2 cm = 12 mm
Thickness of one sheet = 12 mm ÷ 100 = 0.12 mm

One sheet alone is too thin to measure, because the smallest division of the scale is 1 mm.

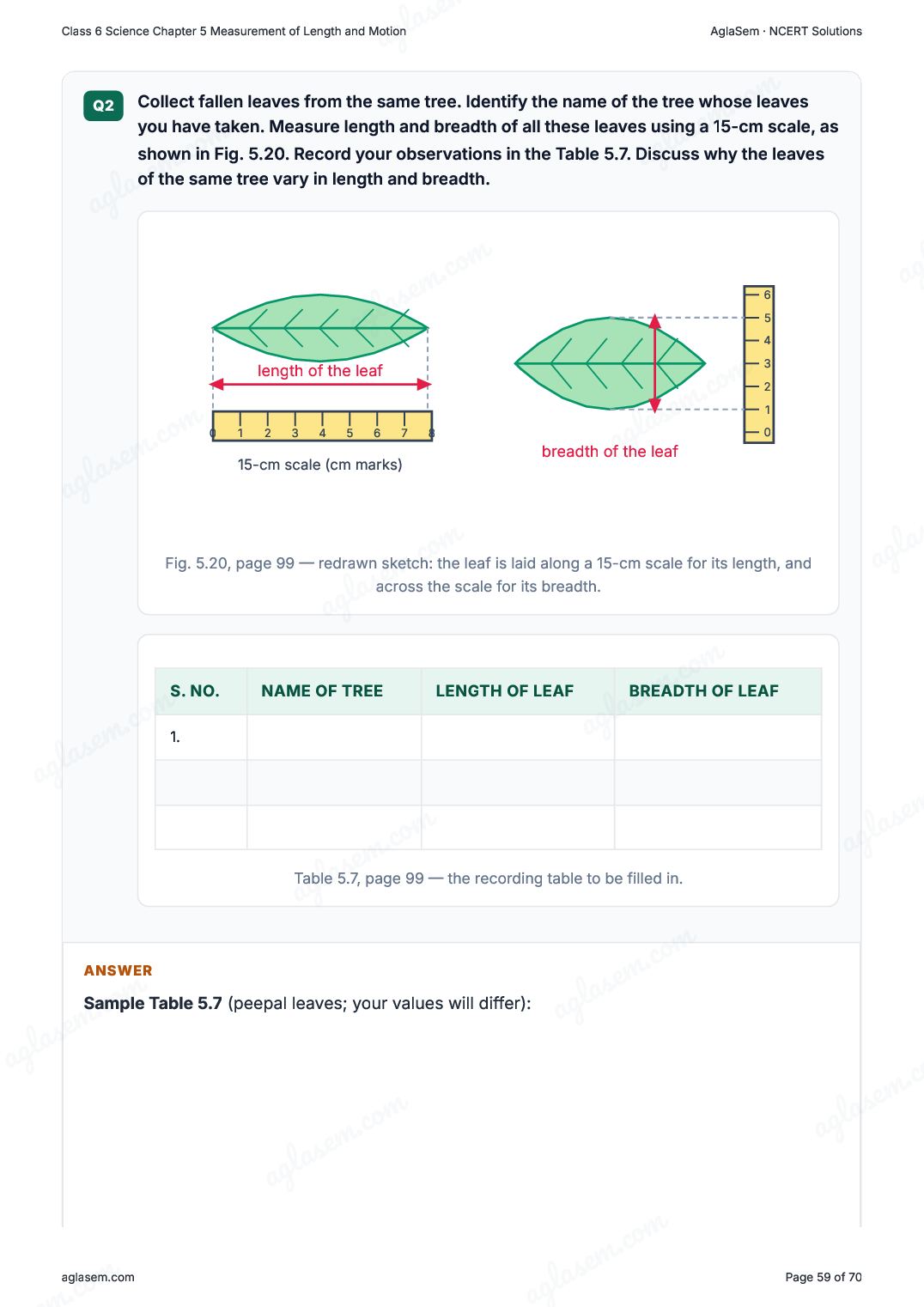

Q2Collect fallen leaves from the same tree. Identify the name of the tree whose leaves you have taken. Measure length and breadth of all these leaves using a 15-cm scale, as shown in Fig. 5.20. Record your observations in the Table 5.7. Discuss why the leaves of the same tree vary in length and breadth.
0 1 2 3 4 5 6 7 8 length of the leaf 15-cm scale (cm marks) 0 1 2 3 4 5 6 breadth of the leaf
Fig. 5.20, page 99 — redrawn sketch: the leaf is laid along a 15-cm scale for its length, and across the scale for its breadth.
S. no.Name of treeLength of leafBreadth of leaf
1.


Table 5.7, page 99 — the recording table to be filled in.
Answer

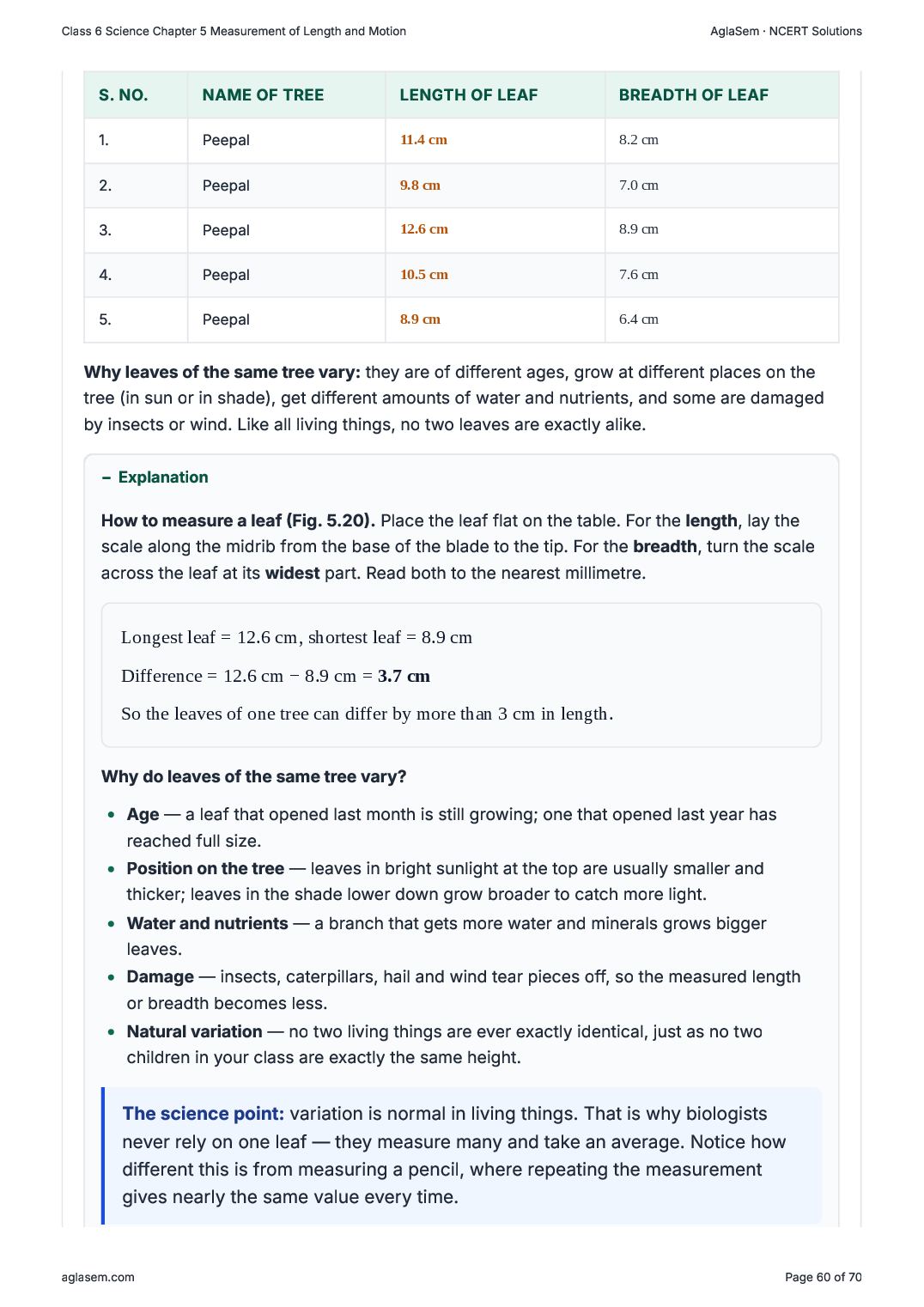

Sample Table 5.7 (peepal leaves; your values will differ):

S. no.Name of treeLength of leafBreadth of leaf
1.Peepal11.4 cm8.2 cm
2.Peepal9.8 cm7.0 cm
3.Peepal12.6 cm8.9 cm
4.Peepal10.5 cm7.6 cm
5.Peepal8.9 cm6.4 cm

Why leaves of the same tree vary: they are of different ages, grow at different places on the tree (in sun or in shade), get different amounts of water and nutrients, and some are damaged by insects or wind. Like all living things, no two leaves are exactly alike.

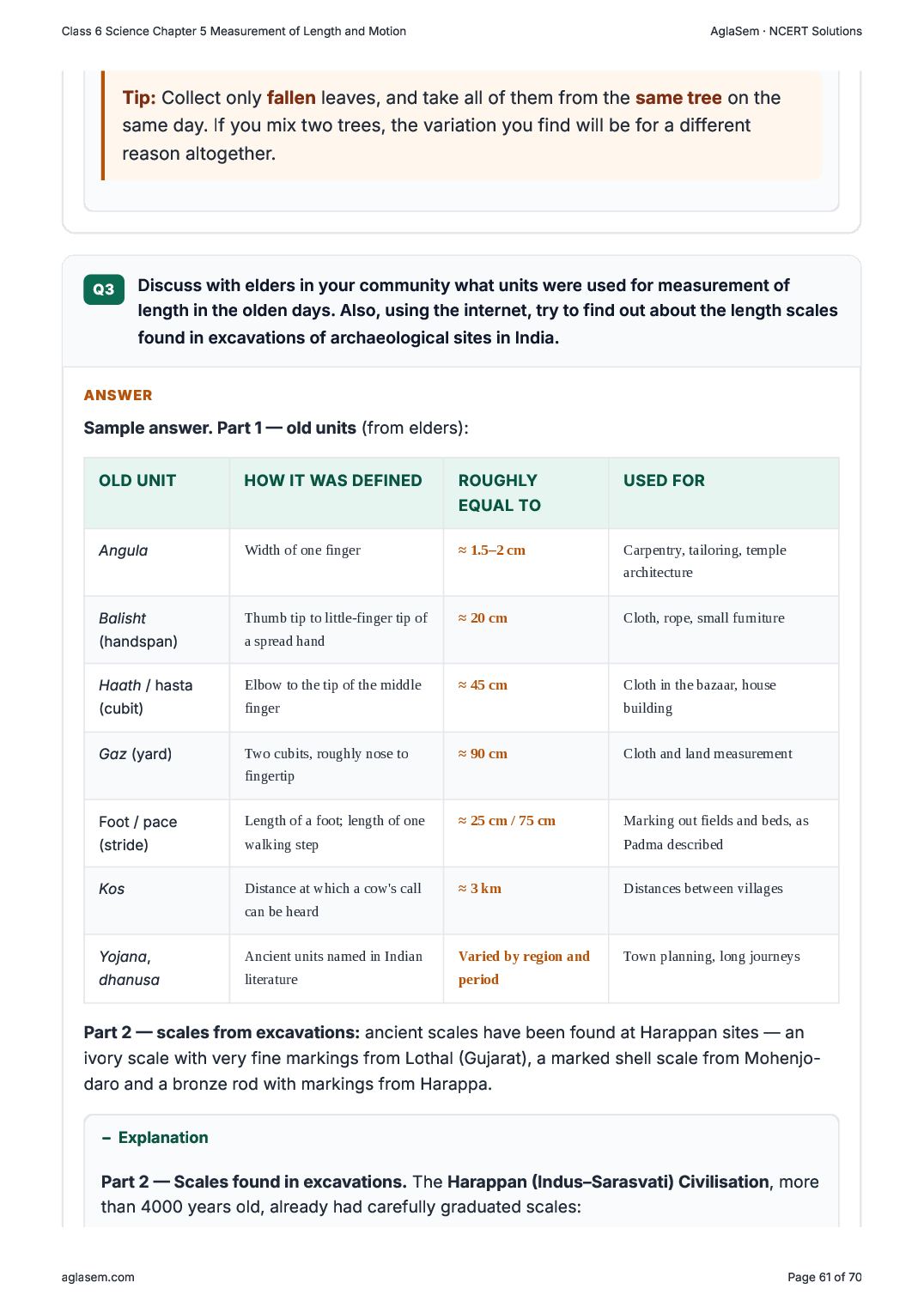

Q3Discuss with elders in your community what units were used for measurement of length in the olden days. Also, using the internet, try to find out about the length scales found in excavations of archaeological sites in India.
Answer

Sample answer. Part 1 — old units (from elders):

Old unitHow it was definedRoughly equal toUsed for
AngulaWidth of one finger≈ 1.5–2 cmCarpentry, tailoring, temple architecture
Balisht (handspan)Thumb tip to little-finger tip of a spread hand≈ 20 cmCloth, rope, small furniture
Haath / hasta (cubit)Elbow to the tip of the middle finger≈ 45 cmCloth in the bazaar, house building
Gaz (yard)Two cubits, roughly nose to fingertip≈ 90 cmCloth and land measurement
Foot / pace (stride)Length of a foot; length of one walking step≈ 25 cm / 75 cmMarking out fields and beds, as Padma described
KosDistance at which a cow’s call can be heard≈ 3 kmDistances between villages
Yojana, dhanusaAncient units named in Indian literatureVaried by region and periodTown planning, long journeys

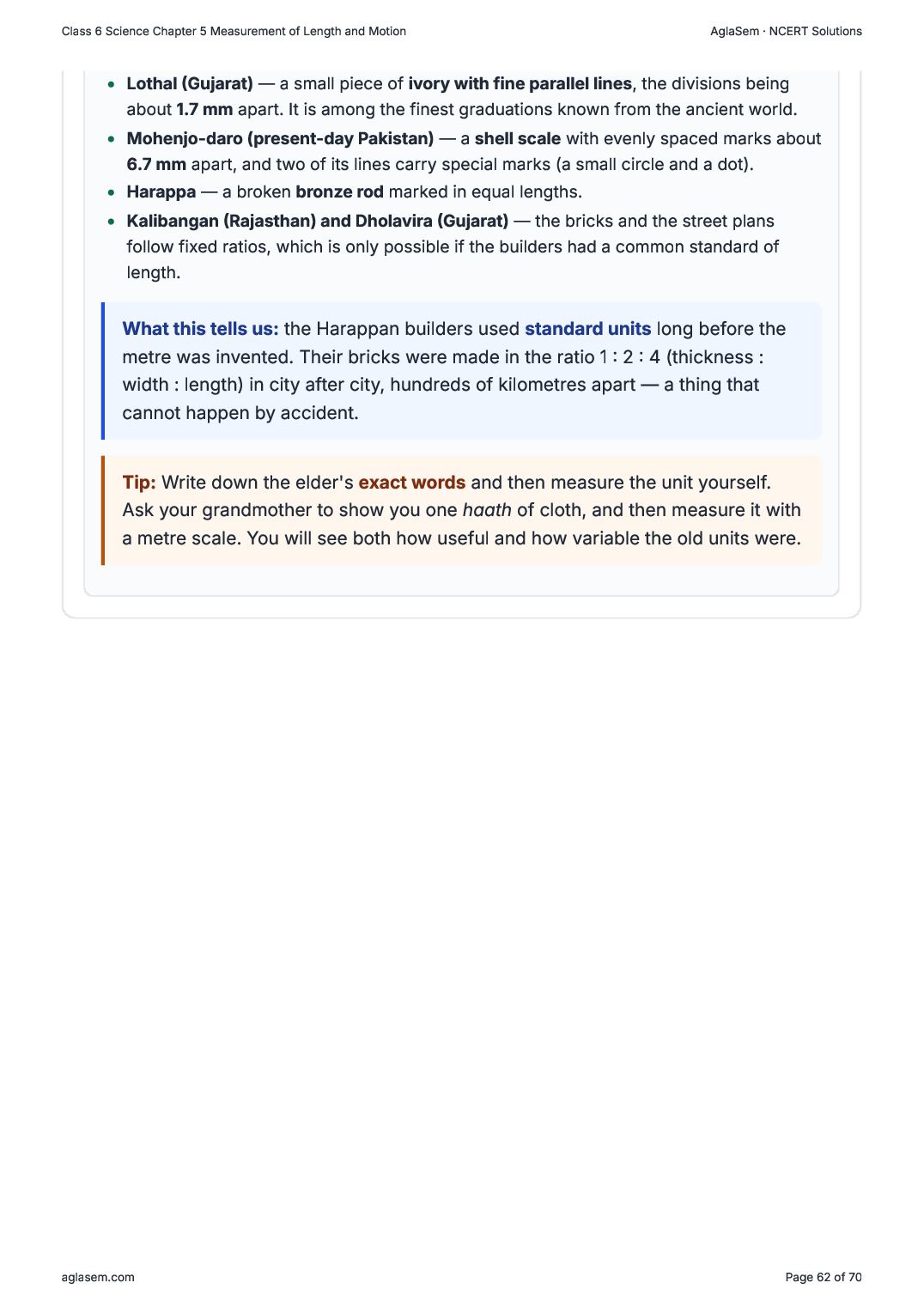

Part 2 — scales from excavations: ancient scales have been found at Harappan sites — an ivory scale with very fine markings from Lothal (Gujarat), a marked shell scale from Mohenjo-daro and a bronze rod with markings from Harappa.

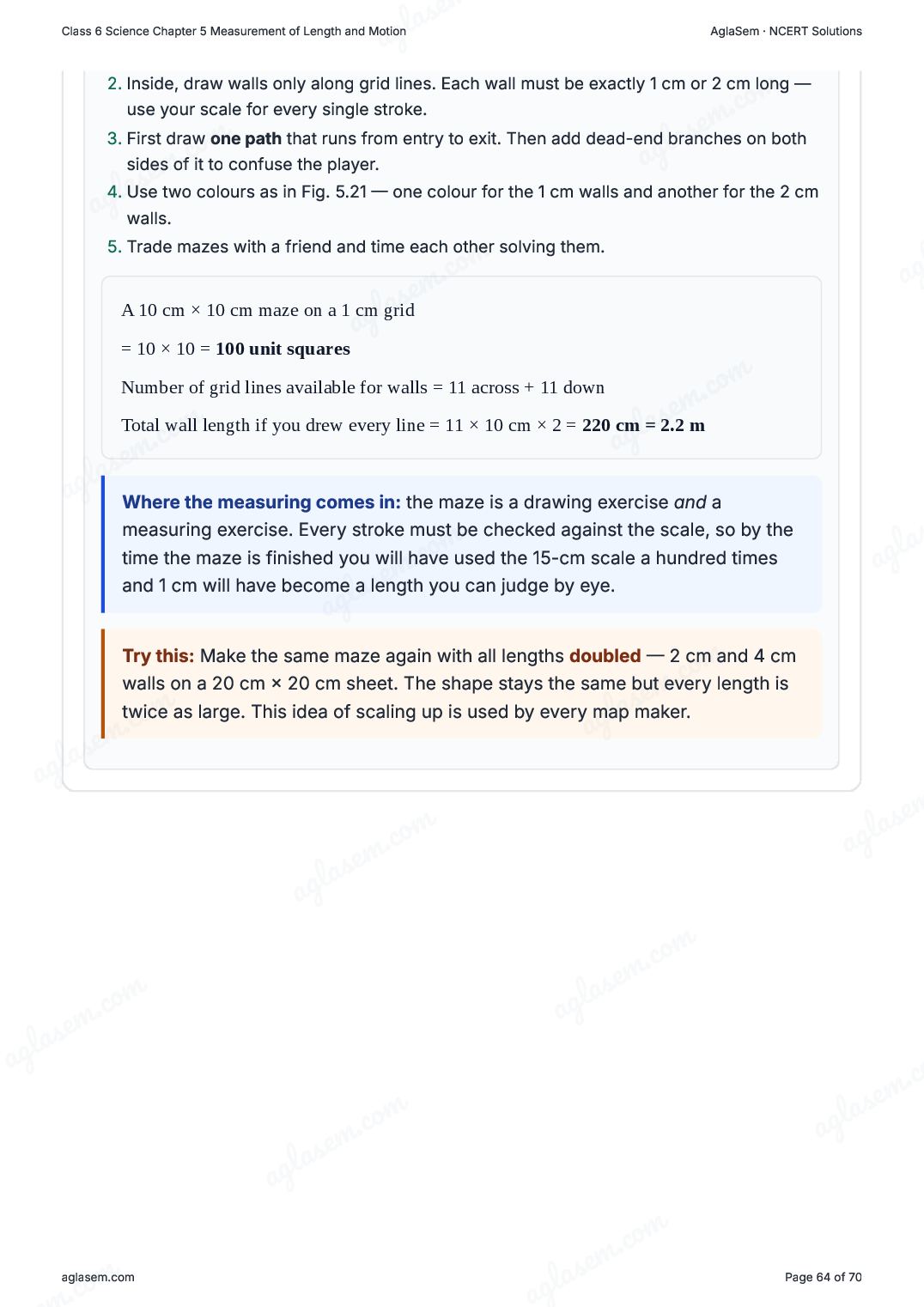

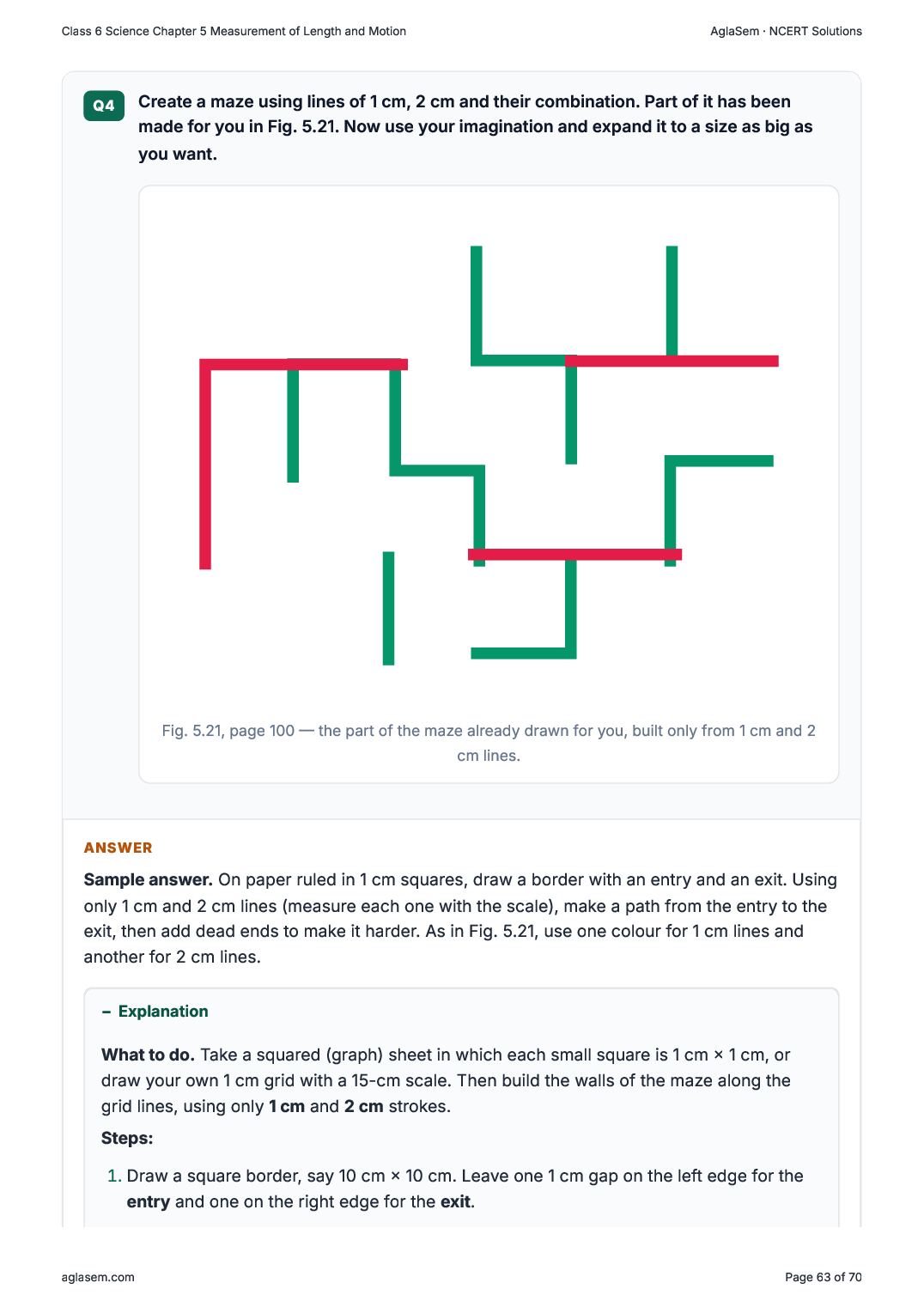

Q4Create a maze using lines of 1 cm, 2 cm and their combination. Part of it has been made for you in Fig. 5.21. Now use your imagination and expand it to a size as big as you want.
Fig. 5.21, page 100 — the part of the maze already drawn for you, built only from 1 cm and 2 cm lines.
Answer

Sample answer. On paper ruled in 1 cm squares, draw a border with an entry and an exit. Using only 1 cm and 2 cm lines (measure each one with the scale), make a path from the entry to the exit, then add dead ends to make it harder. As in Fig. 5.21, use one colour for 1 cm lines and another for 2 cm lines.

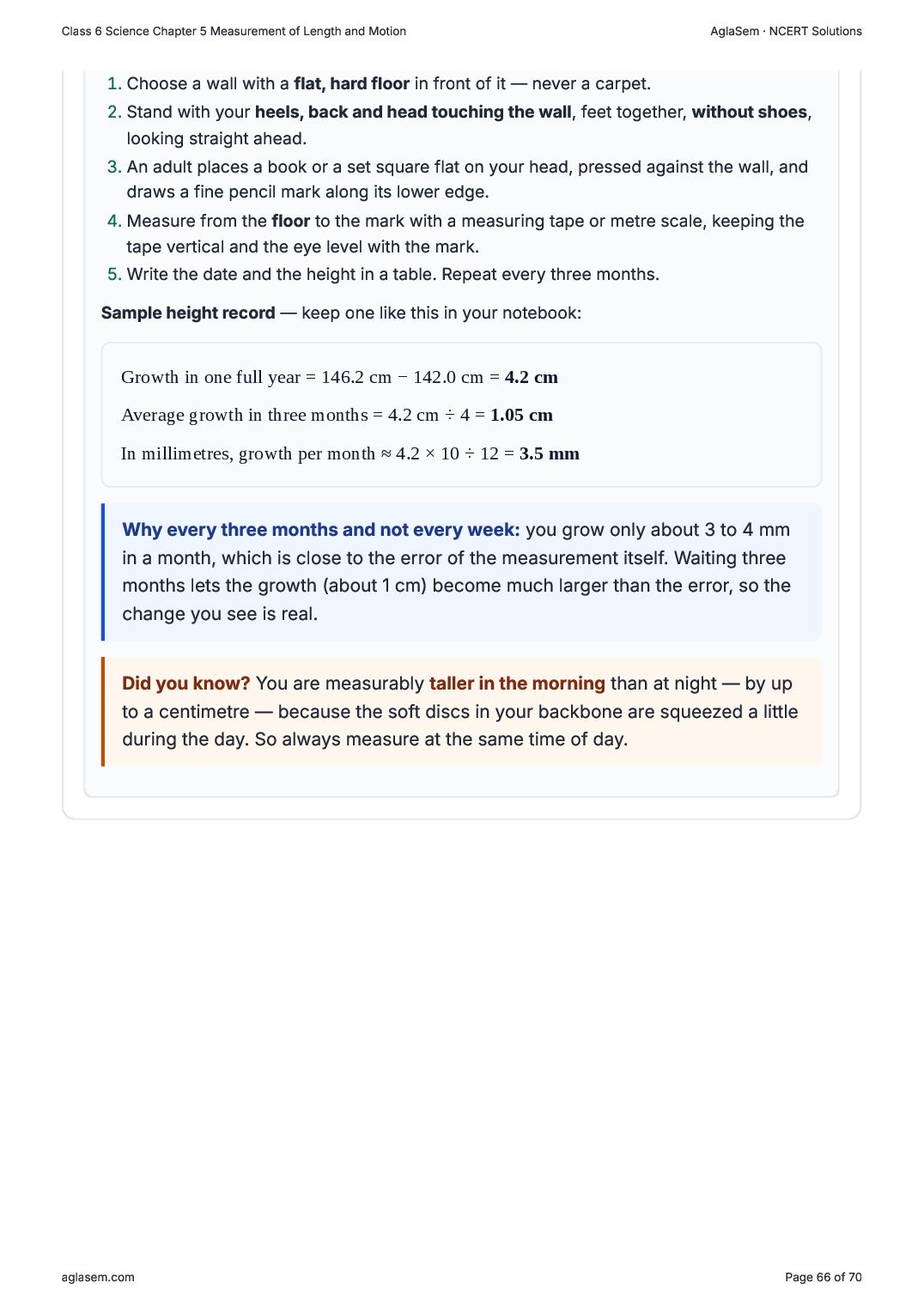

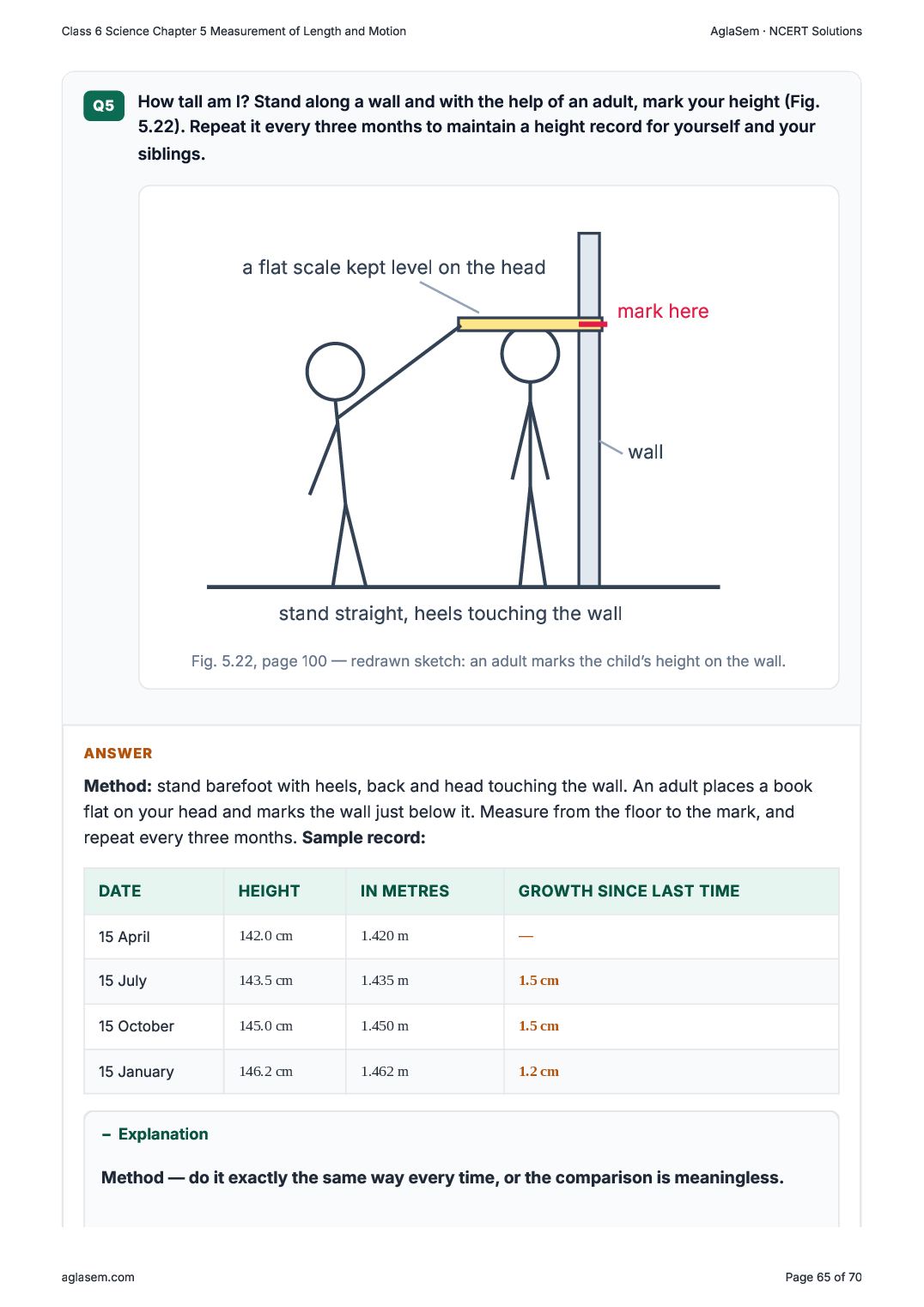

Q5How tall am I? Stand along a wall and with the help of an adult, mark your height (Fig. 5.22). Repeat it every three months to maintain a height record for yourself and your siblings.
mark here a flat scale kept level on the head wall stand straight, heels touching the wall
Fig. 5.22, page 100 — redrawn sketch: an adult marks the child’s height on the wall.
Answer

Method: stand barefoot with heels, back and head touching the wall. An adult places a book flat on your head and marks the wall just below it. Measure from the floor to the mark, and repeat every three months. Sample record:

DateHeightIn metresGrowth since last time
15 April142.0 cm1.420 m—
15 July143.5 cm1.435 m1.5 cm
15 October145.0 cm1.450 m1.5 cm
15 January146.2 cm1.462 m1.2 cm

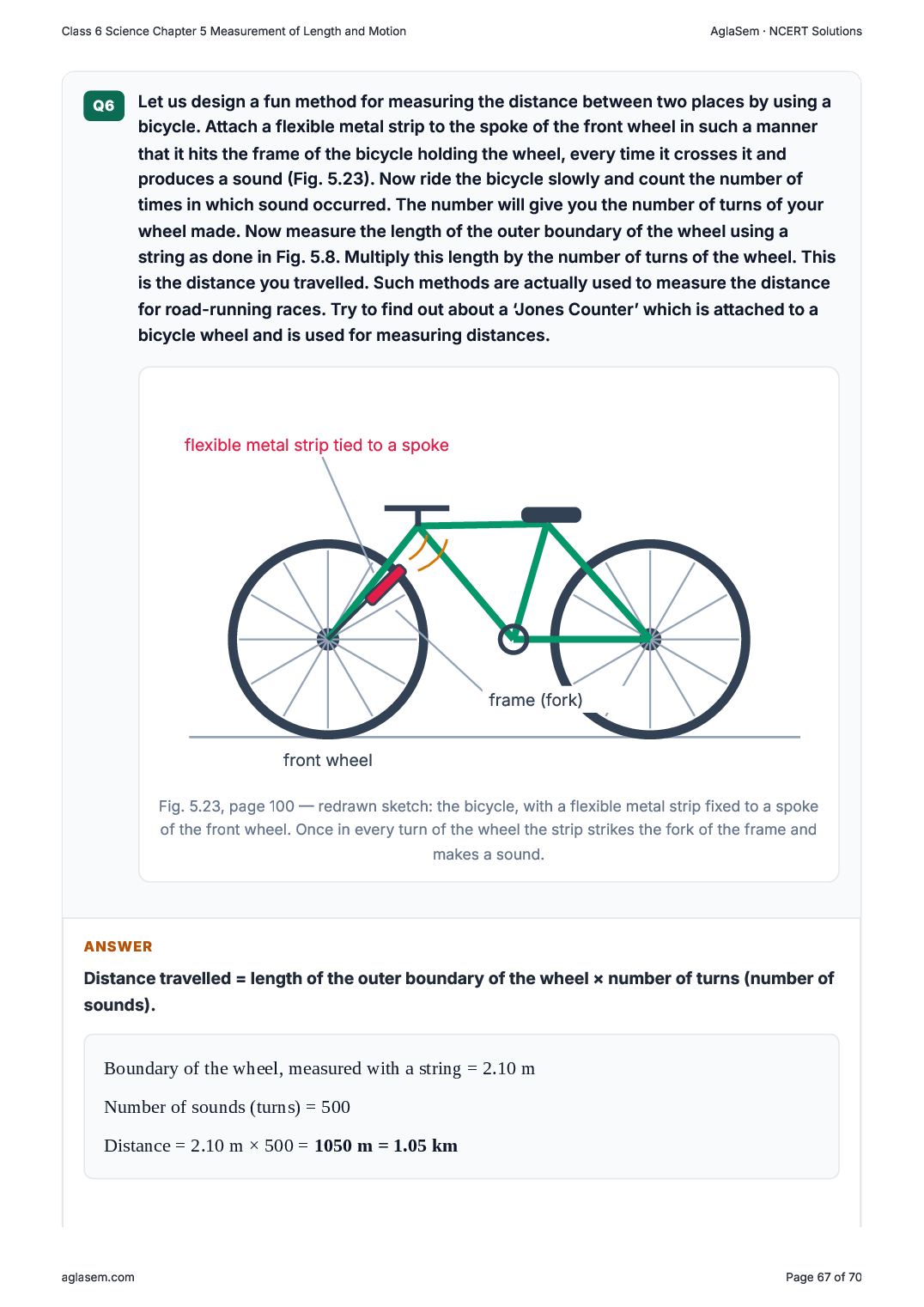

Q6Let us design a fun method for measuring the distance between two places by using a bicycle. Attach a flexible metal strip to the spoke of the front wheel in such a manner that it hits the frame of the bicycle holding the wheel, every time it crosses it and produces a sound (Fig. 5.23). Now ride the bicycle slowly and count the number of times in which sound occurred. The number will give you the number of turns of your wheel made. Now measure the length of the outer boundary of the wheel using a string as done in Fig. 5.8. Multiply this length by the number of turns of the wheel. This is the distance you travelled. Such methods are actually used to measure the distance for road-running races. Try to find out about a ‘Jones Counter’ which is attached to a bicycle wheel and is used for measuring distances.
flexible metal strip tied to a spoke frame (fork) front wheel
Fig. 5.23, page 100 — redrawn sketch: the bicycle, with a flexible metal strip fixed to a spoke of the front wheel. Once in every turn of the wheel the strip strikes the fork of the frame and makes a sound.
Answer

Distance travelled = length of the outer boundary of the wheel × number of turns (number of sounds).

Boundary of the wheel, measured with a string = 2.10 m
Number of sounds (turns) = 500
Distance = 2.10 m × 500 = 1050 m = 1.05 km

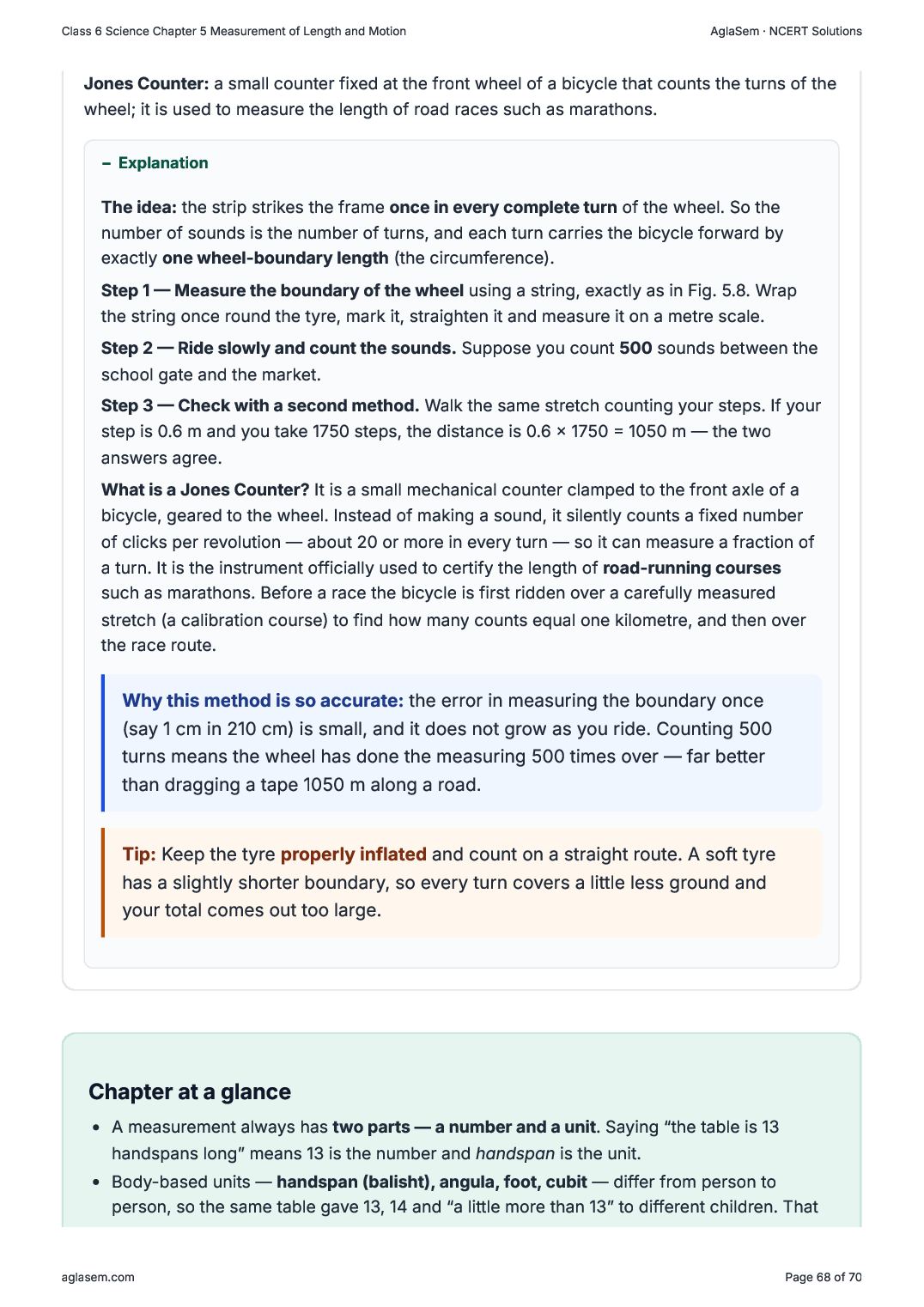

Jones Counter: a small counter fixed at the front wheel of a bicycle that counts the turns of the wheel; it is used to measure the length of road races such as marathons.

Chapter 5 of 12 – Science

Also for This Chapter

NCERT Solutions Class 6 Science Chapter 5 Measurement of Length and Motion – Overview

ClassClass 6
SubjectScience
Chapter5 – Measurement of Length and Motion
Textbook pages79 – 100
Questions solved48
Session2027
FormatFull answers on this page + PDF

NCERT Solutions Class 6 Science Chapter 5 – FAQs

Where can I download NCERT Solutions Class 6 Science Chapter 5 Measurement of Length and Motion PDF?

Read every answer on this page, or download the free PDF from the table at the top.

Is this for the 2027 session?

Yes, it follows the latest NCERT Class 6 Science book for 2027.

How many questions are solved in NCERT Class 6 Science Chapter 5?

All 48 questions of the chapter (textbook pages 79 – 100) – the in-text questions, activities and the end-of-chapter exercises.

How should I use these solutions?

Read the chapter in the NCERT book first, attempt the questions yourself, then check your answers here.

Official website: ncert.nic.inNational Council of Educational Research and Training publishes date sheets, admit cards and results here
Visit

Ask a question

?

Loading comments…
